Path: ASIDE menu > Search > Advanced search URL: gui/templates/search/searchAdvancedView.html?tproject_id=<id> BFF API: api/search/index.php (action=fulltext; session-based auth, JSON I/O) Prerequisite: view_tc grant on the current test project (same visibility rule as legacy getMenuVisibility()); requirement sections appear only when the project has requirements enabled. Replaces: legacy lib/search/searchMgmt.php (form) + lib/search/search.php (engine), gui/templates/dashio/search/searchGUI.inc.tpl (ExtJS results grid). The BFF reuses TestLink's own searchCommands class, so SQL semantics are identical to 1.9.20.

The 1.9.20 "multiple entities" free-text search: one search text is looked up across four node types of the current test project only:

Multiple words are treated as separate terms and combined with the selected operator (AND = all terms must match, OR = any term matches), exactly like the legacy and_or select. HTML is stripped before matching through the MySQL function UDFStripHTMLTags (same as legacy).

Legacy parity notes:

• at least one field checkbox must be checked (legacy re-rendered the form otherwise; the modern screen shows a localized warning instead);
• date filters apply to test case versions only — upstream builds a dates4rq filter for requirements but never consumes it (searchCommands.class.php), so this screen inherits the same behavior;
• an entirely empty search returns all latest test case versions server-side (legacy semantics kept in the API); the UI asks for at least one criterion before sending;
• the legacy requirement type filter is not offered: upstream never delivers it to the engine correctly (lib/search/search.php:74 strips the RQ prefix from the wrong property, so the generated SQL can never match);
• requirement field checkboxes are only submitted when requirements are enabled on the project (legacy omitted the inputs entirely).

Results are rendered as one sectioned table per entity type, each with its own columns:

• Test Cases — path, clickable PREFIX-extid [vN] :: Name (opens the read-only tcView popup), summary snippet, edit + execution-history buttons;
• Test Suites — name (edit popup via archiveData.php?edit=testsuite) and stripped details;
• Requirement Specs — Name [rN] (opens the specification detail screen reqSpecView.html?id=<req_spec_id>) and stripped scope;
• Requirements — doc id, name + version.revision tag, full path, scope.

A global match counter shows the total across entities; warnings ("empty test project", "no records found") reuse the localized strings of the other search screens.

All labels live under the searchAdv.* namespace; shared strings are reused from the existing search.* keys. The 18 new keys were added to all ten locale bundles (en, de, es, fr, it, ja, pt, ro, ru, zh) and every bundle was validated with python3 -m json.tool.

Test suite 28 in tmp/TLU_Test_Cases.md — 17/17 PASS (BFF parity, AND/OR term logic, per-field scoping, keyword/CF/author/date filters, validation paths, locale switching, aside link switch, Event Viewer clean).

Environment note: a fresh database import lacks the MySQL function UDFStripHTMLTags, which makes both legacy and modernized advanced search fail with a DB access error. Fixed in issue #547: searchCommands now probes information_schema.routines and automatically falls back to plain LIKE matching when the function is absent — identical semantics to upstream option $tlCfg->UDFStripHTMLTags=false. Deployments that want HTML stripping should provision it from install/sql/mysql/testlink_create_udf0.sql (the sample-db restore scripts docs/db_sample/restore_sample.sh / .bat do this automatically). Note for self-managed MySQL 8 servers with binary logging enabled: creating routines additionally needs SUPER or log_bin_trust_function_creators=1 (MariaDB used by this project's CI has binary logging off).

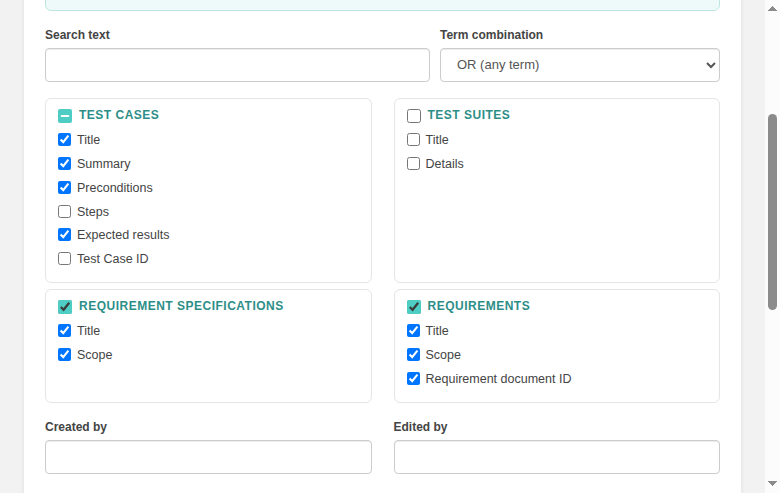

Each of the four attribute groups of the search form now has a master checkbox in its header (left of the group title) that toggles every field of that group in one click — the modern port of the legacy toggle_all icon + cs_all_checkbox_in_div() from searchGUI.inc.tpl:59-61,76-78,86-88,97-99.

Behavior:

• clicking the master checks all fields of its group when at least one is unchecked (including the indeterminate state) and unchecks them all when every field is already checked — same alternation as the legacy icon;
• the master reflects the real group state at all times: checked when all fields are on, indeterminate when only some are, unchecked when none are. It re-syncs after every individual checkbox change and after Reset;
• the master never reaches the BFF: its ids are all_tc / all_ts / all_rs / all_rq, which do not match the tc_ / ts_ / rs_ / rq_ prefixes doSearch() collects, so the submitted search keys are unchanged;
• the tooltip comes from the new searchAdv.checkUncheckAll key, present in all ten locale bundles (Check / uncheck all, Bifează / debifează tot, ...) and applied through data-i18n-title.

No BFF change was needed — api/search/index.php already consumed every field flag. Verified 14/14 PASS (test suite Task — Issue #1095 in tmp/TLU_Test_Cases.md): toggle/indeterminate/reset matrix, requirements enabled project (all four groups), locale=ro reload (translations applied, headers and masters survive TLi18n.apply()), search regression and a clean Event Viewer. Pre-existing console error found while testing and filed separately as #1856 (out of scope, not fixed here).

Clicking a Requirement Specifications result now opens the specific specification at reqSpecView.html?id=<req_spec_id>&tproject_id=<id> — the target legacy built with openLinkedReqSpecWindow() (lib/search/search.php:316 → gui/javascript/testlink_library.js:1156-1166).

Before (issue #1096): the handler openReqSpecEdit(rsId) received the spec id from the result row and then ignored it, always opening the generic management grid:

function openReqSpecEdit(rsId) {
  var url = '/gui/templates/requirements/reqSpecMgmt.html?' + (tprojectId ? 'tproject_id=' + tprojectId : '');
  ...
}

After: the handler is renamed to openReqSpecView() (it no longer edits anything) and passes the id through, mirroring the sibling handlers openTcEdit / openTsEdit / openReqEdit:

function openReqSpecView(rsId) {
  var url = '/gui/templates/requirements/reqSpecView.html?id=' + rsId +
            (tprojectId ? '&tproject_id=' + tprojectId : '');
  window.open(url, '_blank', 'width=1024,height=768,resizable=yes,scrollbars=yes');
}

Notes:

• no BFF change was needed — api/search/index.php already returned req_spec_id for every result row (api/search/index.php:604);
• reqSpecView.html reads the id from id or req_spec_id (reqSpecView.html:310), so the emitted ?id= URL is unambiguous;
• verified 11/11 PASS (test suite Task — Issue #1096 in tmp/TLU_Test_Cases.md): both result rows open their own specification (id=9097 renders SPEC Alpha, id=9098 renders SPEC Beta), the Test Case / Test Suite links of the same screen still open tcView.html / suiteView.html, the i18n coverage gate passes (no new keys), and the Event Viewer gained no Error/Warning entries;
• two defects found while testing were filed separately instead of being folded into this change: #1865 (the simple Search screen searchMgmt.html:387 links results with reqspec_id=, a parameter reqSpecView.html never reads) and the pre-existing console error ReferenceError: p is not defined (#1856).

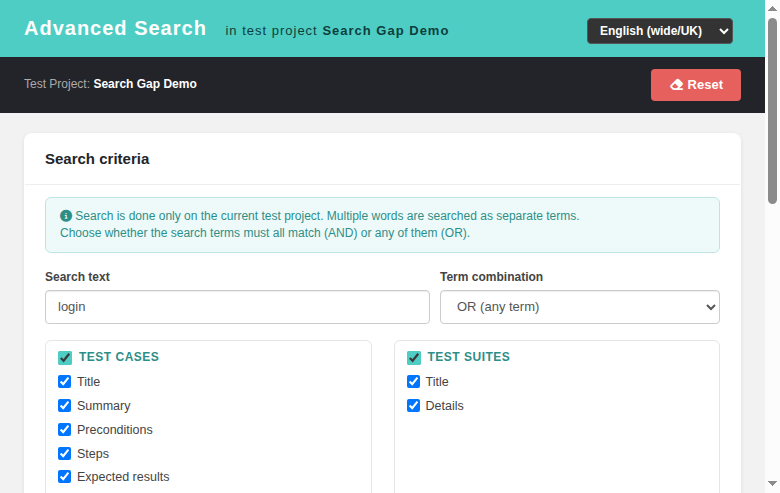

When the screen URL carries a search target term (searchAdvancedView.html?tproject_id=<id>&target=<term>), the form now submits itself on load exactly like legacy (lib/search/searchMgmt.php:99 forceSearch → dashio/search/searchGUI.inc.tpl:257-259): the box is prefilled with the term and doSearch() runs immediately, so deep links (navBar one-box hand-off, bookmarked searches) land straight on results — no manual Find click needed.

Before (issue #1097) the deep link was doubly broken:

• searchAdvancedView.html scoped var p = new URLSearchParams(...) inside the jQuery-ready closure, but the global loadContext() reads it — so the URL-prefill block threw ReferenceError: p is not defined and never ran (the box stayed empty). That separate bug was filed as #1856 and is closed by this same change.
• even when the prefill had worked, nothing auto-submitted: doSearch() (:368) was only reachable through the Find button, unlike the sibling searchMgmt.html which already runs its navBar hand-off (:261-266).

The fix, gui/templates/search/searchAdvancedView.html:

1. var p = null; is now declared at global scope (the same pattern as searchMgmt.html:154); the ready-closure only reassigns it — prefill runs.
2. right after the URL-prefill block, the legacy forceSearch condition is mirrored verbatim: if ($.trim(p.get('target') || '') !== '') { doSearch(); } — a non-empty target (after trim) triggers the search automatically.

Notes:

• no BFF change was needed — api/search/index.php?action=fulltext already accepts target as a plain GET parameter;
• a deep link without target keeps the current bare-form behaviour (0 action=fulltext requests — exactly legacy, where forceSearch was false);
• verified 10/10 PASS (test suite Task — Issue #1097 in tmp/TLU_Test_Cases.md): deep link auto-runs with the term prefilled, the fulltext request fires with no click, manual Find/Reset still work, the sibling searchMgmt.html navBar hand-off still auto-runs, console has zero errors (the ReferenceError is gone), i18n coverage gate passes (no new keys), Event Viewer gained no Error/Warning rows.

In 1.9.20 the results were ExtGrid tables built by lib/search/search.php: Test Cases grouped under collapsible group headers per test-suite path (buildTCExtTable(), setGroupByColumnName('test_suite'), :225) and Requirements grouped per requirement-spec path (buildRQExtTable(), setGroupByColumnName('req_spec'), :402). The Ext GroupingView prefixed the group value with the column header (showGroupName default) and counted the rows (lib/functions/exttable.class.php:589-591 groupTextTpl):

Test Suite: Suite Alpha (2 Items)
Requirement Specification: Spec A (Smoke) (1 Item)

plus an Ext.ux.TableToolbar (gui/javascript/ext_extensions.js:184-240) with Expand/collapse groups, default state and Reset filters.

The modern screen dropped all of that — the results were a flat list where the suite/spec path was just a repeated cell. It is now restored:

• renderTC()/renderRQ() route through renderGrouped() (searchAdvancedView.html:507, :627, :544) which groups the BFF rows on row.path (already in the fulltext payload — no BFF change), preserving server order, and emits one collapsible group-header row per group with the item count (searchAdv.groupHeader templated {label}: {value} ({count}), singular/plural groupItem/groupItems);
• clicking a group header collapses/expands only that group (.collapsed class + caret rotation);
• a per-section grid toolbar restores the legacy Ext.ux.TableToolbar: Expand/collapse groups toggles every group at once, Reset filters restores the default view (all groups expanded);
• TS / Req.Spec sections stay flat — legacy did not group them either.

New i18n keys in all 10 bundles: searchAdv.expandCollapseGroups, searchAdv.resetFilters, searchAdv.groupHeader, searchAdv.groupItem, searchAdv.groupItems, searchAdv.ungrouped. i18n coverage gate PASS 9/9.

Verified in browser on fixture tmp/fixtures_1098.php (project SA1098, suites Alpha/Beta × 2 Smoke cases + req specs RQ1098-A/B × 1 Smoke req): TC grid → 2 groups (2 Items) each, RQ grid → 1 group each; single-group toggle / expand-collapse-all / reset all behave; flat TS/RS fallback intact; node --check clean; console 0 errors; Event Viewer no Error/Warning; suite Task — Issue #1098 PASS.

In 1.9.20 the results block was closed by a "Generated by TestLink on <date>" stamp (gui/templates/dashio/search/searchResults.tpl:38):

{if !isset($gui->warning_msg) || $gui->warning_msg == ''}
  ... result tables ...
  {lang_get s='generated_by_TestLink_on'} {$smarty.now|date_format:$gsmarty_timestamp_format}
{else}
  <div class="user_feedback"><br />{$gui->warning_msg}</div>
{/if}

The timestamp was rendered by Smarty with $gsmarty_timestamp_format (lib/functions/tlsmarty.inc.php:304 → cfg/const.inc.php:303 locales_timestamp_format[<session locale>]), i.e. in the logged-in user's TestLink language, and only when the search produced no warning. The modern screen showed the match count alone — measured baseline: { footer: "2 matches", matchCount: "(2 matches)" }, no date anywhere.

It is restored, following the same design as issue #1093 (searchView.html) and issue #1081 (searchReqSpec.html):

• BFF — GET /api/search/index.php?action=fulltext now returns generated_on (server-rendered with the session-locale timestamp format, identical resolution block to the sibling action=search Refs #1093 code) plus generated_on_iso (Y-m-d H:i:s, used as the tooltip). A browser Date().toLocaleString() cannot honour the TestLink locale formats, so the stamp is rendered server-side.
• Screen — new footer block #footerGenerated / #footerGenOn right after the match-count footer #footerInfo (searchAdvancedView.html); renderGeneratedFooter(r) runs inside renderResults() and keeps the block hidden when the search produced a warning, no rows or no generated_on — the exact legacy {if !warning_msg} guard. resetForm() hides the block and clears text + title, so a stale stamp can never survive a Reset.
• i18n — no bundle changed: the label reuses common.generatedBy (the modern equivalent of generated_by_TestLink_on, present in all 10 bundles; coverage gate PASS).

Behaviour: #footerInfo keeps the plain match count; the stamp below reads Generated by TestLink on 07/10/2026 09:01:30 (legacy dd/mm/yyyy HH:MM:SS session format) with the ISO value as hover tooltip; Reset and no-match searches show no stamp; re-running a search refreshes the time.

Before (count only, no timestamp):

After (stamp restored below the count):

Verified in browser on SQL fixture project 1 "Demo Project" (suite Suite Alpha, test case Alpha login smoke test, fresh zero-project DB): search alpha → #footerInfo (2 matches) + stamp visible with ISO title; BFF payload carries generated_on/generated_on_iso; Reset / no-match / re-run matrix PASS; console 0 errors; php -l + node --check clean; Event Viewer no new Error/Warning; suite Task — Issue #1099 10/10 PASS.
