GreenIQ Smart Garden Hub Gen2

Since GreenIQ Smart Garden Hub has ceased their cloud service, we need an alternative control software for garden irrigation.

Software

To use the GreenIQ Gen2 valves mapping in sprinklers_pi, just uncomment the #define GREENIQ in config.h and set it to Direct Positive in the web interface settings. The zone number then corresponds to the valve number on cable 1. The sensors on cable 2 are currently not supported.

Hardware

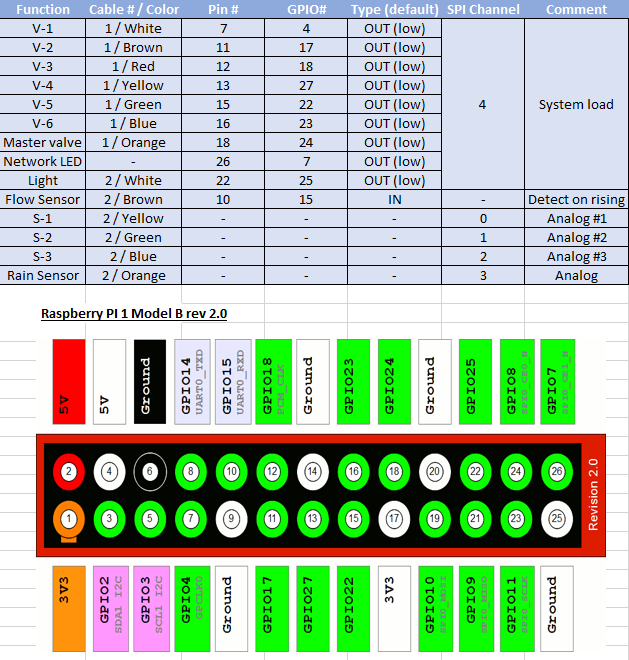

Pin Assignment

Attention, the numbering in the picture differs from wiringPi! Additionally Analog #4 can be used for overload detection.

thx to [email protected]
