Portal screenshots

Documentation home · All topics · Source

On this page

• Home
• Device
• Wi-Fi configuration
• AP configuration
• MQTT configuration
• Firmware update
• MQTT Console
• Dynamic DHT settings

These are existing screenshots from the library's DHT example, copied into this wiki so image links do not depend on a working device or an external image host. They illustrate the portal layout. Older captions can differ from current name validation, heap diagnostics, gzip support and the optional Messages tab. The reference pages describe current behavior.

Home

Home values and device information.

Device

Device identity, restart and factory-reset actions.

Wi-Fi configuration

Network scan and saved station credentials.

AP configuration

Configuration access point and password.

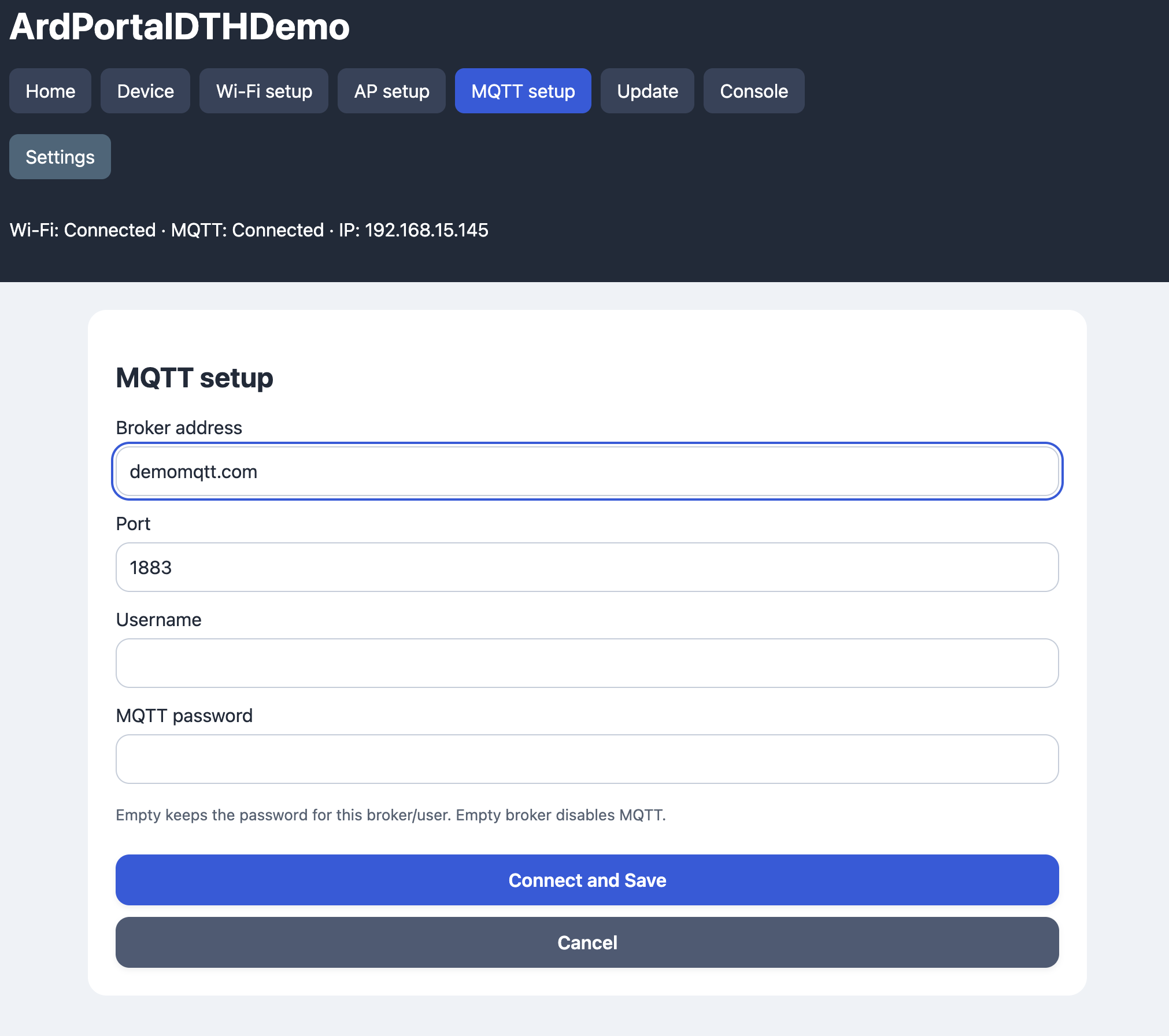

MQTT configuration

Broker host, port and credentials; TLS is disabled in this example.

Firmware update

File upload or browser download from a firmware URL.

MQTT Console

Received and queued MQTT traffic, plus manual publishing.

Dynamic DHT settings

Translated option labels, calibration sliders and update interval.

---
