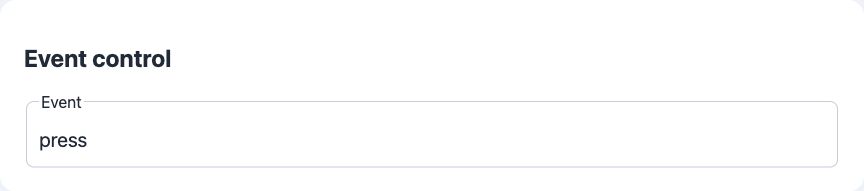

event control

Control catalogue · Documentation home

Minimal field JSON:

{
  "id": "event",
  "type": "event",
  "name": "Event"
}

Full field JSON:

{
  "id": "event",
  "type": "event",
  "name": "Event",
  "default": {
    "event_type": "press"
  },
  "readonly": true,
  "controls": [],
  "ha": {
    "state_topic": "$state",
    "event_types": [
      "press",
      "double_press",
      "long_press"
    ]
  }
}

Properties in the full example:

Property	Required?	Meaning / default
id	Required	Stable application key; unique across registered pages.
type	Required	Enabled field type.
name	Required title¹	Display title; may be replaced by a nonempty names object.
default	Optional	Omit to use the built-in initial value.
readonly	Optional	Omit to use the preset editability policy.
controls	Optional	Omit to use the preset controls; supplying an array replaces them.
ha	Optional	Omit to use automatic HA discovery; supplied properties override defaults.

¹ name can be replaced by names. Other shared optional properties are listed in the catalogue.

Default / example: {"event_type":"press"}; preset types press, double_press, long_press

Publish an object whose event_type belongs to ha.event_types. Additional event data may be included. See the C++ publication example below.

For event, a longer C++ example avoids confusing JSON quoting:

ArdJSON::JSONVar event = ArdJSON::JSONVar::object();
event["event_type"] = "double_press";
event["button"] = 1;
portal.emitAppConfigEvent("wall_button", event);

Read and update values from C++

These examples use the field ID from the JSON above and an existing ArdPortal portal. Run them after page registration has finished and portal.portalAndAppConfigReady() is true. Call portal.loop() frequently. Register callbacks once in setup(); do not repeat setters on every loop iteration.

This field represents a transient action/event, not a durable setting. Do not persist its command and automatically replay it after restart. The state setters are not a substitute for action execution or event publication.

Publish an occurrence and read the current local value

ArdJSON::JSONVar occurrence = ArdJSON::JSON.parse(R"JSON({"event_type":"double_press"})JSON");
if (!occurrence.isValid() || !portal.emitAppConfigEvent("event", occurrence)) {
  Serial.println("Event rejected: MQTT disconnected, queue full or invalid value");
}
const ArdJSON::JSONVar current = portal.getAppConfigValue("event");
if (current.isValid()) Serial.println(ArdJSON::JSON.stringify(current));

An accepted event updates local RAM and, with MQTT enabled, queues a nonretained message. It does not write ArdFS. With MQTT enabled, a disconnected broker or full queue returns false; the occurrence is not stored for replay. Without MQTT, supported events update local RAM only.

Automatic persistence

This control has no persistent setting value: actions and events are transient. Do not save its command as a setting or replay it after restart. Automatic ArdFS persistence applies to persistent setting controls through setAppConfigValue(), not to this action/event field. No separate storage key or manual ArdFS write is needed for using this control.
