This Tutorial explains how to setup the development environment to work on and contribute to OASP4j with your Windows computer.

We are using a pre-configured IDE oasp4j-ide for development. To get started follow these steps:

1. Get a Git client. For Windows use:

   • http://msysgit.github.io/

     Important: install with option Use Git from the Windows Command Prompts but without Windows Explorer integration.



   • Download TortoiseGit from https://code.google.com/p/tortoisegit/

2. Download the IDE

   • If you are a member of Capgemini: download oasp-ide package or the higher integrated devon distribution (for devon please find the setup guide within the devon-dist).

   • If you are not member of Capgemini: We cannot distribute the package. Please consult oasp4j-ide to setup and configure the IDE manually. If you need help, please get in touch.

3. Choose a project location for your project (e.g. C:\projects\oasp, referred to with $projectLoc in this setup guides following steps). Avoid long paths and white spaces to prevent trouble. Extract the downloaded ZIP files via Extract Here (e.g. using 7-Zip). Do not use the Windows native ZIP tool to extract as this is not working properly on long paths and filenames.

4. Create a file named $projectLoc\variables-customized.bat in your project location with the following contents:

   set SETTINGS_REL_PATH=oasp4j\oasp4j-ide\oasp4j-ide-settings\src\main\settings

5. Open console.bat and check out the git repositories you need to work on into $projectLoc\workspaces\main. with the following commands:

   cd workspaces/main
   git clone --recursive https://github.com/oasp/oasp4j.git
   git clone https://github.com/oasp/oasp4js.git



6. Run the script $projectLoc\update-all-workspaces.bat.



   Hint: You can use update-all-workspaces.bat whenever you created a new project folder in your workspaces folder to separate different project-workspaces. This update will create new Eclipse start batches allowing to run a number of Eclipse instances using different workspaces in parallel.

   You should end up having a structure like this in $projectLoc



   Do another check whether there are files in folder $projectLoc\workspaces\main\oasp4j\oasp4j-ide!

7. Run the script $projectLoc\eclipse-main.bat to start the Eclipse IDE.

8. In Eclipse select File > Import > Maven > and Import existing Maven Project and then choose the cloned projects from your workspace. Root Directory: $projectLoc\workspaces\main. You can also click the Browse button and select the folder structure. (If there is a exception: Auto share git projects (Waiting) - choose Run in Background)

9. Execute the application by starting the ´io.oasp.gastronomy.restaurant.SpringBootApp´. Select the class and click the right mouse button. In the context menu select the entry 'Run as ⇒ Java Application' (or 'Debug as …​'). The application starts up and creates log entries in the Eclipse Console Tab.



   Once started, the OASP server applications runs on http://localhost:8081 with /oasp4j-sample-server/ as context-root. Access Server on base url: http://localhost:8081/oasp4j-sample-server, login with waiter/waiter and have a look at the services list provided.

10. If you want to properly test the example application you might want to build the OASP4js-client as follows:

    1. Run console.bat

    2. Ensure you have a git client on your path:

       git --help

       If you get an error instead of the git help output, please redo step 1.

    3. Now call the following commands:

       cd workspaces/main/oasp4js/
       npm install -g gulp
       npm install -g bower
       npm install
       cd java
       mvn install

       If [INFO] BUILD SUCCESS → next step

    4. You can then extract the client from oasp4js/java/target/oasp4js-sample-*-web.zip into oasp4j/oasp4j-samples/oaps4j-sample-server/src/main/webapp/jsclient. You may have to create the folder jsclient by yourself. Restart your tomcat and open http://localhost:8081/oasp4j-sample-server/ or for simpler development run both tomcat and a grunt-server as overlay via:

       cd workspaces/main/oasp4js
       gulp serve

       A new tab in your webbrowser should open and you can try to sign in:



       Test - User Name: waiter, Password: waiter. (Exception: If "Authentication failed. Please try again!" → try to restart Tomcat in Eclipse or try to click the right button on Tomcat → Clean…​ or Clean Tomcat Work Directory)

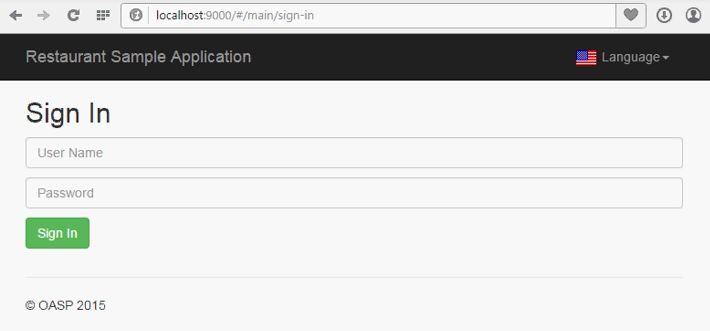

       You should end up at this page:
