App package reference

The folder

myapp/
├── barry-app.json     required: the manifest
├── main.qml           required: the app ("main" in the manifest)
├── icon.svg           recommended: the tile's icon ("icon")
└── ...                anything else the app uses: more QML, images, sounds, fonts

Any layout below that is fine. QML files reach each other and their files by relative paths ("images/logo.png", import "parts").

barry-app.json

{
  "format": 1,
  "id": "io.github.project-barry.dice",
  "name": "Dice",
  "version": "1.0.0",
  "main": "main.qml",
  "icon": "icon.svg",
  "description": "Roll up to six dice (d4 to d20) with a tap.",
  "author": "Project Barry",
  "homepage": "https://github.com/project-barry/barry-launcher-apps"
}

Field
format	optional, 1	The package format the app is written for. Barry Launcher refuses a format it doesn't know, so a future format won't half-work.
id	required	Unique, forever. Reverse domain, lower case: letters, digits, - and _, at least one . between parts, up to 64 characters. io.github.yourname.appname is yours if you're yourname on GitHub. An install with the same id updates that app.
name	required	The tile's label, up to 20 characters. Long names shrink to fit the tile.
version	required	Any text; semantic versions (1.2.0) are clearest. Shown in the install message.
type	optional	"qml" (the default) or "web": a website instead of QML (Web apps).
main	required for QML	The QML file to run, inside the folder. Its root item fills the screen (the barry object).
url	required for web	The site to open, https:// only.
zoom	optional, web	How big the site is drawn, 0.5 to 4 (default 1.25).
allow	optional, web	["microphone"], ["camera"] or both: what the site may use without asking.
service	optional, QML	A .py file inside the folder: a Python helper that runs while the app is open (Services).

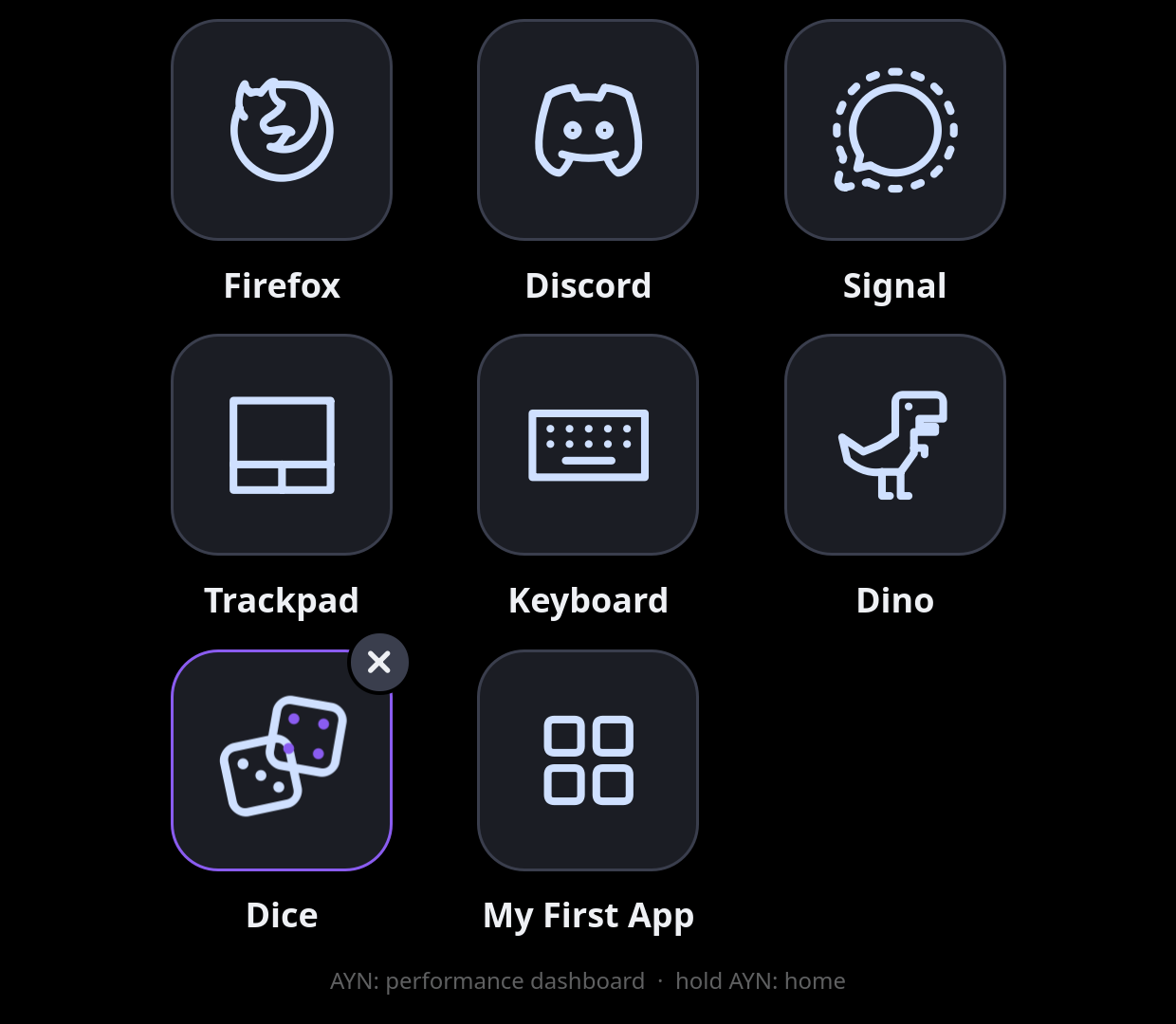

icon	optional	A .svg or .png inside the folder, square. Without one, the tile shows a plain app icon (My First App below).
description, author, homepage	optional	Text about the app. Barry Launcher keeps them for a future app list or store.

The archive

• Kinds: .zip, .tar.gz / .tgz, .tar.xz / .txz, .tar.bz2 / .tbz2, .tar.

• Layout: barry-app.json at the top of the archive, or inside its one top folder. Both of these install:

  dice-1.0.0.zip              dice-1.0.0.zip
  ├── barry-app.json          └── dice/
  ├── main.qml                    ├── barry-app.json
  └── ...                         └── ...


  barry-app pack makes the second kind. macOS's __MACOSX folder and .DS_Store files are ignored.

Limits and rules

An archive that breaks any of these isn't installed, and the message says why.

Archive size	100 MB
Unpacked size	300 MB
Files	5,000
Links	none: no symbolic links, hard links or device files
Paths	all inside the app folder: no .., no absolute paths
main, icon, service	must exist in the folder (service: a .py file, QML apps only)
url	https:// only
id	not one of Barry Launcher's own apps

Files are installed as plain files: the archive's owners and permissions are dropped.

Where it goes

The app	~/.local/share/barry_launcher/apps/ID/, replaced whole on update
Its data (barry.dataDir)	~/.local/share/barry_launcher/app-data/ID/, kept across updates, deleted on remove
Its log (everything it prints)	~/.cache/barry_launcher/ID.log, started afresh each run

How it runs

A web app runs in Firefox, kiosk mode, with a profile of its own in its data folder (Web apps). A QML app runs like this:

qml6 /usr/share/barry_launcher/shell/AppHost.qml -- APPDIR MAIN ID NAME DATADIR fullscreen [SERVICEURL TOKEN]

An app with a service gets its service started first, and its address and token at the end.

AppHost.qml opens a full-screen window titled Barry App ID and loads your main into it (source). The environment also has BARRY_APP_ID, BARRY_APP_DIR and BARRY_APP_DATA, for anything outside QML that needs them.

XDG_CONFIG_HOME and XDG_DATA_HOME point inside the app's data folder (.config and .local/share there), so whatever Qt or a library saves for the app by default lands with the app's own data and is removed with it. Qt's compiled-QML disk cache is off for apps (QML_DISABLE_DISK_CACHE=1); the shared font and GPU caches stay where they are.

One app, one window. Tapping its tile again brings it forward instead of starting a second copy.
