To access the LUA Scripts for Betaflight you have to be on the latest Flysky NV14 firmware and have already downloaded and installed the SDcard contents.

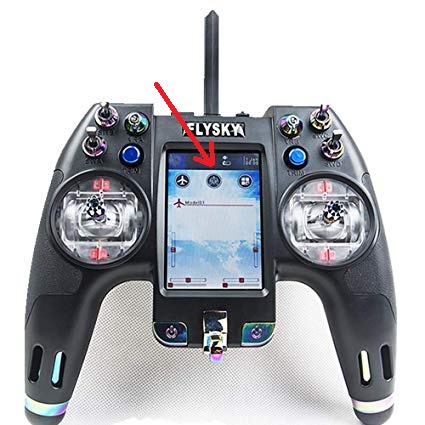

With the Nirvana turned on and the model powered up, go the the icon in the middle which is the radio setup icon.

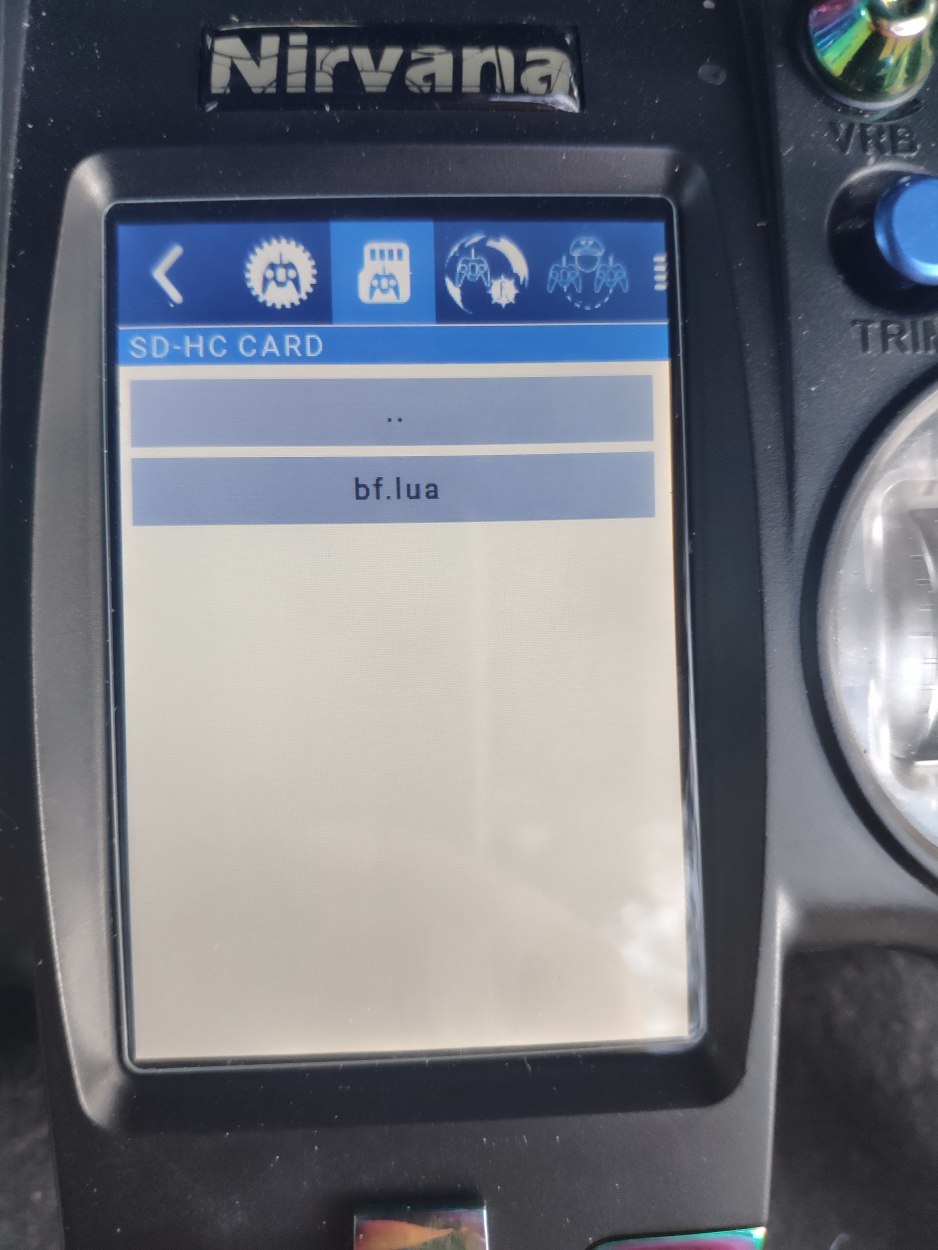

Go to the SDcard page. Tap on the BF folder, tap again on the bf.lua file and execute.
 |
 |
Once it executes you will be taken to the first page.

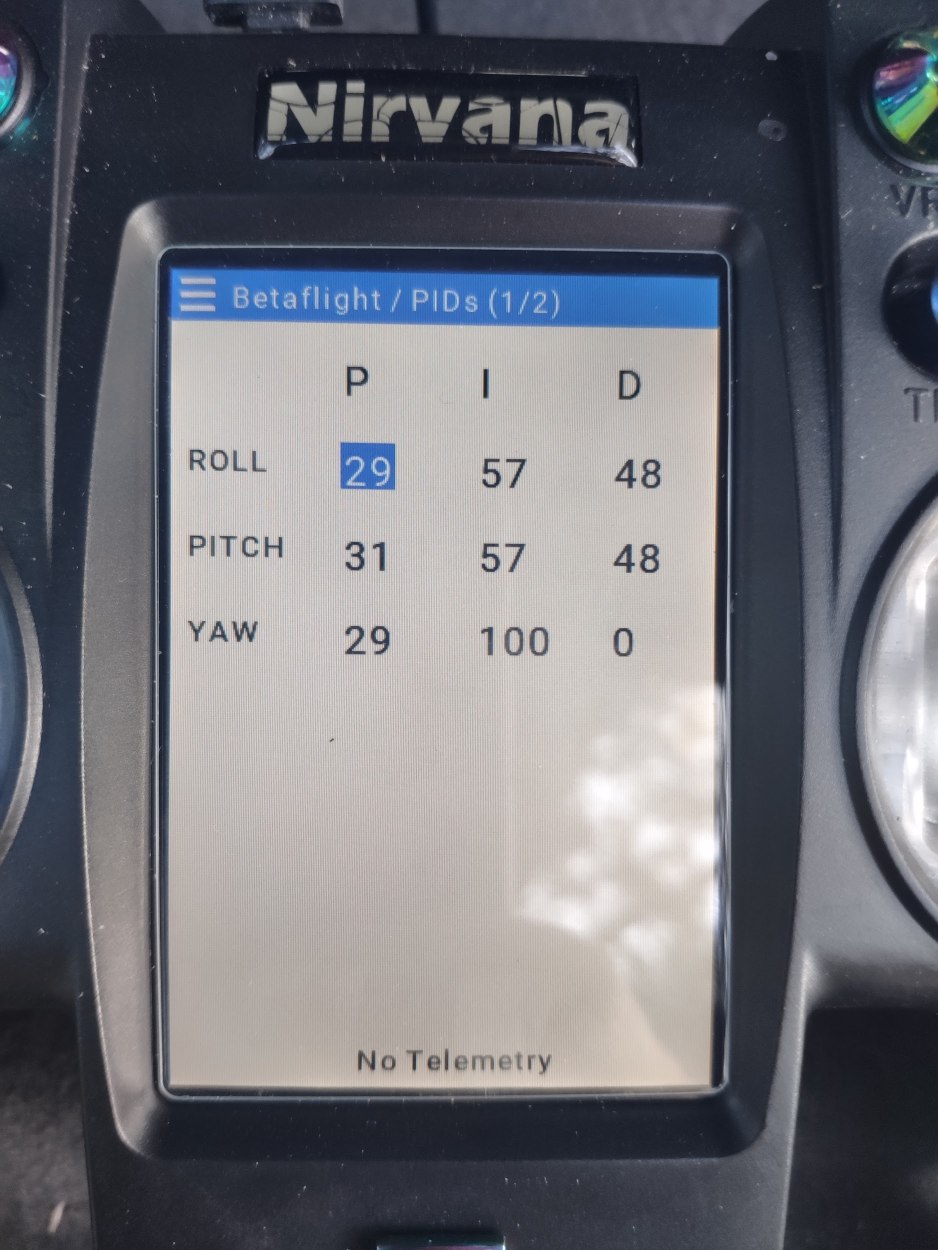

Which is Pid page 1. Ie: Image below.
Tap on a value to change it or swipe to the left to see the next page. There are currently 10 pages. Keep swiping to the left to access the individual pages
PIDs1, PIDs2, Rates, PID Advanced, Filters, PWM, RX, VTX, GPS Rescue, and GPS PIDs.
Here are a couple pages below.
 |
 |

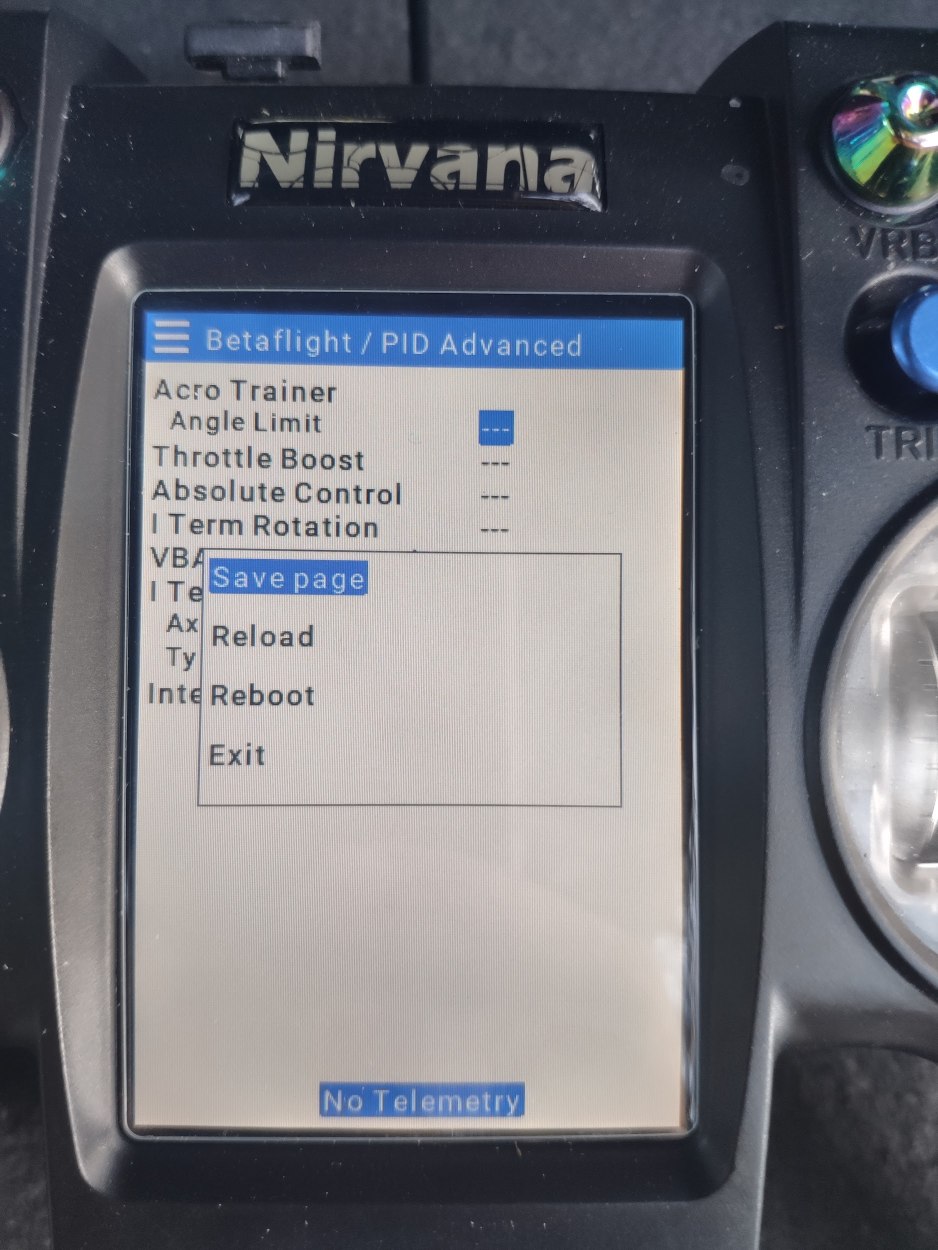

Tap on a field to change and to save tap on the top left icon to access the menu.
Save page before proceeding to the next page if a change has been made. Reload will just reload the page, Reboot will reboot the model, Exit will just exit the menu.
To completely exit the Betaflight Lua swipe right from the first page.
Reference documents and links
Written by Isham Padron - [email protected] 2019
