Brief Description:

  • Sending SMS (MT)

Request Method:

  • URL: http://api2.nxcloud.com/api/sms/mtsend
  • Method: POST
  • Content-Type: application/x-www-form-urlencoded

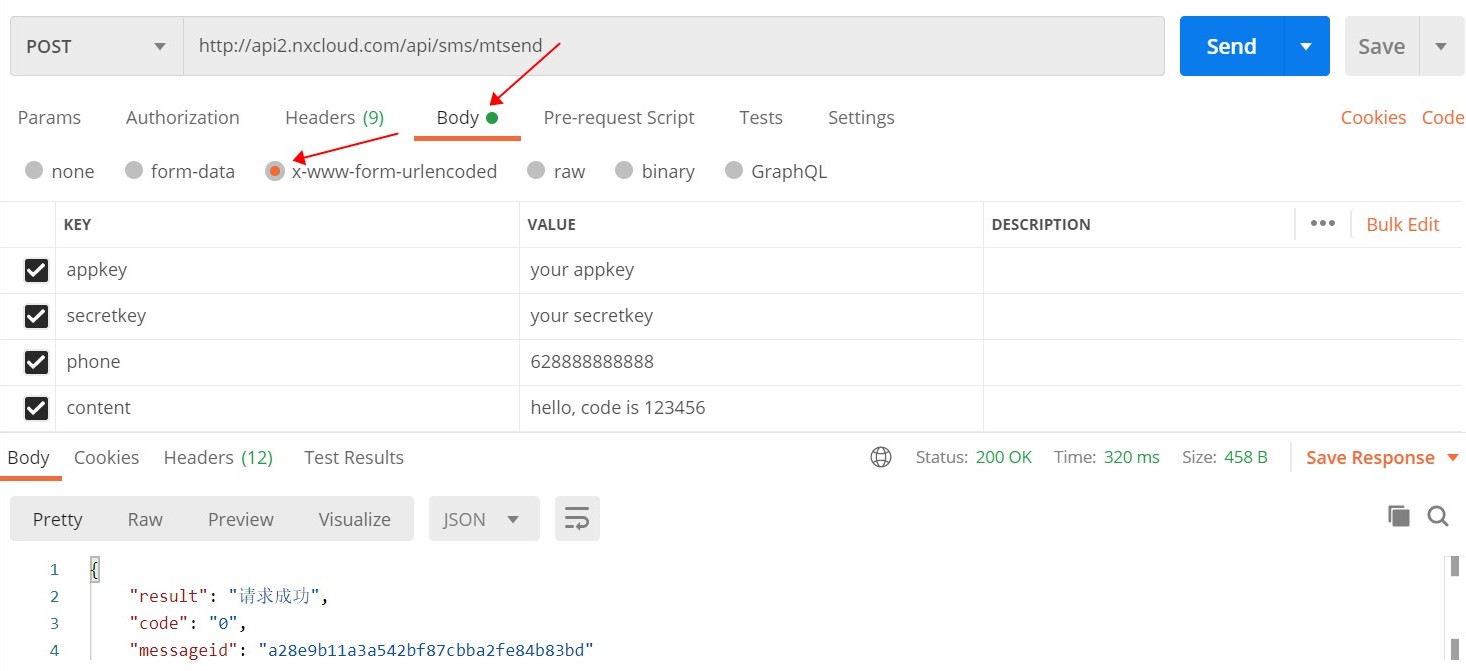

  • curl example (With the -d parameter, the HTTP request will automatically add the header Content-Type: application/x-www-form-urlencoded and convert the request to the POST method, so -X POST can be omitted.)
curl -d "appkey=1&secretkey=2&phone=123&content=abc" http://api2.nxcloud.com/api/sms/mtsend

Parameters:

Parameter Required Type Description
appkey Yes string SMS application appkey
secretkey Yes string SMS application secretkey
phone Yes string Recipient number (country code + phone number, e.g., 8615088888888). Multiple numbers can be submitted, separated by commas. If it is a verification code channel SMS application, no more than 5 numbers can be submitted at a time
content Yes string SMS content, must be URL-encoded (UTF-8), up to 1000 characters
source_address No string sourceaddress (must be 1-20 digits or letters)
sys_messageid No string User-defined message ID, length between 10-50 characters, type [0-9a-zA-Z-] (This field does not take effect if there are multiple phone numbers)
short_link No string Short link, from nxcloud short link list; if not empty, the SMS content must contain #1# to take effect, please note
linkVerbose No string This parameter is set to collect user click behavior. If user click behavior is selected, the number information of the clicked short link can be viewed in the console. Parameter: 1: collect; 0: do not collect. The default is to collect
dr_url No string DR push address (If the SMS application also has a DR push address configured, the DR will be pushed to the address configured in this interface; (This field does not take effect if there are multiple phone numbers, please contact NOC to set it to the specific SMS application)
ext No string Transparent field, this field is custom information, and will be returned as it is in the receipt. Only supports HTTP requests (This field does not take effect if there are multiple phone numbers)
opt_entity_id No string Please pass the entity ID (EntityId) registered according to the DLT rules in India (91)
opt_template_id No string Please pass the template ID (TemplateId) registered according to the DLT rules in India (91)
opt_header_id No string Please pass the sender ID (HeaderId) registered according to the DLT rules in India (91)

Response Example

{"result":"Request succeeded","messageid":"20d6c660bd664c65bef20026564b0b79","code":"0"}

Response Parameter Description

Parameter Type Description
result string Request result description
messageid string System-generated SMS ID
code string Result code

Note

  • HTTP Error Codes
code Description
0 Request succeeded
1 Application unavailable or incorrect key
2 Parameter error or empty
3 Insufficient balance
4 Content is empty or contains illegal keywords
5 Content is too long
6 Invalid number
8 sourceaddress/sender must be 1-20 digits or letters
9 Invalid IP
27 Frequency limit is enabled, and the maximum allowed number of messages sent to the same number within one hour (5 messages per hour) has been reached
28 TPS rate limiting is enabled, and the current traffic has reached the configured TPS rate limit
88 Request failed
99 System error
102 The current account or the account of the affiliated agent has been deactivated
104 Verification code channel applications do not allow more than 5 numbers to be submitted at a time

-SMPP Submit SMS Error Codes

code Description
10 [0x0000000A] sourceaddress (sender) error
81 [0x00000051] Number error
88 [0x00000058] Frequency limit
103 [0x00000067] Insufficient balance
260 [0x00000104] Content is empty or contains illegal keywords
69 Submission failed, unknown error (complain to us, we will check the logs)
