Particle Offline Utility: The Ultimate Local Particle Experience for Linux and macOS

Join the chat at https://gitter.im/po-util/Lobby Build Status Circle CI

Particle Offline Utility, pronounced po-util, is a tool for installing and using the Particle Toolchain on Linux and macOS.

po-util makes it easy for developers to download the Particle Toolchain and install the required dependencies to quickly begin creating projects using the Particle Platform.

po-util features a responsive experience, giving developers the tools they need for seamless local development, providing understandable commands for simplifying complex tasks like properly compiling and flashing firmware.

Install

There are two versions of po-util. The first is po-util Classic, which is designed for Linux distributions. The second is po-util Homebrew Edition, which is designed for macOS. Classic can be installed by following the instructions below:

The most secure way to install po-util is to download po-util.sh directly and run it:

$ curl -fsSLO https://raw.githubusercontent.com/nrobinson2000/po-util/master/po-util.sh
$ chmod +x po-util.sh ; ./po-util.sh install

A quickest and easiest way to install po-util is to run this command:

$ bash <( curl -sL https://raw.githubusercontent.com/nrobinson2000/po-util/master/po-util.sh ) install

You can also install po-util by cloning the GitHub repository:

$ git clone https://github.com/nrobinson2000/po-util
$ cd po-util
$ ./po-util.sh install

On macOS, Homebrew Edition can be installed by running these commands:

$ brew tap nrobinson2000/po
$ brew install po
$ po install

Note: Both versions of po-util have the same features. In December 2016, Homebrew Edition was forked from po-util in order to allow po-util to be installed with Homebrew. The original po-util was renamed to Classic, and was made Linux exclusive. Both Classic and Homebrew Edition continue to be developed and maintained in parallel.

Key Features

Library Manager

The library manager makes it easy to use Particle libraries when developing with po-util locally by using git to download Particle libraries hosted on GitHub and save them to a ~/.po-util/lib directory so that they make be linked inside of projects later. Read more about the Library Manager here.

Full dependency setup

po-util installs all of the dependencies required for local Particle Development, including the ARM toolchain, dfu-util, nodejs, particle-cli and the Particle firmware.

Local compilation and support for flashing over USB or OTA

Building firmware locally for Electrons, Photons and P1s, and automatically flashing over USB using dfu-util or Over The Air using particle-cli. Sequentially flashing multiple devices at once over the air is also supported.

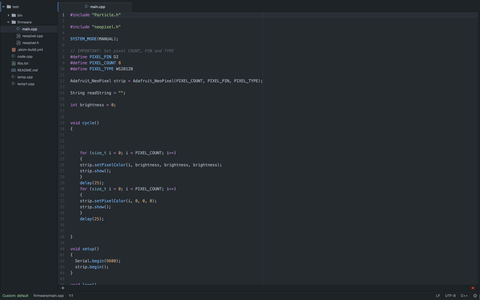

Shortcuts for Building in Atom

po-util supports shortcuts for Atom, the popular open- source IDE by GitHub. The shourcuts provide quick access to commonly used commands for po-util, including: building firmware, flashing firmware over USB, and flashing firmware Over The Air. Read more about the shortcuts here.

Project Structure

The directory structure of a full po-util project is arranged like so:

firmware/
├ main.cpp
└ lib1/
  ├ lib1.cpp
  ├ lib1.h
  └ ...
bin/
├ firmware.bin
└ ...
 ci/
 devices.txt
 libs.txt
 .atom-build.yml
 .travis.yml
 .gitignore
 .git/
 README.md
  • All user code is kept inside of firmware/.
  • The compiled binary will be named firmware.bin, and it will be in bin/.
  • You can keep track of which devices are in a project and list which ones to be flashed Over The Air in devices.txt.
  • Libraries are kept track of in libs.txt.
  • Atom shortcuts are configured in.atom-build.yml.
  • Every po-util project is initialized as a repository with scripts in ci/ to use Travis CI for testing.

Project setup

When using po-util, your code is arranged into projects with the structure described above. This not only lets you easily work on many projects on one computer, but it provides a standardized way of building locally.

Creating a project with po-util is simple when you use po init to initialize a project by creating the necessary files. Below is an example:

$ po init DEVICE_TYPE someProject

You can set DEVICE_TYPE to either photon, P1, electron, core, pi, or duo. This is necessary for generating the Atom shortcuts file appropriately.

More Information

Here is some more information about using po-util.

Writing Firmware

po-util compiles any .cpp and .h files found in the firmware/ directory, but not .ino files, so #include "Particle.h" must be present in your main.cpp file. This is done for you when you run the po init command to create a project directory.

Building Firmware

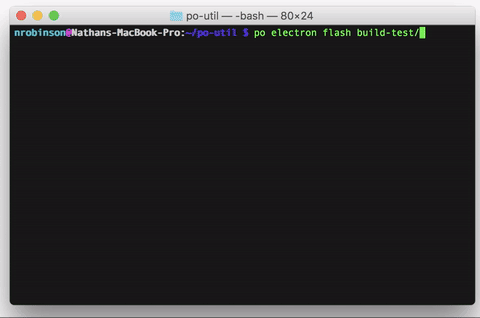

To compile firmware, simply run po DEVICE_TYPE build, substituting DEVICE_TYPE for photon, P1, or electron. To compile and flash firmware to your device using dfu-util, simply run po DEVICE_TYPE flash. To clean the project, run po DEVICE_TYPE clean.

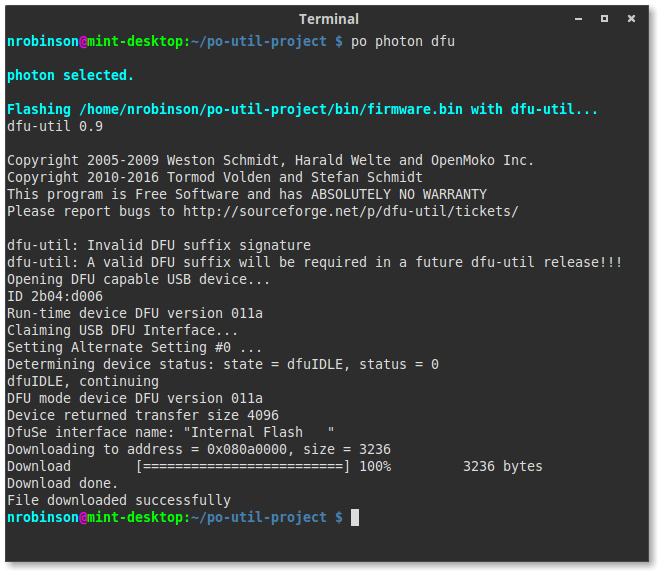

DFU Commands

To upload precompiled code over USB, run po DEVICE_TYPE dfu. To put your device into dfu mode, run po dfu-open. To get your device out of dfu mode, run po dfu-close.

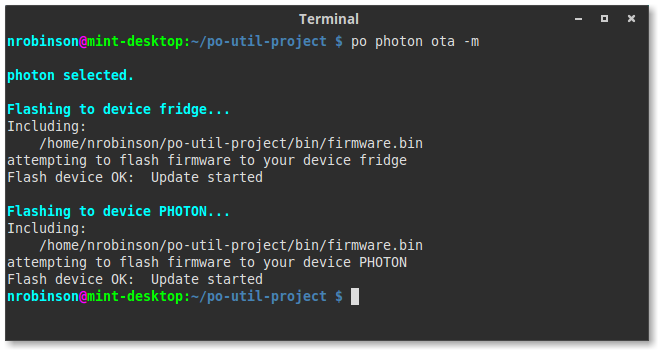

Over The Air (OTA) Uploading

To upload precompiled code over the air using particle-cli, run po DEVICE_TYPE ota DEVICE_NAME, where DEVICE_NAME is the name of your device in the Particle cloud. You must be logged into particle-cli to use this feature. You can log into particle-cli with particle cloud login.

You can also flash code to multiple devices at once by passing the -m or --multi argument to ota. This would look like po DEVICE_TYPE ota -m. This relies on a file called devices.txt that you must create in your po-util project directory.

NOTE: This is different from the product firmware update feature in the Particle Console because it updates the firmware of devices one at a time and only if the devices are online when the command is run.
