LaserTag Presets

Home | LasaurApp | LaserTags | DXF Support

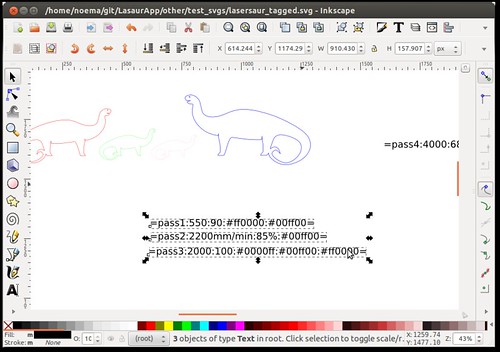

LasaurApp looks for special tags in an SVG file and uses these to preset cutting parameters (feedrate, intensity, pass-color-assignments). This way cutting parameters can easily be saved with the SVG file. These tags can be added to the file by simply adding graphical text of a specific format to the file.

lasertags

LaserTag Format

The format is a column-separated list of parameters that starts and ends with an equal sign:

=pass<num>:feedrate:intensity:hexcolor1=

The hexcolor field is optional. So are the units for feedrate and intensity. Up to six hexcolors can be assigned (separated by columns).

Examples

  • =pass1:550mm/min:90%:#ff0000=
  • =pass2:550:90:#00ff00:#ffff00:#000000=
  • =pass3:1200mm/min:80%:#00000=
  • =pass4:1200mm/min:80%=
  • =pass5:4000mm/min:100%=
  • =pass6:4000:100=
