Electrode development

The microwire 'brush' array electrodes that are now commonly used in the SCNI were initially developed in collaboration with Igor Bondar and first reported by Bondar et al., 2009. The concept is to take a bundle of insulated microwires and insert them into the brain through a guide tube. As the electrode tip is lowered, the individual wires splay out in the tissue, allowing for stable isolation of extracellular spiking activity for a local population of neurons over long time periods. Each microwire consists of a nickel-chromium-aluminum core of 12.5 µm diameter, insulated with polyimide by the manufacturer (‘IsaOhm’, Isabellenhuete, Germany). These electrodes are currently commercially available from MicroProbes, MD in lengths from 2.5 mm to 120 mm.

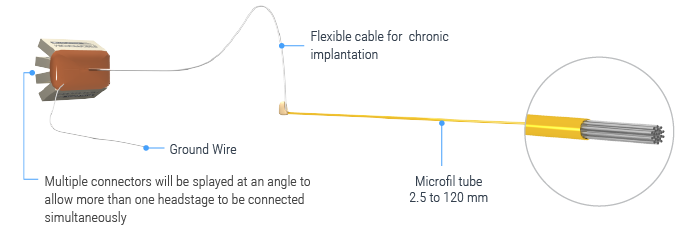

Figure 1. Chronic "microwire brush array" manufactured by MicroProbes, MD.

While this basic electrode design continues to be used in the SCNI, we are continuing to develop the implant hardware that houses the electrode, mircrodrive, and connectors. A chronically implantable microdrive designed by David Ide and David McMahon at the NIH was first published by McMahon et al., 2014 and is currently available commercially from Hybex.

Figure 2. Coronal MR image and micro-CT showing an implanted chronic microwire multielectrode and an illustration of the 'brush' tip (MR image courtesy of McMahon et al., 2014).

Microwire brush tip development notes

In order to improve our cell yield per implant, we attempted moving from 64-channel bundles to 128-channel bundles several years ago. However, our experience was that 128-channel bundles do not produce comparable yield to 64-channel bundles, possibly due to the mechanical properties of the increased bundle size. We subsequently reverted to using 64-channel bundles, but also miniaturized the microdrive design in order to obtain between 128-256 channels per implant using multiple 64-channel bundles.

During our tests to discern why the 128-channel bundles might not be working as well as we had hoped, Dr Kenji Koyano performed a series of tests, producing microwire bundles with a variety of tip designs, and inserting them into gelatin as a simulated brain tissue medium. His observations of how the individual microwires deflect upon entering the gelatin are show below (Figure 3). The results suggest that a non-flat tip shape and active pre-splaying of the wires prior to insertion in the guide tube both improve splaying of the wires in tissue.

Figure 3.Simulations of microwire brush tip trajectories in tissue. Columns show different brush tip preparations. Top row shows the state of the array tip prior to insertion in the guide tube. The second and third rows show the gradual deflection of individual microwires with distance emerged from the guide tube tip. (Figure courtesy of Dr. Kenji Koyano).

Ide-McMahon Microdrive (2014)

This original design for a chronically implantable microdrive was conceived by David Ide (SI) and David McMahon (SCNI), and was published in McMahon et al., 2014. The drive itself consists of three Ultem disks, stacked on three ceramic rods, with a single central PEEK drive screw. Turning the screw (accessible from the top of the drive) advances or retracts the central drive disk, to which the electrode shaft is clamped. The drive mounts to a cylindrical (19mm diameter) Ultem chamber base via two nylon screws, and is protected by an Ultem cap, which attaches via four brass set screws.

The original design was CNC machined from Ultem rods by the Section on Instrumentation at NIH. Since the design was published, it is now also manufactured by Hybex Innovations (Canada) with improved materials and minor modifications, and retails for $742.00 each. As a lower cost alternative, we also provide .stl files for 3D-printing this version of the microdrive here, and a list of additional parts needed for assembly below:

Supplier Part # Description Quantity Cost
Misumi CSHLWH-PEEK-M4-16 M4, 15mm PEEK socket cap hex screw 1 $2.30
McMaster 27175A512 M4 x 0.7 mm through-hole tap 1 $15.71
McMaster 27175A112 4-40 through hole tap 1 $13.49
Grainger 53MM63 0-80 thread tap 1 $20.30
McMaster 87065K42 1/8" alumina ceramic rod, 12" 1 $20.94
McMaster 92482A264 0-80 thread, 5/32" brass round-head slotted screws 4 $8.57 per 25
McMaster 92942A718 4-40 thread, 5/16" Nylon Pan Head Slotted Screws 2 $6.04 for 100
McMaster 92991A105 4-40 thread, 3/16" Brass Cup-Point Set Screws 4 $6.63 for 50

Microdrive cap with embedded connectors (2017)

This cap is intended to protect the original cylindrical version of a chronically implanted microdrive, as described above. It additionally houses four 32-channel (36-pin) Omnetics connectors, allowing for up to 128-channel electrodes. It is intended for use with microwire brush arrays, as described by McMahon et al (2014) and currently sold by MicroProbes, and any low-profile headstage that uses Omnetics 32-channel nano connectors (including Intan RHD2164 64-channel boards).

The additional screws used to assemble this cap are as follows:

Supplier Part # Description Quantity Cost
McMaster 94609A848 10-32 Thread Size, 1/8" Long nylon round head slotted screw 1 $6.84 per 100
McMaster 96295A705 Low-Profile, M3 x 0.5 mm Thread, 3 mm Long Nylon Cheese Head Slotted Screws 4 $8.16 per 100
McMaster 92991A106 4-40 Thread, 1/4" Long Brass Cup-Point Set Screws 8 $6.08 per 50

The .stl files for 3D-printing can be downloaded from Thingiverse. We have had good results printing prototypes of this design on the SCNI's FormLabs Form2 printer. For stronger materials that can be autoclaved prior to implantation, we've outsourced printing of the parts in carbon-PEEK (Impossible Objects) and Ultem 1010 (Stratasys). It should be noted that, despite earlier reports to the contrary (e.g. Mulliken et al.,(2015)), carbon-PEEK is now considered unsuitable for MR-compatibility due to it's conductivity.

Chamber base with detachable connector casing (2018)

This design extends the footprint of the original cylindrical chamber, but in doing so provides sufficient space to place a detachable connector block, which holds up to four 32 channel Omnetics connectors (for 2x 64 channel bundles, or 1x 128 channel bundle). Making the connector block detachable facilitates electrode replacements, while keeping the connector block independent of the microdrive cap makes replacement of broken caps easier.

Since the design is asymmetric, two versions are provided (denoted by suffix A or B on the .stl files), allowing the electrode to be located either anterior-lateral, anterior medial, posterior-lateral, or posterior-medial, depending on your needs. Either version of the connector casing and cap can be used in order to angle the connectors in such a way as to maintain easy access (e.g. avoiding headposts). The base (i.e bottom surface) of the chamber base can be further customized prior to printing by applying boolean subtraction of either a skull model, or some approximation of the skull surface.

The spacing between the Omnetics connectors has been selected to accommodate connection of a pair of Intan RHD2164 64-channel headstages. There re two options for installing the Omnetics connectros in the casing:

  1. When placing your microwire brush array order with MicroProbes, specify that the epoxy on the back of the Omnetics connectors must not exceed the width of the connector itself in order to be able to space adjacent connectors correctly.
  2. Arrange to send MicroProbes the 3D-printed connector casing in advance, so that they can epoxy the Omnetics connectors directly into the casing with the correct spacing.

We outsource printing of these parts in Ultem 1010 - a high-strength heat-resistant plastic, which retains MR-compatibility whilst still allowing us to steam autoclave the parts prior to implantation. The current cost for a single implant (chamber base, connector case, and microdrive cap) from Stratasys is $338, although savings can be made for larger orders, and also by customizing the chamber base to better fit the skull prior to ordering.

The 3D printed parts should be sanded to ensure a smooth fit between surfaces in contact with each other. The small (1mm diameter) holes for the guide tube and ground wire may need to be drilled to ensure there is sufficient clearance (depending on the tolerances of the printing method). Additionally, six holes on the top surface of the chamber base should be tapped with a 4-40 closed-end tap (red circles on the above diagram), while the six holes in the sides of the cap should be tapped with a 4-40 through-hole tap.

The parts required for finishing and assembly of the connector casing are available from McMaster -Carr as follows:

Part Number Description Quantity Cost
93939A714 4-40 thread, 1/4" nylon Narrow Fillister Head Slotted Screws 8 per chamber $5.99 for 100
92942A718 4-40 thread, 5/16" Nylon Pan Head Slotted Screws 2 $6.04 for 100
95862A533 1/4"-20, 11/32" Long Slotted Nylon Plastic Flat-Tip Set Screws 1 $7.80 per 100
27175A218 1/4"-20 Closed-End Hole Tap for plastic 1 $12.44
27175A112 4-40 Through-Hole Threading Tap for plastic 1 $13.49
27175A212 4-40 Closed-End Hole Threading Tap for plastic 1 $13.49
2546A23 Tap Wrench handle 1 $17.88
4692A73 240-grit sand paper 1 $10.77 for 15
30565A211 1mm diameter drill bit 1 $1.79

Multidrive

The concept for the multidrive -an even smaller drive system than the original microdrive described in McMahon et al. (2014)- was inspired by the EDDS Array Drive. The need for targeting multiple sites in close proximity to each other in the same hemisphere lead to development of the multidrive. The drive screws are PEEK 4-40 thread machine heads, which pass through a 3D-printed thermoplastic drive shuttle. The wings of the shuttle keep it locked inside the drive shaft, while a channel on the front surface allows close mating with the electrode shaft, which is epoxied directly to it.

Part Number Description Quantity Cost
94735A713 Phillips, 2-56 Thread, 3/4" Long nylon pan head screws One per drive $5.70 per 100
27175A111 2-56 Thread, Through-Hole Threading Tap for plastic 1 $20.29
