g4BallTracker - ngholson/g4ScoreBoard GitHub Wiki

Download Here
This is a companion product for the g4ScoreBoard.
But can also be used as a stand alone package.

USE:

• Choose which game eight nine or ten from the list and select overlay size.
• Click on balls in dock to remove them from overlay when balls are pocketed.
• Hide / Show Button will hide and display the ball tracker list.
• Reset button will reset ball icons in stream and dock.



NOTES:

If g4ScoreBoard is installed:

• g4BallTracker will reset if a players score is increased or the reset button is clicked from the g4ScoreBoard control panel.
• Hiding the g4ScoreBoard with the opacity slider will hide the g4BallTracker as well.
• If Hide is enabled on the g4BallTracker, all reset and hide/show commands from the g4ScoreBoard control panel will be ignored by the g4BallTracker.



SETUP:

• Open config.js in any text editor (ex: notepad, notepad++, etc) and change to suit your preferences (see below).
• Add a new Custom Browser Dock in OBS, point this to the control-panel.html file in this download.
• Add a new Browser source to your scene. change the URL the the path of browser-source.html.



CONFIG.js:

• ballColor - Sets the ball type.

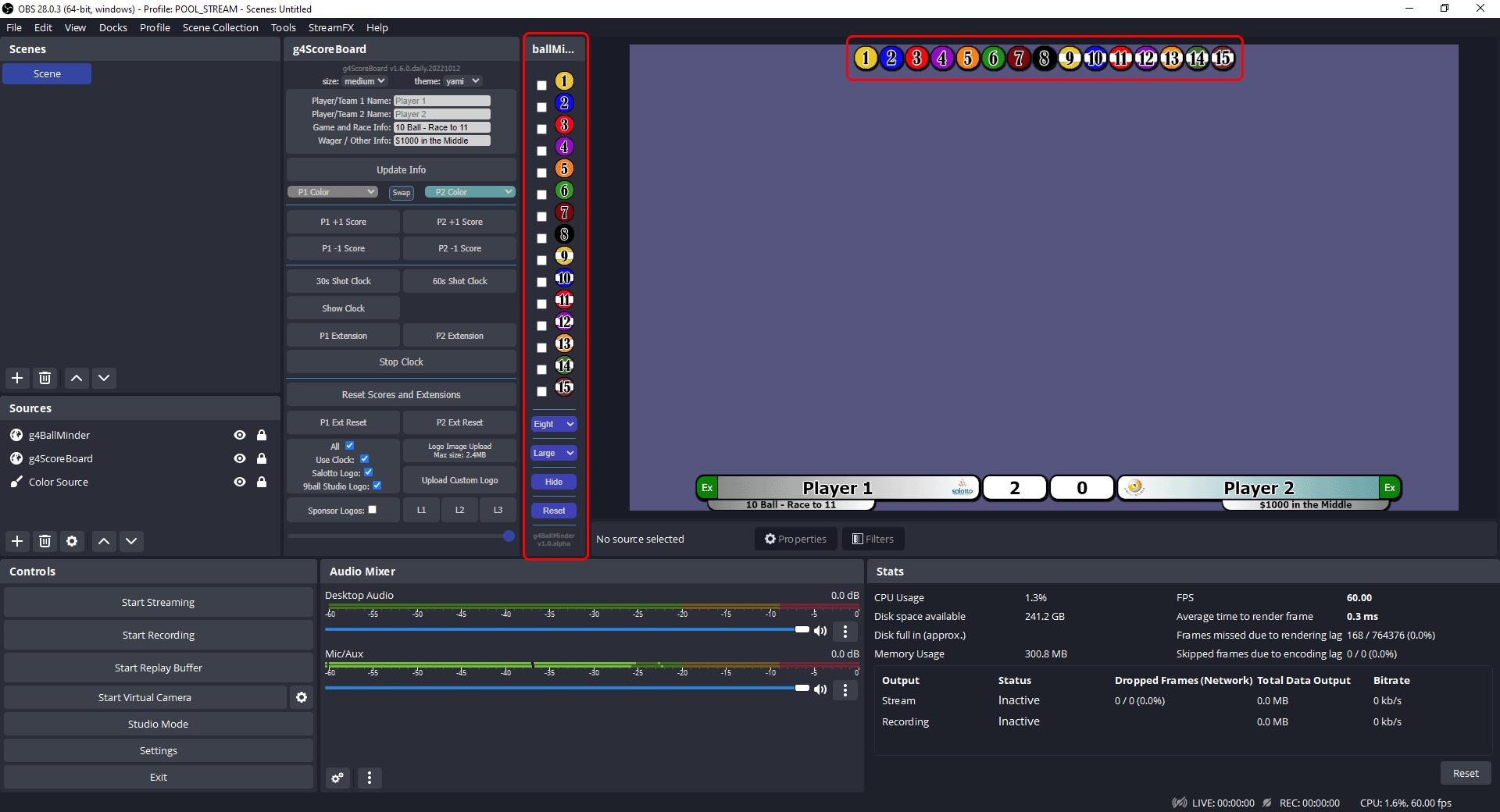

  • standard Standard ball colors

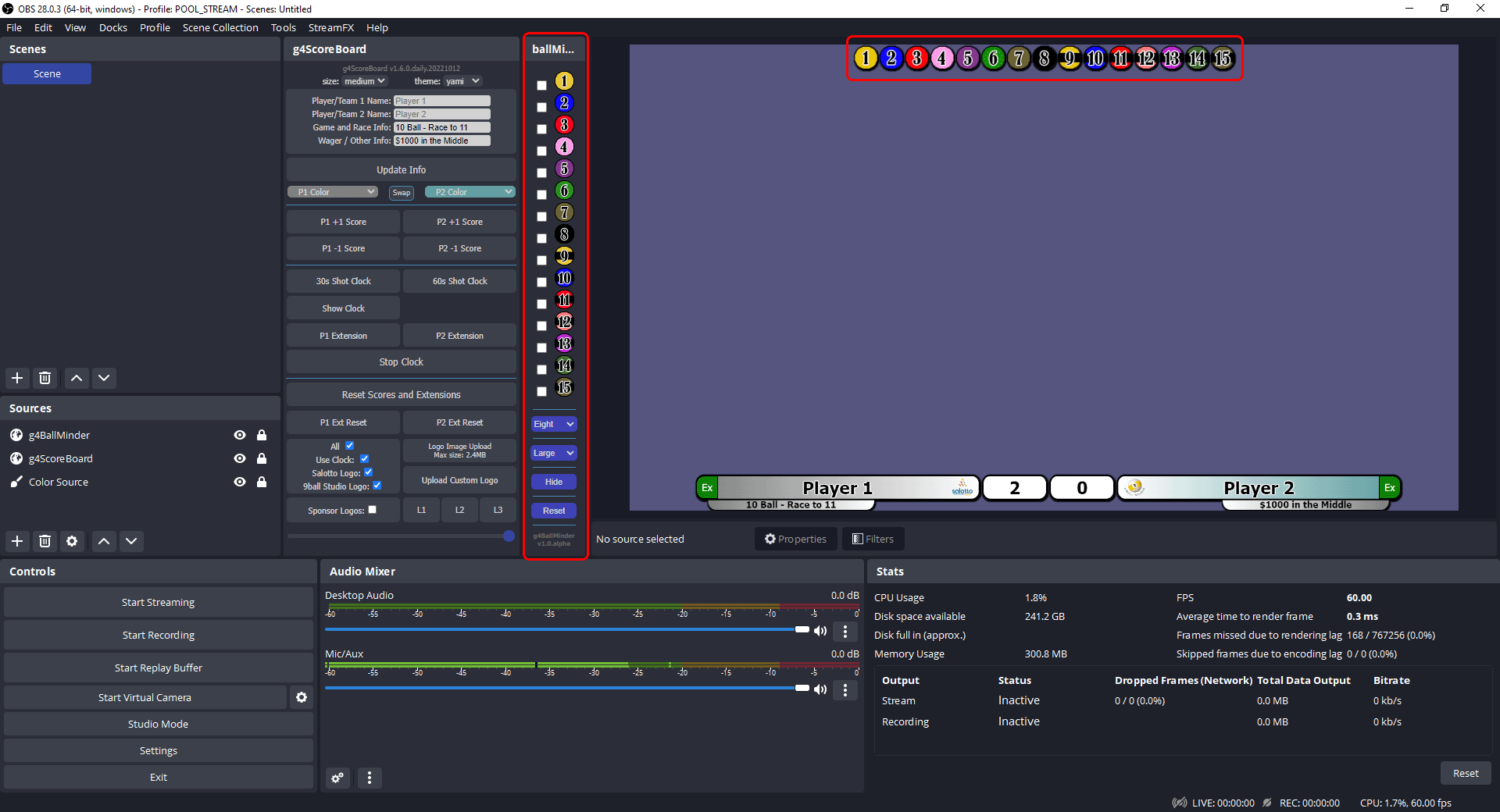

  • white TV Colors with white stripes
  • black TV Colors with black stripes


• position - horizontal or vertical alignment of g4BallTracker
  • horizontal
  • vertical


• leftRight - Only applies if the position setting is set to vertical
  • left Aligns Left
  • right Aligns Right


• staticImages - Defines ball behavior in the tracker.
  • true Ball positions are static, when a ball is removed a blank space remains where the ball was.
  • false Ball positions are dynamic, when a ball is removed the remaining balls move together filling any blank spaces.



SCREENSHOTS:
