Zk Notes - newgeekorder/TechWiki GitHub Wiki

Back Home

installing

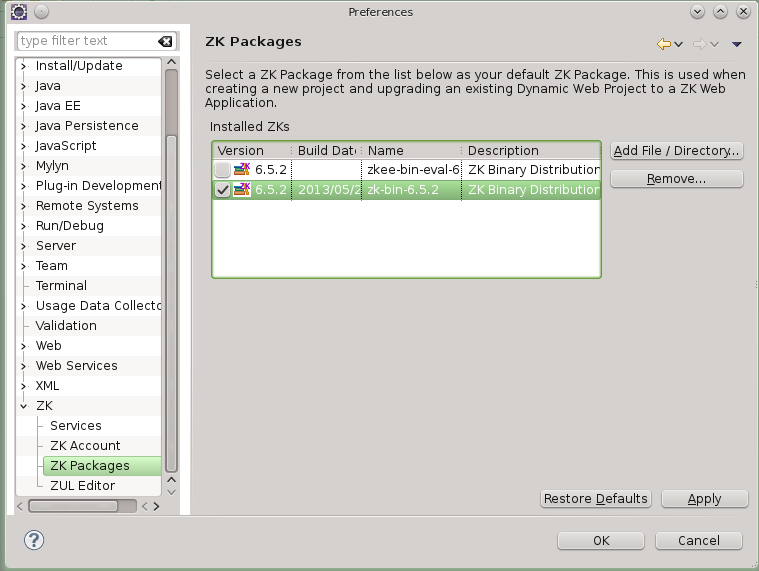

out of the box the zk eclipse framework will use the Commerical version: Download the CE version

  • extract this to your apps folder
  • update zk eclipse to use this CE version

Note: the classes output of your project should be WEB-INF/classes

Installing in Mule Studio

For mule 3.4 (built on Eclipes 3.8) compatabile with 4.2 Add

Button Layouts

To align right and put space between buttons

<div style="float:right;">
    <button id="Submit" label="Submit" />
    <space spacing="5px" orient="vertical" />
    <button id="apply" label="Apply" />
    <space spacing="5px" orient="vertical" />
    <button id="clearAll" label="Clear All" />
    <space spacing="5px" orient="vertical" />
    <button id="close" label="Close" />
</div>

Form Layout

To get a neat form layout, use grid with fixed columns http://www.zkoss.org/zkdemo/input/form_sample

Data Binding

Form level binding

apply="org.zkoss.bind.BindComposer"
        viewModel="@id('vm') @init('demo.input.form_sample.FormViewModel')"

Save only data binding annotations

   <textbox value="@save(vm.person.firstname)"/>
   <textbox value="@save(vm.person.firstname) @save(vm.tmpperson.firstname)"/>
   <textbox value="@save(vm.person.firstname, before='update')"/>
   <textbox value="@save(vm.person.firstname, after='delete')"/>
   <textbox value="@save(vm.selected.firstname, before={'update','add'})"/>

Form Elements

Radio Buttons
<radiogroup id="evt">
  		<hbox width="100%" align="start">
				<label value="Migrate Messages"
					style="padding-left: 10px" />
			</hbox>
			<radio label="CmdMigrateDeal2" />
			<radio label="CmdMigrateTitleRights" />
			<radio label="CmdMigrateFinance" />

@Wire
  Radiogroup evt;
	@Wire
	Radiogroup migrate;

	private static final long serialVersionUID = 1L;

	@Listen("onClick=#Submit")
	public void doSaveProfile() {
		System.err.println("inside GetXmlController3  doing on click ");
		System.err.println("Got submit index: " + evt.getSelectedItem().getLabel() );
	}
TextArea's

some what confusing zk uses the same zk input field for texbox and text area.. the key differnces is adding the multiline="true" attribute

Message Boxes

Message boxes can be triggered from the controller without any client code required.

Messagebox.show("Warning is pressed", "Warning", Messagebox.OK, Messagebox.EXCLAMATION);

Messagebox.show("Question is pressed. Are you sure?", "Question", Messagebox.OK | Messagebox.CANCEL, Messagebox.QUESTION);

Messagebox.show("Information is pressed", "Information", Messagebox.OK, Messagebox.INFORMATION);

BandBox

http://zkfiddle.org/sample/3dvmg79/2-Dropdown-multiselect-list

Injecting in Jquery

Zk supports jquery out of the box. For example if I wanted to modify a textarea wiht a custom attribute, add the following javsascript to the zul page:

<script>
zk.afterMount(function () {
    jq("textarea").attr("spellcheck", "false");
});
</script>

Timer - Refresh

Refresh page

<!-- refresh content every 5 seconds -->
    <timer id="timer" delay="2000" repeats="true" />

Building and Deploying - Maven etc.

The deploy path for Webcontent folder can be configured in eclipse in the project properties:

Perhaps worth adding the lib to WEB-INF/lib as well

an example maven build file that then builds assumes /src/main/java /src/main/webapp

<?xml version="1.0" encoding="UTF-8"?>
<project
  xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd"
	xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance">
	<modelVersion>4.0.0</modelVersion>
	<groupId>zk.app</groupId>
	<artifactId>zkoss-Webapp</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>war</packaging>

	<properties>
		<javax.servlet.version>3.0.1</javax.servlet.version>
		<jawwa.version>0.4.1</jawwa.version>
		<zk.version>6.5.2</zk.version>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
	</properties>

	<build>
		<plugins>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-compiler-plugin</artifactId>
				<version>2.5.1</version>
				<configuration>
					<source>1.6</source>
					<target>1.6</target>
				</configuration>
			</plugin>
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-war-plugin</artifactId>
				<configuration>
					<webXml>WebContent\WEB-INF\web.xml</webXml>
				</configuration>
			</plugin>
			<plugin>
				<groupId>org.mortbay.jetty</groupId>
				<artifactId>jetty-maven-plugin</artifactId>
				<version>8.1.7.v20120910</version>
			</plugin>
		</plugins>
	</build>

	<dependencies>
		<dependency>
			<groupId>org.zkoss.zk</groupId>
			<artifactId>zkplus</artifactId>
			<version>${zk.version}</version>

		</dependency>
		<dependency>
			<groupId>org.zkoss.zk</groupId>
			<artifactId>zhtml</artifactId>
			<version>${zk.version}</version>
		</dependency>
		<dependency>
			<groupId>org.zkoss.zk</groupId>
			<artifactId>zkbind</artifactId>
			<version>${zk.version}</version>
		</dependency>
		<dependency>
			<groupId>org.zkoss.zk</groupId>
			<artifactId>zul</artifactId>
			<version>${zk.version}</version>
		</dependency>
		<dependency>
			<groupId>commons-logging</groupId>
			<artifactId>commons-logging</artifactId>
			<version>1.1.1</version>
		</dependency>
		<dependency>
			<groupId>commons-io</groupId>
			<artifactId>commons-io</artifactId>
			<version>1.3.1</version>
		</dependency>
		<dependency>
			<groupId>org.apache.commons</groupId>
			<artifactId>commons-lang3</artifactId>
			<version>3.1</version>
		</dependency>
		<dependency>
			<groupId>com.esotericsoftware.kryo</groupId>
			<artifactId>kryo</artifactId>
			<version>2.21</version>
		</dependency>
		<dependency>
			<groupId>org.ngi</groupId>
			<artifactId>zhighcharts</artifactId>
			<version>0.2.0</version>
		</dependency>
		<dependency>
			<groupId>org.apache.httpcomponents</groupId>
			<artifactId>fluent-hc</artifactId>
			<version>4.2.5</version>
		</dependency>
		<dependency>
			<groupId>org.apache.httpcomponents</groupId>
			<artifactId>httpcore</artifactId>
			<version>4.2.4</version>
		</dependency>
		<!-- Activemq Dependency for Jmx beans -->


		<!-- apache http and commons -->
	</dependencies>
	<repositories>
		<repository>
			<id>ZK CE</id>
			<name>ZK CE Repository</name>
			<url>http://mavensync.zkoss.org/maven2</url>
		</repository>
		<!-- <repository> <id>ZK EVAL</id> <name>ZK Evaluation Repository</name>
			<url>http://mavensync.zkoss.org/eval</url> </repository> -->
	</repositories>

</project>

Wiring up Components

Links and References
