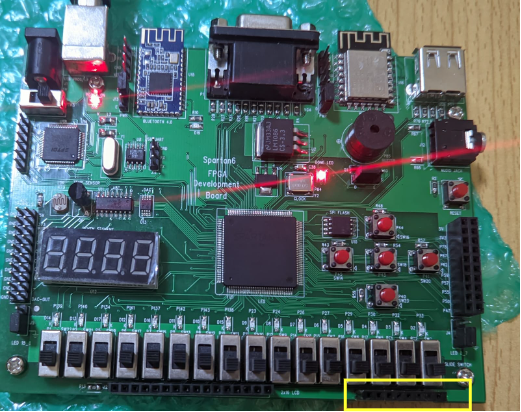

TFT Connector (J14) sharing I/O with LED and LCD

TFT connector refers to the physical connector on an FPGA board that allows for the connection of a TFT (thin-film transistor) display module. The TFT connector provides a means for the FPGA to send video signals to the display module for visual output.

Consists of 5 Pins:

1. NET "tft_cs" LOC = P33; This connects the chip select (CS) signal of the TFT display module to pin P33 of the FPGA board.

2. NET "tft_dc" LOC = P30; This connects the data/command (DC) signal of the TFT display module to pin P30 of the FPGA board.

3. NET "tft_reset" LOC = P32; This connects the reset signal of the TFT display module to pin P32 of the FPGA board.

4. NET "tft_sck" LOC = P27; This connects the serial clock (SCK) signal of the TFT display module to pin P27 of the FPGA board.

5. NET "tft_sdi" LOC = P29; This connects the serial data input (SDI) signal of the TFT display module to pin P29 of the FPGA board
