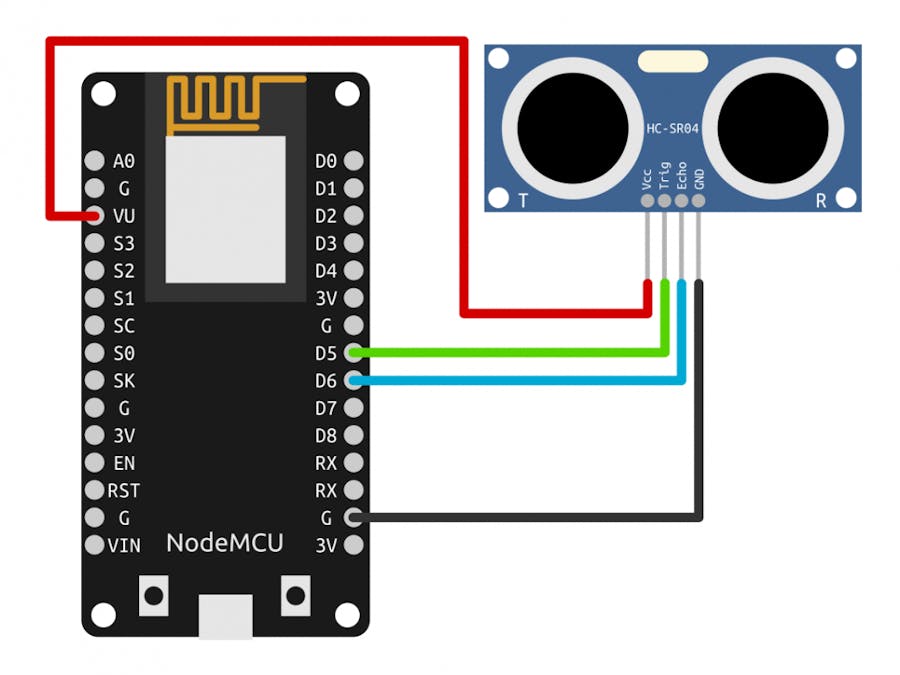

* VCC --> ไปที่ VU บน NodeMCU
* Trig --> ไปที่ D5 หรือ GPIO 14
* Echo --> ไปที่ D6 หรือ GPIO 12
* GND --> ไปที่ GND/G

#define BLYNK_PRINT Serial

#include <ESP8266WiFi.h>
#include <BlynkSimpleEsp8266.h>

#define TRIGGER_PIN       D5    // GPIO14
#define ECHO_PIN          D6   // GPIO12

#define LED1              D0
#define LED2              D1

char auth[] = "<blynk token>";

const char* ssid = "<ssid>";
const char* password = "<password>";
const char* server = "<server ip address>";
const int port = 8080;

WidgetLCD lcd(V1);

// เพื่อความแม่นยำของ Ultrasonic
// จะคำนวนระยะให้ 10 รอบ แล้วตัดค่าที่มากสุด น้อยสุดออกไปแล้วเฉลี่ย8 ค่า
long ultrasonic_distance(){

  long duration[10], distance[10];
  long dist_min, dist_max, dist_sum=0;

  for(int i=0; i<10; i++){
    distance[i]=600;
    while(distance[i]>300){
      digitalWrite(TRIGGER_PIN, LOW);  // Added this line
      delayMicroseconds(2); // Added this line
      digitalWrite(TRIGGER_PIN, HIGH);
      delayMicroseconds(10); // Added this line
      digitalWrite(TRIGGER_PIN, LOW);
      duration[i] = pulseIn(ECHO_PIN, HIGH);
      distance[i] = (duration[i]/2) / 29.1;
      delayMicroseconds(10); // Added this line
    }

    if(i==0){
      dist_min= distance[i];
      dist_max= distance[i];
    }
    else{
      dist_min = (distance[i]<dist_min)? distance[i] : dist_min;
      dist_max = (distance[i]>dist_max)? distance[i] : dist_max;
    }
    dist_sum += distance[i];
  }

  return (dist_sum-dist_min-dist_max)/8;
}

void setup(){

  Serial.begin(115200);

  pinMode(TRIGGER_PIN, OUTPUT);
  pinMode(ECHO_PIN, INPUT);
  pinMode(LED1, OUTPUT);
  pinMode(LED2, OUTPUT);

  Blynk.begin(auth, ssid, password, server, port);

  lcd.clear(); //Use it to clear the LCD Widget
  lcd.print(0, 0, "Distance in cm"); // use: (position X: 0-15, position Y: 0-1, "Message you want to print")
  // Please use timed events when LCD printintg in void loop to avoid sending too many commands
  // It will cause a FLOOD Error, and connection will be dropped
}

void loop(){

  lcd.clear();
  lcd.print(0, 0,"Distance in cm"); // use: (position X: 0-15, position Y: 0-1, "Message you want to print")
  delay(1500);
  long distance = ultrasonic_distance();

  Serial.print(distance);
  Serial.println("cm");
  lcd.print(0, 1, distance);
  Blynk.run();

  delay(3500);

}

char auth[] = "<blynk token>";

const char* ssid = "<ssid>";
const char* password = "<password>";
const char* server = "<server ip address>";
const int port = 8080;

Blynk.begin(auth, ssid, password, server, port);

char auth[] = "<blynk token>";

const char* ssid = "<ssid>";
const char* password = "<password>";

Blynk.begin(auth, ssid, password);

#define LED1              D0
#define LED2              D1

pinMode(LED1, OUTPUT);
pinMode(LED2, OUTPUT);
