NetworkDesign (1)

Breakdown:

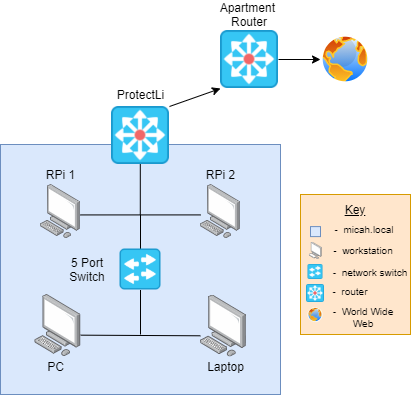

Shown below is the first iteration of my capstone network design for ProtectLi research. The first two workstations, RPi 1 and 2, are my personal Raspberry Pi's that I will be using for network testing. RPi 1 will serve as a web server and host a basic testing page. As of right now RPi 2 will just be used as a workstation for testing. All of this hardware will be configured and set up in my room in my Burlington apartment.

Equipment Inventory

  • 1 x Four Port ProtectLi Router
  • 1 x Five Port Cisco Switch
  • 1 x Raspberry Pi 1
  • 1 x Raspberry Pi 2
  • 5 x Ethernet Cables
  • 1 x VGA Cable (for Router)
