Amazon (AWS) S3 Integration - mekya/antmedia-doc GitHub Wiki

Amazon S3 Integration lets you upload your MP4 files and previews to S3 automatically so that you do not need to worry about disk space in your server. Here is the simple manual how to enable S3 Integration to your streaming app

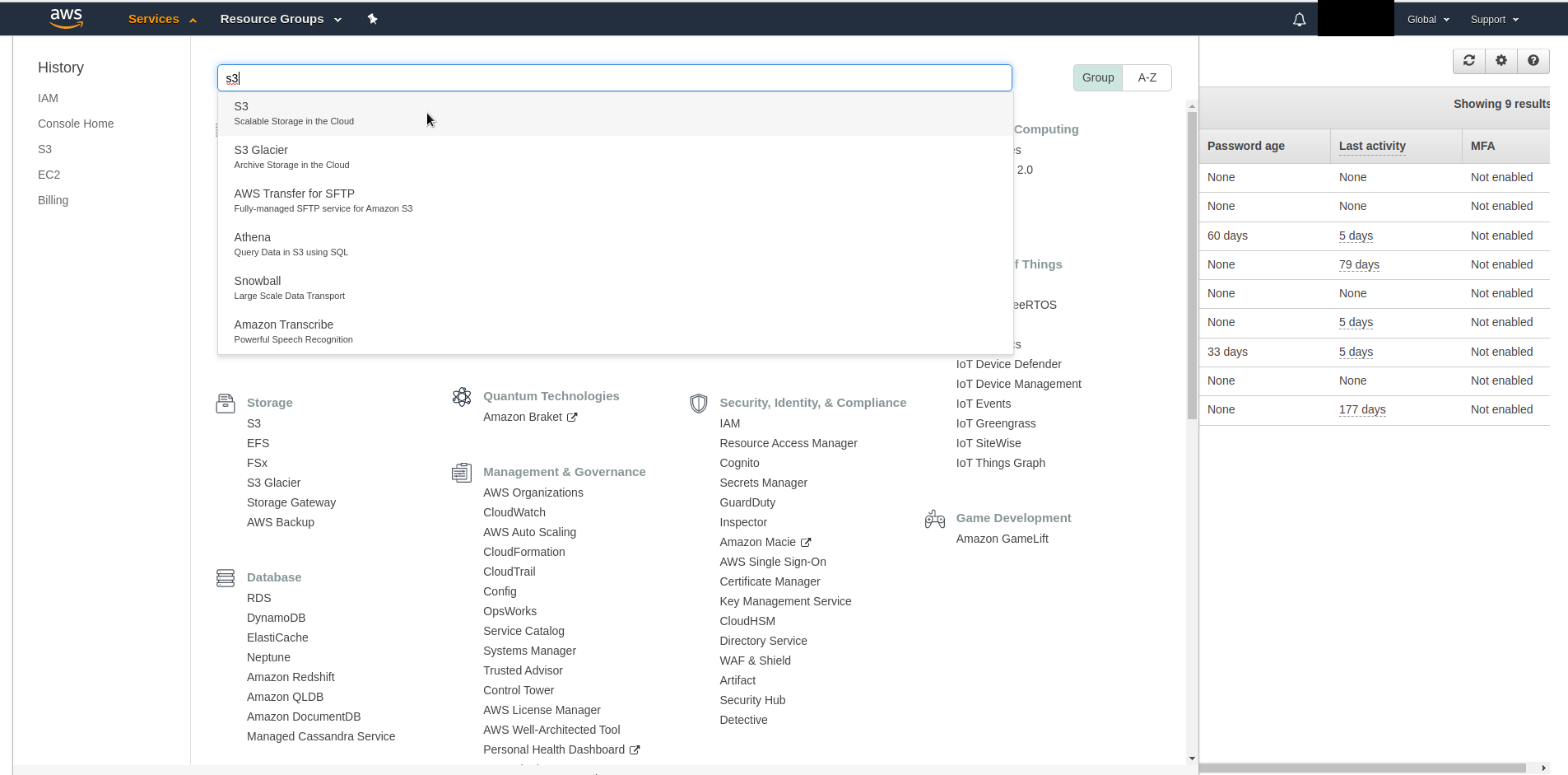

• In order to programmatically access to S3, you should have an access token and secret keys. You can create a programmatic user to have an access token and secret key from AWS IAM(Identity and Access Management) console.

Just Add User by checking Programmatic Access box and then in the next section click Attach existing policies directly and add AmazonS3FullAccess access permission to this user. Copy access token and secret key for this user.

• Right now, you should have access token, secret key, bucket name in your hand.

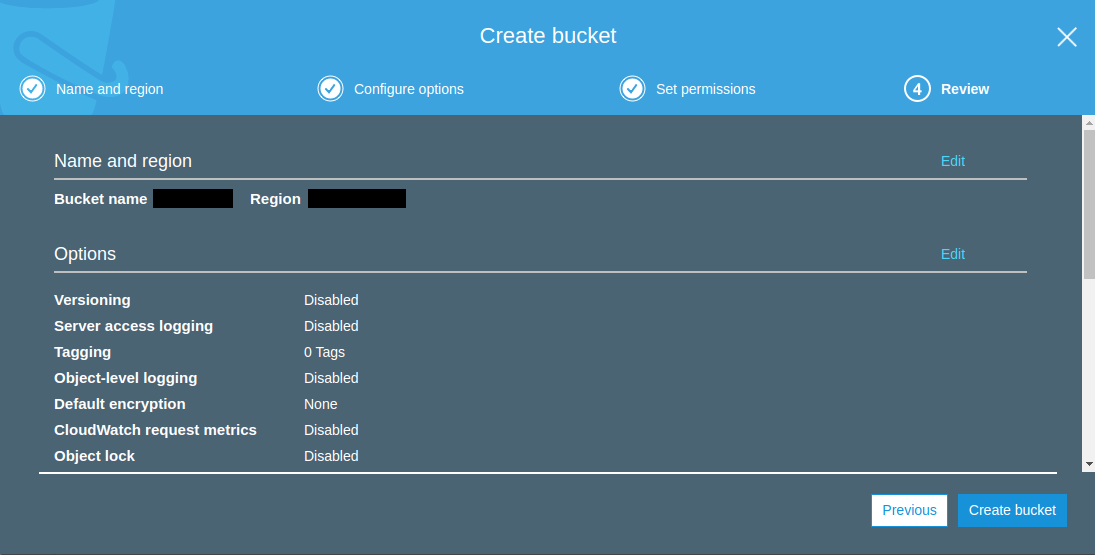

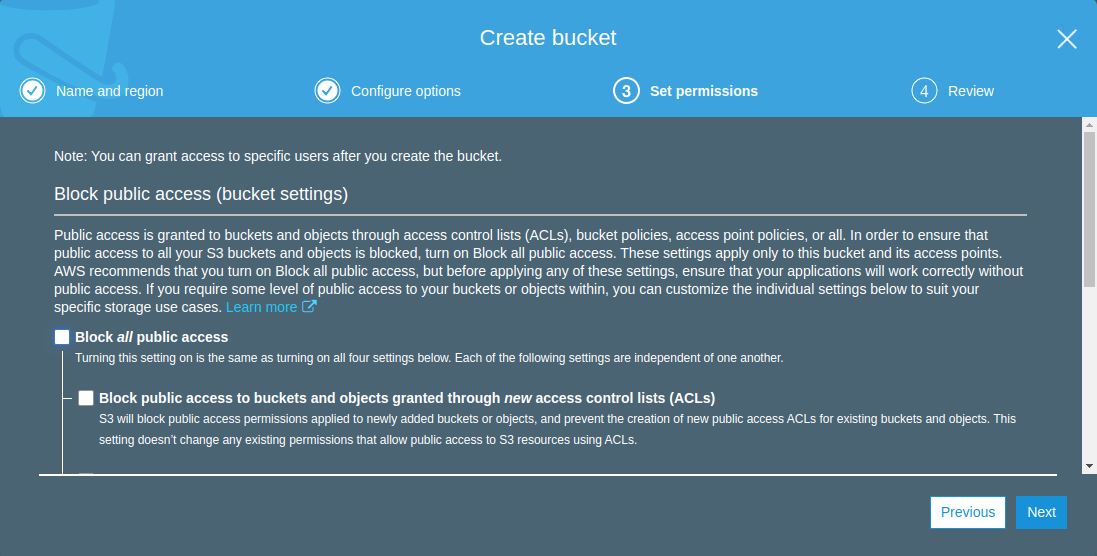

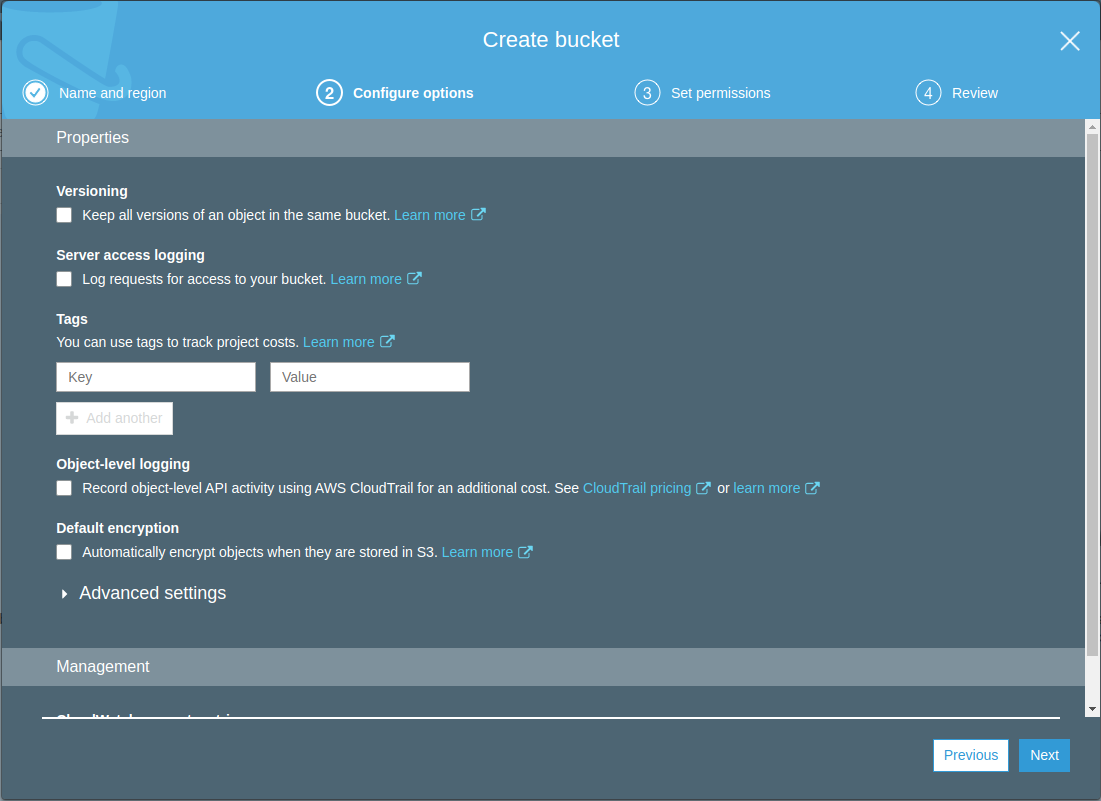

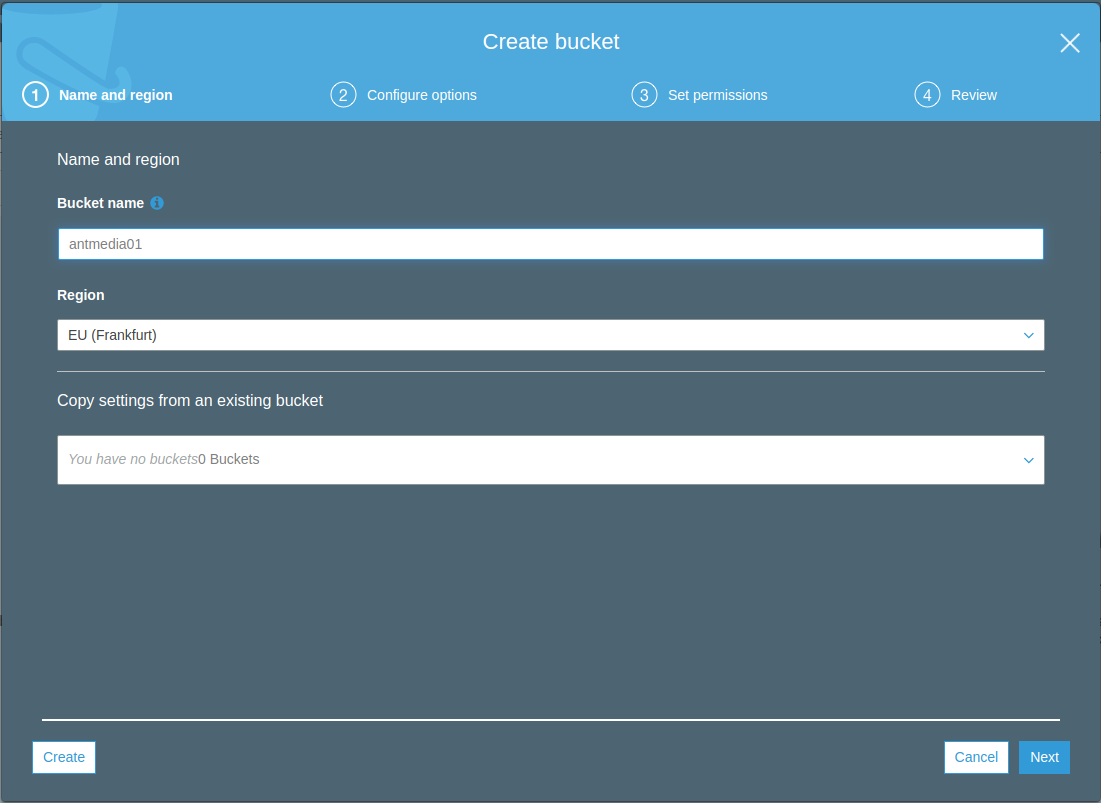

You also need to know the region of your bucket. If you do not have any bucket, you can create it on S3 Console

• Add a new bean to red5-web.xml of your app as below. red5-web.xml file is under WEB-INF folder of your app. For instance webapps / LiveApp / WEB-INF / red5-web.xml

<bean id="app.storageClient" class="io.antmedia.storage.AmazonS3StorageClient">
    <property name="accessKey" value="Enter your S3_ACCESS_KEY" />
    <property name="secretKey" value="Enter your S3_SECRET_KEY" />
    <property name="region" value="Enter your REGION_NAME e.g. eu-central-1" />
    <property name="storageName" value="Enter your BUCKET_NAME" />
</bean>

You should set the values accordingly to your access token, secret key, region name and bucket name. You can learn your region's programmatic name from here.

• Save the file and restart the server

sudo service antmedia restart

Your MP4 files and Preview files will be uploaded to your S3 bucket automatically.

This section is optional. If you want to forward HTTP requests to MP4 files, Preview files or m3u8 files to AMS S3 directly, you can use this feature with few basic changes in application settings.

Open AMS-DIR / webapps / {application} / WEB-INF / red5-web.properties with your text editor (vim, nano)

settings.httpforwarding.extension

Usage Example:

settings.httpforwarding.extension=mp4

You can add extensions with a comma: mp4,png

Detail in code: HTTP Forward Extension Settings Details

settings.httpforwarding.baseURL

Usage Example:

settings.httpforwarding.baseURL=https://{s3BucketName}.s3.{awsLocation}.amazonaws.com

Detail in code: HTTP Forward BaseURL Settings Details

When you added above code snippets in Application Settings, your Request URI will be as below.

https://{s3BucketName}.s3.{awsLocation}.amazonaws.com/streams/{streamId.mp4}

Detail in code: HTTP Forward Filter

Note: Don't add any leading, trailing white spaces.

Restart Ant Media Server

sudo service antmedia restart

After server restarted, MP4 and Preview files will be forwarded to S3 directly.

For example; when requested defined MP4 or any file:

https://serverDomain:5443/{streamApp}/streams/{streamId}.mp4

HTTP request will be redirected as below

https://{s3BucketName}.s3.{awsLocation}.amazonaws.com/streams/{streamId}.mp4
