Other examples using RTC - martinberlin/epaper-weather-station GitHub Wiki

Using DS3231 RTC and others that have a temperature compensated crystal you can also make a nice clock/ weather panel. Although the temperature reading is not very precise, might vary from 1 to 2 °C, is good enough to show it in your display.

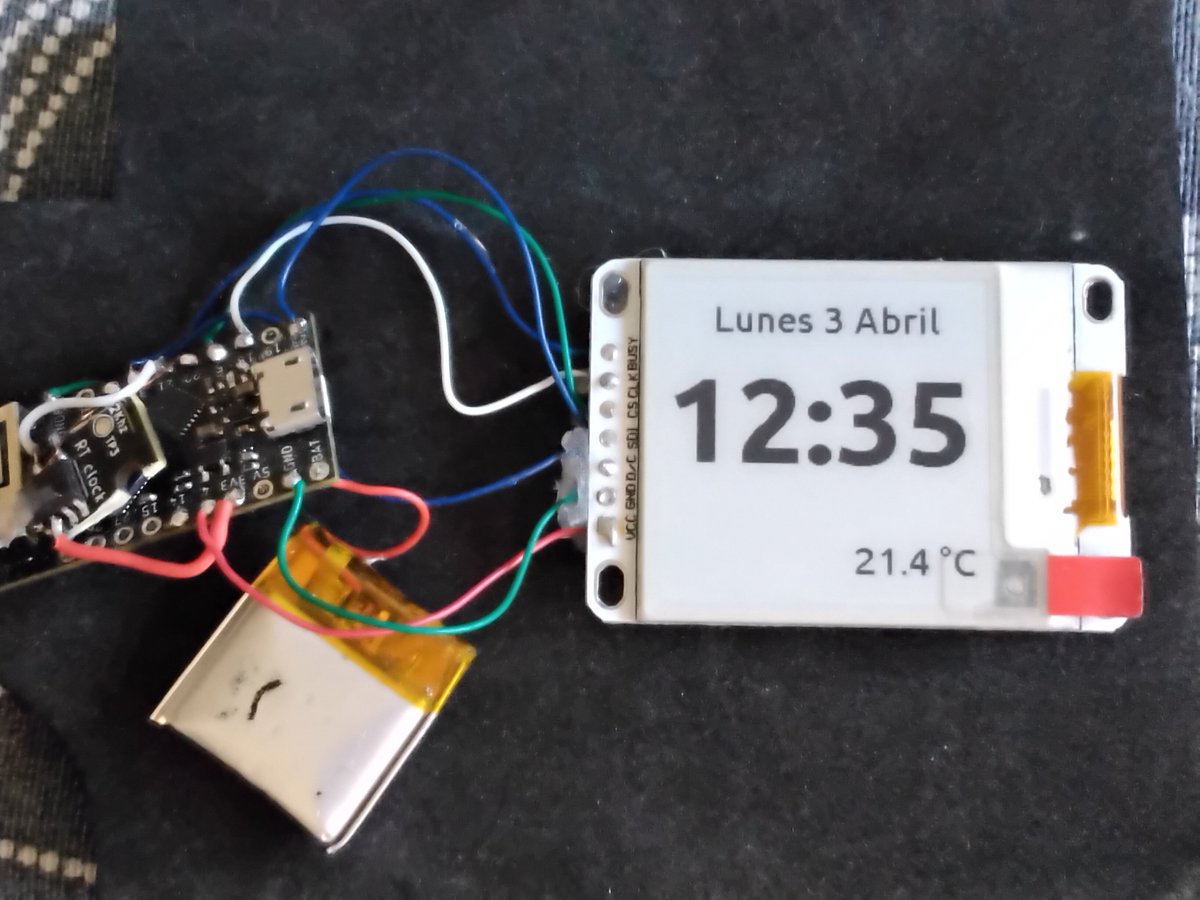

DS3231 self-made HAT for tinypico

This is a small 200x200 display connected to an ESP32-tinypico and a DS3231 RTC using only I2C. It wakes up every 2 minutes and reads the precise real-time-clock.

The example is here on Github to test it:

https://github.com/martinberlin/epaper-weather-station/blob/develop/main/SPI-displays/weather-station.cpp

weather-station has some conditionals in the code. And when it's a 200 width display or smaller, it adapts the fonts and coordinates switching to that small dimensions.
