Model parallel ED060SC4 ED060XC3 ED060XXX - martinberlin/cale-idf GitHub Wiki

  • Size: 800 * 600 6" 16 levels of gray
  • Epaper model: ED060SC4 and other 6 inches (see EPDiy supported models for 6 inches)
  • Dimensions: 13.8 * 10.5 CM
  • Product page
  • Status: Implemented and merged in master
  • Refresh time: About 600 milliseconds (with 16 grays) faster if only monochrome black/white update is used.
  • Communication protocol: Parallel with 8 data lines

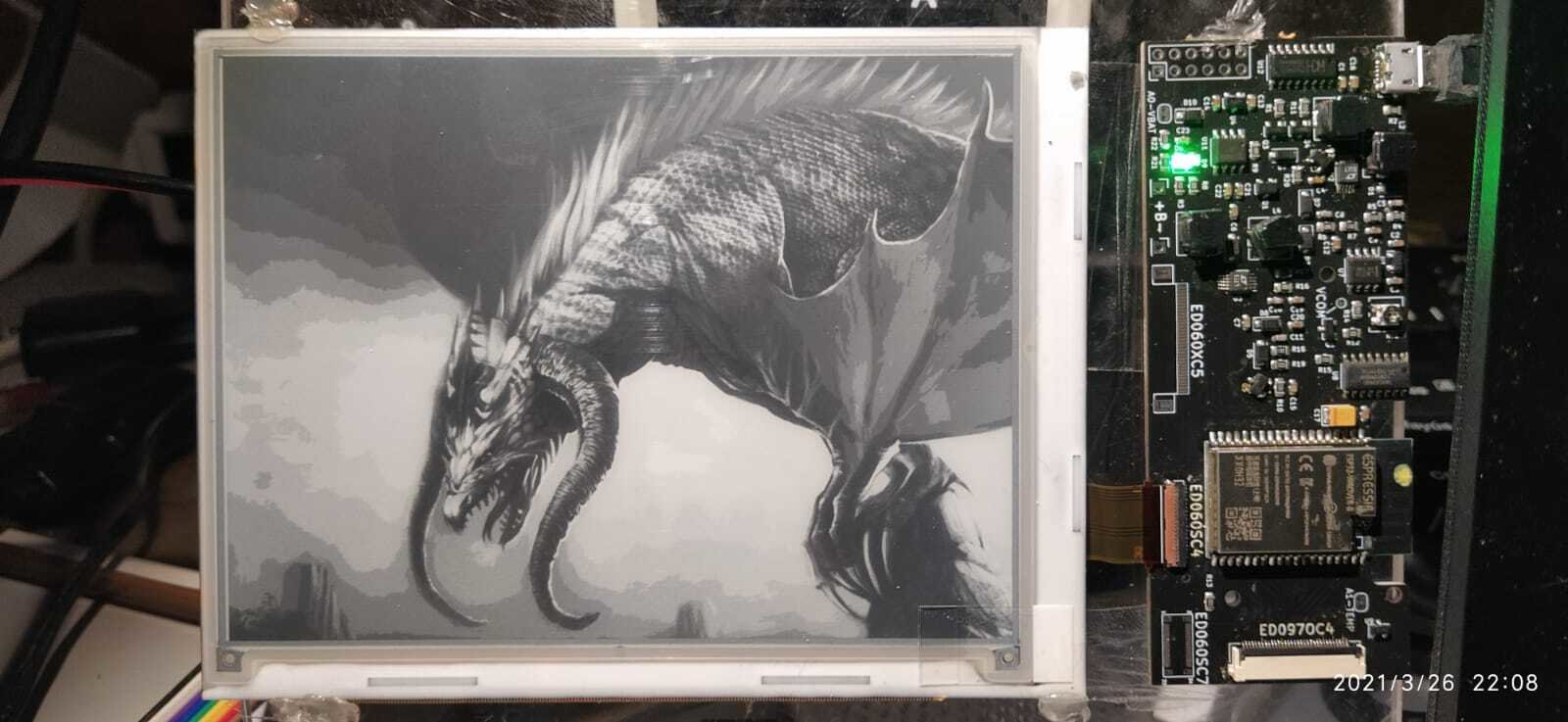

Dragon in 6 inches parallel epaper

Requirements:

  • EPDiy in the components folder
  • One of the EPDiy PCBs or similar clone to connect the epaper display (Check the right part of the picture)
