Part 1 - Building the Network

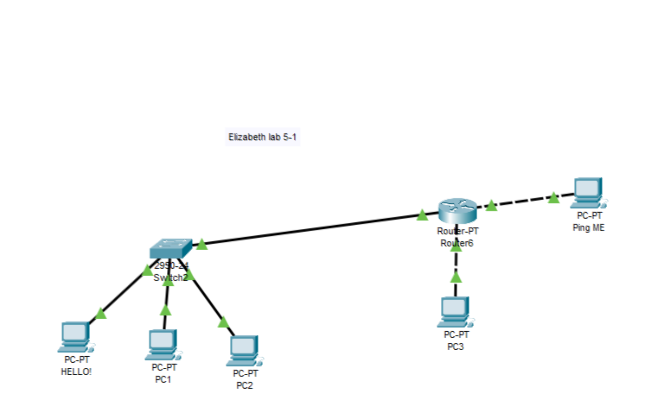

  1. Deliverable 1: Build the below network in Packet Tracer. Screen Capture of networks (1 points) lab51Network

You will need to assign IPs to laptops and router interface. As well as assign default gateways. Device numbers may not match devices you have.

  1. Configure the IPs on the router interfaces. You will need 3 different network/IPs Deliverable 2: Screen capture of router IP settings. 5 points

  2. Set the appropriate IP's to your workstation's. Workstations IP should be in same network as default gateway. You should have instructions for doing this in your Tech Journal!

4.Once all of the interfaces are configured, try pinging from HELLO! laptop to Ping Me laptop. Deliverable 3: Screen capture of HELLO! pinging Ping Me. 1 points

If your ping fail troubleshoot. Add any and all troubleshooting steps

Part 2: Packet Capture Observation Using the sniffer inspect packets going from HELLO! to Ping Me and back. Ping both ways How to install a sniffer: https://www.youtube.com/watch?v=gsCSKQAVT2MWireshark (Links to an external site.)

Install sniffer between switch and router. Try pinging from HELLO! laptop to Ping Me laptop and observe packet info. Deliverable 4: SCREEN CAPTURE of sniffer GUI info. 2 points Replace switch with a hub and repeat above steps. Deliverable 5: What was different about the sniffer information when it was connected to a hub? 3 points

Add Tech Journal Link: How did you connect to a router?
