Let's subscribe to the /image topic and apply HSV(Hue/Saturation/Value) filter to it so we can filter out blue lane of our image. First, we need to isolate all the blue areas on the image. To do this, we need to turn the color space used by the image, which is RGB (Red/Green/Blue) into the HSV (Hue/Saturation/Value) color space. The reason to use HSV color space is that in an RGB image, different parts of the blue tape may be lit with different light, resulting them appears as darker blue or lighter blue. However, in HSV color space, the Hue component will render the entire blue tape as one color regardless of its shading.

Convert the image to HSV color space

create a new example3_hsv_filter.py file in \nodes folder and modify the process_image function to following.

def process_image(msg):
    try:
       # convert sensor_msgs/Image to OpenCV Image
        orig = bridge.imgmsg_to_cv2(msg, "bgr8")
        hsv = cv2.cvtColor(orig, cv2.COLOR_BGR2HSV)
    except Exception as err:
        print err
    # show results
    show_image(hsv)

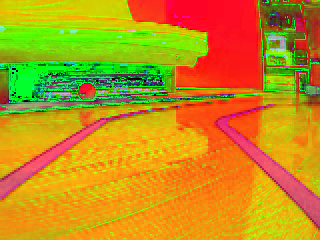

Kill all the previous example nodes except the image publisher node. You will see something similar to the following picture. You can see that both lane lines are now roughly the same magenta color.

Complete code

#!/usr/bin/env python
import rospy
from sensor_msgs.msg import Image
from cv_bridge import CvBridge
import cv2

bridge = CvBridge()

def start_node():
    rospy.init_node('image_subcriber')
    rospy.loginfo('image_subcriber node started')
    rospy.Subscriber("image", Image, process_image)
    rospy.spin()

def process_image(msg):
    try:
       # convert sensor_msgs/Image to OpenCV Image
        orig = bridge.imgmsg_to_cv2(msg, "bgr8")
        hsv = cv2.cvtColor(orig, cv2.COLOR_BGR2HSV)
    except Exception as err:
        print err
    # show results
    show_image(hsv)


def show_image(img):
    cv2.imshow('image', img)
    cv2.waitKey(1)

if __name__ == '__main__':
    try:
        start_node()
    except rospy.ROSInterruptException:
        pass
