Unified Process model - kubapeter/portfolio GitHub Wiki

The Unified Process model is a [parallel process model]] of [[software development]]. Its basic structure has sequential [phases within a repeatable cycle. Within most of the Unified Process model’s phases, work happens in small iterations until the phase is considered complete, i. e. when a milestone, a specific and identifiable point in a project, is reached.

The model allows for tasks done in one phase to also occur in another. So, a requirements task or activity can happen throughout all the phases instead of in just one.

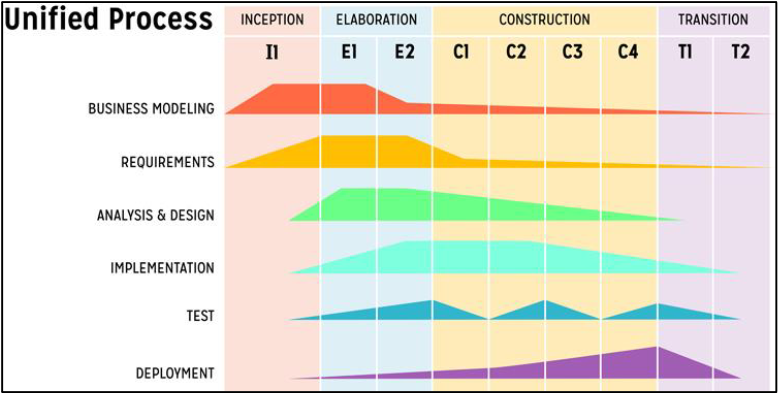

Phases

The Unified Process model has four phases, with each phase having a distinct aim.

  1. Inception phase - goals:
    • creation of basic use cases
    • definition of the project’s scope
    • definition of the potential project risks
  2. Elaboration phase - goals:
    • create design models and prototypes of the product
    • refine requirements conceived earlier
    • address risks
  3. Construction phase - goals:
    • develop full use cases
  4. Transition phase - goals:
    • gathering analysing user feedback

The iterations circle around phases 2, 3 and 4. Phase 1 happens only once. Iterations also happen within phases; for example, the elaboration phase may lead to several iterations of design before the work product is ready for the construction phase.

Phases and prototypes
