cdskit plot

cdskit plot renders codon-aware visual summaries from aligned CDS data. The command supports three plotting modes:

• summary: Alignment-level QC summary with a clean-fraction line, threshold overlay, stop-codon markers, and a keep/remove strip.
• map: Sequence-by-site codon-state map that highlights complete, missing, ambiguous, and stop codons.
• msa: Nucleotide alignment view with amino-acid site numbers, nucleotide site numbers, consensus amino acid/codon rows, and a per-codon amino-acid frequency logo.

The default output format is PDF. Use --format pdf|svg|png, or let --out_file decide the format automatically from its filename extension.

Examples

The images are saved previews of an illustrative eight-sequence alignment, with custom figure dimensions. The commands below show the corresponding modes; your own alignment.fasta determines the plotted values and labels.

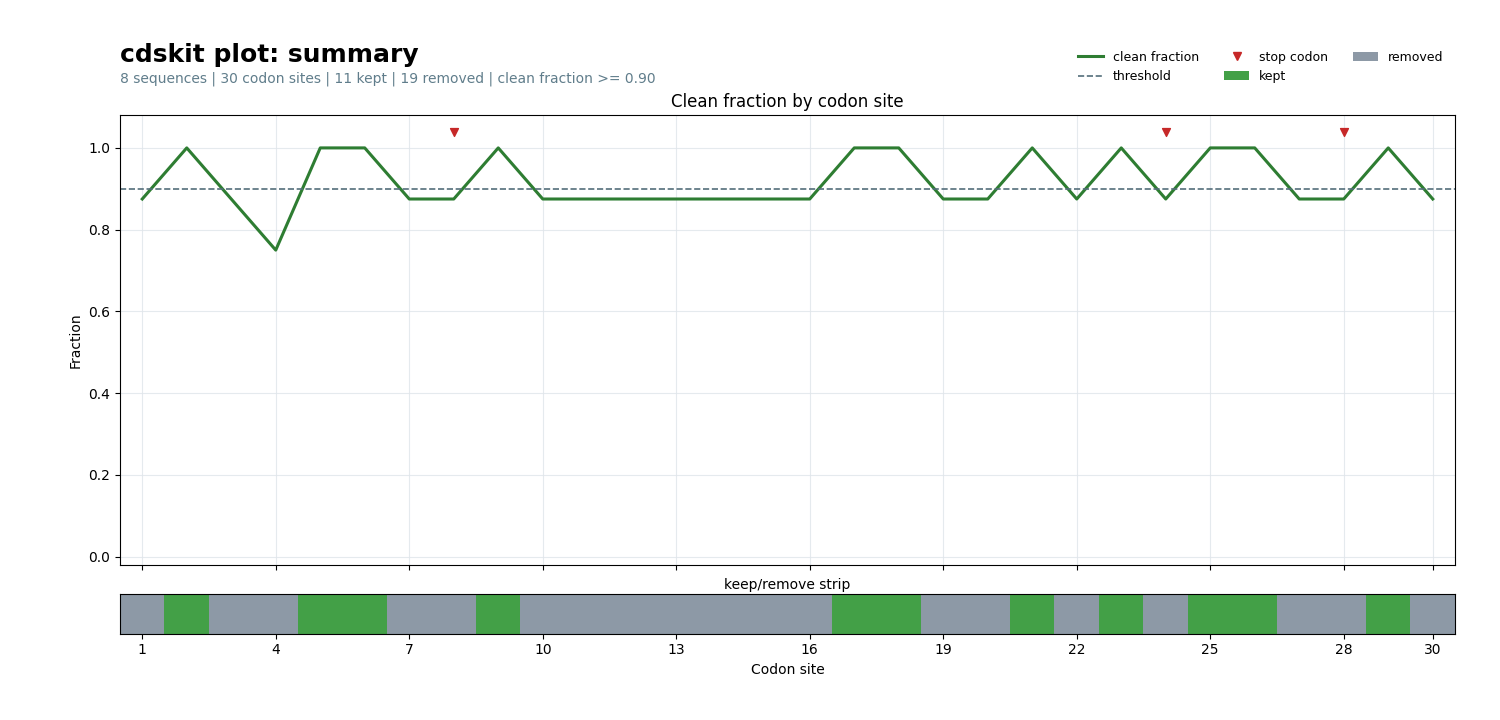

Summary plot

cdskit plot --seq_file alignment.fasta --mode summary --out_file qc-summary.pdf --min_clean_fraction 0.9

This mode is useful for choosing a clean-codon fraction threshold before trimming.

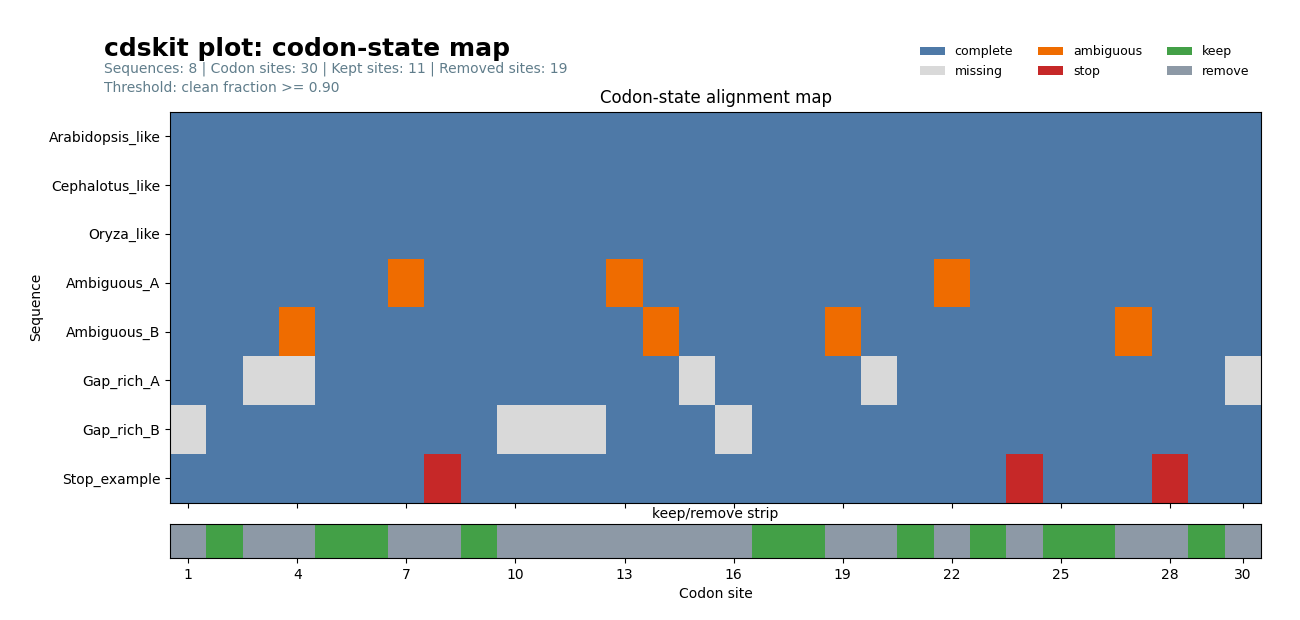

Codon-state map

cdskit plot --seq_file alignment.fasta --mode map --out_file codon-map.svg --format svg --min_clean_fraction 0.9

This mode shows how each sequence behaves at each codon site and includes the keep/remove strip derived from the same clean-fraction threshold used by trimcodon.

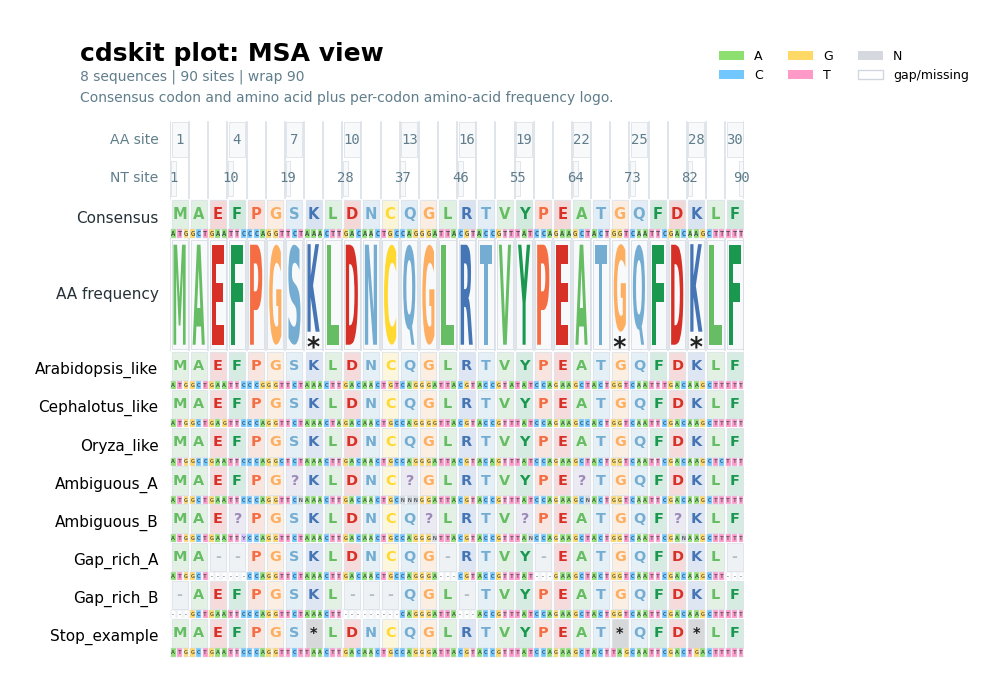

MSA view

cdskit plot --seq_file alignment.fasta --mode msa --out_file alignment-view.pdf --wrap 90

This mode draws the nucleotide alignment as codon-aware blocks. Each sequence row is split into amino-acid and codon panels, and the consensus plus AA-frequency logo are shown above the alignment. --wrap must be a multiple of three; the preview uses 90, while the default is 60.

Common options

• --out_file PATH: Output plot path. Use - for standard output.
• --format auto|pdf|svg|png: Output format. If auto is used, the format is inferred from --out_file; otherwise PDF is used by default.
• --width INT, --height INT: Figure size in pixels.
• --title STR: Optional plot title.
• --codon_table INT: NCBI codon table ID.
• --threads INT: Number of worker threads for data preparation.

Threshold-related options

• --min_clean_fraction FLOAT: Minimum fraction of sequences with a clean codon required to keep a codon site in summary and map.

A clean codon contains no missing character (-, ?, or .), no ambiguous nucleotide (N, R, Y, etc.), and no definite stop codon under ordinary translation. For example, standard-code TAR is a definite stop despite being ambiguous. Dual-coding A/C/G/T codons remain clean despite their context-dependent termination.

Layout options

• --row_height INT: Row height for map and msa.
• --label_width INT: Width reserved for sequence labels in map and msa.
• --wrap INT: Number of nucleotide columns per block in msa. Must be divisible by three.
• --top_n INT: Number of high-ambiguity sequences shown in the side bar chart for summary and map. The default is 0, which hides the side chart.

Input requirements

• Input sequences must be DNA.
• All sequences must already be aligned.
• Sequence lengths must be multiples of three.

Notes

• summary and map are useful for alignment QC and trimming decisions.
• msa is designed for compact codon-aware visualization of moderate-length alignments.
• The plotting backend uses matplotlib, so PDF, SVG, and PNG output are available from the same command.

Codon semantics

See codon meaning and uncertainty for definite versus possible stops, dual-coding tables 27/28/31, overlapping ambiguity/stop counts, and report compatibility. These rules describe sequence QC, not gene function.

References

Cite the method or resource actually used and report the CDSKIT version and options.

• Hunter JD (2007). Matplotlib: A 2D Graphics Environment. Computing in Science & Engineering 9:90–95. Paper — Plotting backend. The MSA logo shows amino-acid frequencies, not information content in bits.
