ProGuide Feature Selection - kataya/arcgis-pro-sdk GitHub Wiki

Language:      C#
Subject:       Map Exploration
Contributor:   ArcGIS Pro SDK Team <[email protected]>
Organization:  Esri, http://www.esri.com
Date:          11/24/2020
ArcGIS Pro:    2.7
Visual Studio: 2017, 2019

This guide demonstrates how to create a simple map tool for feature selection. See ProConcepts Map Exploration, MapTool for more information on the MapTool pattern.

Prerequisites

• Download and install the sample data required for this guide as instructed in Arcgis Pro SDK Community Samples Releases.
• Create a new ArcGIS Pro Module Add-in, and name the project MapToolSelect. If you are not familiar with the ArcGIS Pro SDK, you can follow the steps in the ProGuide Build your first add-in to get started.
• Add a new ArcGIS Pro Add-ins | ArcGIS Pro Map Tool item to the add-in project, and name the item MapToolSelect.


Step 1

Modify the Config.daml file tool item as follows:

• Change the caption to "Select Features".
• Change the tool heading to "Select Features" and the ToolTip text to "Select features on the current map using a rectangular sketch."

...
<tool id="MapToolSelect_MapToolSelect" caption="Select Features" className="MapToolSelect"
      loadOnClick="true" smallImage="Images\GenericButtonRed16.png"
      largeImage="Images\GenericButtonRed32.png" condition="esri_mapping_mapPane">
  <tooltip heading="Select Features">
    Select features on the current map using a rectangular sketch.<disabledText /></tooltip>
</tool>
...

Build the sample and validate the UI on the ArcGIS Pro ribbon.

Step 2

The required feature selection functions must be implemented in the MapToolSelect class.
First, SketchOutputMode in the constructor is changed to SketchOutputMode.Screen. MapView.SelectFeatures and MapView.GetFeatures throw a System.ArgumentException if a 3D query is attempted in SketchOutputMode.Map, so you need to change the sketch projection to screen coordinates.

public MapToolSelect()
{
    IsSketchTool = true;
    SketchType = SketchGeometryType.Rectangle;
    SketchOutputMode = SketchOutputMode.Screen;
}

Note: If IsSketchTool is not set to true, the map view will not switch to sketching mode when the tool is activated, and a sketch will not be produced.

The OnSketchCompleteAsync method can be overwritten to implement the required selection functionality. The MapTool base class provides an ActiveMapView property that provides a link to the current active map view. The MapView, in turn, provides a method that can be used to select features that intersect a given geometry.

protected override Task<bool> OnSketchCompleteAsync(Geometry geometry)
{
    return ArcGIS.Desktop.Framework.Threading.Tasks.QueuedTask.Run(() =>
    {
        // Using the active map view to select
        // the features that intersect the sketch geometry
        ActiveMapView.SelectFeatures(geometry);
        return true;
    });
}

Note: ActiveMapView is a property provided by the MapTool base class; however, the same reference can also be obtained from the MapView class as shown below.

// Get the active map view
var mapView = MapView.Active;
if (mapView != null) { // Use map view here }

Step 3

Rebuild the add-in. Fix any compilation errors.

Step 4

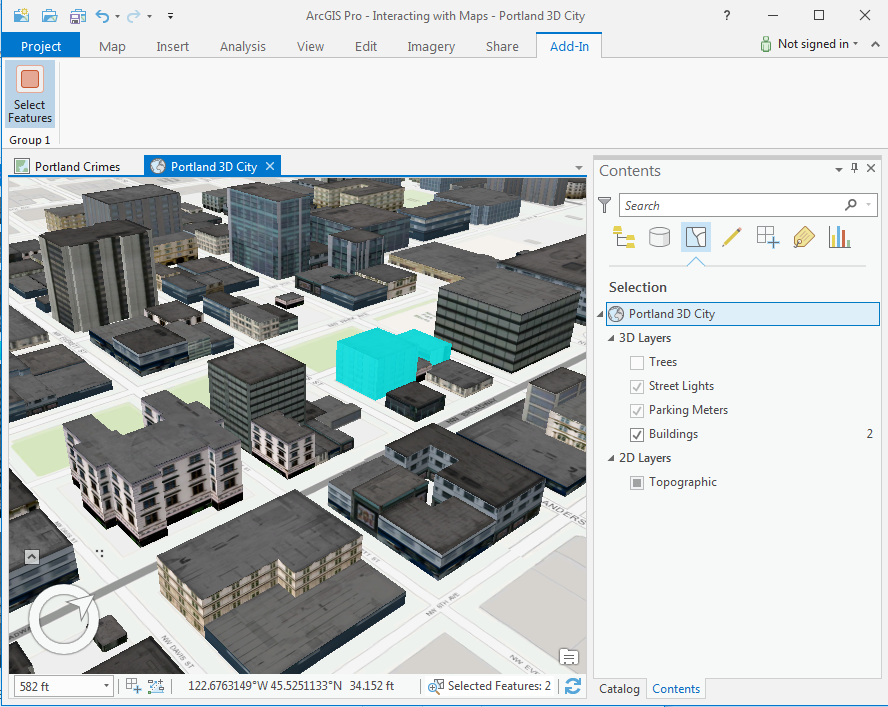

Debug the add-in. Run the debugger and start ArcGIS Pro. Open the C:\Data\Interacting with Maps\Interacting with Maps.aprx project that contains a 3D map with feature data. Try the selection tool on the 3D scene as shown here:

Verify the updated feature selection.
