K-P2PLab v3 Implementation Architecture

Wiki home

Documentation index · Source repository

This document maps the project-wide concepts in Concepts to the current v3 implementation. It describes the executable components, Docker placement, communication paths, and isolation guarantees implemented in the kpl-v3 source repository. Project goals, version-independent design principles, research context, and publications occupy separate pages in this wiki.

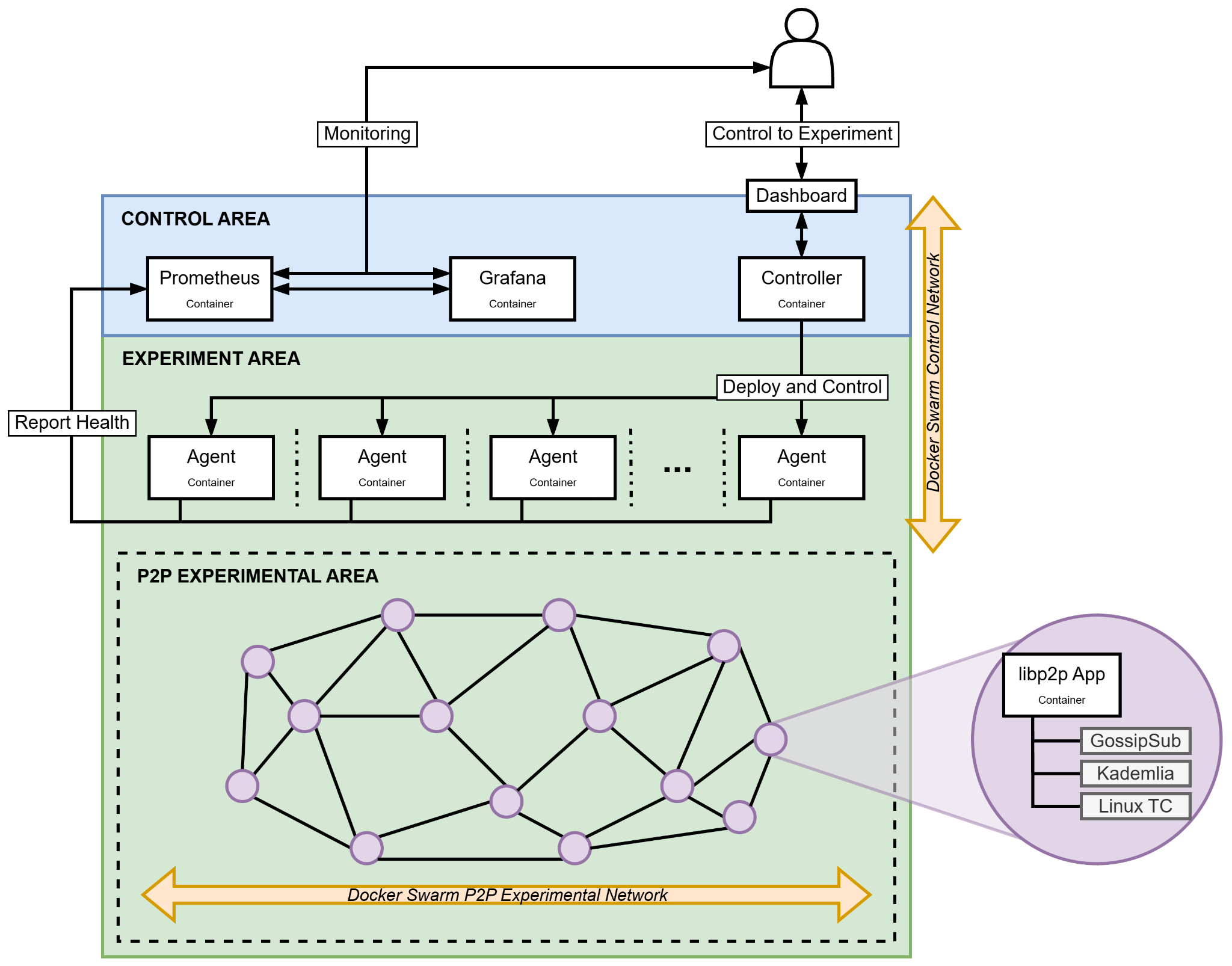

Architecture overview

The areas summarize control, observation, and Peer execution responsibilities. The Control/P2P network labels describe this overview; use Docker networks and exposed endpoints for the actual overlay attachments and traffic paths. The original PNG is stored in this wiki.

Component and communication diagram

flowchart TB
    operator["Operator browser or REST client"]
    subgraph controllerContainer["Controller container"]
        dashboard["Embedded Dashboard assets"]
        controller["Controller HTTP API, scenario scheduler and analysis worker"]
    end
    subgraph agentHost["Each Agent host: node-local Docker Engine"]
        agent["Agent container"]
        docker["Docker socket"]
        peer["Standalone Peer containers: libp2p and optional tc"]
    end
    subgraph networkHost["Control manager: network components"]
        manager["Network manager service"]
        managerDocker["Manager Docker socket"]
        gateway["Standalone HTTP gateway"]
    end
    remote["Peer containers on other Agent hosts"]
    prometheus["Prometheus container"]
    grafana["Grafana container"]
    records[("Controller data: scenarios and run records")]
    series[("Prometheus time-series volume")]
    operator -->|"load UI"| dashboard
    operator -->|"REST requests and SSE subscription"| controller
    controller -->|"create, stop, publish"| agent
    agent -->|"register, heartbeat, event batches"| controller
    agent -->|"create and remove containers"| docker
    docker -->|"start and stop"| peer
    controller -->|"prepare network"| manager
    manager -->|"replace empty Peer overlay and gateway"| managerDocker
    agent -->|"Peer commands"| gateway
    gateway -->|"control HTTP"| peer
    peer -->|"status, telemetry, discovery, clock"| gateway
    gateway -->|"status and telemetry"| agent
    gateway -->|"bootstrap, discovery, clock"| controller
    peer <-->|"direct libp2p TCP"| remote
    controller -->|"persist"| records
    prometheus -->|"scrape metrics and discover Agent targets"| controller
    prometheus -->|"scrape metrics"| agent
    prometheus -->|"retain samples"| series
    grafana -->|"query"| prometheus
    operator -->|"view monitoring"| grafana

Arrows show request or operation direction, with responses omitted; the libp2p link is bidirectional. Boxes show executable placement and storage, not separate Docker networks. The network table below defines actual attachments. A single-node Swarm runs all components on one host; selecting multiple Agent nodes distributes Peers across hosts.

Components

Component	v3 deployment	Responsibility
Dashboard	Static web application embedded in and served by the Controller	Starts and stops runs, manages saved scenarios and results, displays live Agent/Peer/topology/event/summary data, and provides per-result graph images with PNG downloads.
Controller	One container; pinned to the configured control node in Swarm	Parses and schedules scenarios, reserves Agent capacity, issues Peer lifecycle and publish operations, maintains the bootstrap and topic-discovery registries, aggregates topology and telemetry, persists run records, serves the REST API and Dashboard, and exports Controller metrics.
Agent	One global-service task per selected Swarm node	Registers with the Controller, reports heartbeats, enforces local admission capacity, creates and removes Peer containers through the node-local Docker socket, proxies publish requests, forwards Peer telemetry, and exports host-local Agent metrics.
Peer	One standalone Docker container per experimental Peer	Runs the actual libp2p application, including Kademlia and GossipSub; joins topics, publishes and receives messages, reports protocol/delivery events and cumulative libp2p stream bytes, and applies its own Linux traffic-control rules when configured.
Network manager / gateway	Manager service and standalone gateway on the control manager	Replaces the empty Peer overlay before each Run; bridges allowed Peer HTTP requests to stable control services.
Prometheus	One container on the configured Swarm control node	Scrapes Controller metrics and the metrics endpoints advertised by eligible Agents, then retains time series independently of saved experiment result archives.
Grafana	One container on the configured Swarm control node	Queries Prometheus through the provisioned data source and presents the bundled experiment-analysis dashboard.

The Controller, Agent, and Peer modes are subcommands of the same kpl image. Swarm Agents resolve the exact local image ID of their running task and use it to create Peers, preventing a mutable tag from mixing binaries within one deployment.

Control and experiment flow

1. An operator submits a scenario through the Dashboard or REST API. The Controller creates the run, resolves distributions, schedules actions, and assigns new Peers to Agents with available capacity.
2. The Controller calls the selected Agent's private HTTP API. The Agent creates one Peer container on its local Docker daemon, copies in that Peer's generated configuration, starts it, and reports lifecycle state to the Controller.
3. The Peer asks the Controller for bootstrap peers, topic-discovery candidates, and Controller clock samples. Its Kademlia and GossipSub traffic then travels directly between Peer container addresses. A scheduled publish follows Controller -> Agent -> target Peer before the Peer sends the P2P message.
4. Each Peer sends status and batched telemetry to its Agent. The Agent retains each source's session and sequence identity, retries failed batches in order, and sends periodic heartbeats to the Controller; events from different Peers can interleave. The Controller builds the live topology, run metrics, event stream, and persisted result files from these reports.
5. Prometheus scrapes the Controller and discovers online registered Agents with valid advertised metrics URLs. Grafana queries Prometheus, while the embedded Dashboard reads the Controller API and live stream. Saved ZIP results come from Controller persistence and do not contain the Prometheus time-series database.

Before phase execution, the network manager replaces the cleaned Peer overlay and Agents confirm activation. HTTP operations between Peers and control services pass through the network gateway. Experimental P2P messages remain direct between Peers. See automatic network initialization.

Docker networks and exposed endpoints

The supplied v3 stack uses three application networks. They are separate Docker networks, but they should not be interpreted as a complete physical separation of all control and data traffic.

Network or endpoint plane	Attached components	Traffic and exposure
Peer network (peers)	Every Peer and the standalone network gateway	External attachable Swarm overlay (KPL_PEER_NETWORK), recreated before each Run. Direct libp2p TCP traffic uses container port 20000. Peer HTTP control, telemetry, bootstrap and clock requests cross to control services through the gateway. Peer ports are not published on the host.
Control network (control)	Controller, Agents, network-manager and network gateway	Stack-scoped attachable overlay, retained while the Peer overlay is replaced. Controller-to-Agent operations and preparation requests use this network. The gateway relays only the allowed Peer HTTP operations between the two overlays.
Monitoring network (monitoring)	Controller, Agents, resource monitors, Prometheus, and Grafana; no Peers	A stack-scoped Swarm overlay. Prometheus uses the Controller service DNS here for HTTP service discovery, then scrapes the returned published control-node and Agent-node metrics addresses. Scrapes therefore also require access to those host ports. Grafana reaches Prometheus through this overlay.
Operator endpoints	Browser or API client to the control host	Controller/Dashboard 8080, Prometheus 9090, and Grafana 3000 are the intended operator endpoints. Swarm publishes them in host mode on the configured control node. Agent metrics use host port 9091 by default in Swarm; the Agent control API remains private.

Docker Swarm's own manager and node control plane is infrastructure used to deploy the services. v3 does not create each experimental Peer as a Swarm service: the Agent creates a standalone container on its own node. Consequently, Swarm does not migrate or automatically reschedule an active Peer to another host.

Per-Peer isolation and network dynamics

Every Peer has its own container and Linux network namespace. Agents require an active Swarm node and create Peers only on an explicitly configured, attachable Swarm overlay. Host networking, bridge networks, and non-attachable overlays are rejected. Peer containers receive no Docker socket, host bind mounts, or published host ports. They drop all Linux capabilities, enable no-new-privileges, and receive only NET_ADMIN when that Peer has network conditions to install. They are not privileged containers.

The Peer applies tc rules inside its own namespace before opening P2P connections. Supported outbound conditions include delay, jitter, loss, duplication, corruption, reordering, netem rate limiting, and optional TBF shaping. With the default scope: p2p, filters target TCP port 20000 so the Peer HTTP control and telemetry path bypasses impairment. With scope: all, impairment applies to the full non-loopback interface and can therefore delay or drop control and telemetry as part of the experiment.

This boundary prevents one Peer's traffic-control rules from changing another Peer or the host interface. It is process and network isolation, not dedicated hardware or a multi-tenant security boundary: Peers on the same server still share the host kernel, CPU, memory, storage, Docker daemon, and underlay path. The supplied configuration does not assign dedicated CPU or memory limits per Peer. Agents, network-manager and resource monitors are trusted management components because Docker socket access grants broad node control. The Controller, Peers and network gateway have no Docker socket.

Swarm placement

A single-node Swarm uses the same stack and overlay as a deployment across multiple hosts. Select the manager as an Agent node with deploy --all and set KPL_MIN_AGENTS=1 for that setup.

stack.swarm.yaml places one Controller, network-manager, Prometheus, and Grafana replica on the control manager identified by KPL_CONTROL_NODE_ID. The Agent is a global service constrained to the nodes selected by scripts/swarm.sh. Each Agent controls only its node-local Docker daemon, and the Controller distributes new Peers across registered Agents according to available admission capacity. Existing Peers are not rebalanced when an Agent is added. Removing an Agent node stops that Agent's Peers, so node removal must follow the cleanup procedure in the Swarm deployment guide.

The experimental overlay provides cross-host Peer addressing, while actual delay and loss also include the servers' physical network and the Swarm VXLAN path. Host clock synchronization and underlay capacity remain deployment responsibilities.

Observation and persistence boundaries

The Dashboard renders recent state and events from the Controller. The Controller stores each run's scenario.yaml, experiment.json, and complete accepted events.jsonl under its data volume. At download time it fixes a snapshot boundary and derives metrics.json and export.json for the ZIP from that persisted prefix. Prometheus keeps scrape-based time series in a separate volume, and Grafana keeps its own settings and dashboard state. Prometheus scrapes no per-Peer exporter and its current Agent collector does not provide per-Peer CPU or memory usage. A result ZIP is the portable experiment record; it is not a backup of Prometheus or Grafana.

Metrics and topology are observations of received reports. A stale or unreachable Agent, telemetry queue loss, scope: all impairment, scrape timing, or forced shutdown can reduce what the control plane observes even while some P2P traffic occurred. Use experiment metrics for metric definitions, monitoring and saved results for collection limits, and topology for graph semantics.

The Controller periodically saves group topology and score summaries in observations.jsonl during each run. It also saves nodes and transport/Kademlia/GossipSub edges available from fresh Peer reports for background graph analysis. Individual observer-to-peer scores are not retained. Bandwidth samples are stored as events and reconstructed independently of delivery-window eligibility; see bandwidth measurement. The embedded Dashboard uses the saved-result visualization to visualize distributions and timelines and compare runs from saved events and observations, independently of Prometheus retention.

The Controller background worker computes from a fixed boundary of saved event/observation files and retains job state, completed analysis and compact comparison data in the same data directory. Restart preserves completed analysis but does not automatically resume experiment execution or unfinished calculations. The browser renders PNG/CSV and comparison charts from completed JSON; closing it leaves admitted server work running. See the API, retained files, and visualization workflow for their respective contracts.

Supported deployment boundary

The production target is rootful Docker Engine on Linux. Per-Peer network conditions depend on Linux network namespaces, tc, NET_ADMIN, and the required qdisc modules. Host preparation, placement, overlay requirements, Agent metrics reachability, storage, and cleanup are covered by the Swarm deployment guide.

Implementation map

Behavior	Source of truth
Component entry points and Swarm placement	cmd/kpl/main.go, stack.swarm.yaml
API, scenario scheduling, admission, run cleanup	internal/controller/api.go, internal/controller/runner.go, internal/controller/repeat.go
Agent lifecycle and Docker isolation	internal/agent/agent.go, internal/agent/docker.go
Peer protocols, transport discovery, traffic control	internal/peer/peer.go, internal/peer/discovery.go, internal/netem/netem.go
Dashboard and retained records	internal/webui/static, internal/controller/scenarios.go, internal/controller/results.go

---

Korean translation: 한국어.
