Backlight and Indicator Illumination Colors - jrsteensen/OpenHornet GitHub Wiki

Colors and Usage

NVIS Green A

Backlighting and Floodlighting

  • RGB Value: 51, 102, 0
  • HEX Value: #336600


NVIS Green B

Green Indicators and Switch Illumination

  • RGB Value: 85, 138, 0
  • HEX Value: #558a00


NVIS Yellow

Warning Indicators

  • RGB Value: 172, 144, 0
  • HEX Value: #ac9000


NVIS Red

Warning Indicators

  • RGB Value: 158, 4, 4
  • HEX Value: #9e0404


NVIS White

Floodlighting

  • RGB Value: 176, 176, 176
  • HEX Value: #B0B0B0

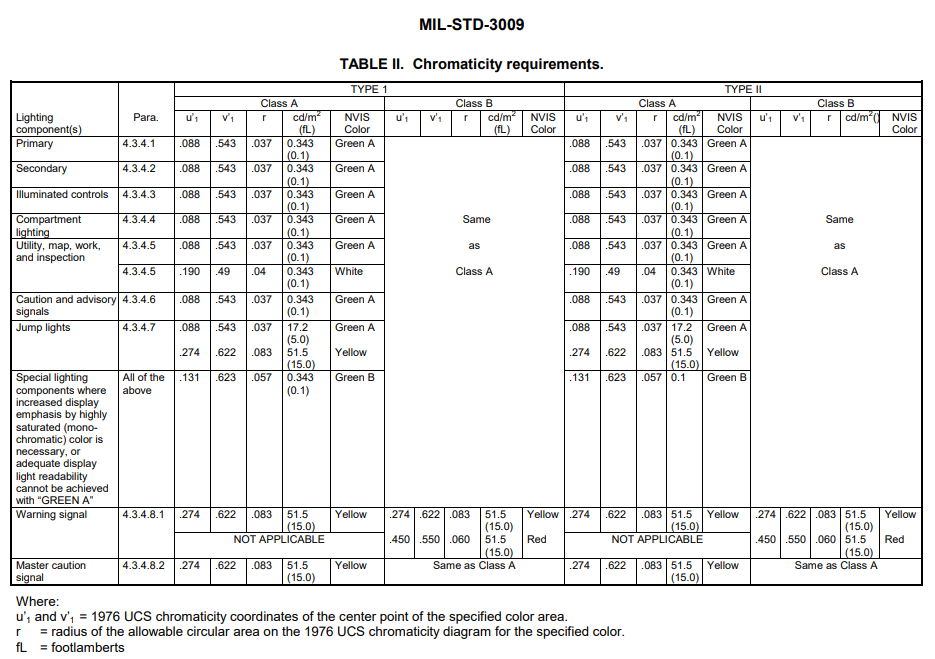

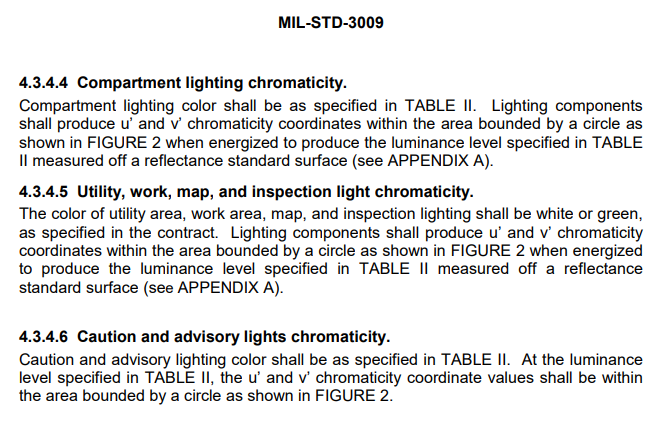

MIL-STD-3099

Defines NVIS Green A, NVIS Green B, NVIS Yellow, NVIS Red, and NVIS White. image image image
