This is just a lessons learned.

  • All power connections should have a power-applied LED.

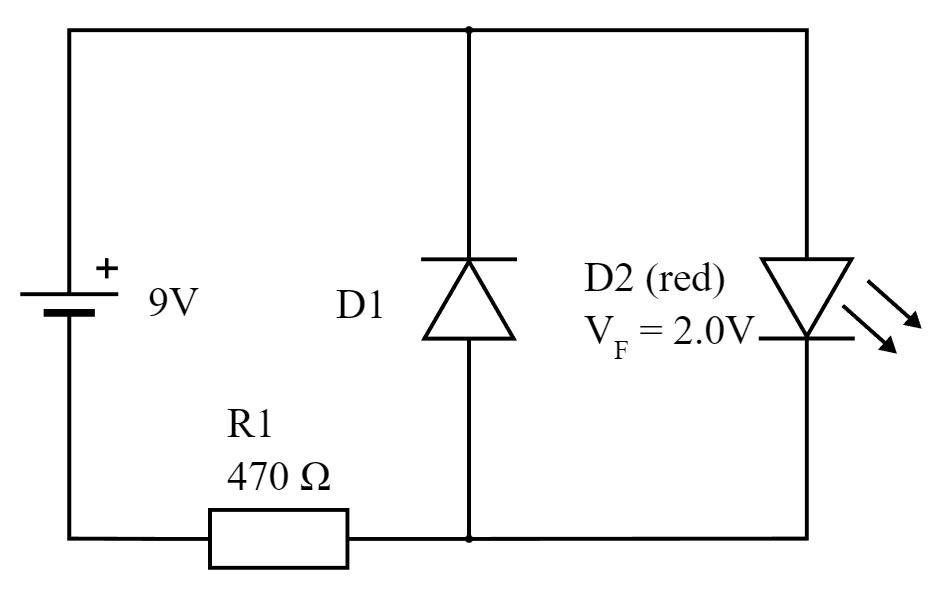

  • All power connections should have a reverse polarity protection (Schottky diode) with LED indicator. image

  • Microcontroller LED should be used to show various statuses.
