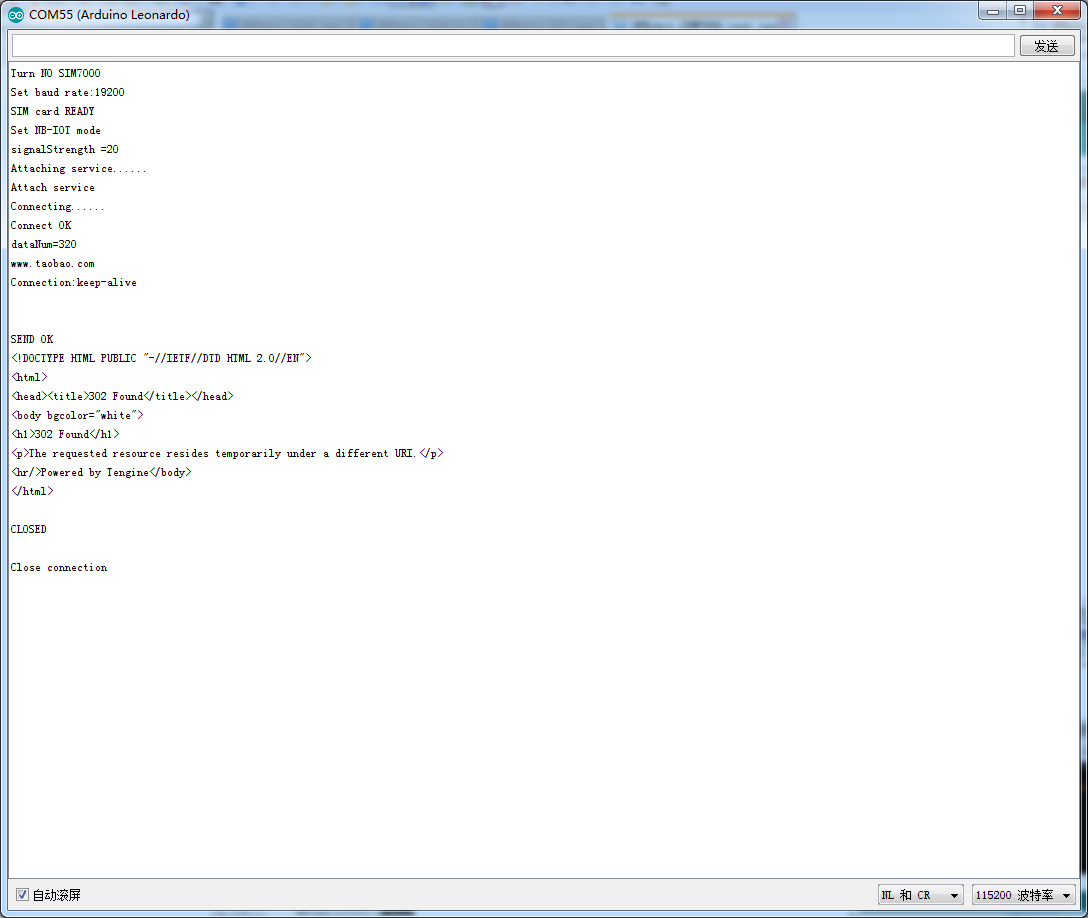

#include <Wire.h>
#include <DFRobot_SIM7000.h>

#define PIN_TX     7
#define PIN_RX     8
SoftwareSerial     mySerial(PIN_RX,PIN_TX);
DFRobot_SIM7000    sim7000;
static char        buff[350];

void setup(){
    int signalStrength,dataNum;
    Serial.begin(115200);
    sim7000.begin(mySerial);
    sim7000.turnOFF();
    delay(5000);
    Serial.println("Turn ON SIM7000......");
    if(sim7000.turnON()){                                                                      //Turn ON SIM7000
        Serial.println("Turn ON !");
    }
    Serial.println("Set baud rate......");
    if(sim7000.setBaudRate(19200)){                                                            //Set baud rate from 115200 to 19200
        Serial.println("Set baud rate:19200");
    }else{
        Serial.println("Faile to set baud rate");
        while(1);
    }
    Serial.println("Check SIM card......");
    if(sim7000.checkSIMStatus()){                                                              //Check SIM card
        Serial.println("SIM card READY");
    }else{
        Serial.println("SIM card ERROR");
        while(1);
    }
    delay(500);
    Serial.println("Set net mod......");
    if(sim7000.setNetMode(NB)){                                                                //Set net mod NB-IOT ,Please make sure your SIM card is NB-IOT card or you should choose GPRS mode
        Serial.println("Set NB-IOT mode");
    }else{
        Serial.println("Fail to set mode");
    }
    Serial.println("Get signal quality......");
    delay(500);
    signalStrength=sim7000.checkSignalQuality();                                               //Check signal quality from (0-30)
    Serial.print("signalStrength =");
    Serial.println(signalStrength);
    delay(500);
    Serial.println("Attaching service......");
    if(sim7000.attacthService()){                                                              //Open the connection
        Serial.println("Attach service");
    }else{
        Serial.println("Fail to Attach service");
        while(1);
    }
    delay(200);
    Serial.println("Connecting......");
    if(sim7000.openNetwork(TCP,"www.taobao.com",80)){                                          //Start Up TCP or UDP Connection
        Serial.println("Connect OK");
    }else{
        Serial.println("Fail to connect");
        while(1);
    }
    sim7000.send("HEAD/HTTP/1.1\r\nHost:www.taobao.com\r\nConnection:keep-alive\r\n\r\n");     //Send Data Through TCP or UDP Connection
    dataNum=sim7000.recv(buff,350,0);                                                          //Receive data
    Serial.print("dataNum=");
    Serial.println(dataNum);
    Serial.println(buff);
    delay(500);
    if(sim7000.closeNetwork()){                                                                //End the connection
        Serial.println("Close connection");
    }else{
        Serial.println("Fail to close connection");
    }
    delay(2000);
    sim7000.turnOFF();                                                                         //Turn OFF SIM7000
}

void loop() {
    delay(1000);
}

 /*

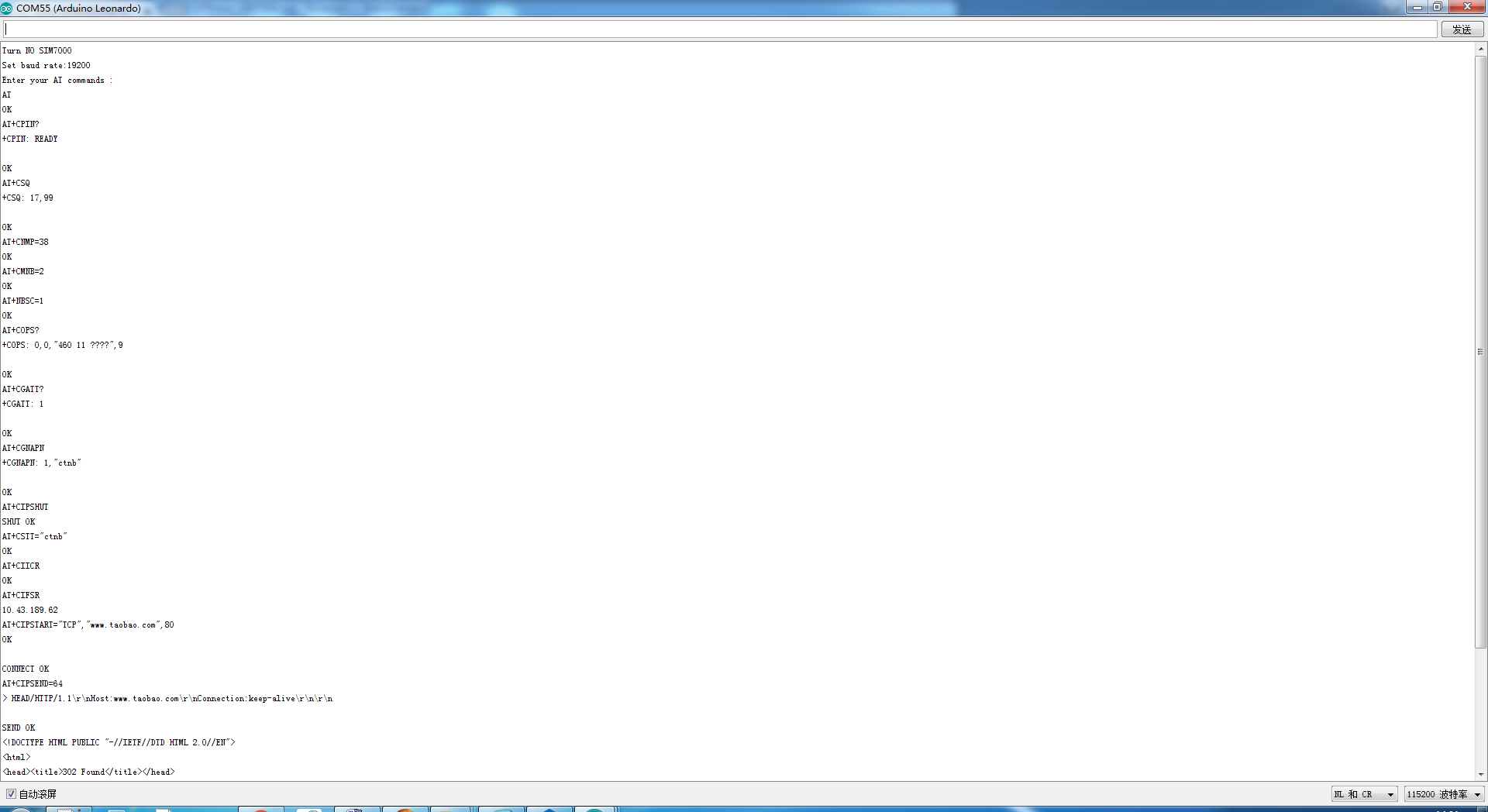

  * File  : DFRobot_SIM7000_ATtest.ino
  * Power : SIM7000 needs 7-12V DC power supply
  * Brief : This example use the serial port to send AT command to control the SIM7000
  *         With initialization completed, we can enter AT command to SIM7000 directly
  * AT command list:
  * https://github.com/DFRobot/binaryfiles/raw/master/DFR0505/doc/SIM7000%20Series_AT%20Command%20Manual_V1.01.pdf
  * Note  : If you use Mega please connect PIN8 PIN10 and set PIN_RX = 10
  *         The AT command must end with CRLF
  */
#include <DFRobot_SIM7000.h>

#define PIN_TX     7
#define PIN_RX     8
SoftwareSerial     mySerial(PIN_RX,PIN_TX);
DFRobot_SIM7000    sim7000;

void setup() {
    Serial.begin(115200);
    sim7000.begin(mySerial);
    sim7000.turnOFF();
    delay(5000);

    Serial.println("Turn ON SIM7000......");
    if(sim7000.turnON()){                             //Turn ON SIM7000
        Serial.println("Turn ON !");
    }

    Serial.println("Set baud rate......");
    if(sim7000.setBaudRate(19200)){                   //Set baud rate from 115200 to 19200
        Serial.println("Set baud rate:19200");
    }else{
        Serial.println("Faile to set baud rate");
        while(1);
    }

    mySerial.begin(19200);
    Serial.println("For example, if you type AT\\r\\n, OK\\r\\n will be responsed!");
    Serial.println("Enter your AT command :");
}

void loop() {
    mySerial.listen();
    while(mySerial.available()){
        Serial.write(mySerial.read());
    }

    mySerial.flush();
    while(Serial.available()){
        mySerial.write(Serial.read());
    }

    delay(20);
}

#include <Wire.h>
#include <DFRobot_SIM7000.h>

DFRobot_SIM7000 sim7000;
SoftwareSerial  mySerial(8,7);                                     //Set serial

void setup(){
    int signalStrength,dataNum;
    Serial.begin(115200);
    sim7000.begin(mySerial);
    sim7000.turnOFF();
    delay(5000);
    if(sim7000.turnON()){                                          //Turn ON SIM7000
        Serial.println("Turn NO SIM7000");
    }
    if(sim7000.setBaudRate(19200)){                                //Set baud rate from 115200 to 19200
        Serial.println("Set baud rate:19200");
    }else{
        Serial.println("faile to set baud rate");
    }
    while(1){
        if(sim7000.init()){                                        //Init SIM7000
            Serial.println("AT command READY");
            break;
        }else{
            Serial.println("AT command ERROR");
            delay(500);
        }
    }
    while(1){
        if(sim7000.initPos()){
            Serial.println("Positioning function initialized");
            break;
        }else{
            Serial.println("Fail to init positioning function");
            delay(500);
        }
    }
}

void loop(){
    Serial.println("Enter anything to get positioning ");
    char loge[10];
    readSerial(loge);
    Serial.println("Getting position......");
    if(sim7000.getPosition()){                                     //Get the current position
        Serial.print("Longtude :");
        Serial.println(sim7000.getLongitude());                    //Get longitude
        Serial.print("Latitude :");
        Serial.println(sim7000.getLatitude());                     //Get latitude
    }else{
        Serial.println("Wrong data try again");
    }
}

int readSerial(char result[]){
    int i = 0;
    while(1){
        while(Serial.available() > 0){
            char inChar = Serial.read();
            if(inChar == '\n'){
                result[i] = '\0';
                Serial.flush();
                return 0;
            }
            if(inChar != '\r'){
                result[i] = inChar;
                i++;
            }
        }
    }
}

/*!

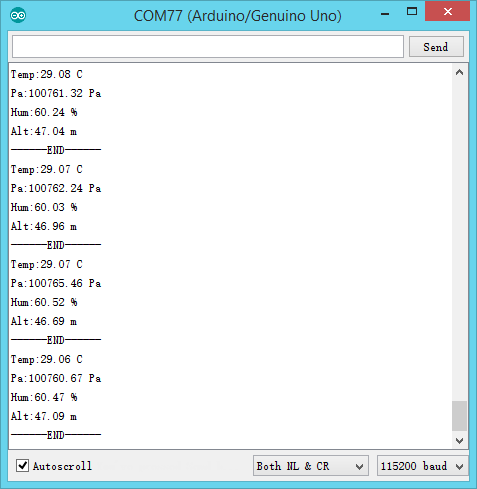

 * @file basicTestI2C.ino
 * @brief DFRobot's Temperature、Pressure、Humidity and Approx altitude
 * @n [Get the module here]
 * @n This example read the Temperature、Pressure、Humidity and Altitude from BME280, and then print them
 * @n [Connection and Diagram]
 *
 * @copyright  [DFRobot](http://www.dfrobot.com), 2016
 * @copyright GNU Lesser General Public License
 *
 * @author [yangyang]
 * @version  V1.0
 * @date  2017-7-5
 */

#include <DFRobot_BME280.h>

#define SEA_LEVEL_PRESSURE  1013.25f
#define BME_CS 10

DFRobot_BME280 bme; //I2C

float temp, pa, hum, alt;

void setup() {
    Serial.begin(115200);

    // I2c default address is 0x76, if the need to change please modify bme.begin(Addr)
    if (!bme.begin()) {
        Serial.println("No sensor device found, check line or address!");
        while (1);
    }

    Serial.println("-- BME280 DEMO --");
}

void loop() {
  temp = bme.temperatureValue();
  pa = bme.pressureValue();
  hum = bme.humidityValue();
  alt = bme.altitudeValue(SEA_LEVEL_PRESSURE);

  Serial.print("Temp:");
  Serial.print(temp);
  Serial.println(" C");

  Serial.print("Pa:");
  Serial.print(pa);
  Serial.println(" Pa");

  Serial.print("Hum:");
  Serial.print(hum);
  Serial.println(" %");

  Serial.print("Alt:");
  Serial.print(alt);
  Serial.println(" m");

  Serial.println("------END------");

  delay(1000);
}
