X-Board控制器 兼容Arduino(SKU:DFR0162)

概 述

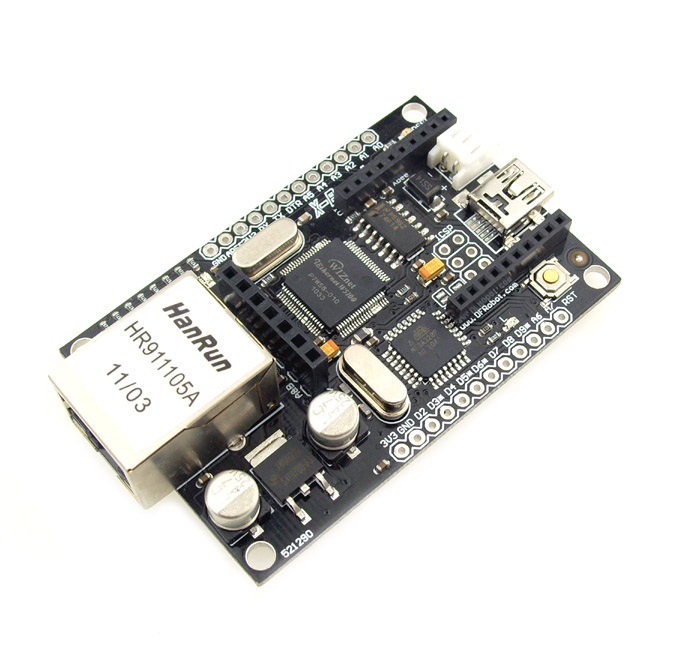

X-board是一个独特的Arduino板,它提供的XBee插座,WIZnet以太网端口采用了ATMega328芯片。使用X-board将可以让你的项目通过XBee来控制并能和互联网链接。

使用X-board可以应用于家庭自动化到机器人控制等项目。没有什么是不可能的!

X-board具有8路模拟量I/O引脚和8个数字引脚,其中4个具有PWM(以星号表示),它的XBee插座完美的兼容所有的XBee模块,同时也兼容APC220 RF无线模块和DF-Bluetooth模块。

X-board能通过FTDI编程器或者直接通过ICSP接线端进行编程。X-board通过Mini USB接口提供电源。

你可以在X-board上设置一个Web服务器,通过X-board您可以与远程使用的XBee模块,蓝牙模块或APC模块进行通信。采集的信息可以发送到网站或发微薄。

我们在办公室利用X-board制作了一个项目,通过X-board我们能在网上控制办公室的门。如果我们忘记了我们的RFID门禁卡,那我们只要登录到我们的办公室无线网络并发送一个开门的命令,芝麻开门!门就应声而开!

我们已经创建了一个教程,其中包括零件清单,源代码可以上下载。

性能描述

控制芯片:Atmega328P low voltage version (8Mhz)

以太网控制芯片:WIZ5100

Arduino引导程序:Arduino Duemilanove bootlaoder

电源电压:3.6~12v

输出电压:3.3v

数字IO口: 8

模拟口: 8

LED指示灯定义

PWR: 电源指示灯

LINK: 指示网络链接状况,当接收或发送数据时闪烁

FULLD: 指示网络链接是否全双工

100M: 指示10m/100m网络链接

RX: 数据接收时闪烁

TX: 数据发送时闪烁

COLL: 网络冲突时闪烁

上传程序

注意事项:X-board需要一个FTDI板来上传程序

File:X-board 2.jpg

Arduino测试样例

#include <Client.h>
#include <Ethernet.h>
#include <Server.h>
#include <Udp.h>
#include <SPI.h>
/*
* Web Server
* A simple web server: Displays a button to open/close
* a door and door status
*/
//-----------------------BEGIN Variable setup -------------------------------
String readString = String(30);
//string for fetching data from address
boolean LEDON = false;
//LED status flag
int state;
int val=0;
byte mac[] = {   0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED };
byte ip[] =  {   192, 168, 0, 177 };
//Change your IP Address here Server server(80); //Standard HTTP server port
//-----------------------END Variable setup-------------------------------
void setup()
{
  pinMode(4, OUTPUT);
  Ethernet.begin(mac, ip);
  server.begin();   delay(100);
  Serial.begin(57600);
  //XBee module Baud rate
  delay(100);
}
void loop()
{
  //---------------Web Server initialization------------------------------
  Client client = server.available();
  if (client)
  {
    boolean current_line_is_blank = true;
    while (client.connected())
    {
      if (client.available())
      {
        char c = client.read();
        if (readString.length() < 100)
        {
           readString += c;
        }
         ///////////Check button status to determine actions to take for submit button///////////////
        if(readString.indexOf("IO=1") >0)
        {
          // If door open request sent;
          // send instruction to remote arduino
          if (LEDON== false)
          {
            //Ensure it only send the info once
            //led has to be turned ON
            LEDON = true;
            //Change LED state to print on the page
            Serial.print('G');
            //Send command to remote Arduino
           }
         }
         if(readString.indexOf("IO=0") >0)
         {
           //Same as above but not used in
           //this application
           if (LEDON== true)
           {
              //led has to be turned OFF
              LEDON = false;
              Serial.print('K');
           }
         }
       ///////////////Finish checking and actions for submit button//////////////////
       //------------------Standard web Server Jargon-------------------------------
        if (c == 'n' && current_line_is_blank)
        {
         // send a standard http response header
         client.println("HTTP/1.1 200 OK");
         client.println("Content-Type: html");
         client.println();
         client.println("<html>");
         client.println("<head>");
         client.println("<title>Xboard interface--Door control</title>");
         client.println("</head>");
         client.println("<body>");
         client.print("welcome to DFRobot"); //Print your own message here
         client.println("<br />");
         client.print("//*************************************");
         client.println("<br />");
         client.println("<br />");
         client.print("//*************************************");
         client.println("<br />");
         client.println("<br />");
         client.print("<form>");
         client.print("<input type=radio name=IO value=1 /> Open<br />");
         client.print("<input type=submit value=Submit </form><br />");
         client.println("</body>");
         break;
        }
       if (c == 'n')
       {
         // we're starting a new line
         current_line_is_blank = true;
       }
       else if (c != 'r')
       {
         // we've gotten a character on the current line
         current_line_is_blank = false;
       }
      }
    }
   //------------------END Standard web Server Jargon-------------------------------
   //-----------------Print door status on web page and auto refresh----------------
   if (LEDON)
   {
    //printing LED status
     client.print("<font size='5'>DOOR status: ");
     client.println("<font color='green' size='5'>OPEN");
     client.println("<META HTTP-EQUIV=REFRESH CONTENT=2;url=http://192.168.0.177/>"); //Autorefresh
     //Auto-refresh the site after 2 seconds to reset the door status to closed
    }
    else{
      client.print("<font size='5'>DOOR status: ");
      client.println("<font color='grey' size='5'>CLOSED");
    }
    client.println("<hr />");           client.println("<hr />");
    client.println("</body></html>");           //clearing string for next read
    readString="";
    //-----------------END Print door status on web page and auto refresh----------------
    client.stop();   }   /*Routine to read response from remote Arduino  *and light local LED on PIN4  */
    if (Serial.available() > 0)
    {
       val = Serial.read();
       if (val == 'H')
       {
         //These values ('H')can be changed to what ever you want
         //just make sure you change them in both the server
         //program and the client program
         digitalWrite(4, HIGH);
         delay (20);
       }
       if (val == 'L')
       {
          digitalWrite(4, LOW);
          delay (20);
       }
   }
 }

资料下载

原理图

File:nextredirectltr.png购买 X-Board控制器 兼容Arduino(SKU:DFR0133)
