Banana Pi R64
- We will use Uboot-BPIR64 bootloader and OpenWrt OS on this device
- Technical specifications
- CPU, MediaTek MT7622,1.35GHZ 64 bit dual-core ARM Cortex-A53
- Memory, 1 GB DDR3
- Storage, 8G eMMC flash onboard, MicroSD slot, support 1 SATA interface
- Network, built-in 4x4n 802.11n (800Mbps), Bluetooth 5.0 system-on-chip, 5 10/100/1000Mbps Ethernet, 1 mini pcie interface for 4G
- USB ports, 1 x USB 3.0 port
- GPIO, GPIO (x28), Power (+5V, +3.3V and GND), UART, I2C, SPI or PWM
- Power Input, 12VDC/2A
- Size&Weight, 148 mm × 100.5mm , 100g
- Shares a Custom 12VDC-8A-Power setup with the APU4s

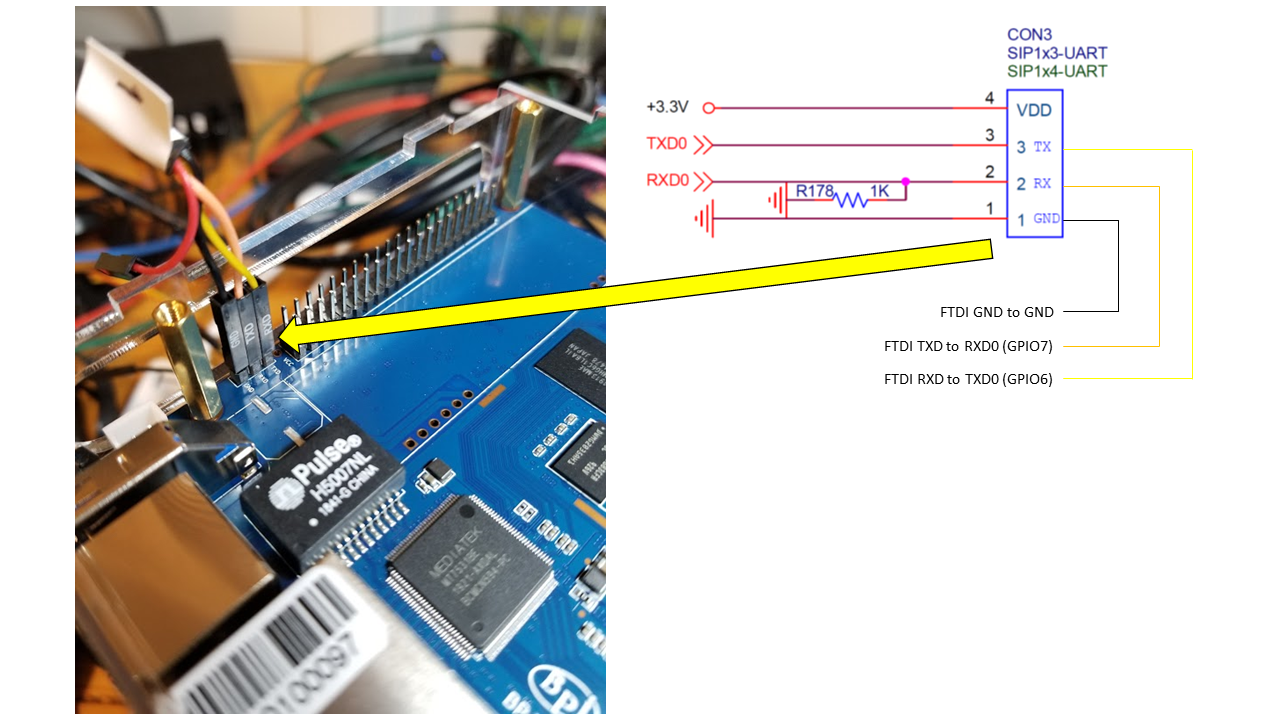

- Connection of UART0 to FTDI-USB-Serial
