On this page, we keep all of the architectural designs of our software:

Structural Designs

Component Diagram (Low-scope)

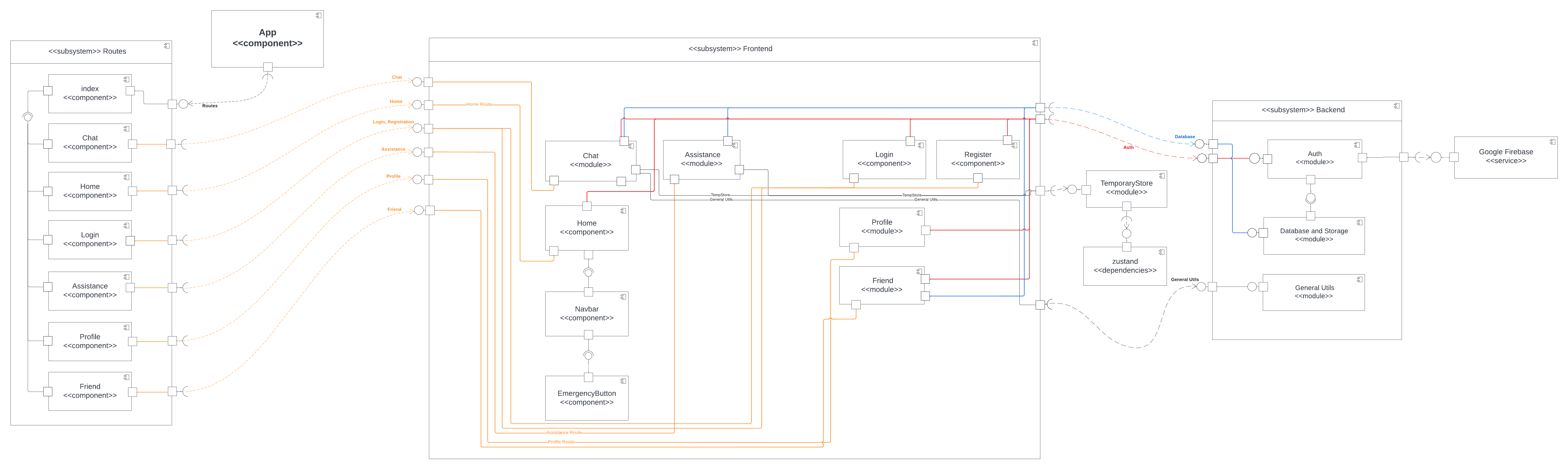

Component Diagram

Designed using Lucidchart. For full detailed design: refer to these links

• Github Image View
• Our Lucidchart Design page (Required Lucid App Account)

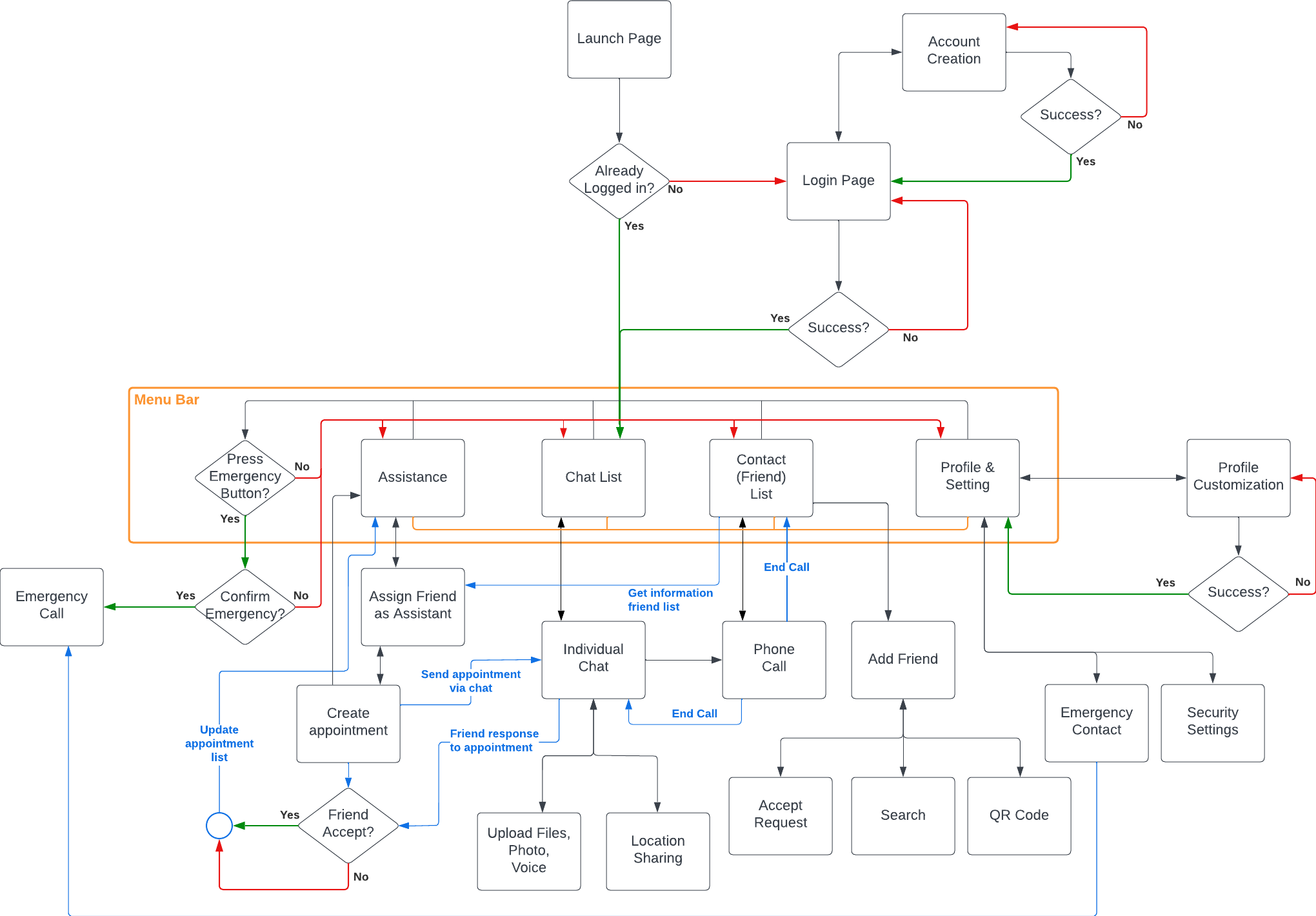

Navigation Map

Designed using Lucidchart For full detailed design: refer to these links

• Github Image View
• Our Lucidchart Design page (Required Lucid App Account)

Behavior Design

Sequence Diagrams

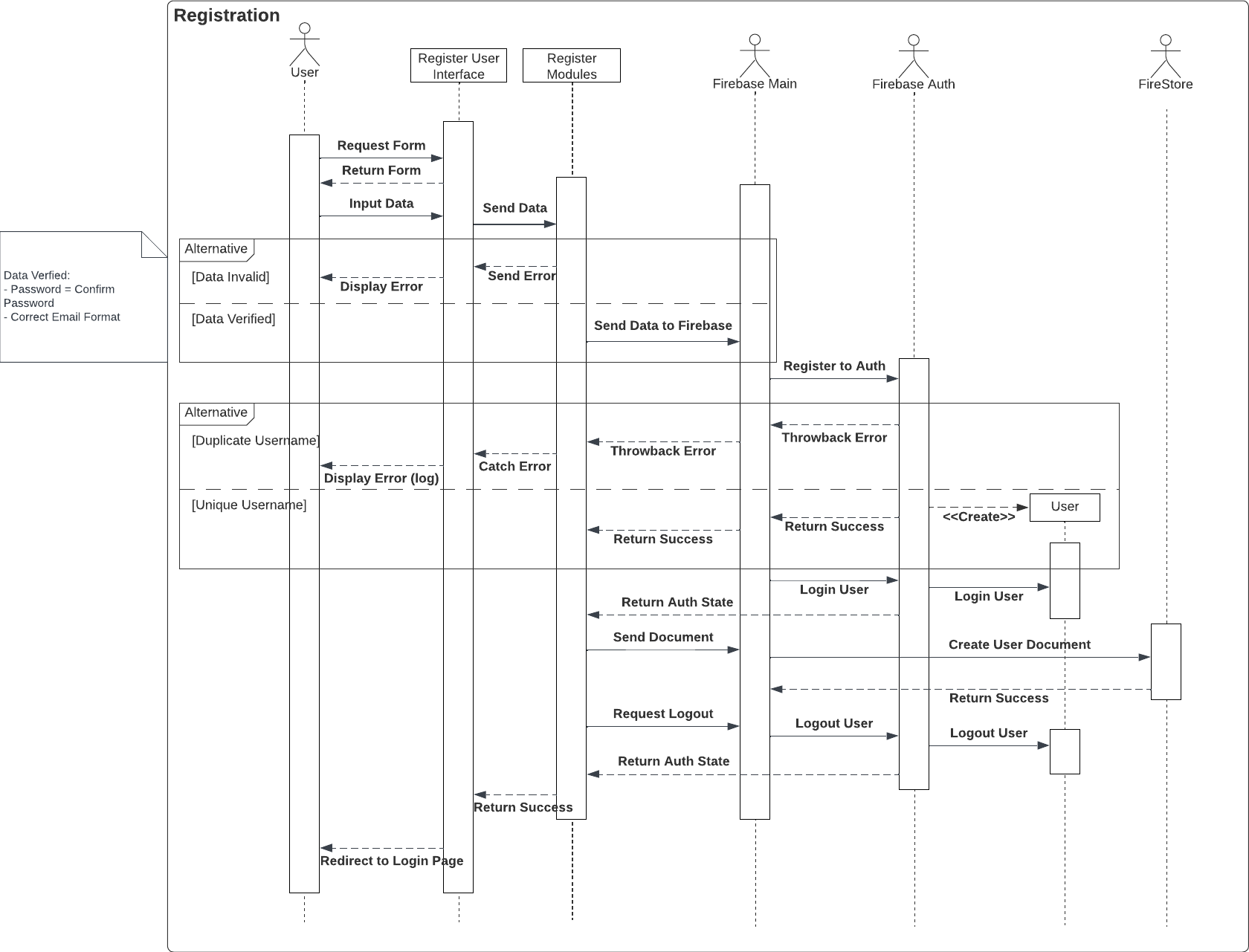

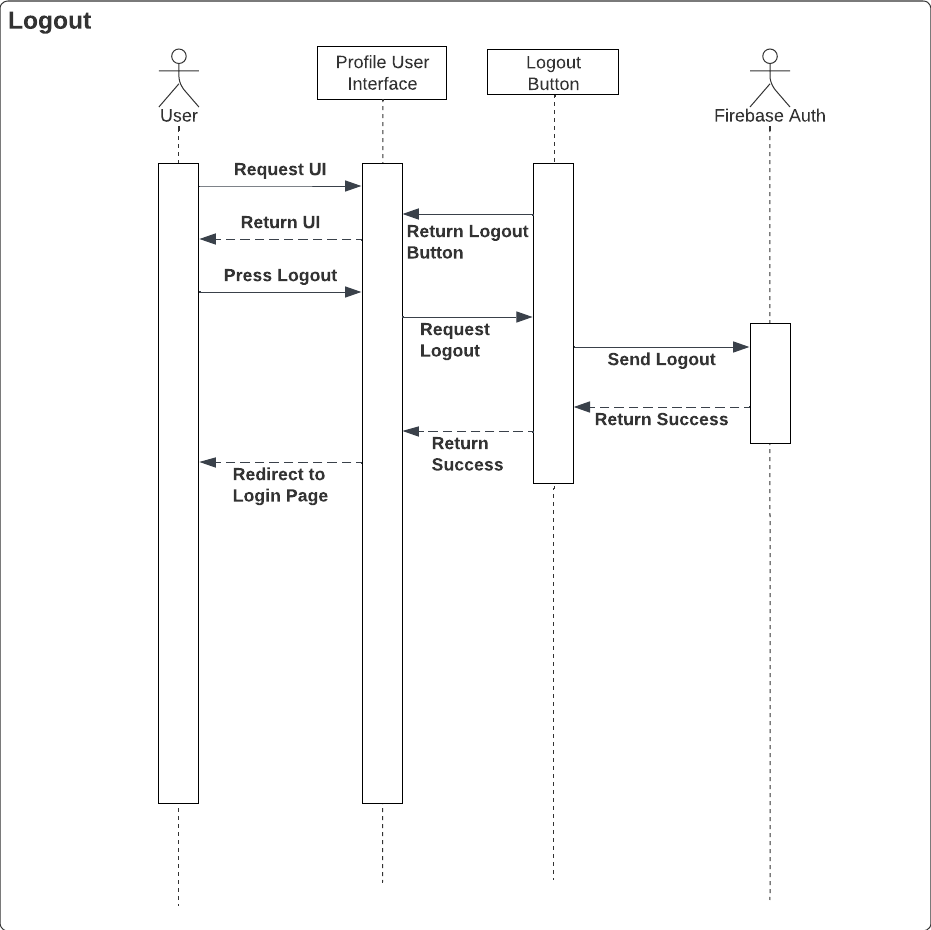

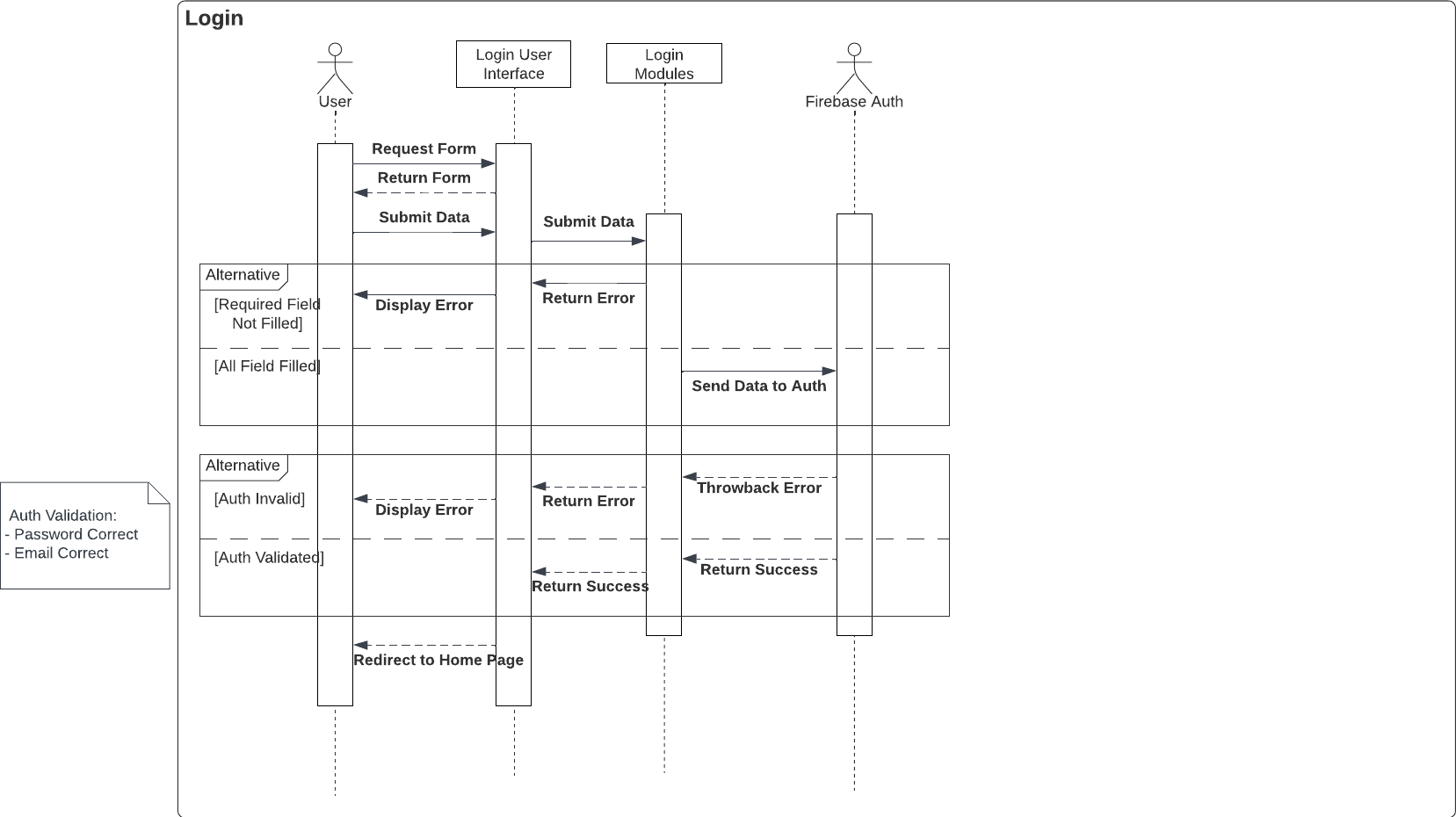

Login & Registration

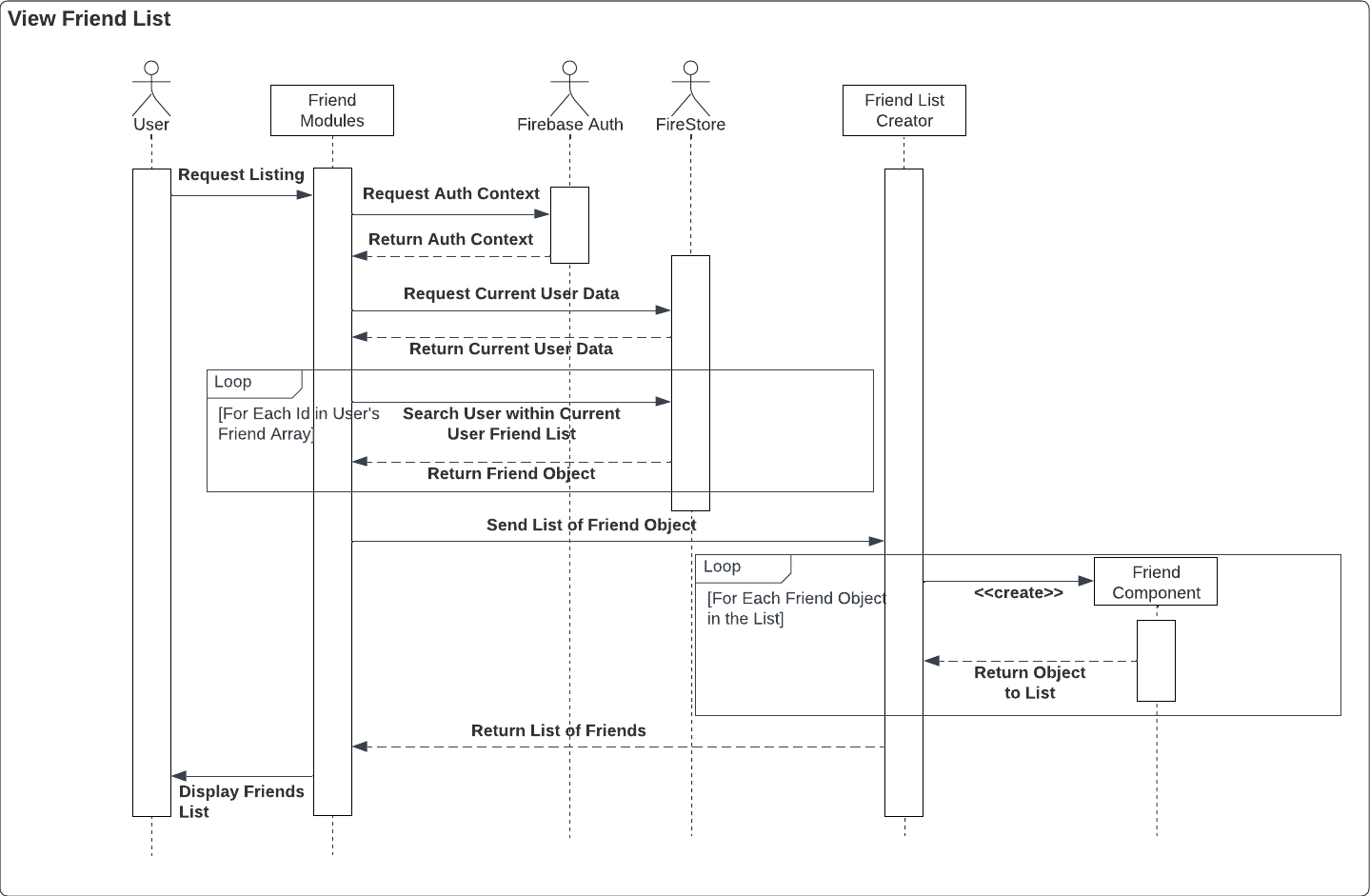

Friend

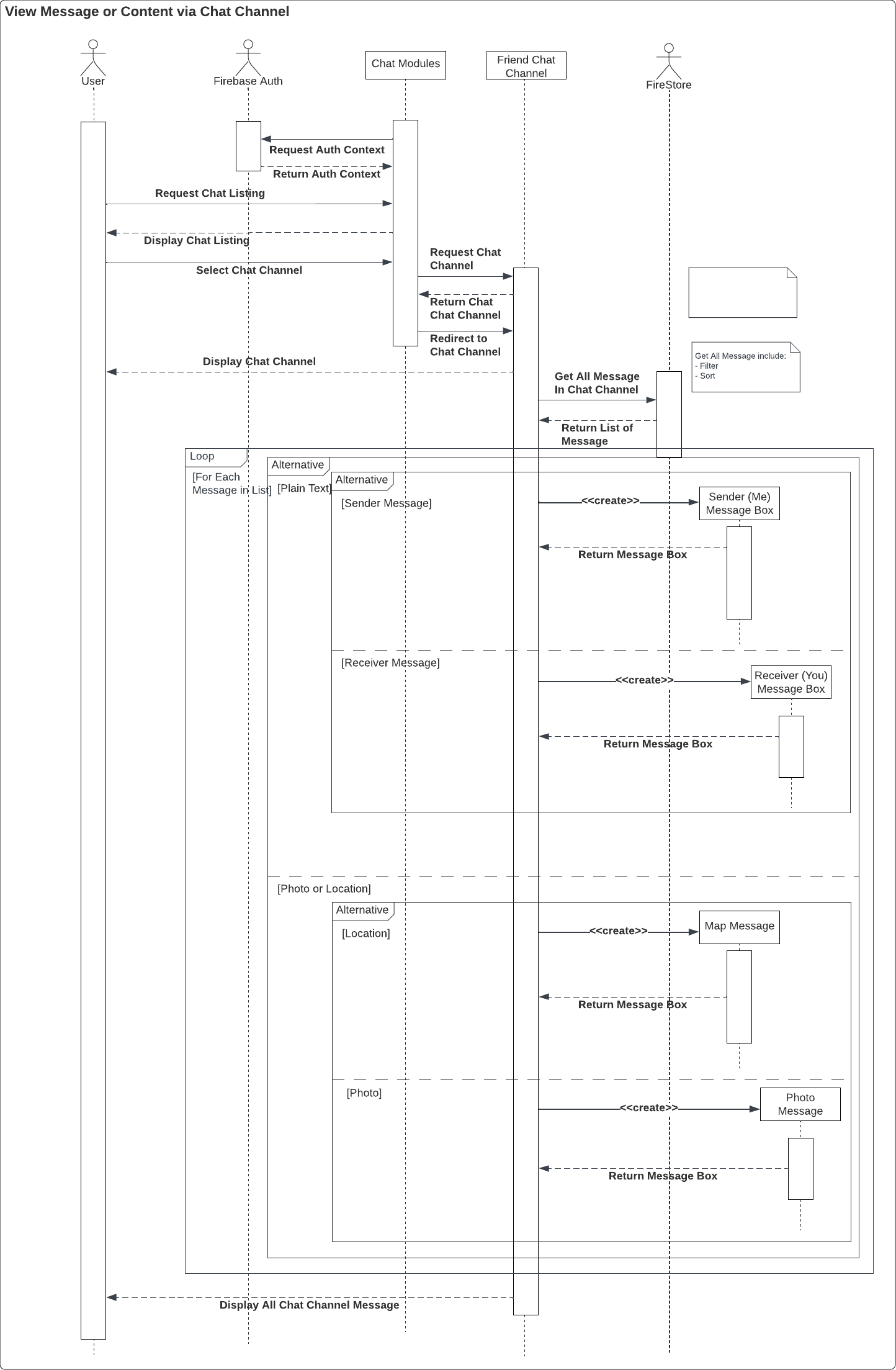

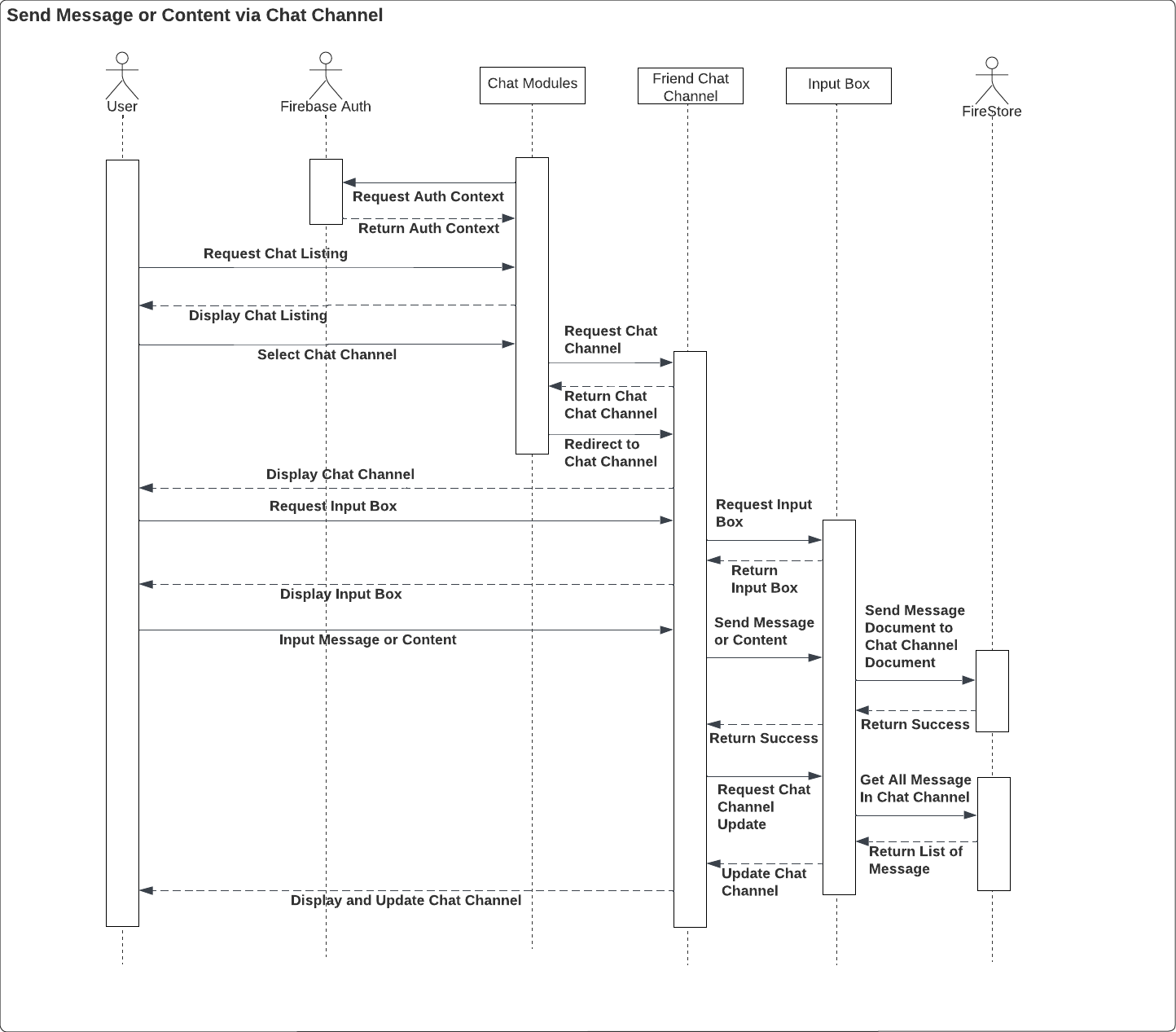

Chat

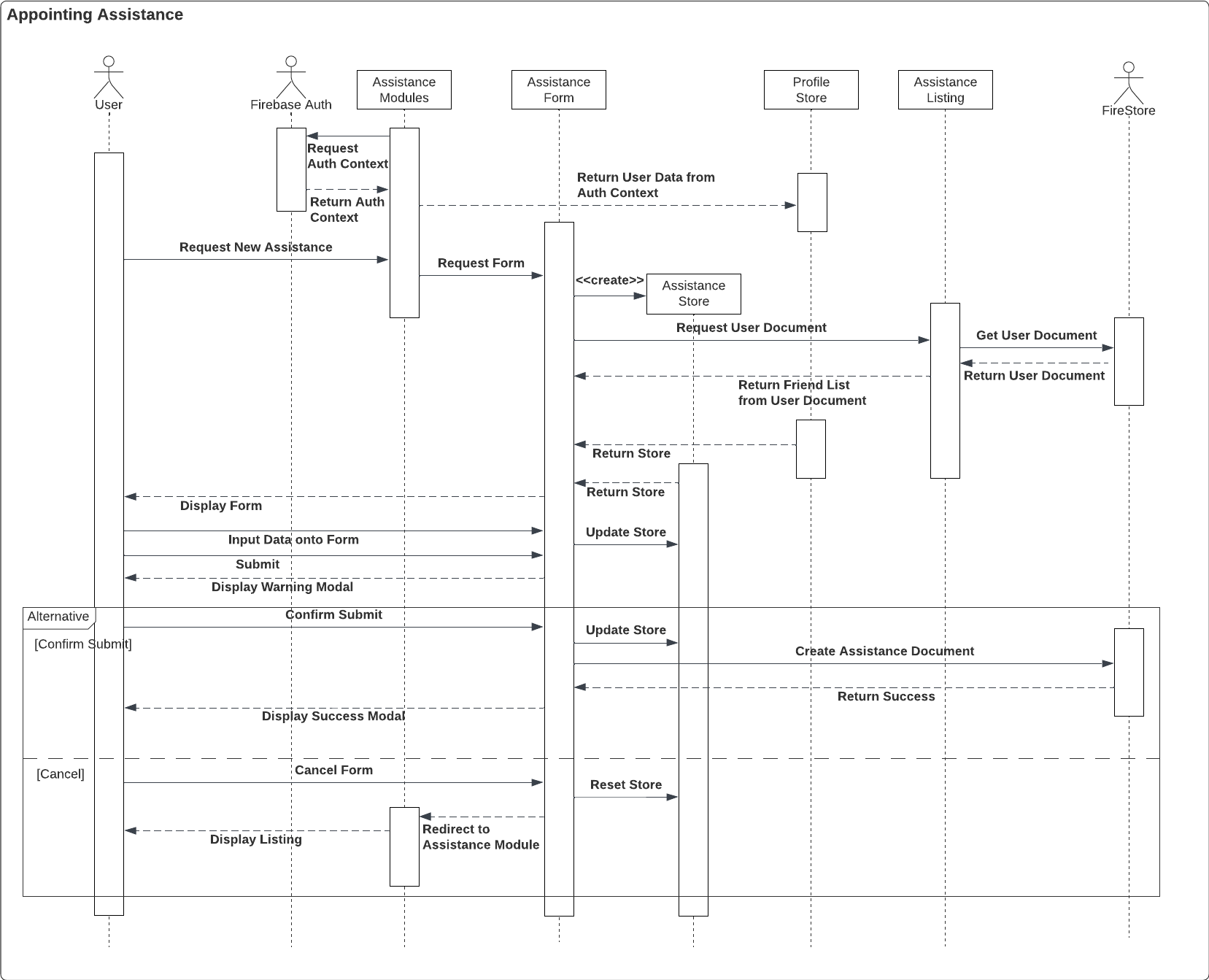

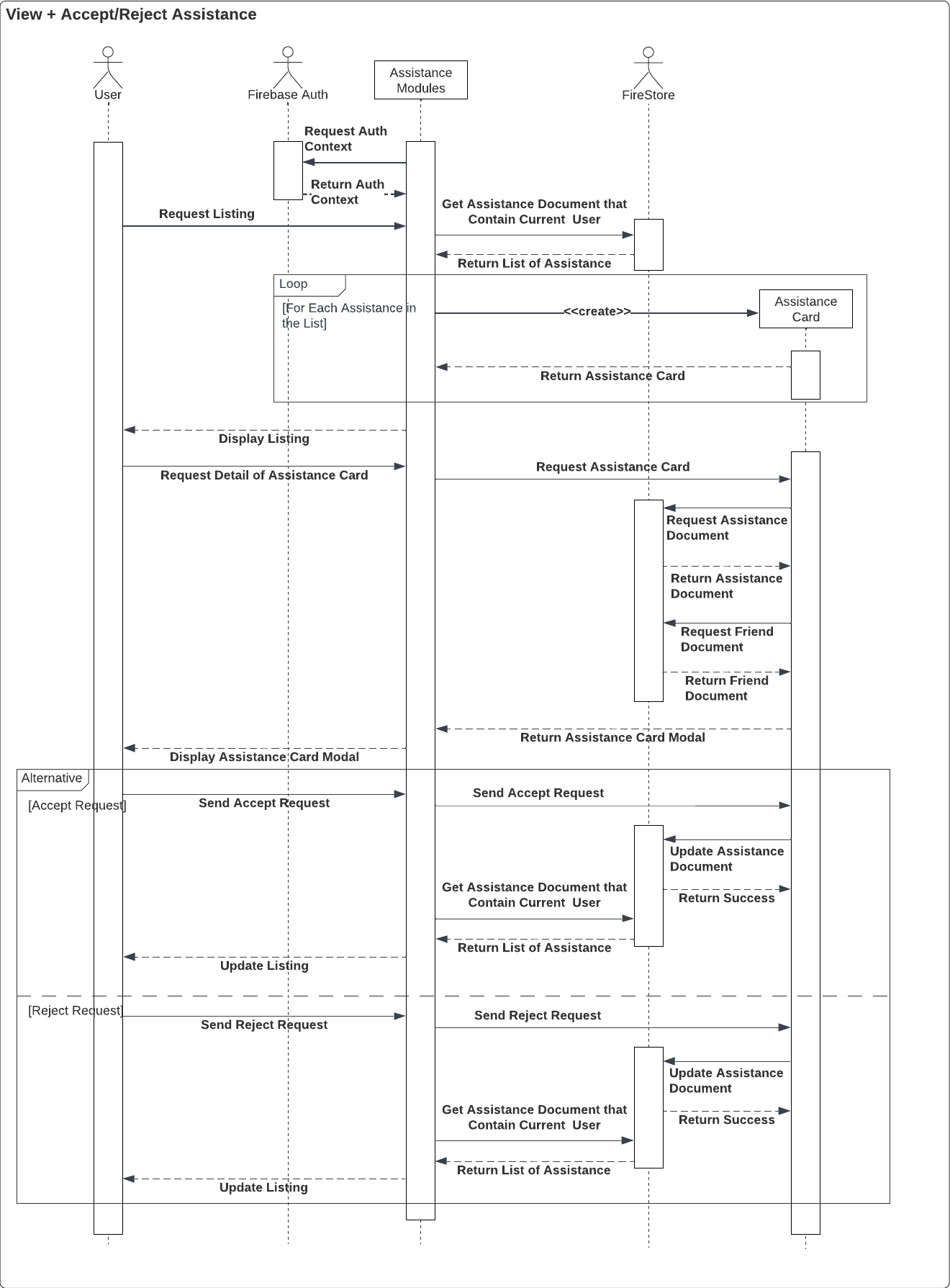

Assistance

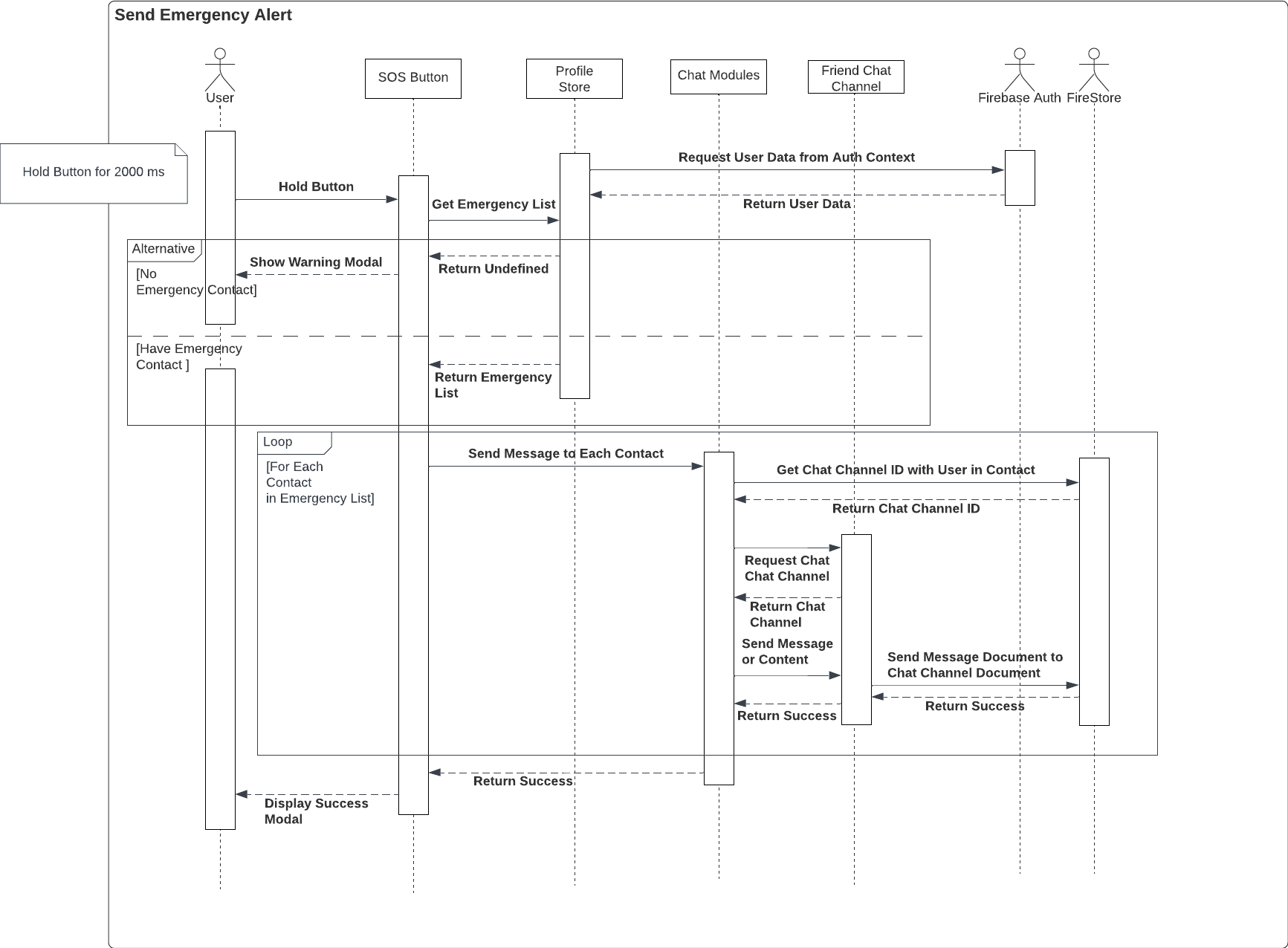

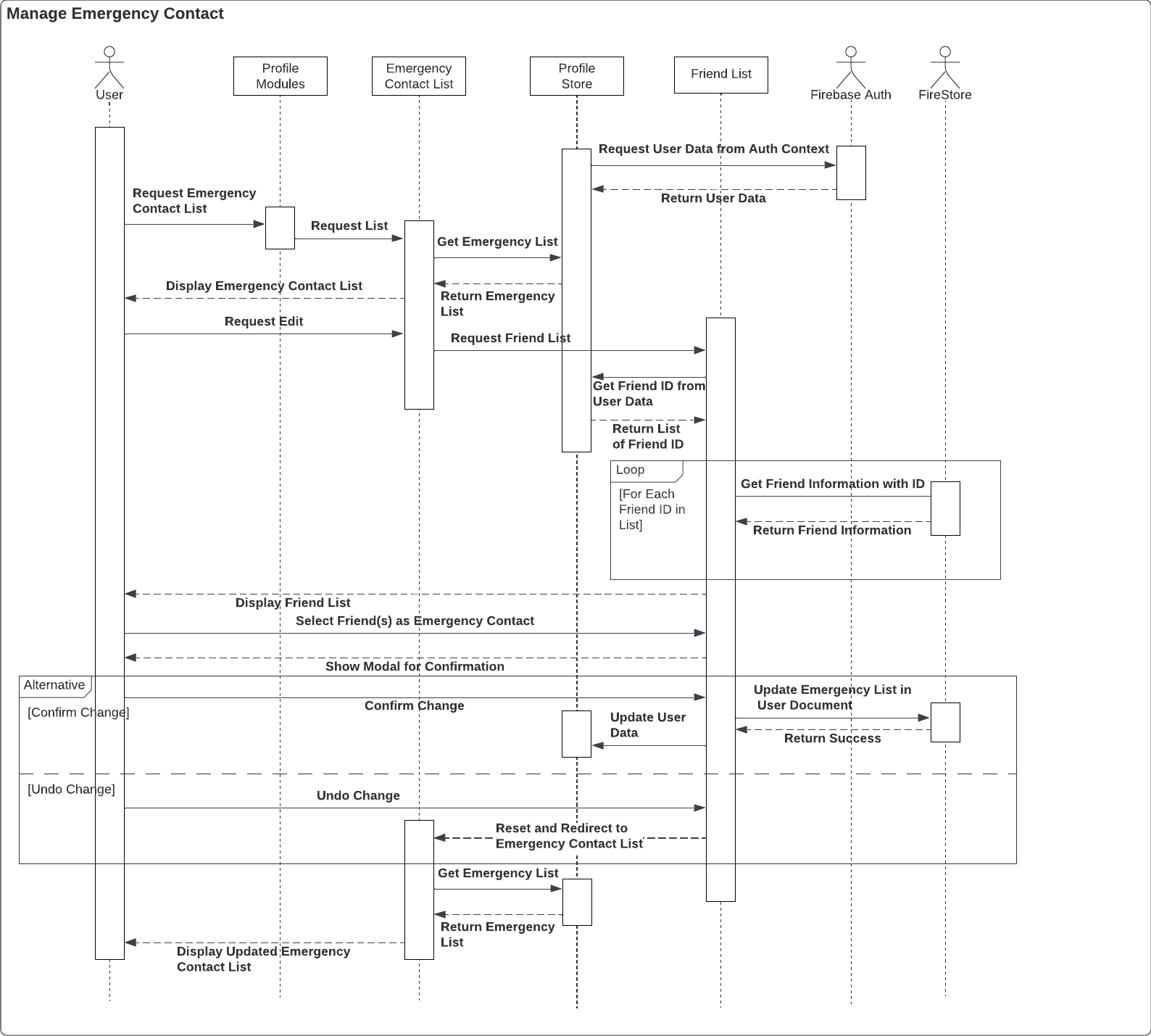

Emergency

Also designed using Lucidchart. For full detailed design: refer to these links

• Lucidchart Design page (Required Lucid App Account)
