CI/CD: Auto upload build to Store use Codemagic.io

Create API key access Store

1. Create google service account and download file credenticials

Step 1: In Google Play Console, navigate to Settings > API access.

Step 2: Click on the Create Service Account button.


Step 3: Click on link to Google API Console.


Step 4: In Google API Console, click on the Create Service Account button.


Step 5: Enter service acttount name and click CREATE


Step 6: cick Select a role, select Service Account User and click CONTINUE

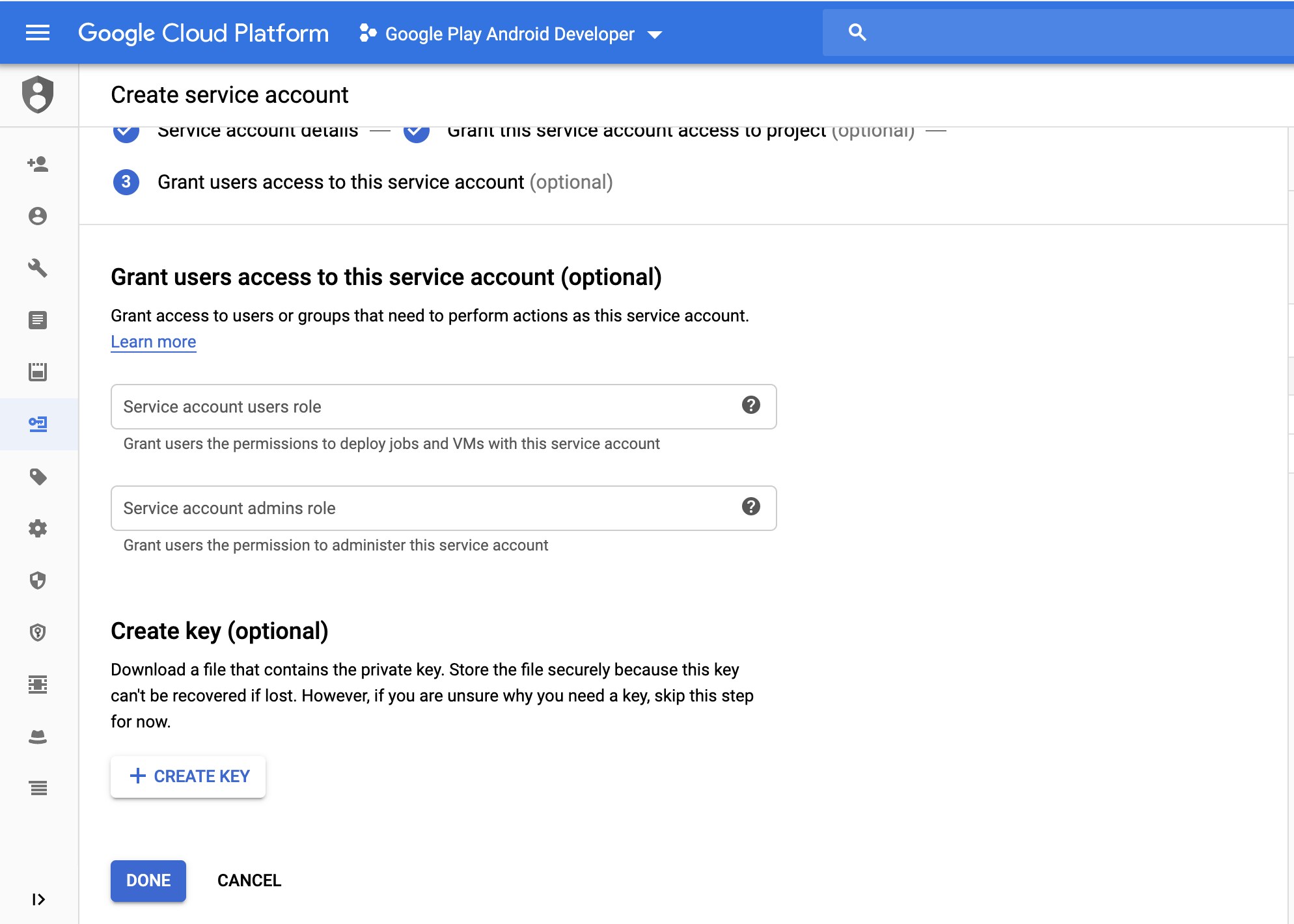

Step 7: click CREATE KEY

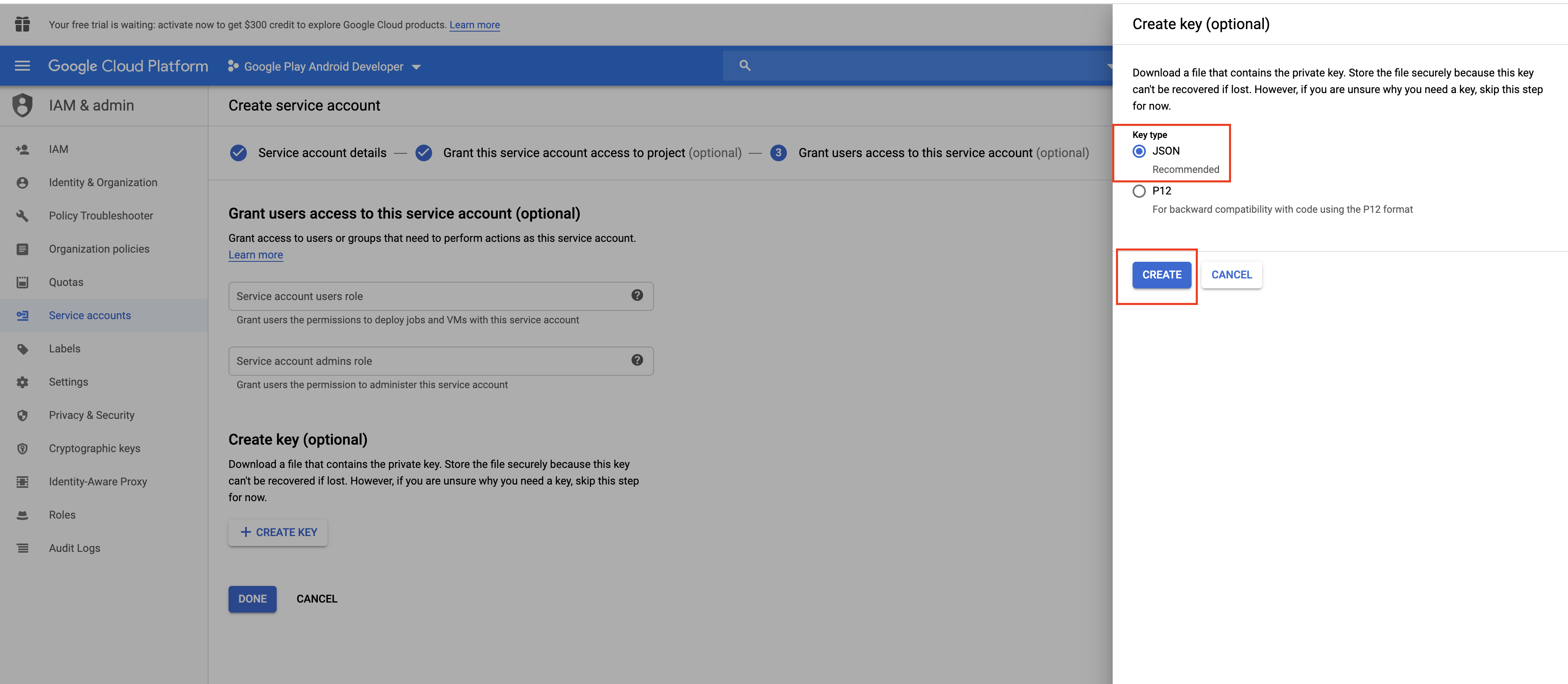

  • Choose JSON and click CRATE to download file credenticials


Step 8: Back in Google Play Console, click Done to close the dialog.


  • Click GRANT ACCESS


  • Choose Role is Release manager and Add an app. Final click ADD USER


2. Create key store app android

  • Create keystore
    keytool -genkey -v -keystore nameKey.keystore -keyalg RSA -keysize 2048 -validity 10000 -alias name_alias_key
  • Create file key.properties
    storePassword=password
    keyPassword=password
    keyAlias=name_alias_key
    storeFile=nameKey.keystore

3. Setup code magic

Build Trigger


Setup variable environment

    FCI_KEY_ALIAS
    FCI_KEYSTORE_PASSWORD
    FCI_KEY_PASSWORD
    FCI_KEYSTORE_FILE


Create FCI_KEYSTORE_FILE

By terminal

  • Step 1: run command:
    openssl base64 -in <nameKey.keystore> -out <reuslt.txt>
  • Step 2: After run comment, open file result.txt and copy content add to FCI_KEYSTORE_FILE in codemagic

By codemagic

  • Step 1: Open the project settings page in codemagic and do the following:

CLick to Encrypt environment variable

  • Step 2: Choose a file keystore of android


  • Step 3: copy data after encode file keystore


Dependecy caching


Add script create key store

  • Before option Text, click to button ADD


  • Add script
    #!/usr/bin/env sh
    set -e # exit on first failed commandset
    echo $FCI_KEYSTORE_FILE | base64 --decode > $FCI_BUILD_DIR/nameKey.keystore


Publishing ANDROID

  • Add android code signing image

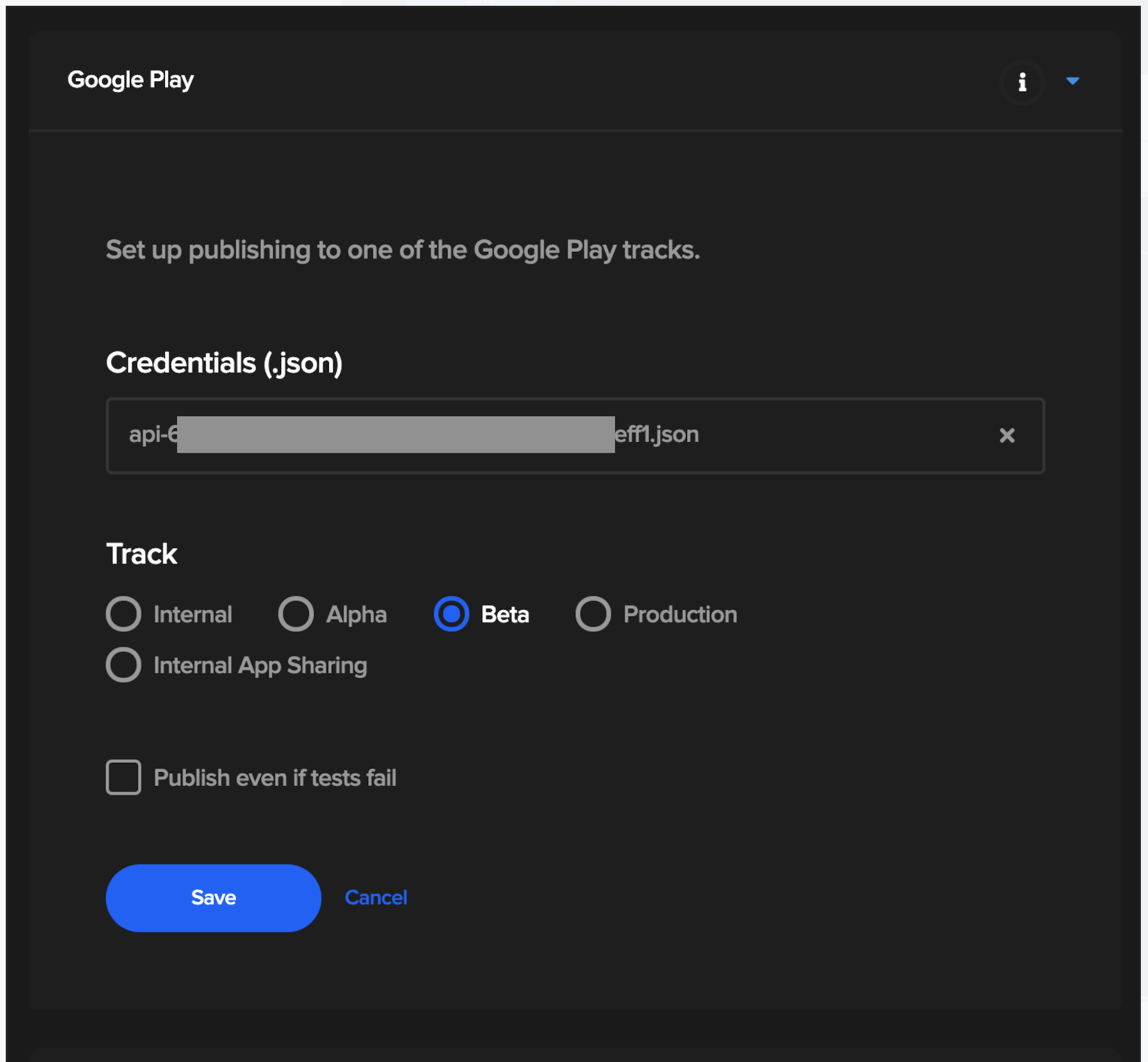

  • Upload file credentials google


Publishing IOS

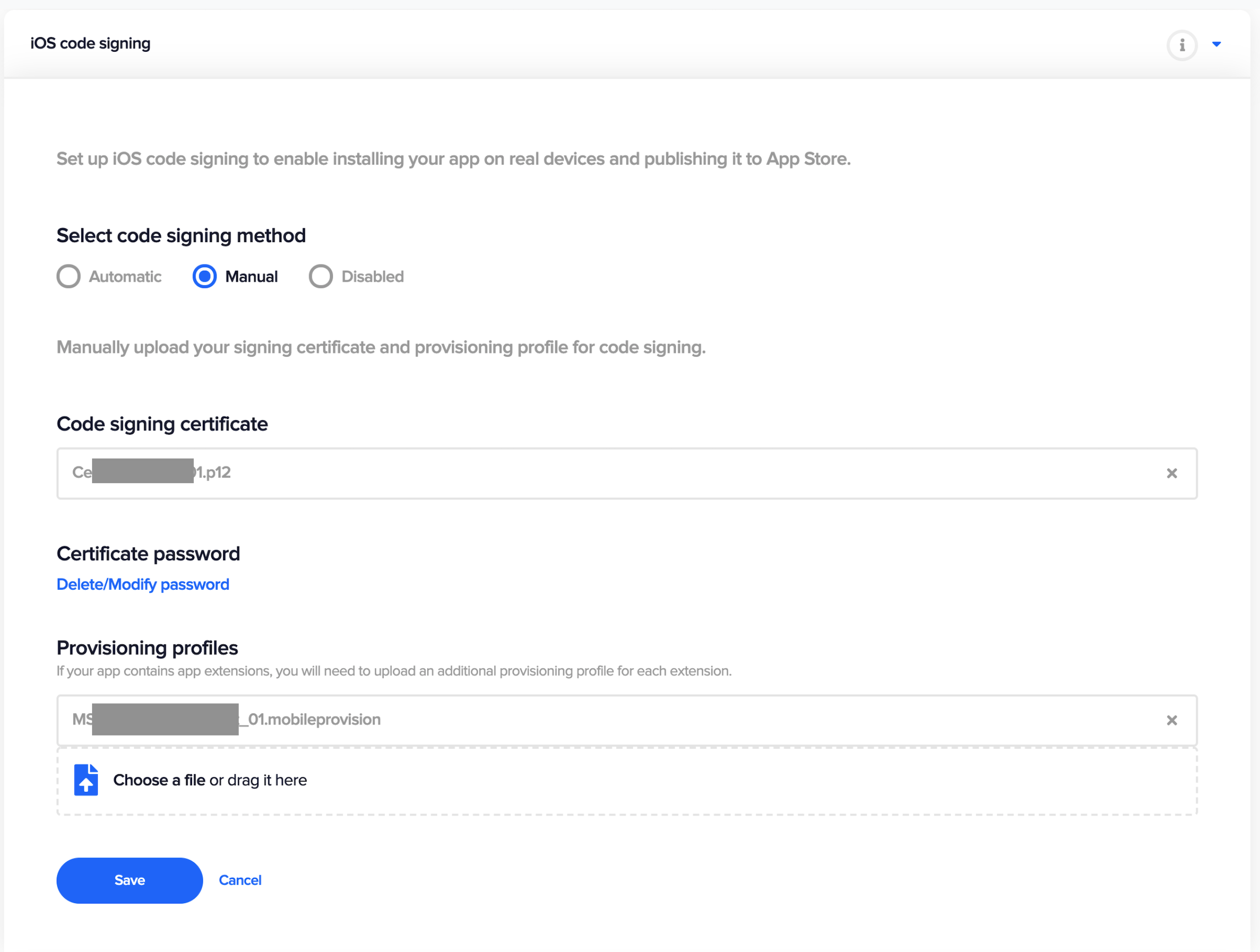

  • Add info certificate and provisioning profiles
    • Provisioning profiles get in https://developer.apple.com/
    • Certificate is the file that was taken from the MAC computer that built the app for the first time. Specifically, this certificate must be registered in the provisioning profiles.



Run build
