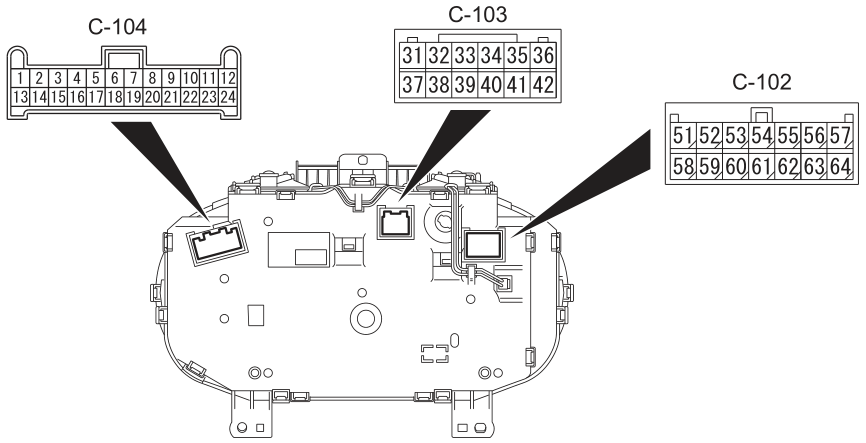

| Pin number |
Pin function |
| 51 |
Glow indicator lamp
|
| 52 |
Charge warning lamp |
| 53 |
- |
| 56 |
Input of turn-signal lamp LH switch |
| 57 |
Earth |
| 58 |
- |
| 59 |
Over drive off indicator |
| 60 |
A/T fluid temperature warning lamp |
| 61 |
Oil pressure switch |
| 62 |
- |
| 63 |
Check engine warning lamp |
| 64 |
Water separator indicator lamp
|
| Pin number |
Pin function |
| 31 |
Shift indicator - L |
| 32 |
- |
| 33 |
- |
| 34 |
Tachometer (engine speed) |
| 35 |
Speedometer (vehicle speed) |
| 36 |
Power supply from ignition switch (IG1) |
| 37 |
Shift indicator - 2 |
| 38 |
Shift indicator - D |
| 39 |
Shift indicator - N |
| 40 |
Shift indicator - R |
| 41 |
Shift indicator - P |
| 42 |
Battery power supply |
| Pin number |
Pin function |
| 1 |
- |
| 2 |
Door ajar warning lamp |
| 3 |
Rear differential lock mode |
| 4 |
2WD mode |
| 5 |
- |
| 6 |
Centre differential lock mode |
| 7 |
- |
| 8 |
4WD indicator lamp |
| 9 |
|
| 10 |
- |
| 11 |
Input of front fog lamp indicator lamp |
| 12 |
Input of parking brake switch and brake fluid level switch |
| 13 |
Earth |
| 14 |
- |
| 15 |
Illumination (earth) |
| 16 |
Illumination (power supply) |
| 17 |
Brake warning lamp |
| 18 |
SRS air bag warning lamp |
| 19 |
ABS warning lamp |
| 20 |
- |
| 21 |
Input of engine coolant temperature gauge |
| 22 |
Input of fuel gauge |
| 23 |
Input of turn-signal lamp RH switch |
| 24 |
Input of high beam switch |
Mitsubishi part numbers of combination meters:
| Part number |
Description |
| 8100B172 |
2008 AT 3.2D (KH0) |
| 8100B176 |
2009-2010 AT 2.5D |
| 8100B653 |
2010-2011 AT 2.5D |
| 8100B739 |
2011-2012 AT 2.5D |
| 8100B740 |
2011-2012 AT 2.5D ASC |
| 8100C140 |
2012+ AT 2.5D ASC |
| 8100C143 |
2012+ AT 2.5D ASC |
| 8100B175 |
2009-2010 MT 2.5D |
| 8100B635 |
2010-2011 MT 2.5D |
| 8100B729 |
2011-2012 MT 2.5D |
| 8100B730 |
2011-2012 MT 2.5D ASC |
| 8100C124 |
2014+ MT 2.5D |
| 8100C127 |
2012 MT 2.5D ASC |
| 8100C105 |
2014 / L200 2.5AT |
Connection to combination meter
Mitsubishi media 8701A053
Mitsubishi partnumber: 8701A053 (full documentation here).

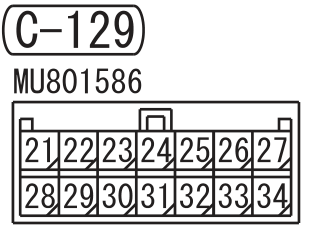

| Pin number |
Pin function |
| 26 |
M-DATA |
| 27 |
M-BUSY |
| 32 |
- |
| 33 |
UNKNOWN (L-GND) |
| 34 |
M-CLOCK |

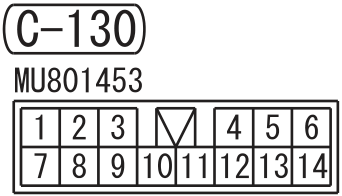

| Pin number |
Pin function |
| 1 |
Rear door speaker RH (+) |
| 2 |
Rear door speaker LH (+) |
| 3 |
Antenna power (?) |
| 4 |
- |
| 5 |
Front door speaker LH (+) |
| 6 |
Front door speaker RH (+) |
| 7 |
Rear door speaker RH (-) |
| 8 |
Rear door speaker LH (-) |
| 9 |
- |
| 10 |
IG1 power supply |
| 11 |
Battery |
| 12 |
Illumination (+) |
| 13 |
Front door speaker LH (-) |
| 14 |
Front door speaker RH (-) |
Only one pin - GND. It's in case of

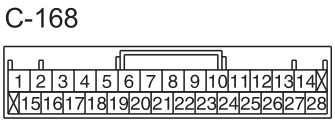

RV Meter 8750A190 or 8750A347
This connector part number:
- JAE MX34028SF1 - plastic case of connector
- JAE M34S75C4F1 - metall pins for connector
| Pin number |
Pin function |
| 5 |
M-BUSY (Audio) |
| 6 |
M-DATA (Audio) (M-BUS data signal) |
| 7 |
CAN L (realy CAN H) |
| 9 |
Input of fuel gauge |
| 10 |
EX-TEMP (ambient temperature sensor signal) |
| 11 |
ACC (ACC power supply) |
| 12 |
+B (Battery) |
| 13 |
VSS (Vehicle speed pulse signal) |
| 14 |
GND (earth) |
| 19 |
M-CLOCK (Audio) (M-BUS clock signal) |
| 21 |
CAN H (realy CAN L) |
| 23 |
GND – TEMP |
| 25 |
ILL + (button illumination signal) |
| 26 |
IG1 (IG1 power supply) |
RV-Meter on NMPS'08 (grayscale screen)
Connector C-108 (RV-METER NMPS'08)
| Terminal No. |
Signal Symbol |
DB-9 Pin |
| 21 - 22 |
- |
- |
| 23 |
EX-TEMP (ambient temperature sensor signal) |
1 |
| 24 |
ILL + (button illumination signal) |
2 |
| 25 |
ACC (ACC power supply) |
3 |
| 26 |
+B |
4 |
| 27 |
VSS (Vehicle speed pulse signal) |
5 |
| 28 |
GND (earth) |
9 |
| 29 - 30 |
- |
- |
| 31 |
GND - TEMP |
6 |
| 32 |
ILL GND (button illumination signal) |
7 |
| 33 |
FUEL GAUGE |
8 |
| 34 - 36 |
- |
- |
Connector C-109 (RV-METER NMPS'08)
| Terminal No. |
Signal Symbol |
| 1 - 5 |
- |
| 6 |
DATA (ETACS SWS data signal via CAN adapter) |
| 7 |
M-DATA (Audio) (M-BUS data signal) |
| 8 |
M-CLOCK (Audio) (M-BUS clock signal) |
| 9 - 14 |
- |
| 15 |
K (engine K-line signal via CAN adapter) |
| 16 |
- |
| 17 |
M-BUSY (Audio) |
| 18 |
SHIELD-GND (Audio) |
| 19 - 20 |
- |

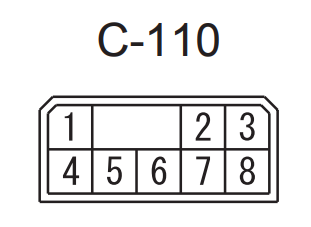

Connector C-110 (CAN ADAPTER NMPS'08)
| Terminal No. |
Signal Symbol |
| 1 |
+B (realy ACC) |
| 2 |
DATA (ETACS SWS data signal) |
| 3 |
- |
| 4 |
GND (earth) |
| 5 |
CAN L |
| 6 |
CAN H |
| 7 |
- |
| 8 |
K (engine K-line signal) |

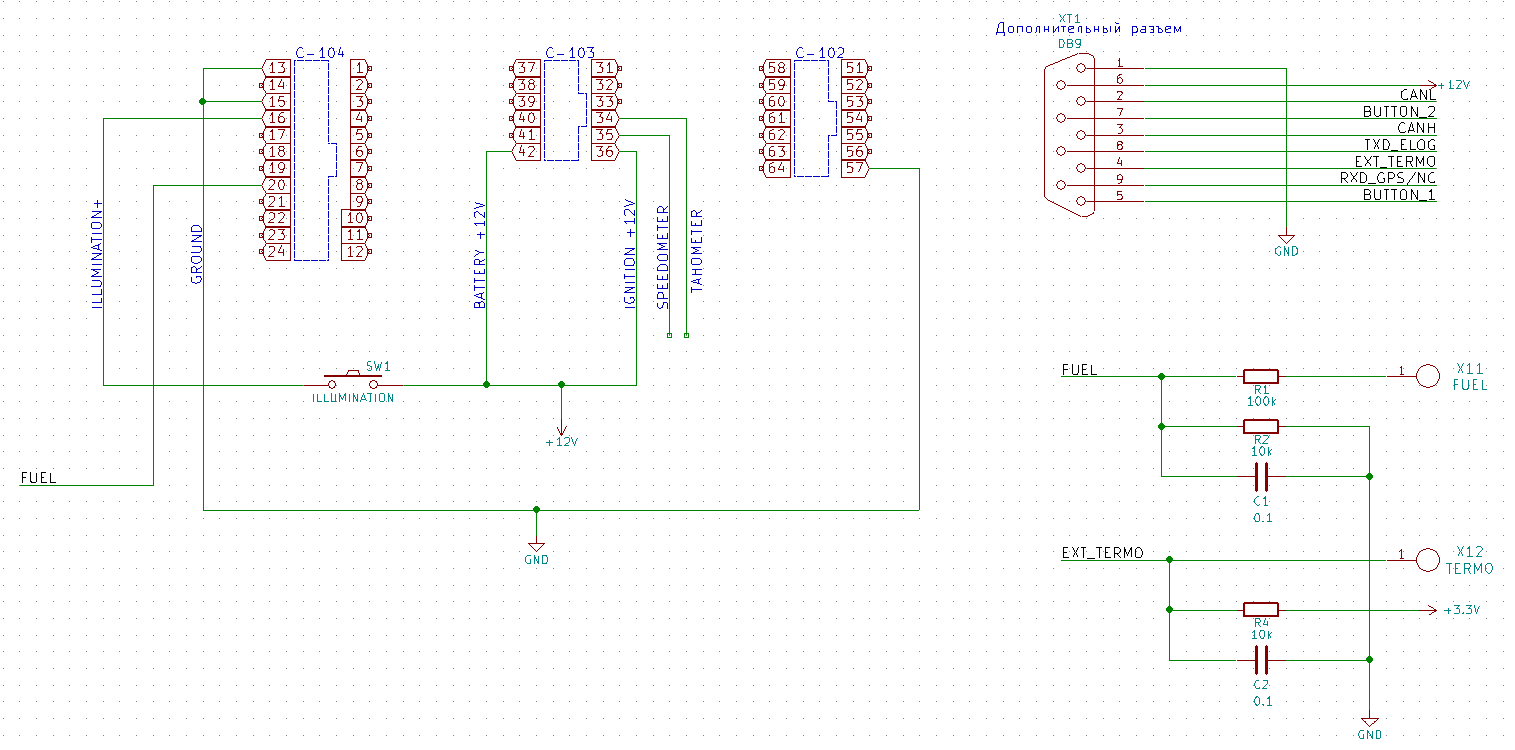

Connector on BCOMP11 module
DB-9 pinout:
| Terminal No. |
Signal Symbol |
| 1 |
GND |
| 2 |
CAN-L |
| 3 |
CAN-H |
| 4 |
AN1 (Analog buttons) |
| 5 |
AN2 |
| 6 |
VCC (12V) |
| 7 |
RX |
| 8 |
TX |
| 9 |
AN3 |
