Isolated Power Module - hampussandberg/HexConnect GitHub Wiki

3D Renderings

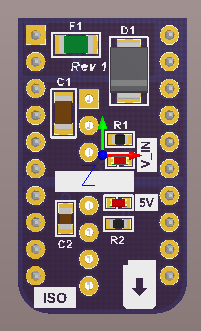

Top View
Top View

Bottom View
Bottom View

Schematics

Schematics can be found here.

Introduction and specification

  • ~ 9-36V in
  • 36V TVS on input
  • 0.8A fuse on input
  • Reverse input protected using diode
  • LED on input
  • 5V, 1200mA out
  • LED on output
