Adding Schematic Symbol Libraries

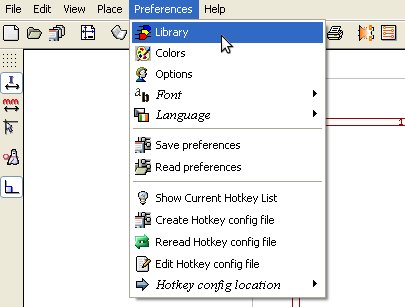

After starting or opening a project, run EEschema. Select Library from the Preferences menu:

https://raw.githubusercontent.com/ha7ilm/opendous/master/Pictures/KiCAD_Add_Symbol_Library-01.jpg

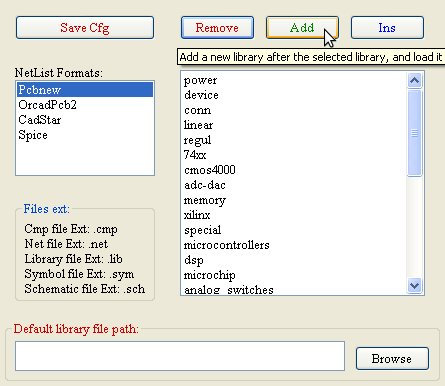

Click the Add button to insert a new library:

https://raw.githubusercontent.com/ha7ilm/opendous/master/Pictures/KiCAD_Add_Symbol_Library-02.jpg

Find opendous.lib in /library/ directory where you extracted KiCAD_Libraries-?.zip.

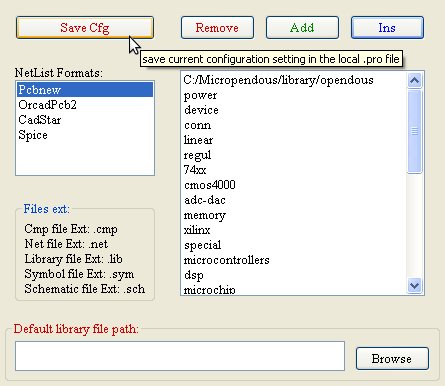

Click Save Cfg to save the configuration file for the current project:

https://raw.githubusercontent.com/ha7ilm/opendous/master/Pictures/KiCAD_Add_Symbol_Library-03.jpg

The library contents will now be available to your project. Check by opening the Library Browser

https://raw.githubusercontent.com/ha7ilm/opendous/master/Pictures/KiCAD_Add_Symbol_Library-04.jpg

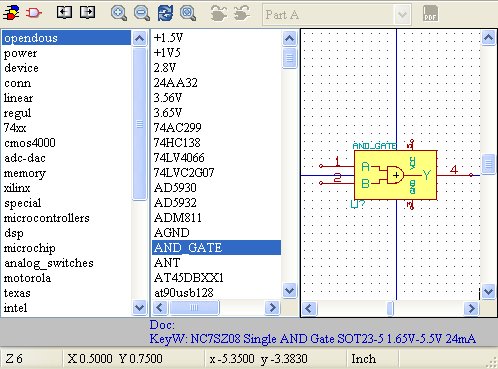

And browse the new library contents:

https://raw.githubusercontent.com/ha7ilm/opendous/master/Pictures/KiCAD_Add_Symbol_Library-05.jpg

Adding Layout Footprint Libraries

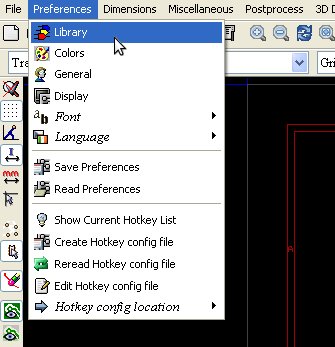

After starting or opening a project, run PCBnew. Select Library from the Preferences menu:

https://raw.githubusercontent.com/ha7ilm/opendous/master/Pictures/KiCAD_Add_Module_Library-01.jpg

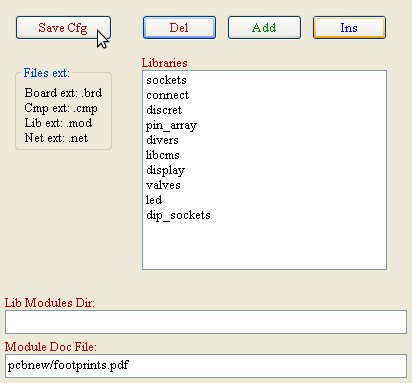

Click the Add button to insert a new library:

https://raw.githubusercontent.com/ha7ilm/opendous/master/Pictures/KiCAD_Add_Module_Library-02.jpg

Find opendous.mod in /modules/ directory where you extracted KiCAD_Libraries-?.zip.

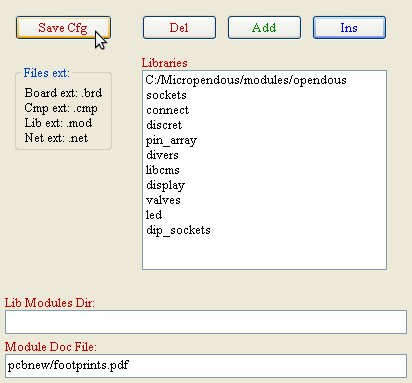

The library contents will now be available to your project when running CVPCB, the schematic symbol to module linker. Click Save Cfg to save the configuration file for the current project:

https://raw.githubusercontent.com/ha7ilm/opendous/master/Pictures/KiCAD_Add_Module_Library-03.jpg
