Introduction

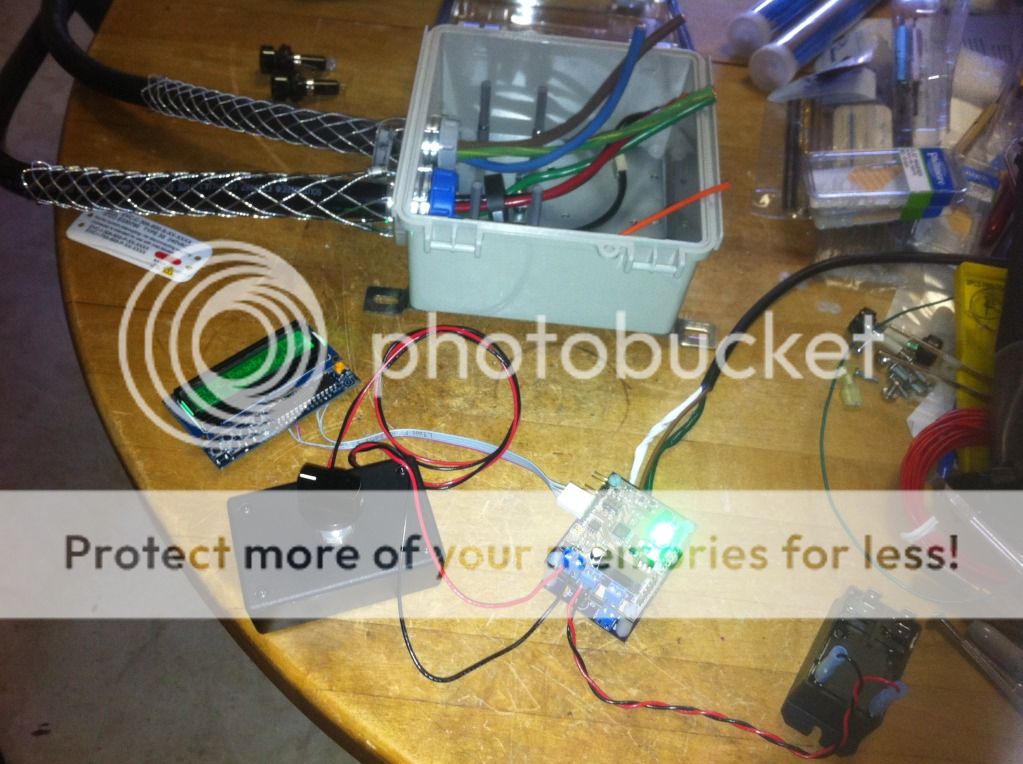

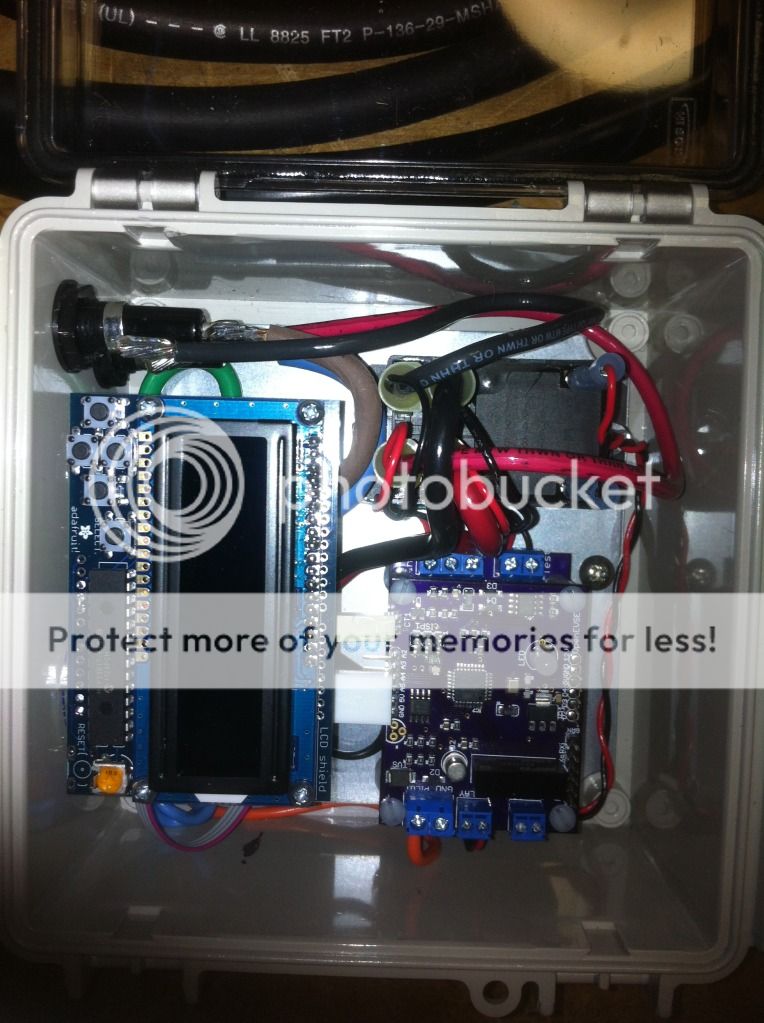

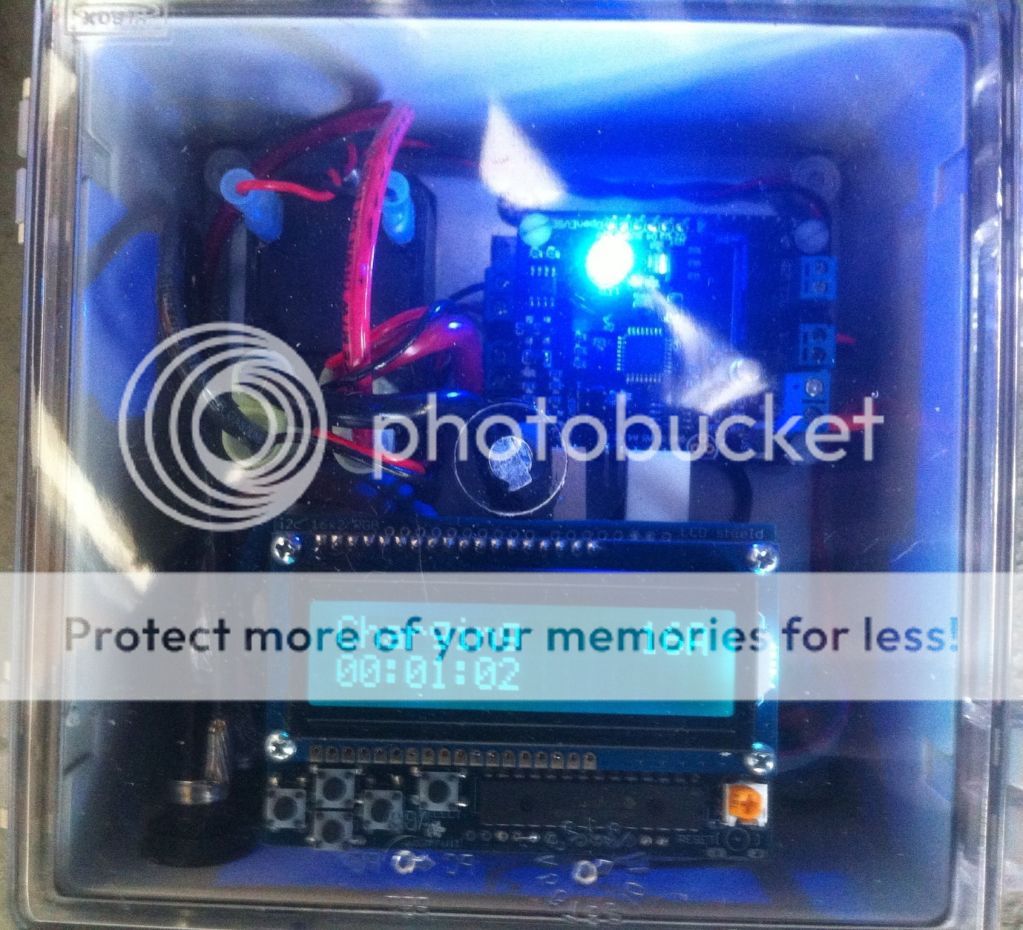

This is an example of a 30A Portable EVSE built with the Open EVSE GFCI board, and Advanced power supply.

This should not be attempted by anyone without the required skills and knowledge to work with high voltage.

Open EVSE is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.

High Voltage Schematic

http://open-evse.googlecode.com/files/EVSEwAdvanced_Power_supply.pdf

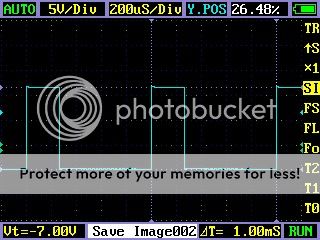

EVSE Ground

NOTE: The Open EVSE control Board must be grounded to the EV/Earth Ground for the pilot to operate correctly.

Circuit

If using the L6-30 30A cable/outlet/breaker set the EVSE board to a maximum of 24A.

Parts

Part	Source	Cost	Quantity	Link
Open EVSE Plus Board w/ integrated power supply	Open EVSE	$150.00	1	http://code.google.com/p/open-evse/wiki/Ordering
30A Relay	Digikey	$13.03	1	http://search.digikey.com/us/en/products/T92P7D22-12/PB486-ND/365921
Current Transformer	Digikey	$10.65	1	http://search.digikey.com/us/en/products/CR8420-1000-G/582-1018-ND/1045174
BOX NEMA ECONOMY 5.9X5.9X3.54 (377-1787-ND)	Digikey	$20.62	1	http://search.digikey.com/scripts/DkSearch/dksus.dll?lang=en&site=us&KeyWords=377-1787-ND&x=0&y=0
PANEL INTERNAL 4.9" X 4.9" (377-1939-ND)	Digikey	$4.80	1	http://search.digikey.com/scripts/DkSearch/dksus.dll?WT.z_header=search_go&lang=en&site=us&keywords=377-1939-ND&x=0&y=0
FUSEHOLDER 1/4" 30A 250V PNL MNT (283-2850-ND)	Digikey	$3.69	2	http://search.digikey.com/us/en/products/BK%2FHKP-R/283-2850-ND/1024094
FUSE 250V SLO-BLO 3AB 30A (F1779-ND)	Digikey	$1.68	2	http://search.digikey.com/us/en/products/0326030.MXP/F1779-ND/778640
2" plastic 4-40 M-F standoffs (4813K-ND)	Digikey	$.63	8	http://www.digikey.com/product-detail/en/4813/4813K-ND/255350
J-1772 cable, 30 amps (A3435-PEV)	Leviton	$133.98 + $12.19 shipping	1	http://store.leviton.com/dp/B00912OT00#.UD18QGjEV68
30A AC Plug L6-30	Stay Online	$33.00	1	http://www.stayonline.com/detail.aspx?ID=15695
AdaFruit RGB LCD Shield kit	AdaFruit	$24.95	1	http://adafruit.com/products/714
Strain Relief - HUBBELL SHC2041CR 1 Inch Thread Cord Connector	Stayonline	$7.00	2	http://www.stayonline.com/detail.aspx?id=17207
Ground Bar Kit	Home Depot	$4.48	1	http://www.homedepot.com/h_d1/N-5yc1v/R-100207842/h_d2/ProductDisplay?catalogId=10053&langId=-1&keyword=Ground+Bar+Kit
Shipping	DigiKey, AdaFruit, StayOnline	$25	1
Crimp Connectors/PCB connectors	various	$10	1
Hardware (nuts & bolts)	various	$5	1
