Experimental Internet Of Things (ELIOT)

Background

ELIOT (ExperimentaL Internet of Things) combines modular pluggable hardware, software and network connectivity services allowing you to rapidly discover, build, test and scale your professional IoT projects.

ELIOT (Experimental Internet of Things) ELITE Kits

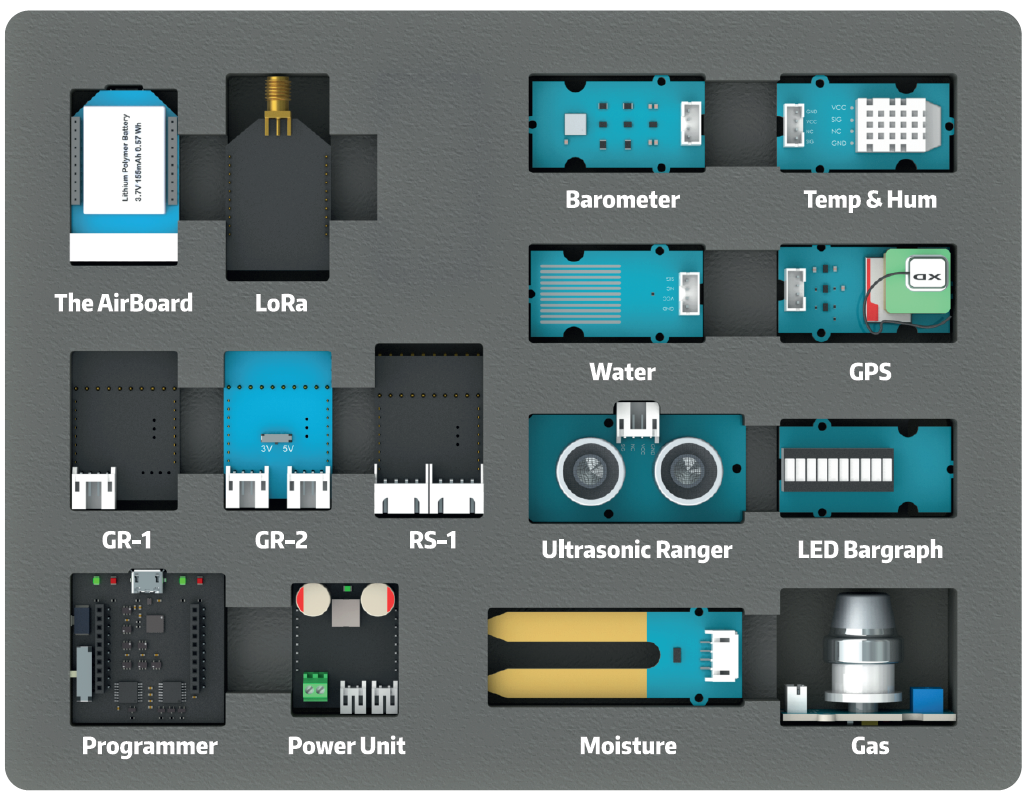

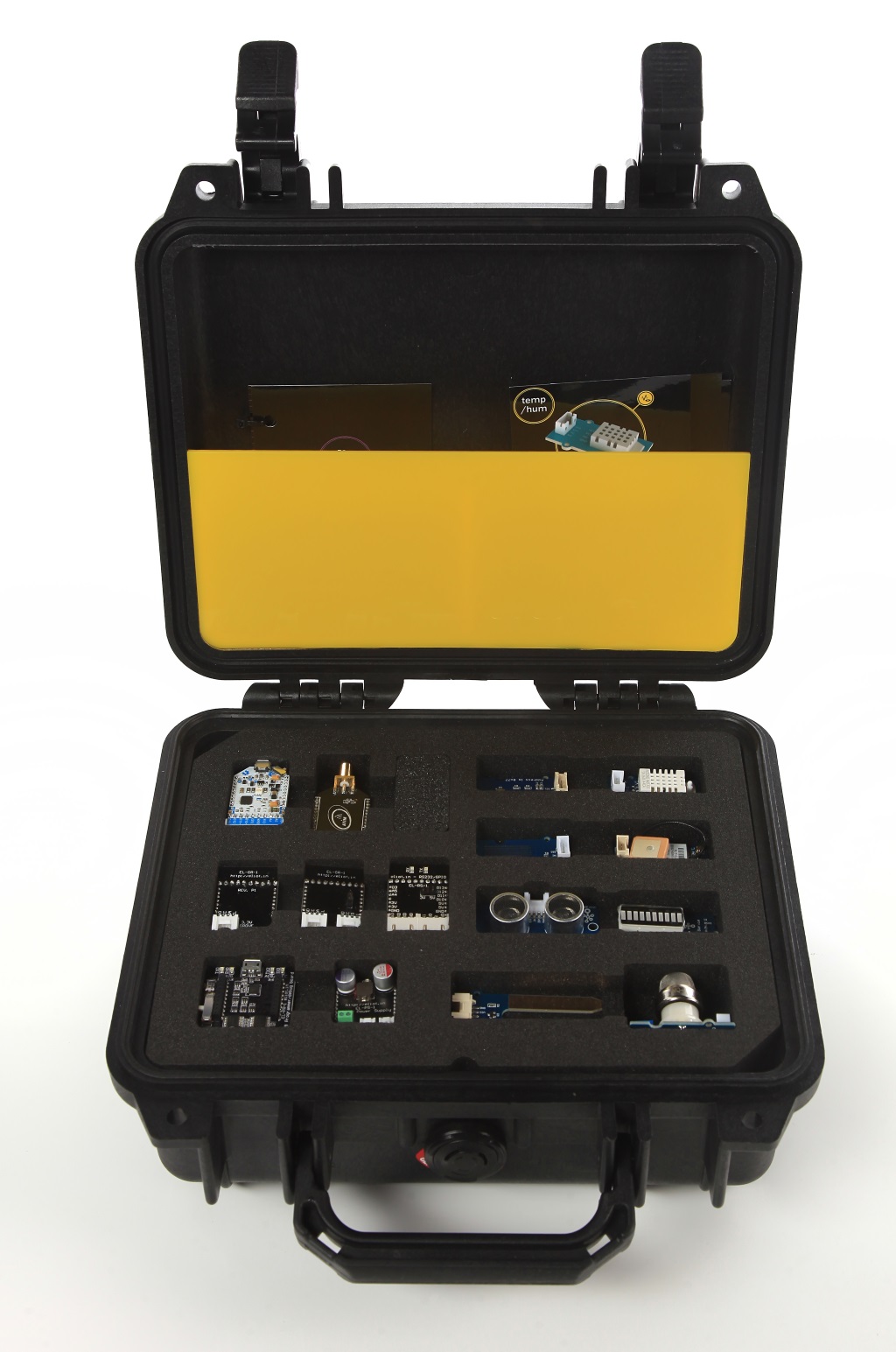

An example of our ELITE kit which is focused on LoRaWAN connectivity.

Kit Contents

• the AirBoard - an autonomous 8-bit microcontroller board (100% Arduino compatible)
• LoRa module - wireless communication using Inmarsat's LPWAN service
• USB Programmer/Debugger board - for deploying embedded code
• Extension boards - easily connect sensors, external power and serial interfaces
• Sensors - a selection of environmental sensors

Technical Info

• the AirBoard
• EL-PR-1 USB Programmer/Debugger
• LoRaWAN
• Extension Boards
  • EL-GR-1 - Single Grove sensor interface
  • EL-GR-2 - Dual Grove sensor interface (with 3V/5V level shifting)
  • EL-RS-1 - Real RS232 Serial Port and digital I/O interface
• Power Supply Board EL-PS-1
• Sensors
  • Barometer
  • Bargraph
  • GPS
  • Moisture
  • Gas/Smoke
  • Temperature/Humidity
  • Ultrasonic Distance/Presence
  • Water Level
  • 3-Axis Accelerometer
• Mechanical Info

Data Access API

A simple RESTful Web API to retrieve data from ELIOT devices.

API Specification

Tutorials

• Arduino IDE Configuration
• Assembling a prototype device
• Using the EL-PR-1 with the AirBoard

Additional Sensors

Some 3rd party environmental sensors have been deployed in the field by Inmarsat. Here is a list of datasheets and technical reference information:

• IR868LR Infrared Presence
• LS-111 Carbon Dioxide
• LS-112 Carbon Monoxide
• LS-113 PM2.5 Pollution
• LS-11x sensor payload data format
