USE CASE DIAGRAM

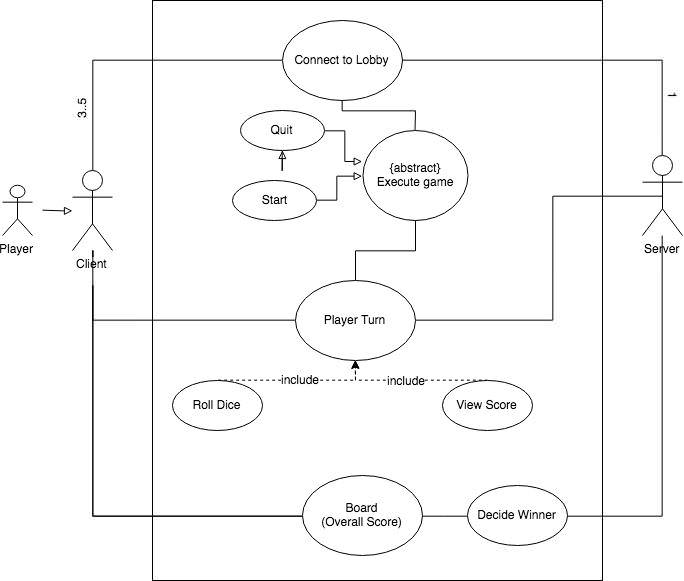

The use case diagram shows the basic elements the system is supposed to do.
The functionality is shown by subjects such as connecting to lobby, creating a game
and options such as show score and starting the game.

FLOWCHART

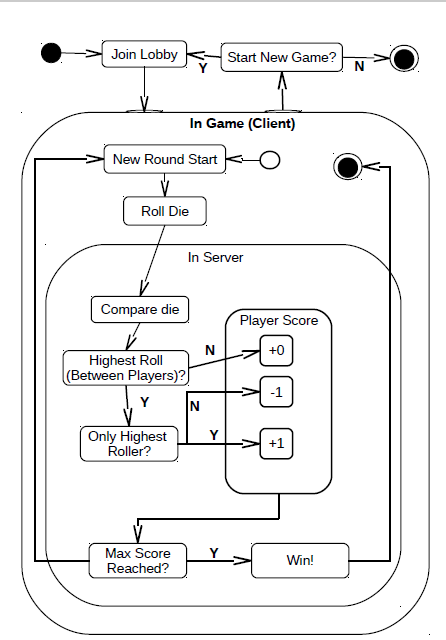

This flowchart shows the process of a theorectical game from its inception to its end.

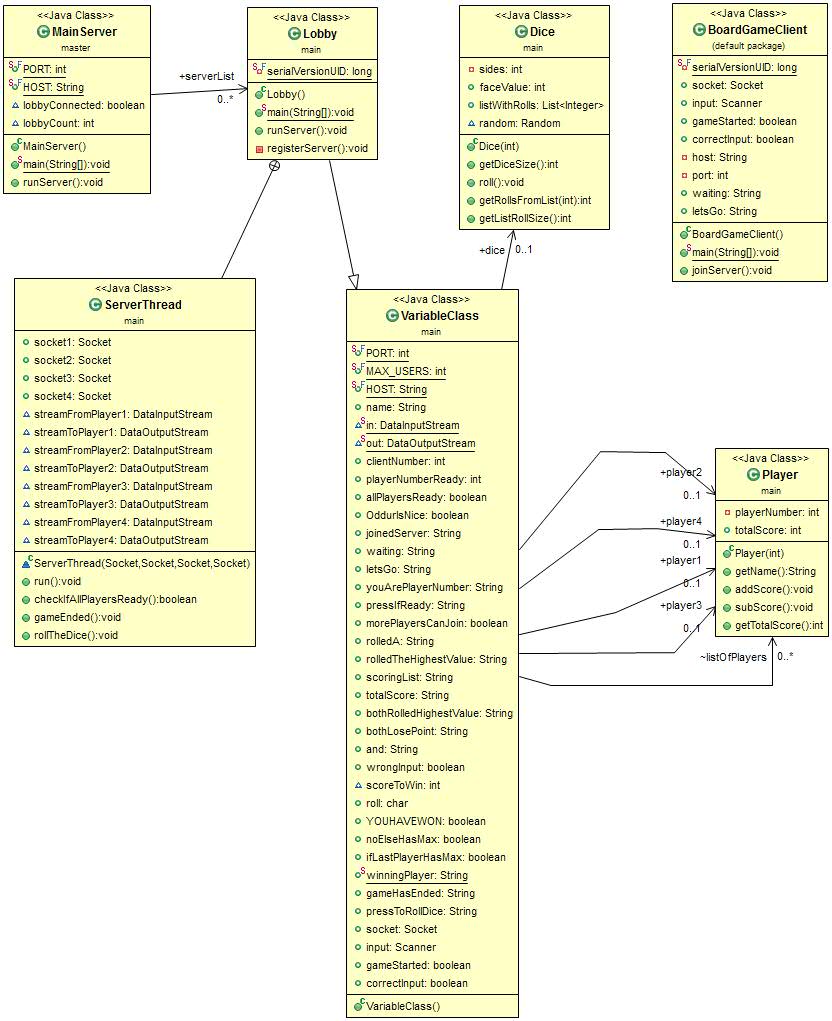

CLASS DIAGRAM

SEQUENCE DIAGRAMS

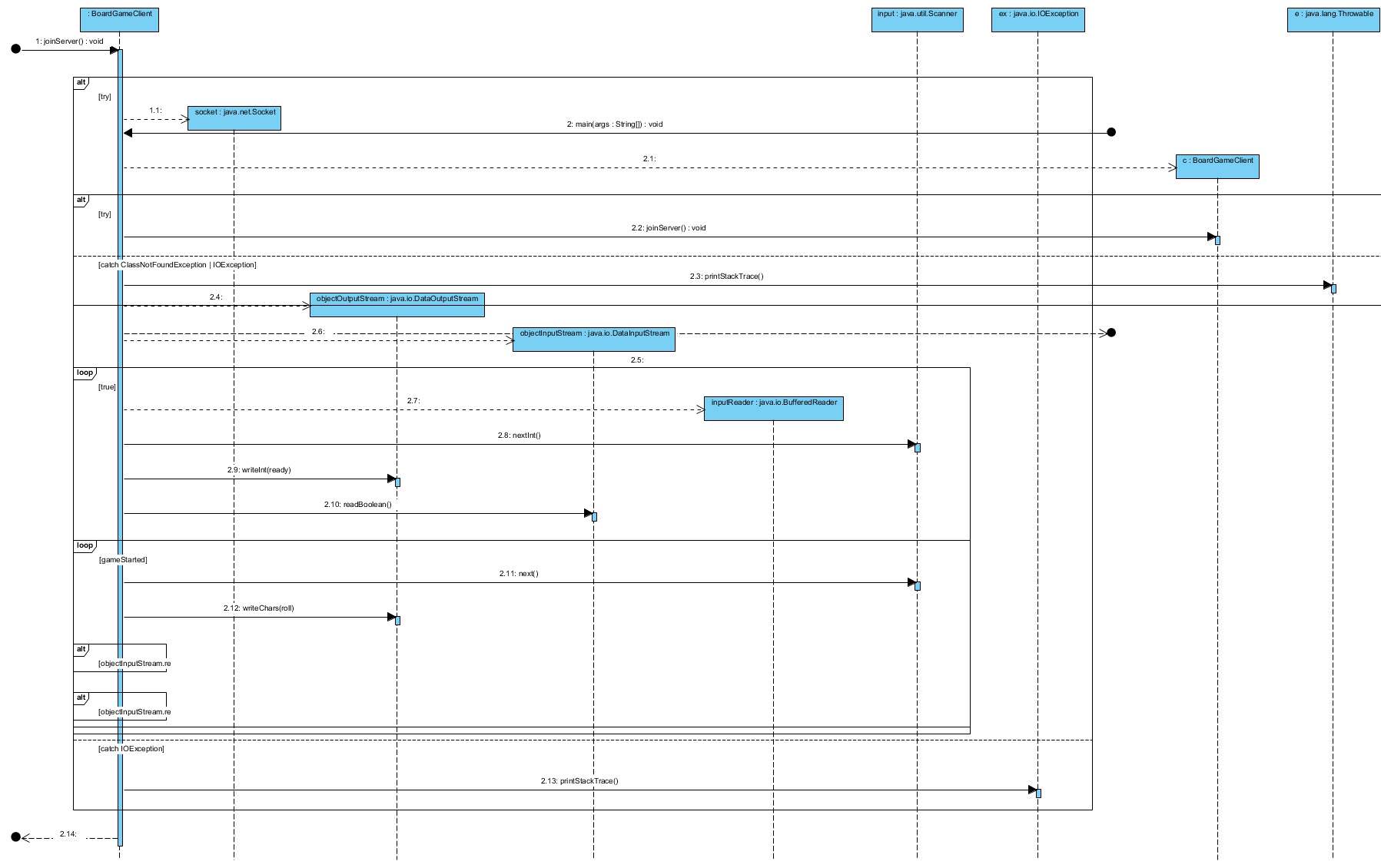

Sequence diagram 1

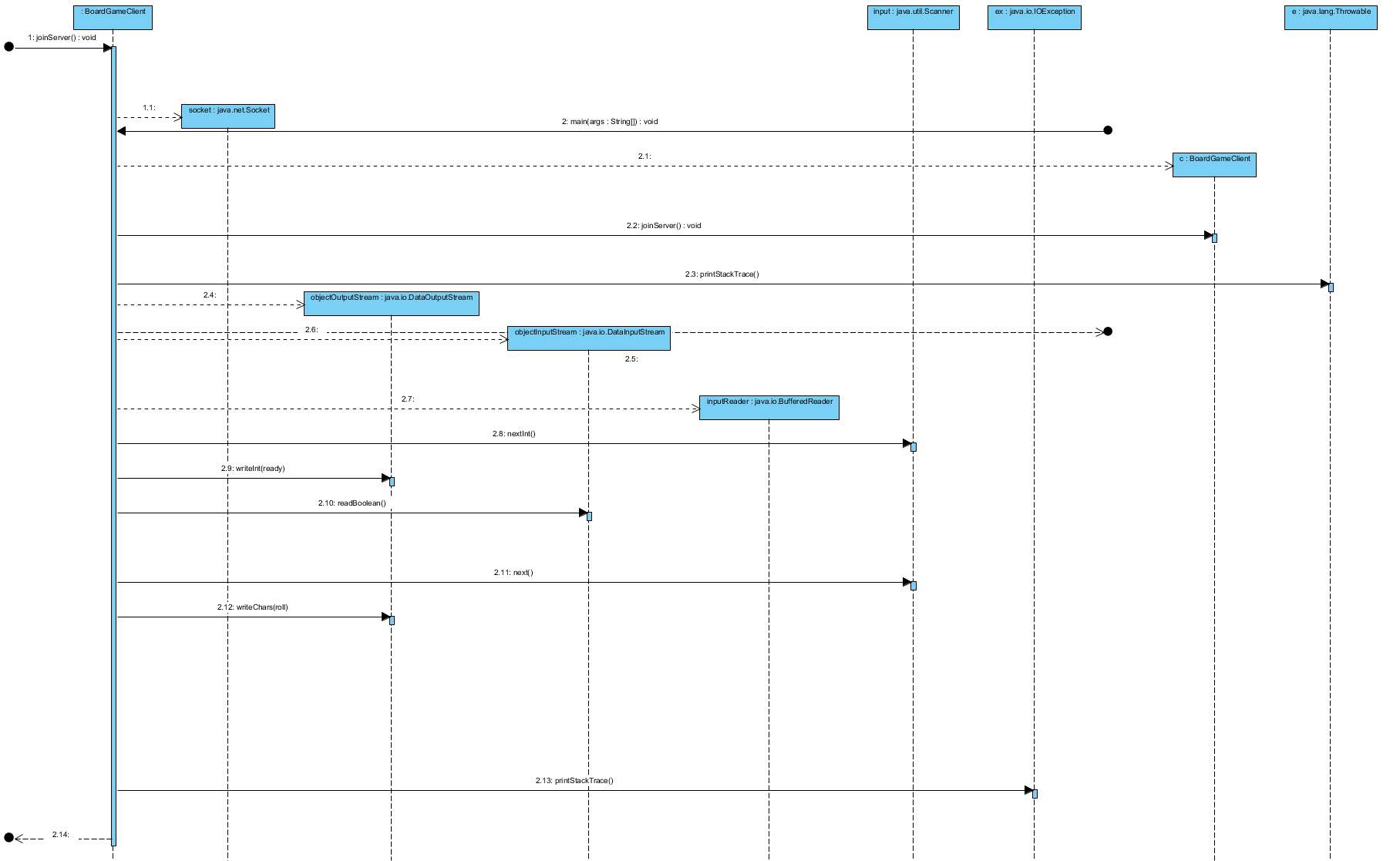

Sequence diagram 2

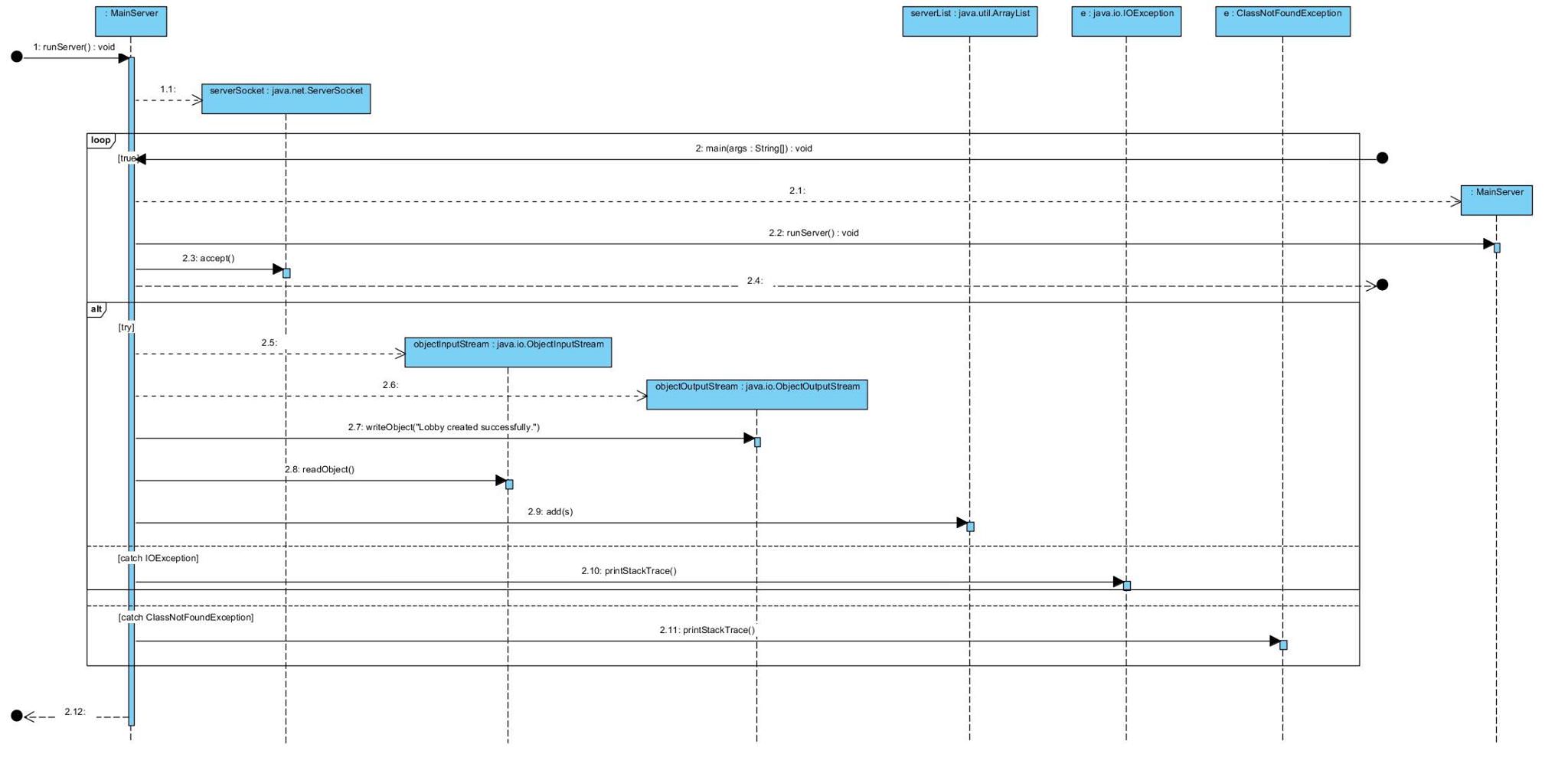

Sequence diagram 3

Sequence diagram 4
