Data Cable - emcee5601/fit-testing-resources GitHub Wiki
Needed to connect the 8020 to the computer (or mobile device)
8020 -> RJ45 -> DB9 -> USB -> computer
(8020 -> ethernet cable -> rj45-db9 adapter -> db9-usb adapter -> computer)
Some (tool-less) assembly required. 3 parts
- Ethernet cable
- RJ45 -> DB9 modular adapter
- DB9 -> USB adapter (choose the appropriate option for your computer)
![]() |
RJ45 -> DB9. The 8020 has non-standard serial port wiring, so using a modular adapter lets us adjust for that. The image to the left is a working configuration. | https://www.amazon.com/StarTech-com-DB9-RJ45-Modular-Adapter/dp/B00006IRQA |

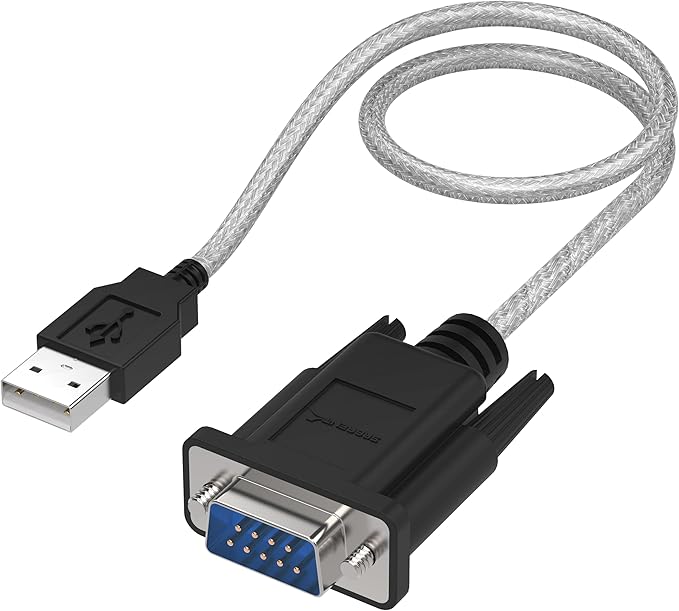

DB9 -> USB-A | https://www.amazon.com/dp/B00065H0QQ | |
DB9 -> USB-B | https://www.amazon.com/dp/B08B5M1KBZ | |

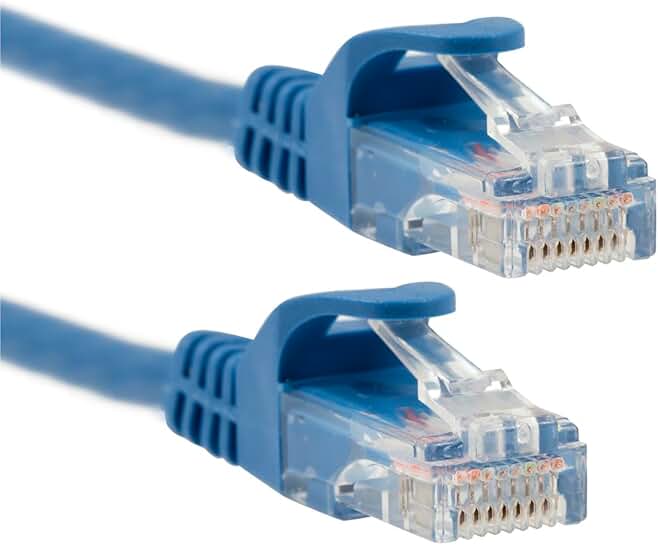

(8020 -> RJ45) Standard ethernet cable | https://www.amazon.com/s?k=Ethernet+Cables&i=computers&rh=p_36%3A-200&s=price-asc-rank |
8020 -> RJ45 -> USB -> computer
(8020 -> modified rj45-usb adapter -> computer)
Use a modified RJ45 serial to USB cable to directly connect the 8020 to the computer. Modification requires a crimp tool and a passthrough connector. Reorder the wires so the resulting order is 1-4-2-3-5-6-7-8 (Move 4 to 2's position and shift everything toward the center. 1,5-8 remain unchanged. 1 is CTS). See this diagram
RJ45 -> USB. Modify before use. | example: https://www.amazon.com/dp/B0DD3CVB6W |
