Raspberry Pi Camera Module - eclubiitk/EClub-Handbook GitHub Wiki

The Raspberry Pi Camera Module is a high quality 8 megapixel Sony IMX219 imagesensor custom designed add-on board for Raspberry Pi, featuring a fixed focus lens.

It is capable of 3280x2464 pixel static images, and also supports 1080p30, 720p60 and 640x480p90 video.

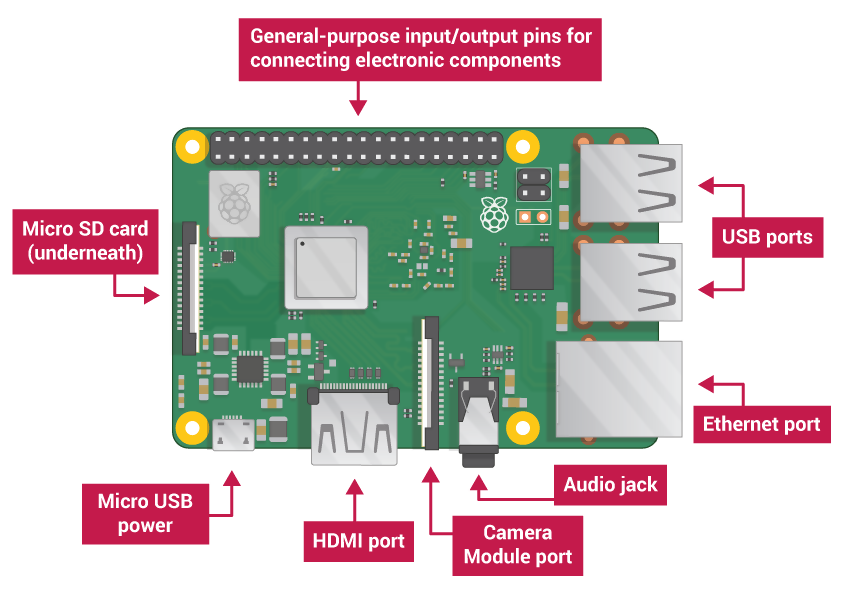

It attaches to Pi by way of one of the small sockets on the board upper surface and uses the dedicated CSi interface, designed especially for interfacing to cameras. There are two versions of the Camera Module:

• The standard version, which is designed to take pictures in normal light
• The NoIR version, which doesn’t have an infrared filter, so you can use it together with an infrared light source to take pictures in the dark

Ensure your Raspberry Pi is turned off.
Warning: Cameras are sensitive to static. Earth yourself prior to handling the PCB. A sink tap or similar should suffice if you don’t have an earthing strap.

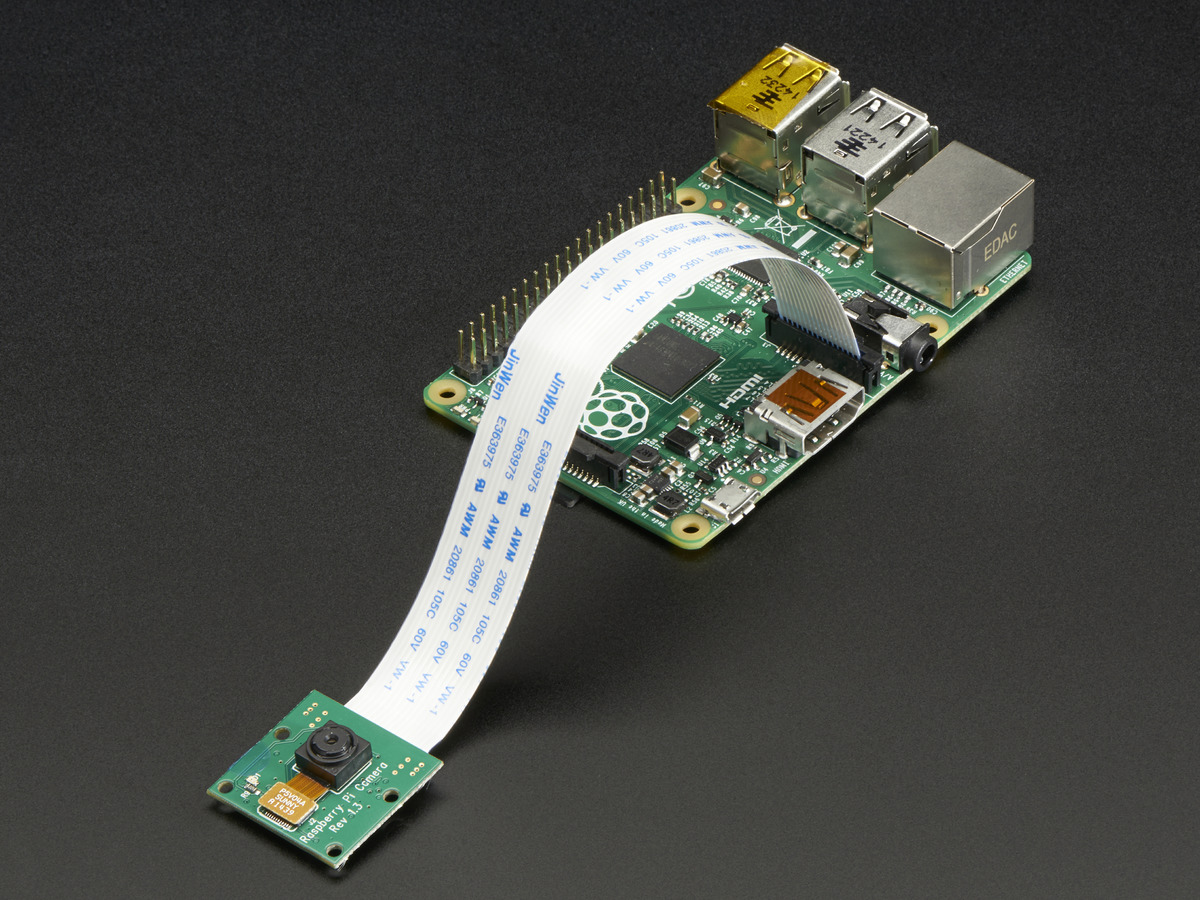

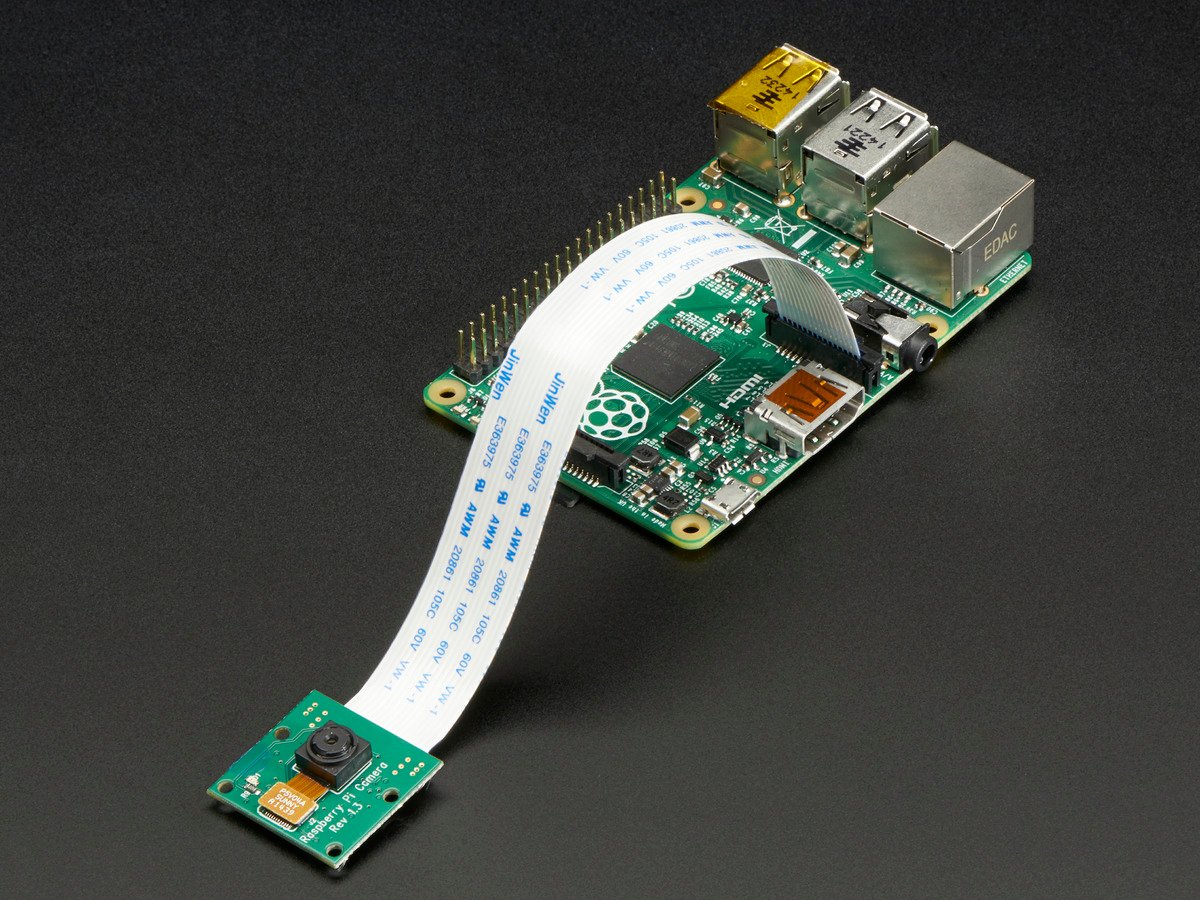

The camera board attaches to the Raspberry Pi via a 15-way ribbon cable. There are only two connections to make: the ribbon cable needs to be attached to the camera PCB, and to the Raspberry Pi itself. You need to get the cable the right way round, or the camera will not work. On the camera PCB, the blue backing on the cable should face away from the PCB, and on the Raspberry Pi it should face towards the Ethernet connection (or where the Ethernet connector would be if you're using a model A).

Although the connectors on the PCB and the Pi are different, they work in a similar way. On the Raspberry Pi itself, pull up the tabs on each end of the connector. It should slide up easily, and be able to pivot around slightly. Fully insert the ribbon cable into the slot, ensuring it is set straight, then gently press down the tabs to clip it into place. The camera PCB connector also requires you to pull the tabs away from the board, gently insert the cable, then push the tabs back. The PCB connector can be a little more awkward than the one on the Pi itself.

The camera may come with a small piece of translucent blue plastic film covering the lens. This is only present to protect the lens while it is being mailed to you, and needs to be removed by gently peeling it off.

Execute the following instructions on the command line to download and install the latest kernel, GPU firmware, and applications. You'll need an internet connection for this to work correctly.

sudo apt update
sudo apt full-upgrade

Now you need to enable camera support using the raspi-config program you will have used when you first set up your Raspberry Pi.

sudo raspi-config

Use the cursor keys to select and open Interfacing Options, and then select Camera and follow the prompt to enable the camera.

Upon exiting raspi-config, it will ask to reboot. The enable option will ensure that on reboot the correct GPU firmware will be running with the camera driver and tuning, and the GPU memory split is sufficient to allow the camera to acquire enough memory to run correctly.

To test that the system is installed and working, try the following command:

raspistill -v -o test.jpg

The display should show a five-second preview from the camera and then take a picture, saved to the file test.jpg, whilst displaying various informational messages.

You can also enable the camera from the Raspberry Pi Desktop application.

• Start up your Raspberry Pi.

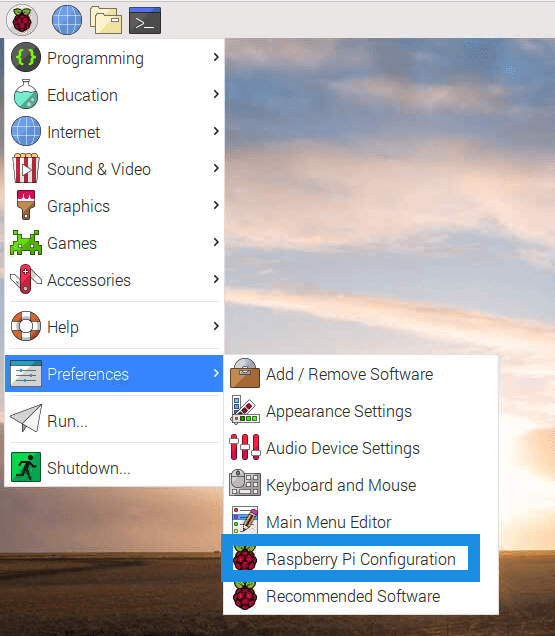

• Go to the main menu and open the Raspberry Pi Configuration tool.

• Select the Interfaces tab and ensure that the camera is enabled

• Reboot your Raspberry Pi.

There are four applications provided: raspistill, raspivid, raspiyuv and raspividyuv. All the applications are driven from the command line.

raspistill and raspiyuv are very similar and are intended for capturing images; raspivid and raspvidyuv are for capturing video.

In addition, it's possible to omit the filename option (in which case the preview is displayed but no file is written), or to redirect all output to stdout.

raspistill is the command line tool for capturing still photographs with the camera module.

 --output    -o    Output filename <filename>

Specify the output filename. If not specified, no file is saved. If the filename is '-', then all output is sent to stdout.
Example: Taking a default capture on viewfinder, saving in image.jpg

raspistill  -o image.jpg

Example: Take a picture and send image data to stdout

raspistill -t 2000 -o -

Example: Take a picture and send image data to file

raspistill -t 2000 -o - > my_file.jpg

--timeout   -t    Time before capture and shut down

The program will run for this length of time, then take the capture (if output is specified). If not specified, this is set to 5 seconds..
Example: Taking a default capture after two seconds (note times are specified in milliseconds) on viewfinder, saving in image.jpg

raspistill -t 2000 -o image.jpg

Example: Run preview ONLY for two seconds, no saved image.

raspistill -t 2000

--width   -w    Set image width <size>
--height    -h    Set image height <size>

Change the image width and height respectively.
Example: Take a capture at a different resolution

raspistill -t 2000 -o image.jpg -w 640 -h 480

--quality   -q    Set jpeg quality <0 to 100>

Change the image quality.Quality 100 is almost completely uncompressed. 75 is a good allround value.
Example: reduce the quality considerably to reduce file size

raspistill -t 2000 -o image.jpg -q 5

--preview   -p    Preview window settings <'x,y,w,h'>

Allows the user to define the size and location on the screen that the preview window will be placed. Note this will be superimposed over the top of any other windows/graphics.
Example: Force the preview to appear at coordinate 100,100, with width 300 and height 200 pixels.

raspistill -t 2000 -o image.jpg -p 100,100,300,200

--nopreview   -n    Do not display a preview window

Disables the preview window completely. Note that even though the preview is disabled, the camera will still be producing frames, so will be using power.
Example: Disable preview entirely.

raspistill -t 2000 -o image.jpg -n

--encoding, -e Encoding to use as output file

Valid options are jpg, bmp, gif and png. Note that unaccelerated image types (gif, png, bmp) will take much longer to save than jpg, which is hardware accelerated. Also note that the filename suffix is completely ignored when encoding a file
Example: Save the image as a png file (lossless compression, but slower than JPEG).

raspistill -t 2000 -o image.png –e png

--timelapse   -tl   Timelapse mode

The specific value is the time between shots in milliseconds. Note you should specify %04d at the point in the filename where you want a frame count number to appear.
Example: To produce a capture every 2 seconds over a total period of 30s, named image1.jpg, image0002.jpg...image0015.jpg. Note that the %04d indicates a four-digit number with leading zeros added to pad to the required number of digits. So, for example, %08d would result in an eight-digit number.

raspistill -t 30000 -tl 2000 -o image%04d.jpg

Example: Take timelapse picture, one every 10 seconds for 10 minutes (10 minutes = 600000ms), named image_number_1_today.jpg, image_number_2_today.jpg onwards. bash

raspistill -t 600000 -tl 10000 -o

--imxfx   -ifx    Set image effect

raspistill -t 2000 -o image.jpg -ifx emboss

--colfx   -cfx    Set colour effect <U:V>

The supplied U and V parameters (range 0 to 255) are applied to the U and Y channels of the image. For example, --colfx 128:128 should result in a monochrome image.
Example: Set the U and V channels of the YUV image to specific values (128:128 produces a greyscale image).

raspistill -t 2000 -o image.jpg -cfx 128:128

Many of the options for raspistillyuv are the same as those for raspistill.

Unsupported Options:

--exif, --encoding, --thumb, --raw, --quality

Extra Options:

--rgb   -rgb    Save uncompressed data as RGB888

This option forces the image to be saved as RGB data with 8 bits per channel, rather than YUV420

Note that the image buffers saved in raspistillyuv are padded to a horizontal size divisible by 16 (so there may be unused bytes at the end of each line to made the width divisible by 16). Buffers are also padded vertically to be divisible by 16, and in the YUV mode, each plane of Y,U,V is padded in this way.

Image size and preview settings are the same as for stills capture. Default size for video recording is 1080p (1920x1080)

--output, -o Output filename <filename>.

Specify the output filename. If not specified, no file is saved. If the filename is '-', then all output is sent to stdout.
Example: Record a 5s clip with default settings (1080p30)

raspivid -t 5000 -o video.h264

Example: Encode a 5s camera stream and send image data to stdout

raspivid -t 5000 -o -

Example: Encode a 5s camera stream and send image data to file

raspivid -t 5000 -o - > my_file.h264

--width, -w Set image width <size>
--height, -h Set image height <size>

Set the width and height of resulting video. Width should be between 64 and 1920. Height should be between 64 and 1080.
Example: Record a 5s clip at 720p

raspivid -t 5000 -o video.h264 -w 1280 -h 720

--bitrate, -b Set bitrate

Use bits per second, so 10MBits/s would be -b 10000000. For H264, 1080p a high quality bitrate would be 15Mbits/s or more.
Example: Record a 5s clip at a specified bitrate (3.5MBits/s)

raspivid -t 5000 -o video.h264 -b 3500000

--framerate, -fps Specify the frames per second to record

At present, the minimum frame rate allowed is 2fps, the maximum is 30fps. This is likely to change in the future.
Example:Record a 5s clip at a specified framerate (5fps)

raspivid -t 5000 -o video.h264 -f 5

This package provides a pure Python interface to the Raspberry Pi camera module for Python 2.7 (or above) or Python 3.2 (or above).

To install picamera on Raspbian, it is best to use the system’s package manager: apt. This will ensure that picamera is easy to keep up to date, and easy to remove should you wish to do so. It will also make picamera available for all users on the system. To install picamera using apt simply run:

sudo apt-get update
sudo apt-get install python-picamera python3-picamera

On distributions other than Raspbian, it is probably simplest to install system wide using Python’s pip tool:

sudo pip install picamera

To use picamera package in your python program import the picamera module

import picamera

Capturing an image to a file is as simple as specifying the name of the file as the output of whatever capture() method you require:

from time import sleep
from picamera import PiCamera

camera = PiCamera()
camera.resolution = (1024, 768)
camera.start_preview()
# Camera warm-up time
sleep(2)
camera.capture('foo.jpg')

Note that files opened by picamera (as in the case above) will be flushed and closed so that when the capture() method returns, the data should be accessible to other processes.

Sometimes, particularly in scripts which will perform some sort of analysis or processing on images, you may wish to capture smaller images than the current resolution of the camera. Although such resizing can be performed using libraries like PIL or OpenCV, it is considerably more efficient to have the Pi’s GPU perform the resizing when capturing the image. This can be done with the resize parameter of the capture() methods:

from time import sleep
from picamera import PiCamera

camera = PiCamera()
camera.resolution = (1024, 768)
camera.start_preview()
# Camera warm-up time
sleep(2)
camera.capture('foo.jpg', resize=(320, 240))

The resize parameter can also be specified when recording video with the start_recording() method.

You may wish to capture a sequence of images all of which look the same in terms of brightness, color, and contrast (this can be useful in timelapse photography, for example). Various attributes need to be used in order to ensure consistency across multiple shots. Specifically, you need to ensure that the camera’s exposure time, white balance, and gains are all fixed:

• To fix exposure time, set the shutter_speed attribute to a reasonable value.
• Optionally, set iso to a fixed value.
• To fix exposure gains, let analog_gain and digital_gain settle on reasonable values, then set exposure_mode to 'off'.
• To fix white balance, set the awb_mode to 'off', then set awb_gains to a (red, blue) tuple of gains. It can be difficult to know what appropriate values might be for these attributes. For iso, a simple rule of thumb is that 100 and 200 are reasonable values for daytime, while 400 and 800 are better for low light. To determine a reasonable value for shutter_speed you can query the exposure_speed attribute. For exposure gains, it’s usually enough to wait until analog_gain is greater than 1 before exposure_mode is set to 'off'. Finally, to determine reasonable values for awb_gains simply query the property while awb_mode is set to something other than 'off'. Again, this will tell you the camera’s white balance gains as determined by the auto-white-balance algorithm.

The following script provides a brief example of configuring these settings:

from time import sleep
from picamera import PiCamera

camera = PiCamera(resolution=(1280, 720), framerate=30)
# Set ISO to the desired value
camera.iso = 100
# Wait for the automatic gain control to settle
sleep(2)
# Now fix the values
camera.shutter_speed = camera.exposure_speed
camera.exposure_mode = 'off'
g = camera.awb_gains
camera.awb_mode = 'off'
camera.awb_gains = g
# Finally, take several photos with the fixed settings
camera.capture_sequence(['image%02d.jpg' % i for i in range(10)])

The simplest way to capture long time-lapse sequences is with the capture_continuous() method. With this method, the camera captures images continually until you tell it to stop. Images are automatically given unique names and you can easily control the delay between captures. The following example shows how to capture images with a 5 minute delay between each shot:

from time import sleep
from picamera import PiCamera

camera = PiCamera()
camera.start_preview()
sleep(2)
for filename in camera.capture_continuous('img{counter:03d}.jpg'):
    print('Captured %s' % filename)
    sleep(300) # wait 5 minutes

However, you may wish to capture images at a particular time, say at the start of every hour. This simply requires a refinement of the delay in the loop (the datetime module is slightly easier to use for calculating dates and times; this example also demonstrates the timestamp template in the captured filenames):

from time import sleep
from picamera import PiCamera
from datetime import datetime, timedelta

def wait():
    # Calculate the delay to the start of the next hour
    next_hour = (datetime.now() + timedelta(hour=1)).replace(
        minute=0, second=0, microsecond=0)
    delay = (next_hour - datetime.now()).seconds
    sleep(delay)

camera = PiCamera()
camera.start_preview()
wait()
for filename in camera.capture_continuous('img{timestamp:%Y-%m-%d-%H-%M}.jpg'):
    print('Captured %s' % filename)
    wait()

Using similar tricks to those in Capturing consistent images, the Pi’s camera can capture images in low light conditions. The primary objective is to set a high gain, and a long exposure time to allow the camera to gather as much light as possible. However, the shutter_speed attribute is constrained by the camera’s framerate so the first thing we need to do is set a very slow framerate. The following script captures an image with a 6 second exposure time (the maximum the Pi’s V1 camera module is capable of; the V2 camera module can manage 10 second exposures):

from picamera import PiCamera
from time import sleep
from fractions import Fraction

# Force sensor mode 3 (the long exposure mode), set
# the framerate to 1/6fps, the shutter speed to 6s,
# and ISO to 800 (for maximum gain)
camera = PiCamera(
    resolution=(1280, 720),
    framerate=Fraction(1, 6),
    sensor_mode=3)
camera.shutter_speed = 6000000
camera.iso = 800
# Give the camera a good long time to set gains and
# measure AWB (you may wish to use fixed AWB instead)
sleep(30)
camera.exposure_mode = 'off'
# Finally, capture an image with a 6s exposure. Due
# to mode switching on the still port, this will take
# longer than 6 seconds
camera.capture('dark.jpg')

In anything other than dark conditions, the image produced by this script will most likely be completely white or at least heavily over-exposed.

When using long exposures, it is often preferable to use framerate_range instead of framerate. This allows the camera to vary the framerate on the fly and use shorter framerates where possible (leading to shorter capture delays). This hasn’t been used in the script above as the shutter speed is forced to 6 seconds (the maximum possible on the V1 camera module) which would make a framerate range pointless.

This is a variation of Capturing timelapse sequences. Here we have two scripts: a server (presumably on a fast machine) which listens for a connection from the Raspberry Pi, and a client which runs on the Raspberry Pi and sends a continual stream of images to the server. We’ll use a very simple protocol for communication: first the length of the image will be sent as a 32-bit integer (in Little Endian format), then this will be followed by the bytes of image data. If the length is 0, this indicates that the connection should be closed as no more images will be forthcoming. This protocol is illustrated below:

Firstly the server script (which relies on PIL for reading JPEGs, but you could replace this with any other suitable graphics library, e.g. OpenCV or GraphicsMagick):

import io
import socket
import struct
from PIL import Image

# Start a socket listening for connections on 0.0.0.0:8000 (0.0.0.0 means
# all interfaces)
server_socket = socket.socket()
server_socket.bind(('0.0.0.0', 8000))
server_socket.listen(0)

# Accept a single connection and make a file-like object out of it
connection = server_socket.accept()[0].makefile('rb')
try:
    while True:
        # Read the length of the image as a 32-bit unsigned int. If the
        # length is zero, quit the loop
        image_len = struct.unpack('<L', connection.read(struct.calcsize('<L')))[0]
        if not image_len:
            break
        # Construct a stream to hold the image data and read the image
        # data from the connection
        image_stream = io.BytesIO()
        image_stream.write(connection.read(image_len))
        # Rewind the stream, open it as an image with PIL and do some
        # processing on it
        image_stream.seek(0)
        image = Image.open(image_stream)
        print('Image is %dx%d' % image.size)
        image.verify()
        print('Image is verified')
finally:
    connection.close()
    server_socket.close()

Now for the client side of things, on the Raspberry Pi:

import io
import socket
import struct
import time
import picamera

# Connect a client socket to my_server:8000 (change my_server to the
# hostname of your server)
client_socket = socket.socket()
client_socket.connect(('my_server', 8000))

# Make a file-like object out of the connection
connection = client_socket.makefile('wb')
try:
    camera = picamera.PiCamera()
    camera.resolution = (640, 480)
    # Start a preview and let the camera warm up for 2 seconds
    camera.start_preview()
    time.sleep(2)

    # Note the start time and construct a stream to hold image data
    # temporarily (we could write it directly to connection but in this
    # case we want to find out the size of each capture first to keep
    # our protocol simple)
    start = time.time()
    stream = io.BytesIO()
    for foo in camera.capture_continuous(stream, 'jpeg'):
        # Write the length of the capture to the stream and flush to
        # ensure it actually gets sent
        connection.write(struct.pack('<L', stream.tell()))
        connection.flush()
        # Rewind the stream and send the image data over the wire
        stream.seek(0)
        connection.write(stream.read())
        # If we've been capturing for more than 30 seconds, quit
        if time.time() - start > 30:
            break
        # Reset the stream for the next capture
        stream.seek(0)
        stream.truncate()
    # Write a length of zero to the stream to signal we're done
    connection.write(struct.pack('<L', 0))
finally:
    connection.close()
    client_socket.close()

The server script should be run first to ensure there’s a listening socket ready to accept a connection from the client script.

Recording a video to a file is simple:

import picamera

camera = picamera.PiCamera()
camera.resolution = (640, 480)
camera.start_recording('my_video.h264')
camera.wait_recording(60)
camera.stop_recording()

Note that we use wait_recording() in the example above instead of time.sleep() which we’ve been using in the image capture recipes above. The wait_recording() method is similar in that it will pause for the number of seconds specified, but unlike time.sleep() it will continually check for recording errors (e.g. an out of disk space condition) while it is waiting. If we had used time.sleep() instead, such errors would only be raised by the stop_recording() call (which could be long after the error actually occurred).

If you wish split your recording over multiple files, you can use the split_recording() method to accomplish this:

import picamera

camera = picamera.PiCamera(resolution=(640, 480))
camera.start_recording('1.h264')
camera.wait_recording(5)
for i in range(2, 11):
    camera.split_recording('%d.h264' % i)
    camera.wait_recording(5)
camera.stop_recording()

This should produce 10 video files named 1.h264, 2.h264, etc. each of which is approximately 5 seconds long (approximately because the split_recording() method will only split files at a key-frame).

The record_sequence() method can also be used to achieve this with slightly cleaner code:

import picamera

camera = picamera.PiCamera(resolution=(640, 480))
for filename in camera.record_sequence(
        '%d.h264' % i for i in range(1, 11)):
    camera.wait_recording(5)

Changed in version 1.3: The record_sequence() method was introduced in version 1.3

In certain circumstances, you may find the V1 camera module’s red LED a hindrance (the V2 camera module lacks an LED). For example, in the case of automated close-up wild-life photography, the LED may scare off animals. It can also cause unwanted reflected red glare with close-up subjects.

One trivial way to deal with this is simply to place some opaque covering on the LED (e.g. blue-tack or electricians tape). Another method is to use the disable_camera_led option in the boot configuration.

However, provided you have the RPi.GPIO package installed, and provided your Python process is running with sufficient privileges (typically this means running as root with sudo python), you can also control the LED via the led attribute:

import picamera

camera = picamera.PiCamera()
# Turn the camera's LED off
camera.led = False
# Take a picture while the LED remains off
camera.capture('foo.jpg')

Note
The camera LED cannot currently be controlled when the module is attached to a Raspberry Pi 3 Model B as the GPIO that controls the LED has moved to a GPIO expander not directly accessible to the ARM processor.

Warning
Be aware when you first use the LED property it will set the GPIO library to Broadcom (BCM) mode with GPIO.setmode(GPIO.BCM) and disable warnings with GPIO.setwarnings(False). The LED cannot be controlled when the library is in BOARD mode.

• https://picamera.readthedocs.io/en/release-1.13
• https://www.raspberrypi.org/documentation
• https://projects.raspberrypi.org/en/projects/getting-started-with-picamera
