Summary

• In this lab we created multiple subnets and used serial links and RIP to connect the two routers from across the world.

Commands & Instructions

• To make the PDU List bigger press “Toggle PDU List Window”

Problems & Troubleshooting

• had issues with the 0/0/2 port not working, its a bug, add a GLC-T module to the bottom right port in the left left of the router to fix this issue

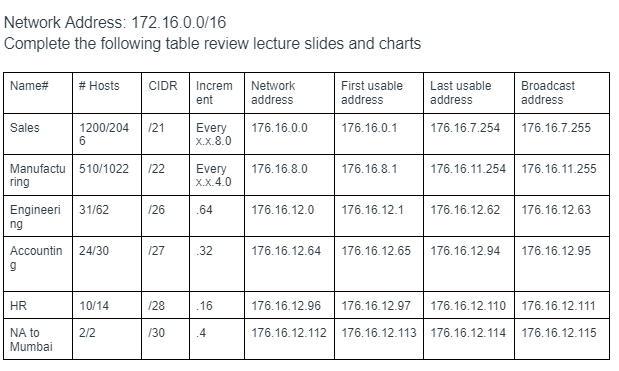

• I messed up my initial subnet math, which can be seen in deliverable 1, however it was corrected in deliverable 2&3

Questions

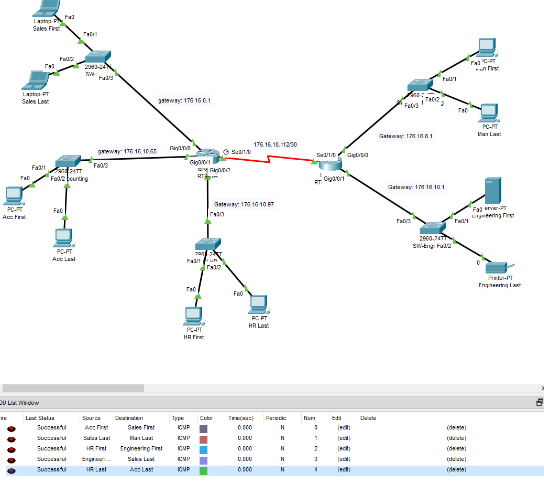

• Using your chart from Deliverable 1, build this network from scratch in Packet Tracer (first host is the subnet gateway).
• Screen Capture the below PDU Tests in one image.
• • Accounting First to Sales First
• • Sales Last to Manufacturing Last
• • HR First to Engineering First
• • Engineering Last to Sales Last
• • HR Last to Accounting Last
