Cette section inclus des exemples d'utilisation de l'intégration. Le projet ne supporte pas ces exemples, il devrait vous servir de base pour construire ou vous donner des idées. Si vous avez besoin d'aide, veuillez utiliser le forum de HA ou cette discussion
Les exemples qui ont un requis particulier de type "custom:*" nécessite d'installer ces composant. Soit via HACS ou via la méthode manuelle.
Requis particulier:
- custom:paper-buttons-row
Contributeur:

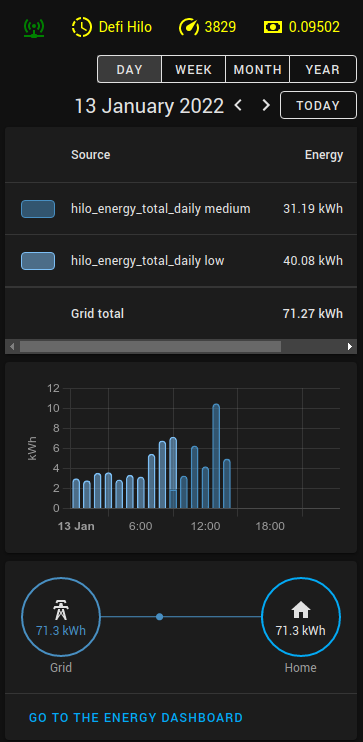

Capture d'écran
yaml Code
- type: vertical-stack
cards:
- type: custom:paper-buttons-row
buttons:
- type: entity
entity: sensor.hilo_gateway
name: false
action: none
state: false
state_styles:
'on':
button:
color: green
'off':
button:
color: red
- type: entity
entity: sensor.defi_hilo
state: false
action: none
state_styles:
'on':
button:
color: red
scheduled:
button:
color: yellow
pre_heat:
button:
color: red
recovery:
button:
color: blue
'off':
button:
color: green
- type: entity
entity: sensor.meter00_power
name: false
layout: icon|state
action: none
state: '{{ states(config.entity) }}'
icon: mdi:speedometer
style:
button:
color: |-
{% if states(config.entity) | int(0) > 1000 %}
yellow
{% elif states(config.entity) | int(0) > 1500 %}
orange
{% elif states(config.entity) | int(0) > 2000 %}
red
{% else%}
green
{% endif %}
- type: entity
entity: sensor.hilo_rate_current
name: false
layout: icon|state
action: none
state: '{{ states(config.entity) }}'
style:
button:
color: |-
{% if states(config.entity) | float(0) > 0.07 %}
yellow
{% elif states(config.entity) | float(0) > 0.1 %}
red
{% else%}
green
{% endif %}
- type: energy-date-selection
- type: energy-sources-table
- type: energy-usage-graph
- type: energy-distribution
link_dashboard: true
Requis particulier:
- custom:apexcharts-card
Contributeur:

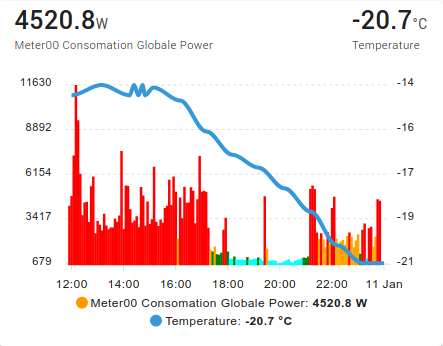

Dans ce graphique, vous devrez ajuster les threshold selon votre consommation. Vous pouvez également ajuster la moyenne qui est fait au 5 minutes dans le group_by, duration.
Capture d'écran
yaml Code
type: custom:apexcharts-card
header:
show: true
show_states: true
experimental:
color_threshold: true
graph_span: 12h
all_series_config:
stroke_width: 4
yaxis:
- id: kwh
decimals: 0
apex_config:
tickAmount: 4
- id: degree
opposite: true
decimals: 0
apex_config:
tickAmount: 4
series:
- entity: sensor.meter00_power
yaxis_id: kwh
unit: W
type: column
color_threshold:
- value: 0
color: cyan
- value: 1000
color: green
- value: 1500
color: orange
- value: 2500
color: red
group_by:
duration: 5min
func: avg
- entity: sensor.temperature
yaxis_id: degree
name: Temperature
unit: °C
type: line
Requis particulier:
- custom:apexcharts-card
Contributeur:
Dans ce graphique, vous devrez ajuster les nom des title et entity. Vous pouvez également ajuster les couleurs des lignes et ajouter d'autres thermostat et ajoutant des sections "- type: custom:apexcharts-card".
Capture d'écran
yaml Code
- type: horizontal-stack
cards:
- type: custom:apexcharts-card
header:
show: true
title: Chambre principale
show_states: true
colorize_states: true
graph_span: 8h
cache: true
series:
- entity: climate.thermostat_chambre1
attribute: current_temperature
name: Temperature
color: red
fill_raw: last
- entity: climate.thermostat_chambre1
attribute: temperature
name: Consigne
fill_raw: last
- type: custom:apexcharts-card
header:
show: true
title: Chambre 2
show_states: true
colorize_states: true
graph_span: 8h
cache: true
series:
- entity: climate.thermostat_chambre2
attribute: current_temperature
name: Temperature
color: red
fill_raw: last
- entity: climate.thermostat_chambre2
attribute: temperature
name: Consigne
fill_raw: last
- type: custom:apexcharts-card
header:
show: true
title: Chambre 3
show_states: true
colorize_states: true
graph_span: 8h
cache: true
series:
- entity: climate.thermostat_chambre3
attribute: current_temperature
name: Temperature
color: red
fill_raw: last
- entity: climate.thermostat_chambre3
attribute: temperature
name: Consigne
fill_raw: last
Requis particulier:
- Aucun
Contributeur:
Permet d'afficher les stats de la saison en cours. Ne sont pas inclus:
- Les défis en cours ou planifiés
- Les défis récemment terminés (le temps qu'ils soient disponibles dans Hilo)
Instructions:
- Ajouter une carte, rechercher type de carte "manuel"
- Tout supprimer du code par défaut
- Copier le code YAMl tel quel, en gardant tout le formatage tel quel
Capture d'écran
yaml Code
type: markdown
content: |-
{%
set data = state_attr('sensor.recompenses_hilo','history')[0]
%}
{% if data is defined %}
<h2><center>Saison {{data.season}}-{{data.season + 1}}</center></h2>
<ha-alert alert-type="success"><h3>
Nb de défis: {{data.events | count}}<br>
Récompense totale: {{"%.2f" | format(data.totalReward) }}$<br>
Récompense moyenne: {{"%.2f" | format(data.totalReward /(data.events | count)) }}$
</h3></ha-alert>
<br>
<table width=100%>
<tr>
<th>#</th>
<th>Date</th>
<th>Plage</th>
<th>Alloué</th>
<th>Utilisé</th>
<th>Prime</th>
</tr>
{%- for event in data.events -%}
<tr>
<td align=center>{{ "%02i"|format(loop.index) }}</td>
<td align=center>{{ event.phases.reduction_start.timestamp() | timestamp_custom('%b %d (%a)') }}</td>
<td align=center>{{ "Matin" if (event.period =="am") else "Soir" }}</td>
<td align=center>{{ "%.1f"|format(event.allowed_kWh) }}</td>
<td align=center>{{ "%.1f"|format(event.used_kWh) }}</td>
<td align=center>{{ "%.2f"|format(max(0,event.allowed_kWh - event.used_kWh) * 0.55) }}$</td>
</tr>
{%- endfor -%}
</table>
{% else %}
aucune donnée disponible
{% endif %}
Requis particulier:
- Créer une scène y ajouter les thermostat et y configurer la consigne désiré sur chacun d'entre eux.
Contributeur:
But: Phase de pré-chauffage de manière à emmagasiner la chaleurs dans les pièces et augmenter le maximum pour le défi et ainsi maximiser la récompense.
Résumé de l'automatisme:
- Cet automatisme se déclenche à 4h am ou à 11h am.
- Il sera exécuté seulement si le sensor.defi_hilo a pour valeur scheduled, donc lorsqu'il n'y a pas de défi de prévu, il ne s'exécute pas.
- Lorsque la condition est satisfaite, une scène nommé "defi_hilo_preheat" sera appliqué
- Une commande est envoyé à un RM4Pro pour envoyer la commande IR(précédemment enregistré) à la thermopompe pour chauffer. La commande est répetté 3 fois avec un délais de 2 secondes car le IR n'est pas parfait et des animaux/personnes peuvent l'obstruer parfois.
Code YAML
alias: TEMP - PréHeat DÉFI Hil
description: ''
trigger:
- platform: time
at: '04:00'
- platform: time
at: '11:00'
condition:
- condition: state
entity_id: sensor.defi_hilo
state: scheduled
action:
- scene: scene.defi_hilo_preheat
- service: remote.send_command
target:
device_id: XXXXXXXXXXXXXXXXXXXXXXXXXXXX
data:
device: thermopompe
command: heat25on
num_repeats: 3
delay_secs: 2
mode: single
Requis particulier:
- Créer une scène y ajouter les thermostat et y configurer la consigne désiré sur chacun d'entre eux. Ex. 16 degré
Contributeur:
But: Baisser les thermostats au maximum pendant la durée du défi
Résumé de l'automatisme:
- Cet automatisme se déclenche lorsque l'état du sensor.defi_hilo passe de pre_heat à reduction.
- Dans ce cas une scène nommé "defi_hilo_en_cours_extra_audacieux" sera appliqué.
- Une commande est envoyé à un RM4Pro pour envoyer la commande IR(précédemment enregistré) à la thermopompe pour s'arrêter. La commande est répetté 3 fois avec un délais de 2 secondes car le IR n'est pas parfait et des animaux/personnes peuvent l'obstruer parfois.
Code YAML
alias: TEMP - DÉFI Hilo en cours Extra audacieux
description: ''
trigger:
- platform: state
entity_id: sensor.defi_hilo
from: pre_heat
to: reduction
condition: []
action:
- scene: scene.defi_hilo_en_cours_extra_audacieux
- service: remote.send_command
target:
device_id: XXXXXXXXXXXXXXXXXXXX
data:
device: thermopompe
command: heat25off
num_repeats: 3
delay_secs: 2
mode: single
Code JSON à importer
[
{
"id": "15df69096d73137f",
"type": "subflow",
"name": "Store current temperature",
"info": "",
"category": "",
"in": [
{
"x": 260,
"y": 100,
"wires": [
{
"id": "010a7f3c1f81c4d4"
}
]
}
],
"out": [
{
"x": 840,
"y": 100,
"wires": [
{
"id": "010a7f3c1f81c4d4",
"port": 0
}
]
}
],
"env": [
{
"name": "phase",
"type": "str",
"value": ""
}
],
"meta": {},
"color": "#DDAA99"
},
{
"id": "010a7f3c1f81c4d4",
"type": "function",
"z": "15df69096d73137f",
"name": "Store current temperature",
"func": "phase = env.get(\"phase\");\nfor (const [ key, value ] of Object.entries(msg.states)) {\n if (key.startsWith(\"climate.thermostat\")) {\n if (parseFloat(value.attributes.temperature) >= parseFloat(msg.states[\"input_number.auto_climate_threshold\"].state)) {\n global.set(phase + \".\" + key, parseFloat(value.attributes.temperature));\n }\n }\n}\nreturn msg;",
"outputs": 1,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 590,
"y": 100,
"wires": [
[]
]
},
{
"id": "132662309edd5344",
"type": "subflow",
"name": "Restore temperature",
"info": "",
"category": "",
"in": [
{
"x": 320,
"y": 80,
"wires": [
{
"id": "109e3fe7ab32a823"
}
]
}
],
"out": [
{
"x": 760,
"y": 80,
"wires": [
{
"id": "109e3fe7ab32a823",
"port": 0
}
]
}
],
"env": [
{
"name": "phase",
"type": "str",
"value": ""
}
],
"meta": {},
"color": "#DDAA99"
},
{
"id": "109e3fe7ab32a823",
"type": "function",
"z": "132662309edd5344",
"name": "Restore original temperature",
"func": "phase = env.get(\"phase\");\nmsg.payload = [];\nfor (const [ key, value ] of Object.entries(global.get(phase + \".climate\"))) {\n msg.payload.push({new_temp: parseFloat(value), thermostat: \"climate.\" + key})\n}\nreturn msg;",
"outputs": 1,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 520,
"y": 80,
"wires": [
[]
]
},
{
"id": "b802b35cdaea7755",
"type": "subflow",
"name": "Set low temperature",
"info": "",
"category": "",
"in": [
{
"x": 600,
"y": 120,
"wires": [
{
"id": "e1b02875ce96e7fb"
}
]
}
],
"out": [
{
"x": 1000,
"y": 120,
"wires": [
{
"id": "e1b02875ce96e7fb",
"port": 0
}
]
}
],
"env": [
{
"name": "phase",
"type": "str",
"value": ""
}
],
"meta": {},
"color": "#DDAA99"
},
{
"id": "e1b02875ce96e7fb",
"type": "function",
"z": "b802b35cdaea7755",
"name": "Set low temperature",
"func": "msg.payload = [];\nphase = env.get(\"phase\");\n\nfor (const [ key, value ] of Object.entries(global.get(phase + \".climate\"))) {\n min_value = Math.max(value - msg.states[\"input_number.auto_climate_reduction\"].state, 17)\n msg.payload.push({new_temp: parseFloat(min_value), thermostat: \"climate.\" + key})\n}\nreturn msg;",
"outputs": 1,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 760,
"y": 120,
"wires": [
[]
]
},
{
"id": "74b05496d83ac642",
"type": "subflow",
"name": "Check away",
"info": "",
"category": "",
"in": [
{
"x": 60,
"y": 80,
"wires": [
{
"id": "0d7198f3c895a6bb"
}
]
}
],
"out": [
{
"x": 500,
"y": 60,
"wires": [
{
"id": "0d7198f3c895a6bb",
"port": 0
}
]
},
{
"x": 500,
"y": 120,
"wires": [
{
"id": "0d7198f3c895a6bb",
"port": 1
}
]
}
],
"env": [],
"meta": {},
"color": "#DDAA99",
"outputLabels": [
"We're away",
"We're home"
]
},
{
"id": "0d7198f3c895a6bb",
"type": "switch",
"z": "74b05496d83ac642",
"name": "Check away",
"property": "states[\"input_boolean.away_mode\"].state",
"propertyType": "msg",
"rules": [
{
"t": "eq",
"v": "on",
"vt": "str"
},
{
"t": "else"
}
],
"checkall": "true",
"repair": false,
"outputs": 2,
"x": 290,
"y": 80,
"wires": [
[],
[]
]
},
{
"id": "7ba3b0276c9ecb25",
"type": "subflow",
"name": "Temperature adjust",
"info": "",
"category": "",
"in": [
{
"x": 40,
"y": 120,
"wires": [
{
"id": "e2fcd03a48603baf"
},
{
"id": "559286e3191669ef"
}
]
}
],
"out": [],
"env": [],
"meta": {},
"color": "#DDAA99"
},
{
"id": "e2fcd03a48603baf",
"type": "split",
"z": "7ba3b0276c9ecb25",
"name": "",
"splt": "\\n",
"spltType": "str",
"arraySplt": 1,
"arraySpltType": "len",
"stream": false,
"addname": "",
"x": 190,
"y": 80,
"wires": [
[
"9fd385ccc529bf18"
]
]
},
{
"id": "9fd385ccc529bf18",
"type": "api-call-service",
"z": "7ba3b0276c9ecb25",
"name": "Set temperature",
"server": "07108f66d0e2da5f",
"version": 3,
"debugenabled": true,
"service_domain": "climate",
"service": "set_temperature",
"entityId": "{{ payload.thermostat }}",
"data": "{ \"temperature\": payload.new_temp }",
"dataType": "jsonata",
"mergecontext": "",
"mustacheAltTags": false,
"outputProperties": [],
"queue": "none",
"x": 400,
"y": 80,
"wires": [
[]
]
},
{
"id": "9a13adeaad6da8c8",
"type": "api-call-service",
"z": "7ba3b0276c9ecb25",
"name": "Notify me",
"server": "07108f66d0e2da5f",
"version": 3,
"debugenabled": true,
"service_domain": "notify",
"service": "mobile_app_pixel_4a",
"entityId": "",
"data": "{'title': \"Setting temperature\", 'message': msg.notification }",
"dataType": "jsonata",
"mergecontext": "",
"mustacheAltTags": false,
"outputProperties": [],
"queue": "none",
"x": 560,
"y": 160,
"wires": [
[]
]
},
{
"id": "559286e3191669ef",
"type": "function",
"z": "7ba3b0276c9ecb25",
"name": "Convert new temperatures to string",
"func": "payload = \"\"\nmsg.payload.forEach(function(m){\n payload += m.thermostat + \": \" + m.new_temp + \"\\r\\n\";\n})\nmsg.notification = payload\nreturn msg;",
"outputs": 1,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 280,
"y": 160,
"wires": [
[
"9a13adeaad6da8c8"
]
]
},
{
"id": "f6b9fd2ba5761ed0",
"type": "server-state-changed",
"z": "c2396addea5b319e",
"name": "Defi Hilo - Pre Heat",
"server": "07108f66d0e2da5f",
"version": 3,
"exposeToHomeAssistant": false,
"haConfig": [
{
"property": "name",
"value": ""
},
{
"property": "icon",
"value": ""
}
],
"entityidfilter": "sensor.defi_hilo",
"entityidfiltertype": "exact",
"outputinitially": false,
"state_type": "str",
"haltifstate": "pre_heat",
"halt_if_type": "str",
"halt_if_compare": "is",
"outputs": 2,
"output_only_on_state_change": true,
"for": 0,
"forType": "num",
"forUnits": "minutes",
"ignorePrevStateNull": true,
"ignorePrevStateUnknown": true,
"ignorePrevStateUnavailable": true,
"ignoreCurrentStateUnknown": true,
"ignoreCurrentStateUnavailable": true,
"outputProperties": [
{
"property": "payload",
"propertyType": "msg",
"value": "",
"valueType": "entityState"
},
{
"property": "data",
"propertyType": "msg",
"value": "",
"valueType": "eventData"
},
{
"property": "topic",
"propertyType": "msg",
"value": "",
"valueType": "triggerId"
},
{
"property": "states",
"propertyType": "msg",
"value": "homeassistant.hass.states",
"valueType": "global"
}
],
"x": 290,
"y": 640,
"wires": [
[
"be6ae55cd242d858"
],
[]
]
},
{
"id": "9102960a487b1353",
"type": "server-state-changed",
"z": "c2396addea5b319e",
"name": "Defi Hilo - Reduction",
"server": "07108f66d0e2da5f",
"version": 3,
"exposeToHomeAssistant": false,
"haConfig": [
{
"property": "name",
"value": ""
},
{
"property": "icon",
"value": ""
}
],
"entityidfilter": "sensor.defi_hilo",
"entityidfiltertype": "exact",
"outputinitially": false,
"state_type": "str",
"haltifstate": "reduction",
"halt_if_type": "str",
"halt_if_compare": "is",
"outputs": 2,
"output_only_on_state_change": true,
"for": 0,
"forType": "num",
"forUnits": "minutes",
"ignorePrevStateNull": true,
"ignorePrevStateUnknown": true,
"ignorePrevStateUnavailable": true,
"ignoreCurrentStateUnknown": true,
"ignoreCurrentStateUnavailable": true,
"outputProperties": [
{
"property": "payload",
"propertyType": "msg",
"value": "",
"valueType": "entityState"
},
{
"property": "data",
"propertyType": "msg",
"value": "",
"valueType": "eventData"
},
{
"property": "topic",
"propertyType": "msg",
"value": "",
"valueType": "triggerId"
},
{
"property": "message",
"propertyType": "msg",
"value": "Attention un défi Hilo est sur le point de commencer",
"valueType": "str"
},
{
"property": "states",
"propertyType": "msg",
"value": "homeassistant.hass.states",
"valueType": "global"
}
],
"x": 290,
"y": 720,
"wires": [
[
"a1d70f5b91f5bc2f",
"0c6abac254ed30dd"
],
[]
]
},
{
"id": "f1fa932f47472f56",
"type": "server-state-changed",
"z": "c2396addea5b319e",
"name": "Defi Hilo - Recovery",
"server": "07108f66d0e2da5f",
"version": 3,
"exposeToHomeAssistant": false,
"haConfig": [
{
"property": "name",
"value": ""
},
{
"property": "icon",
"value": ""
}
],
"entityidfilter": "sensor.defi_hilo",
"entityidfiltertype": "exact",
"outputinitially": false,
"state_type": "str",
"haltifstate": "recovery",
"halt_if_type": "str",
"halt_if_compare": "is",
"outputs": 2,
"output_only_on_state_change": true,
"for": 0,
"forType": "num",
"forUnits": "minutes",
"ignorePrevStateNull": true,
"ignorePrevStateUnknown": true,
"ignorePrevStateUnavailable": true,
"ignoreCurrentStateUnknown": true,
"ignoreCurrentStateUnavailable": true,
"outputProperties": [
{
"property": "payload",
"propertyType": "msg",
"value": "",
"valueType": "entityState"
},
{
"property": "data",
"propertyType": "msg",
"value": "",
"valueType": "eventData"
},
{
"property": "topic",
"propertyType": "msg",
"value": "",
"valueType": "triggerId"
},
{
"property": "states",
"propertyType": "msg",
"value": "homeassistant.hass.states",
"valueType": "global"
},
{
"property": "message",
"propertyType": "msg",
"value": "Le défi Hilo est terminé.",
"valueType": "str"
}
],
"x": 290,
"y": 800,
"wires": [
[
"ae84636e2d59f2bc",
"99059089b0d2fcb3"
],
[]
]
},
{
"id": "62a30be2096b8849",
"type": "subflow:7ba3b0276c9ecb25",
"z": "c2396addea5b319e",
"name": "",
"env": [],
"x": 1350,
"y": 780,
"wires": []
},
{
"id": "4c7e4e14aafae44f",
"type": "function",
"z": "c2396addea5b319e",
"name": "Set recovery temperature",
"func": "msg.payload = [];\nfor (const [ key, value ] of Object.entries(global.get(\"before_pre_heat.climate\"))) {\n min_value = Math.min(parseFloat(value) + parseFloat(msg.states[\"input_number.auto_climate_recovery\"].state), 25)\n msg.payload.push({new_temp: parseFloat(min_value), thermostat: \"climate.\" + key})\n}\n\nreturn msg;",
"outputs": 1,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 890,
"y": 780,
"wires": [
[
"62a30be2096b8849",
"69fc88d5b03020a8"
]
]
},
{
"id": "ae84636e2d59f2bc",
"type": "subflow:74b05496d83ac642",
"z": "c2396addea5b319e",
"name": "",
"env": [],
"x": 570,
"y": 780,
"wires": [
[],
[
"4c7e4e14aafae44f",
"4f83cdbe19481a67"
]
]
},
{
"id": "be6ae55cd242d858",
"type": "function",
"z": "c2396addea5b319e",
"name": "Generate payload",
"func": "msg.payload = [];\nfor (const [ key, value ] of Object.entries(global.get(\"before_pre_heat.climate\"))) {\n msg.payload.push({new_temp: parseFloat(value) + parseFloat(msg.states[\"input_number.auto_climate_pre_heat\"].state) / parseFloat(2), thermostat: \"climate.\" + key})\n}\n\nreturn msg;",
"outputs": 1,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 950,
"y": 620,
"wires": [
[
"62a30be2096b8849"
]
]
},
{
"id": "a1d70f5b91f5bc2f",
"type": "subflow:b802b35cdaea7755",
"z": "c2396addea5b319e",
"name": "",
"env": [
{
"name": "phase",
"value": "before_pre_heat",
"type": "str"
}
],
"x": 660,
"y": 680,
"wires": [
[
"62a30be2096b8849",
"69fc88d5b03020a8"
]
]
},
{
"id": "7d4929089f05b561",
"type": "subflow:132662309edd5344",
"z": "c2396addea5b319e",
"name": "",
"env": [
{
"name": "phase",
"value": "before_pre_heat",
"type": "str"
}
],
"x": 1060,
"y": 820,
"wires": [
[
"62a30be2096b8849"
]
]
},
{
"id": "ab26232241ff6d64",
"type": "server-state-changed",
"z": "c2396addea5b319e",
"name": "Defi Hilo - Appreciation",
"server": "07108f66d0e2da5f",
"version": 3,
"exposeToHomeAssistant": false,
"haConfig": [
{
"property": "name",
"value": ""
},
{
"property": "icon",
"value": ""
}
],
"entityidfilter": "sensor.defi_hilo",
"entityidfiltertype": "exact",
"outputinitially": false,
"state_type": "str",
"haltifstate": "appreciation",
"halt_if_type": "str",
"halt_if_compare": "is",
"outputs": 2,
"output_only_on_state_change": true,
"for": 0,
"forType": "num",
"forUnits": "minutes",
"ignorePrevStateNull": true,
"ignorePrevStateUnknown": true,
"ignorePrevStateUnavailable": true,
"ignoreCurrentStateUnknown": true,
"ignoreCurrentStateUnavailable": true,
"outputProperties": [
{
"property": "payload",
"propertyType": "msg",
"value": "",
"valueType": "entityState"
},
{
"property": "data",
"propertyType": "msg",
"value": "",
"valueType": "eventData"
},
{
"property": "topic",
"propertyType": "msg",
"value": "",
"valueType": "triggerId"
},
{
"property": "states",
"propertyType": "msg",
"value": "homeassistant.hass.states",
"valueType": "global"
}
],
"x": 300,
"y": 560,
"wires": [
[
"6c72a2387cb2f486"
],
[]
]
},
{
"id": "6c72a2387cb2f486",
"type": "subflow:15df69096d73137f",
"z": "c2396addea5b319e",
"name": "",
"env": [
{
"name": "phase",
"value": "before_pre_heat",
"type": "str"
}
],
"x": 650,
"y": 560,
"wires": [
[
"3061107dac54f7ae"
]
]
},
{
"id": "3061107dac54f7ae",
"type": "function",
"z": "c2396addea5b319e",
"name": "Generate payload",
"func": "msg.payload = [];\nfor (const [ key, value ] of Object.entries(global.get(\"before_pre_heat.climate\"))) {\n msg.payload.push({new_temp: parseFloat(value) + parseFloat(msg.states[\"input_number.auto_climate_pre_heat\"].state), thermostat: \"climate.\" + key})\n}\n\nreturn msg;",
"outputs": 1,
"noerr": 0,
"initialize": "",
"finalize": "",
"libs": [],
"x": 930,
"y": 560,
"wires": [
[
"62a30be2096b8849"
]
]
},
{
"id": "99059089b0d2fcb3",
"type": "api-call-service",
"z": "c2396addea5b319e",
"name": "Turn on Chauffe-Eau",
"server": "07108f66d0e2da5f",
"version": 3,
"debugenabled": false,
"service_domain": "switch",
"service": "turn_on",
"entityId": "switch.switch_chauffe_eau",
"data": "",
"dataType": "jsonata",
"mergecontext": "",
"mustacheAltTags": false,
"outputProperties": [],
"queue": "none",
"x": 600,
"y": 820,
"wires": [
[]
]
},
{
"id": "0c6abac254ed30dd",
"type": "api-call-service",
"z": "c2396addea5b319e",
"name": "Turn off Chauffe-Eau",
"server": "07108f66d0e2da5f",
"version": 3,
"debugenabled": false,
"service_domain": "switch",
"service": "turn_off",
"entityId": "switch.switch_chauffe_eau",
"data": "",
"dataType": "jsonata",
"mergecontext": "",
"mustacheAltTags": false,
"outputProperties": [],
"queue": "none",
"x": 660,
"y": 720,
"wires": [
[]
]
},
{
"id": "4f83cdbe19481a67",
"type": "delay",
"z": "c2396addea5b319e",
"name": "",
"pauseType": "delay",
"timeout": "25",
"timeoutUnits": "minutes",
"rate": "1",
"nbRateUnits": "1",
"rateUnits": "second",
"randomFirst": "1",
"randomLast": "5",
"randomUnits": "seconds",
"drop": false,
"allowrate": false,
"outputs": 1,
"x": 850,
"y": 820,
"wires": [
[
"7d4929089f05b561"
]
]
},
{
"id": "07108f66d0e2da5f",
"type": "server",
"name": "hass",
"version": 1,
"legacy": false,
"addon": false,
"rejectUnauthorizedCerts": false,
"ha_boolean": "y|yes|true|on|home|open",
"connectionDelay": true,
"cacheJson": true
}
]
Requis particulier:
- Une version récente du component Hilo.
Contributeur:
Résumé du/des template: Créer plusieurs sensors par rapport au défi.
Les sensors suivant seront rendu disponible pour afficher dans des dashboard ou utilisé dans des automatisme:
- defi_hilo_in_progress
- defi_hilo_allowed_kwh
- defi_hilo_allowed_cash
- defi_hilo_used_kwh
- defi_hilo_used_cash
- defi_hilo_remaining_cash
- defi_hilo_predicted_cash
- defi_hilo_currentdefi_cash
- defi_hilo_avg_cash
- defi_hilo_date_heure_next
- defi_hilo_date_heure_last
- defi_hilo_nb_defi_planifies
- defi_hilo_nb_defi_completes
- electricity_cost_today
- electricity_kwh_today_consomme
Code YAML
sensor:
- platform: template
sensors:
defi_hilo_in_progress:
friendly_name: Défi Hilo en cours?
value_template: "{{ is_state('sensor.defi_hilo', 'appreciation') or is_state('sensor.defi_hilo', 'pre_heat') or is_state('sensor.defi_hilo', 'reduction') }}"
defi_hilo_allowed_kwh:
unit_of_measurement: 'kWh'
friendly_name: Limite max defi
value_template: >
{% if state_attr('sensor.defi_hilo', 'next_events') | length > 0 %}
{{state_attr('sensor.defi_hilo', 'next_events')[0]['allowed_kWh']}}
{% else%}
{{0}}
{% endif %}
defi_hilo_allowed_cash:
friendly_name: Montant max defi
unit_of_measurement: '$'
value_template: >
{% if state_attr('sensor.defi_hilo', 'next_events') | length > 0 %}
{{ (state_attr('sensor.defi_hilo', 'next_events')[0]['allowed_kWh'] * 0.55) | round(2) }}
{% else%}
{{0}}
{% endif %}
defi_hilo_used_kwh:
friendly_name: kWh utilise defi
unit_of_measurement: 'kWh'
value_template: >
{% if state_attr('sensor.defi_hilo', 'next_events') | length > 0 %}
{{ state_attr('sensor.defi_hilo', 'next_events')[0]['used_kWh']}}
{% else%}
{{0}}
{% endif %}
defi_hilo_used_cash:
friendly_name: Montant utilise defi
unit_of_measurement: '$'
value_template: >
{% if state_attr('sensor.defi_hilo', 'next_events') | length > 0 %}
{{ (state_attr('sensor.defi_hilo', 'next_events')[0]['used_kWh'] * 0.55) | round(2) }}
{% else%}
{{0}}
{% endif %}
defi_hilo_remaining_cash:
friendly_name: Montant restant defi
unit_of_measurement: '$'
value_template: >
{% if state_attr('sensor.defi_hilo', 'next_events') | length > 0 %}
{{(( state_attr('sensor.defi_hilo', 'next_events')[0]['allowed_kWh'] - state_attr('sensor.defi_hilo', 'next_events')[0]['used_kWh']) * 0.55) | round(2) }}
{% else%}
{{0}}
{% endif %}
defi_hilo_predicted_cash:
friendly_name: Montant total predit defi
unit_of_measurement: '$'
value_template: >
{% if state_attr('sensor.defi_hilo', 'next_events') | length > 0 %}
{% set debutdefi = as_timestamp(state_attr('sensor.defi_hilo', 'next_events')[0]['phases']['reduction_start']) %}
{% set maintenant = (now().timestamp()) %}
{% set delta = ((maintenant - debutdefi)) // 60 | float %}
{% if delta <= 0 %}
{% set delta = 1 %}
{%endif %}
{% if delta >= 240 %}
{% set delta = 240 %}
{%endif %}
{%set predicteduse = (1/(delta/ 240 )) * float(states('sensor.defi_hilo_used_kwh'),0) %}
{{((float(states('sensor.defi_hilo_allowed_kwh'),0) - predicteduse) * 0.55) | round(2) }}
{% else%}
{{0}}
{% endif %}
defi_hilo_currentdefi_cash:
friendly_name: Montant accumule estime defi
unit_of_measurement: '$'
value_template: >
{% if state_attr('sensor.defi_hilo', 'next_events') | length > 0 %}
{% set debutdefi = as_timestamp(state_attr('sensor.defi_hilo', 'next_events')[0]['phases']['reduction_start']) %}
{% set maintenant = (now().timestamp()) %}
{% set delta = ((maintenant - debutdefi) // 60) +1 | int %}
{% if delta <= 0 %}
{% set delta = 1 %}
{%endif %}
{% if delta >= 240 %}
{% set delta = 240 %}
{%endif %}
{{ (delta/ 240 * ((float(states('sensor.defi_hilo_allowed_kwh'),0) - ((1/(delta/ 240 ) * float(states('sensor.defi_hilo_used_kwh'),0)))) * 0.55)) | round(2) }}
{% else%}
{{0}}
{% endif %}
defi_hilo_avg_cash:
friendly_name: Montant moyen defi
unit_of_measurement: '$'
value_template: >
{% if state_attr('sensor.recompenses_hilo', 'history') | count > 0 %}
{% set recompense = states('sensor.recompenses_hilo') | float %}
{% set nbdefis = states('sensor.defi_hilo_nb_defi_completes') | float %}
{% if nbdefis > 0 %}
{% set moyenne = (recompense / nbdefis) | round(2) %}
{{"%.2f" | format(moyenne)}}
{% else %}
{{0}}
{% endif %}
{% else %}
{{0}}
{% endif %}
defi_hilo_date_heure_next:
friendly_name: Defi Hilo prochain moment
value_template: >
{% if state_attr('sensor.defi_hilo', 'next_events') | length > 0 %}
{{as_timestamp((state_attr('sensor.defi_hilo','next_events')[0]['phases']['reduction_start']))|timestamp_custom("%A %Y-%m-%d %H:%M") }}
{% else%}
{{'-'}}
{% endif %}
defi_hilo_date_heure_last:
friendly_name: Defi Hilo moment le plus loin
value_template: >
{% if state_attr('sensor.defi_hilo', 'next_events') | length > 1 %}
{{as_timestamp((state_attr('sensor.defi_hilo','next_events')[state_attr('sensor.defi_hilo', 'next_events') | length -1]['phases']['reduction_start']))|timestamp_custom("%A %Y-%m-%d %H:%M") }}
{% else%}
{{'-'}}
{% endif %}
defi_hilo_nb_defi_planifies:
friendly_name: Nb de defis Hilo planifies
value_template: >
{% if state_attr('sensor.defi_hilo', 'next_events') | length > 0 %}
{{state_attr('sensor.defi_hilo', 'next_events') | length }}
{% else%}
{{'0'}}
{% endif %}
defi_hilo_nb_defi_completes:
friendly_name: Nb de defis Hilo completes saison actuelle
value_template: >
{% if state_attr('sensor.recompenses_hilo', 'history') | length > 0 %}
{{state_attr('sensor.recompenses_hilo', 'history')[0]['events'] | length}}
{% else%}
{{'0'}}
{% endif %}
electricity_cost_today:
friendly_name: Cout electricite aujourd'hui
unit_of_measurement: 'CAD'
value_template: >
{% if state_attr('sensor.defi_hilo', 'next_events') | length > 0 %}
{{ "%.2f"|format(1.15*(float(states.sensor.hilo_energy_total_low.state, 0) * float(states.sensor.hilo_rate_low.state, 0) + float(states.sensor.hilo_energy_total_medium.state, 0) * float(states.sensor.hilo_rate_medium.state, 0) + 0.435)) | round(2)}}
{% else%}
{{'0'}}
{% endif %}
electricity_kwh_today_consomme:
friendly_name: kWh electricite aujourd'hui consomme
unit_of_measurement: 'kWh'
value_template: >
{% if state_attr('sensor.defi_hilo', 'next_events') | length > 0 %}
{{ float(states.sensor.hilo_energy_total_low.state, 0) + float(states.sensor.hilo_energy_total_medium.state, 0) }}
{% else%}
{{'0'}}
{% endif %}
Dans la configuration de HassBridge (au niveau des integration), c'est possible de sélectionner ce que HomeAssisstant enverra à Homekit. Dans la premiere fenêtre, on choisi "sensor" et dans la deuxième fenêtre on peut choisir d'ajouter ou exclure des entités.
Attention ça peux devenir bordélique rapidement.
Ensuite dans Homekit, on devrait y retrouver les sensor ou appareils.
C'est conseiller de placer la "passerelle virtuelle" de Home Assistant dans une "fausse pièce" dans Home Kit. Les appareils vont s'y retrouver.
Bien que vous recevrez quand même vos récompenses d'Hilo lorsque vous gérez vous même chacune des phases, c'est important de considérer les faits suivants:
- Hydro-Québec exige une courbe de consommation de la part d'Hilo. Cette courbe inclue le pré-chauffage graduel et le retour graduel.
- En ce moment, les récompenses sont uniquement attribuées en fonction du nombre de kWh utilisés lors de la phase de restriction.
- Par contre, Les ingénieurs d'Hilo travaillent actuellement sur un algorithme pour que les récompenses soient attribuées en fonction de la courbe, en incluant la phase de pré-chauffage et la phase de retour.
- C'est possible que la méthode Hilo ne soit pas optimale pour vos besoins. Grâce à cette intégration Home Assistant, vous pouvez l'adapter aux besoins de votre foyer.
En gros, Hilo est au courant qui a des gens qui adaptent la courbe selon leur besoin, et c'est possible qu'ils changent le format des récompenses.
