Switch - dtex/johnny-five GitHub Wiki

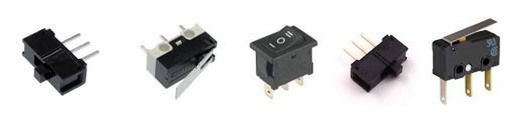

The Switch class constructs objects that represent a single Switch attached to the physical board.

• pin A Number or String address for the pin.

• options An object of property parameters.

  Property	Type	Value/Description	Default	Required
  pin	Number, String	Any Pin. The Number or String address of the Switch pin		yes
  type	String	"NO" or "NC". Indicate if the switch is "normally open" or "normally closed"	"NO"	no

new five.Switch(8);

// Options object with pin property
new five.Switch({
  pin: 8
});

var five = require("johnny-five");
var board = new five.Board();

board.on("ready", function() {
  var spdt = new five.Switch(8);
  var led = new five.Led(13);

  spdt.on("open", function() {
    led.off();
  });

  spdt.on("close", function() {
    led.on();
  });
});

• open The open event will emit when the circuit opens.
• close The close event will emit when the circuit closes.
