6800 FigForth Builds - douggilliland/MultiComp GitHub Wiki

Table of Contents

6800 FigForth Running Under SmithBUG

Features

  • MC6800 CPU
    • Runs at 25 MHz for internal SRAM and Peripherals
    • Runs at 16.7 MHz for external SRAM
  • ROM - Running SmithBUG from back in the day
  • J3 jumper selects either built-in VDU or Serial port
  • VDU - ANSI terminal (default = jumper removed)
    • XGA 80x25 character display
    • PS/2 keyboard
  • MC6850 ACIA UART
  • 1MB External SRAM
  • MMU1, MMU2 Memory management register control window

6800 FigForth in ROM

Features

  • MC6800 CPU
    • Runs at 25 MHz for internal SRAM and Peripherals
    • Runs at 16.7 MHz for external SRAM
  • ROM - running figForth from back in the day
  • J3 jumper selects either built-in VDU or Serial port
  • VDU - ANSI terminal (default = jumper removed)
    • XGA 80x25 character display
    • PS/2 keyboard
  • MC6850 ACIA UART
  • 1MB External SRAM
  • MMU1, MMU2 Memory management register control window

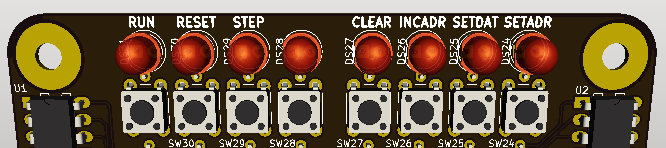

Front Panel Controls

  • Wiki page
  • Monitors Address/Data when in Run mode
  • PB31 - RUN - (Upper left pushbutton) - Run/Halt (Upper left LED on for Run)
  • PB30 - RESET CPU
  • PB29 - STEP - Not yet implemented
  • PB28 - Not used
  • PB27 - CLEAR - Clears address if in Set Address Mode control mode
  • PB26 - INCADR - Increment address - Function depend on Enable Write Data and Set Address Mode controls
    • Ignored if Set Address is selected
    • If Enable Write Data is selected, Write data then Increment address
    • If Enable Write Data is not selected, otherwise increment read address and read next location
  • PB25 - SETDAT - Enable Write Data control - Bottom row of pushbuttons controls write of data to memory
  • PB24 - SETADR - Set Address Mode control - Middle two rows of pushbuttons control LEDs

Memory Map

  • 0x0000-0x0FFF - 4KB Internal SRAM
  • 0x1000-0x2FFF - 6KB Internal ROM
  • 0x3000-0x3FFF - 4KB Internal SRAM
  • 0x4000-0x7FFF - 16KB Internal SRAM
  • 0xA000-0xBFFF - 512KB External SRAM
    • 8KB Windows, 64 frames
    • MMU1 provides additional address bits
    • MMU1 initialized to 0
    • Set to first frame allowing memory to appear as part of Tiny BASIC contiguous space
  • 0xC000-0xDFFF - 512KB External SRAM
    • 8KB Window, 64 frames
    • MMU2 provides additional address bits
    • MMU2 initialized to 0
    • Set to first frame allowing memory to appear as part of Tiny BASIC contiguous space
  • 0xE000-0xEBFF - Deliberately left open to not conflict
  • 0xFC18-0xFC19 - VDU (serSelect J3 JUMPER REMOVED)
  • 0xFC28-0xFC19 - ACIA (serSelect J3 JUMPER INSTALLED)
  • 0xFC30 - MMU1 Latch 7-bits
  • 0xFC31 - MMU2 Latch 7-bits
  • 0xFFFE-0xFFFF - ROM Reset Vector
