IOP16 Instructions

  • Details of the instructions follow
  • Some instructions are psuedo-ops which are replaced with equivalent instructions
    • Used as convenience

Load Instruction

  • Instruction to load register

LRI - Load Register with Immediate Value

  • Load a register with an immediate value

Peripheral Load/Store Instructions

  • Peripheral read/write instructions

IOR - I/O Read

  • Read peripheral address into a register

IOW - I/O Write

  • Write value from register to peripheral address

Shift/Rotate Instructions

  • Shift/rotate instructions
  • Logical/arithmetic operations
  • The bottom 3-bits of the instruction have the count
    • Count is set to 1
    • Barrel shifter could be written to have other counts
  • Shift/rotate instruction do not set the Condition Code Z-bit

SLL - Shift Logical Left

  • Shift register left by 1
  • Shifts in 0 to Least Significant bit

SLR - Shift Logical Right

  • Shift register right by 1
  • Shifts in 0 to Most Significant bit

SAL - Shift Arithmetic Left

  • Shift register left by 1
  • Shifts in 0 to Least Significant bit

SAR - Shift Arithmetic Right

  • Shift register right by 1
  • Shifts in 1 to Most Significant bit

RRL - Rotate Register Left

  • Rotate Register left by 1
  • Rotate Register MSB into Register Least Significant bit

RRR - Rotate Register Right

  • Rotate register right by 1
  • Rotate Register LSB into Register Most Significant bit

ALU Instruction

  • Logical and Mathematical instructions
  • Set Conditional Code Zero-bit

XRI - Exclusive-OR Register with Immediate Value

  • Exclusive-OR Register with immediate value
  • Store back into register
  • Set Conditional Code Zero-bit

ORI - Logical OR Register with Immediate Value

  • Logical OR Register with immediate value
  • Store back into register
  • Set Conditional Code Zero-bit

ARI - Logical AND Register with Immediate Value

  • Logical AND Register with immediate value
  • Store back into register
  • Set Conditional Code Zero-bit

ADI - Add Register with Immediate Value

  • Add Register with immediate value
  • Store back into register
  • Set Conditional Code Zero-bit

CMP - Compare Register with Immediate Value

  • Compare register with Immediate value
  • Set Conditional Code Zero-bit

Flow Control Instructions

  • Various instructions that can alter program flow
  • Some are conditional branches, Bxx

RTS - Return from Subroutine

  • Pops the program stack to use as a return address

JSR - Jump to Subroutine

  • Push next address onto stack
  • Jump to address

JMP - Jump

  • Jump to address

BEZ - Branch if Equal to Zero

  • If CCR Zero bit is set take branch

BNZ - Branch if Not Zero

  • If CCR Zero bit is not set take branch

BEQ - Branch if Equal

  • Psuedo-Instruction (same as BEZ)
  • If CCR Equal bit is set take branch

BNE - Branch if Not Equal

  • Psuedo-Instruction (Same as BNZ)
  • If CCR Equal bit is clear take branch

Misc Instructions

NOP - No operation

  • Psuedo-Instruction
  • Coded as ORI Reg8,0x00

HALT

  • Psuedo-Instruction performs branch to self

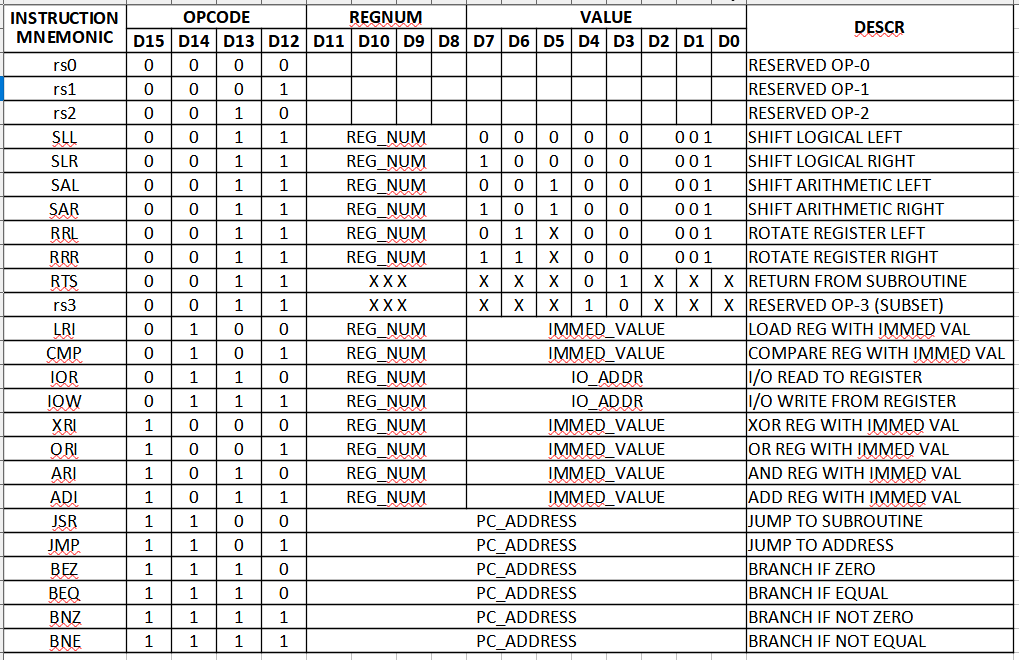

Instruction Encoding
