- SPI MASTER AND SLAVE FOR FPGA
The
SPI master and
slave are simple controllers for communication between FPGA and various peripherals via the SPI interface.
- The SPI master and SPI slave have been implemented using VHDL 93 and are applicable to any FPGA.
- The SPI master and SPI slave controllers support only SPI mode 0 (CPOL=0, CPHA=0)!**
- The SPI master and SPI slave controllers were simulated and tested in hardware.

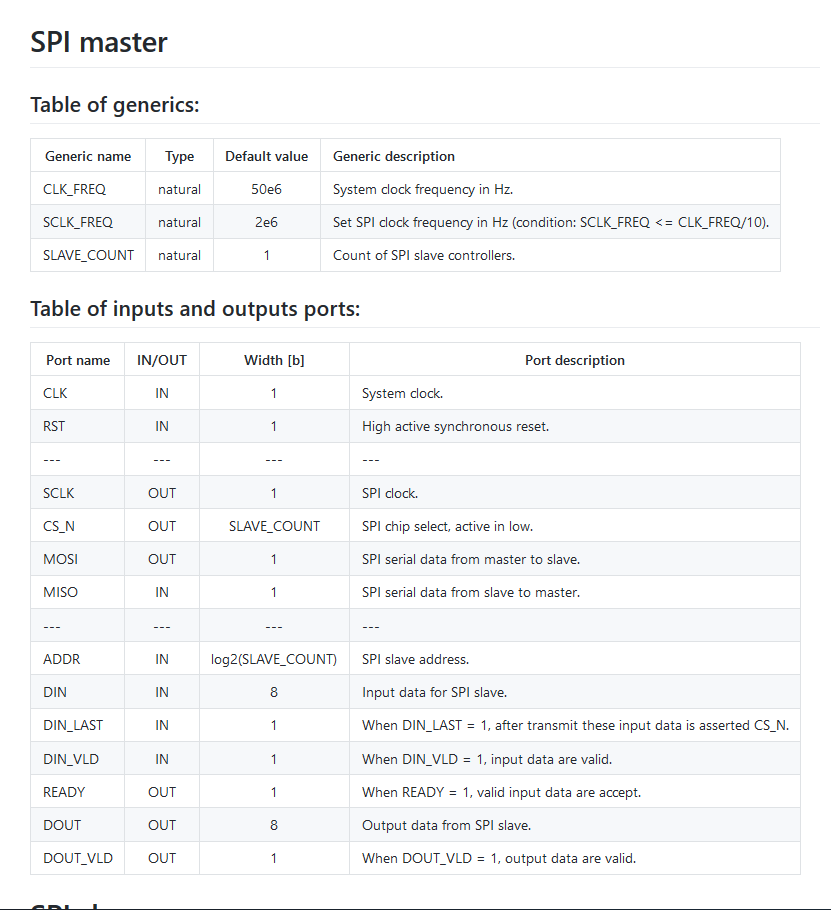

CLK_FREQ : natural := 50e6; -- set system clock frequency in Hz
SCLK_FREQ : natural := 5e6; -- set SPI clock frequency in Hz (condition: SCLK_FREQ <= CLK_FREQ/10)
WORD_SIZE : natural := 8; -- size of transfer word in bits, must be power of two
SLAVE_COUNT : natural := 1 -- count of SPI slaves
CLK : in std_logic; -- system clock
RST : in std_logic; -- high active synchronous reset
-- SPI MASTER INTERFACE
SCLK : out std_logic; -- SPI clock
CS_N : out std_logic_vector(SLAVE_COUNT-1 downto 0); -- SPI chip select, active in low
MOSI : out std_logic; -- SPI serial data from master to slave
MISO : in std_logic; -- SPI serial data from slave to master
-- INPUT USER INTERFACE
DIN : in std_logic_vector(WORD_SIZE-1 downto 0); -- data for transmission to SPI slave
DIN_ADDR : in std_logic_vector(natural(ceil(log2(real(SLAVE_COUNT))))-1 downto 0); -- SPI slave address
DIN_LAST : in std_logic; -- when DIN_LAST = 1, last data word, after transmit will be asserted CS_N
DIN_VLD : in std_logic; -- when DIN_VLD = 1, data for transmission are valid
DIN_RDY : out std_logic; -- when DIN_RDY = 1, SPI master is ready to accept valid data for transmission
-- OUTPUT USER INTERFACE
DOUT : out std_logic_vector(WORD_SIZE-1 downto 0); -- received data from SPI slave
DOUT_VLD : out std_logic -- when DOUT_VLD = 1, received data are valid
WORD_SIZE : natural := 8; -- size of transfer word in bits, must be power of two
CLK : in std_logic; -- system clock
RST : in std_logic; -- high active synchronous reset
-- SPI SLAVE INTERFACE
SCLK : in std_logic; -- SPI clock
CS_N : in std_logic; -- SPI chip select, active in low
MOSI : in std_logic; -- SPI serial data from master to slave
MISO : out std_logic; -- SPI serial data from slave to master
-- USER INTERFACE
DIN : in std_logic_vector(WORD_SIZE-1 downto 0); -- data for transmission to SPI master
DIN_VLD : in std_logic; -- when DIN_VLD = 1, data for transmission are valid
DIN_RDY : out std_logic; -- when DIN_RDY = 1, SPI slave is ready to accept valid data for transmission
DOUT : out std_logic_vector(WORD_SIZE-1 downto 0); -- received data from SPI master
DOUT_VLD : out std_logic -- when DOUT_VLD = 1, received data are valid
