Overview

• The LCR has a low power draw when idle, but it still must receive some charge either from solar or an AC charger.
• The LCR must be charged immediately if energy level falls below 20%, otherwise there is risk to batteries.
• AC charging may be required in winter months due to shorter days and cold temperatures
• WARNING: Batteries can be damaged if charged below 3°C (37.4°F) AT ANY POINT DURING AC CHARGING. In cold weather please move to a heated space and allow the batteries to warm up before AC charging. We are not responsible for damage to batteries if charged below this temperature threshold.

Example: It is 5°C (41°F) at 4 PM when the LCR is plugged-in and the temperature drops to 1°C (33.8°F) (below the 3°C (37.4°F) threshold). Irreversible damage can result.

Signs of Dangerously Low Power

• Tray lights turning off when pressing the hitch switch

https://github.com/directedmachines/customer-support/assets/8802194/8b867138-9ac3-47e6-b423-e7a55118fea2

Solar Charging

For proper solar charging please follow the guidance below:

• Solar charge in an open, unshaded space without any objects covering the solar panel.

AC Charging

• The outlet must be able to provide a continuous 15 Amps.
• Follow instructions for your specific charger and battery chemistry at the links below.

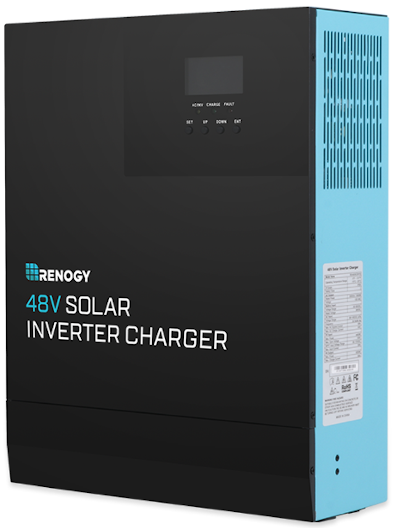

Renogy Charger + Inverter

Link: Website
Datasheet: Datasheet-RIV4835CSH1S.pdf
Manual: Manual-RIV4835CSH1S.pdf

• When charging the LCR or using inverter outlets on the LCR, renogy must be ON.
• The renogy must be OFF unless AC charging or using inverter. It must always be off if not in one of those conditions.

Schauer Charger

Link: Website
Manual: schauer_manual_jac1548h.pdf

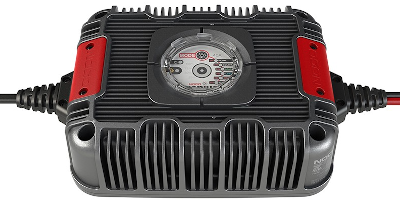

Charger Noco Genius 48V 20A SLA/LFP

Link: Website
Manual: gx4820_user_guide_2.17.15.pdf

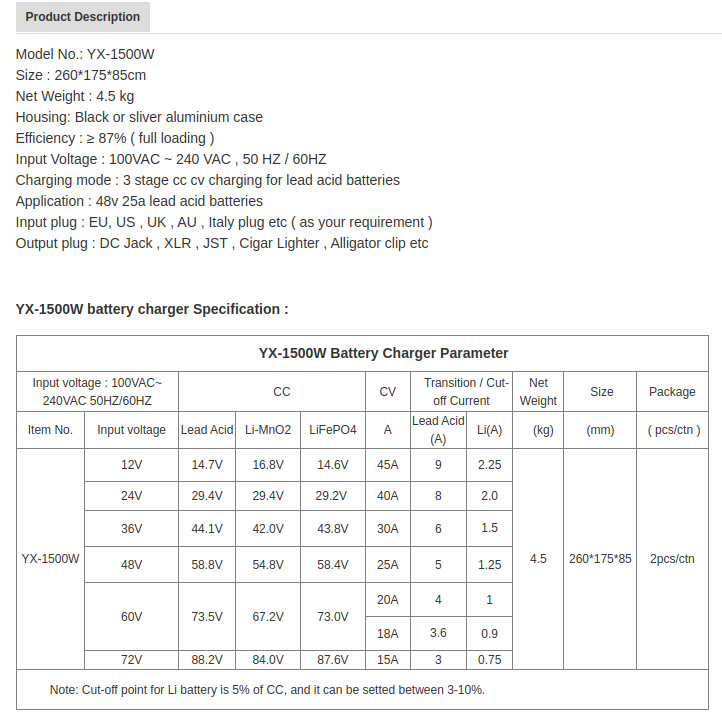

YXLN 48V 25A Sealed Lead Acid Battery Charger

Link: Website
Datasheet: YXLN 48V 25A SLA Battery Charger Datasheet
