Check your parts

Before building your conveyor system please check if all of the parts are there! The conveyor_system of is basicly made of plywood and acrylic glas. The production process is taken by a laser cutting machine. Choose the colour of the system by yourself and make the world more colourful! Share your design on instagram #deltarobotone

Lasercut parts

In the history of developing Delta-Robot One all layers parts were produced by cutcraft.de so we can recommend this shop because of the excellent quality and the friendly and helpfull team. To get the lasercut parts of this conveyor system send an email to [email protected] including the DXF-Files you want to order and add your material in the text like this and dont't forget to choose your favourite colour: 1x - plywood - 6mm - File: 0_Conveyor_Layer_6mm.dxf 1x - acrylic glass blue - 3mm - File: 1_Frame_Side_3mm.dxf 1x - acrylic glass blue - 3mm - File: 2_Frame_Drive_Side_3mm.dxf 1x - acrylic glass blue - 3mm - File: 3_Frame_Top_3mm.dxf 3x - acrylic glass blue - 3mm - File: 4_Carry_Front_3mm.dxf 2x - acrylic glass blue - 3mm - File: 5_Carry_Side_3mm.dxf 4x - acrylic glass blue - 3mm - File: 6_Wall_3mm.dxf

Number Part Image Material Source Provider
1x Conveyor Layer Recommended:Plywood STL, DXF, PDF, SVG Lasercutservice,your own Lasercutteror 3D-Printer

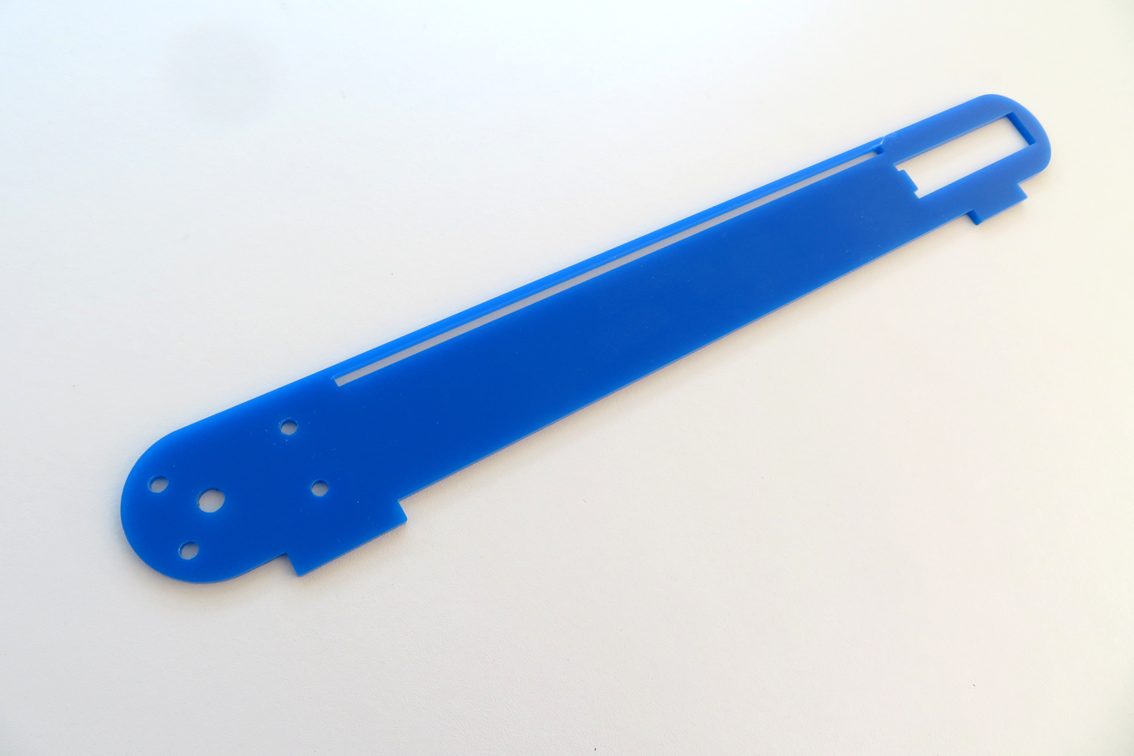

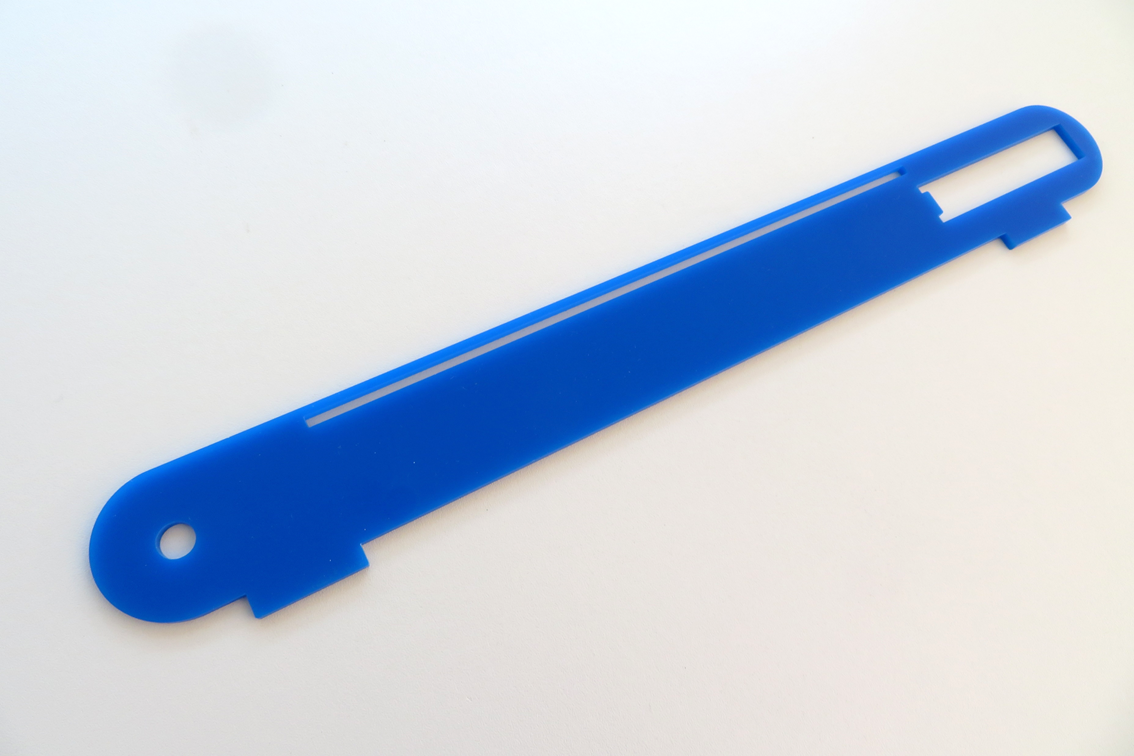

1x Frame Side Recommended:Plywood oracrylic glas STL, DXF, PDF, SVG Lasercutservice,your own Lasercutteror 3D-Printer
1x Frame Drive Side Recommended:Plywood oracrylic glas STL, DXF, PDF, SVG Lasercutservice,your own Lasercutteror 3D-Printer
1x Frame Top Recommended:Plywood oracrylic glas STL, DXF, PDF, SVG Lasercutservice,your own Lasercutteror 3D-Printer

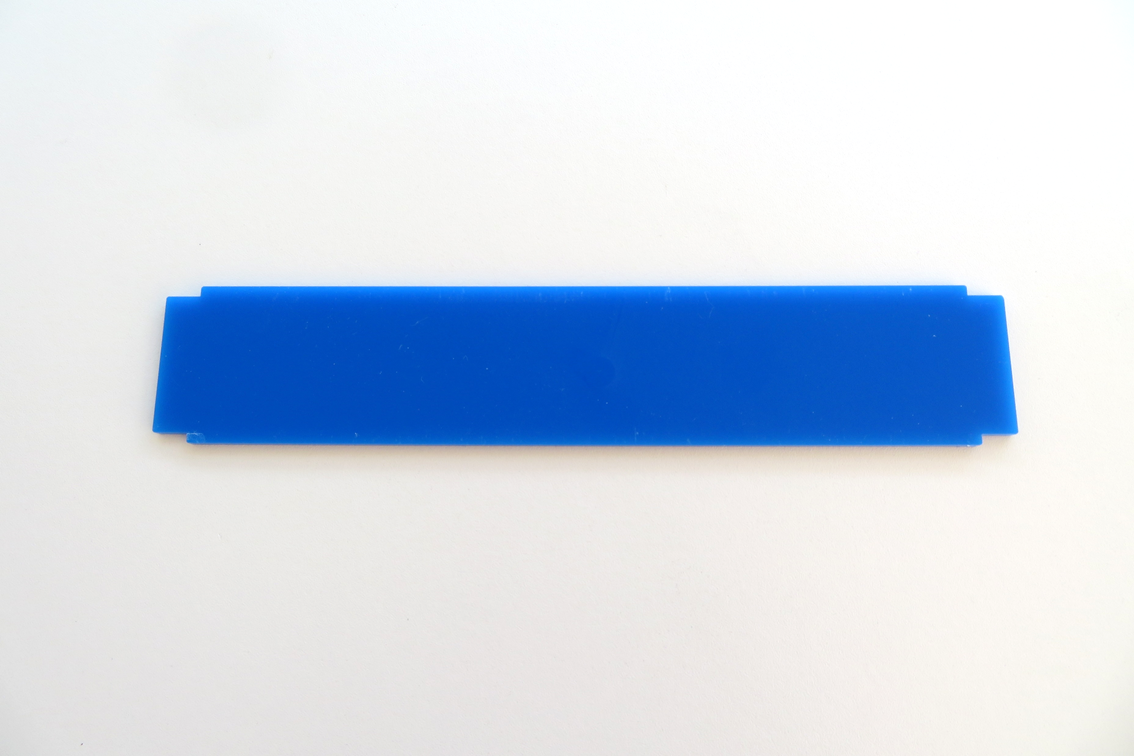

3x Carry Front Recommended:Plywood oracrylic glas STL, DXF, PDF, SVG Lasercutservice,your own Lasercutteror 3D-Printer

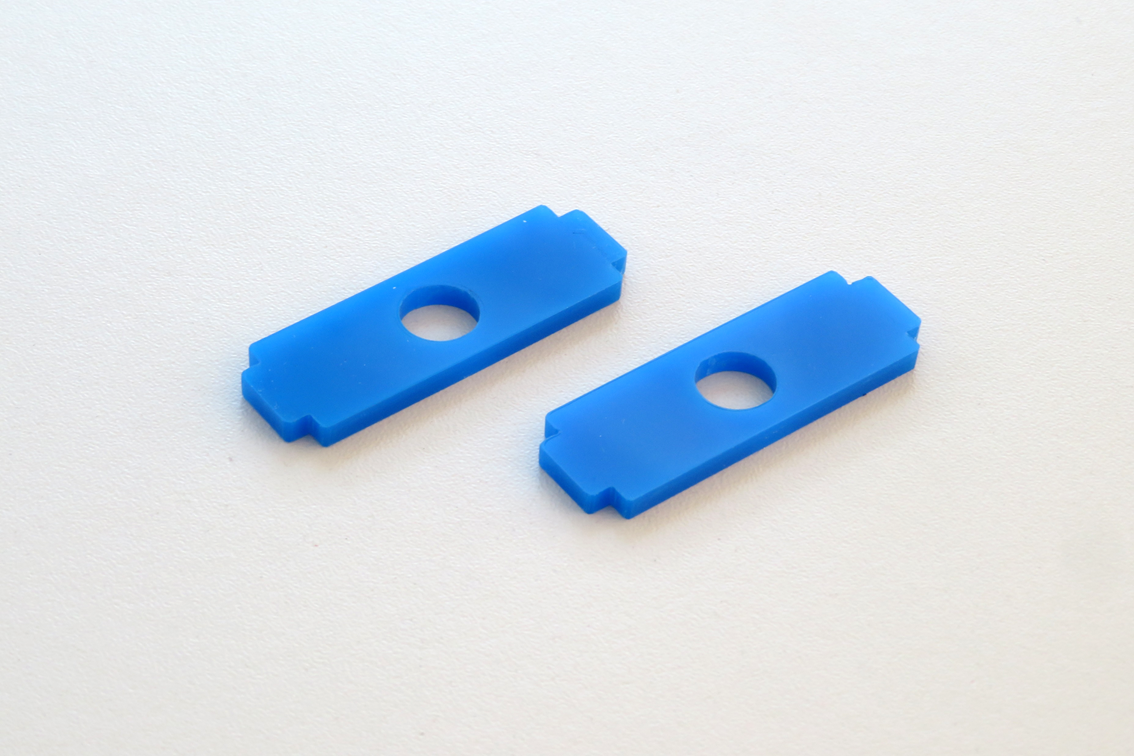

2x Carry Side Recommended:Plywood oracrylic glas STL, DXF, PDF, SVG Lasercutservice,your own Lasercutteror 3D-Printer

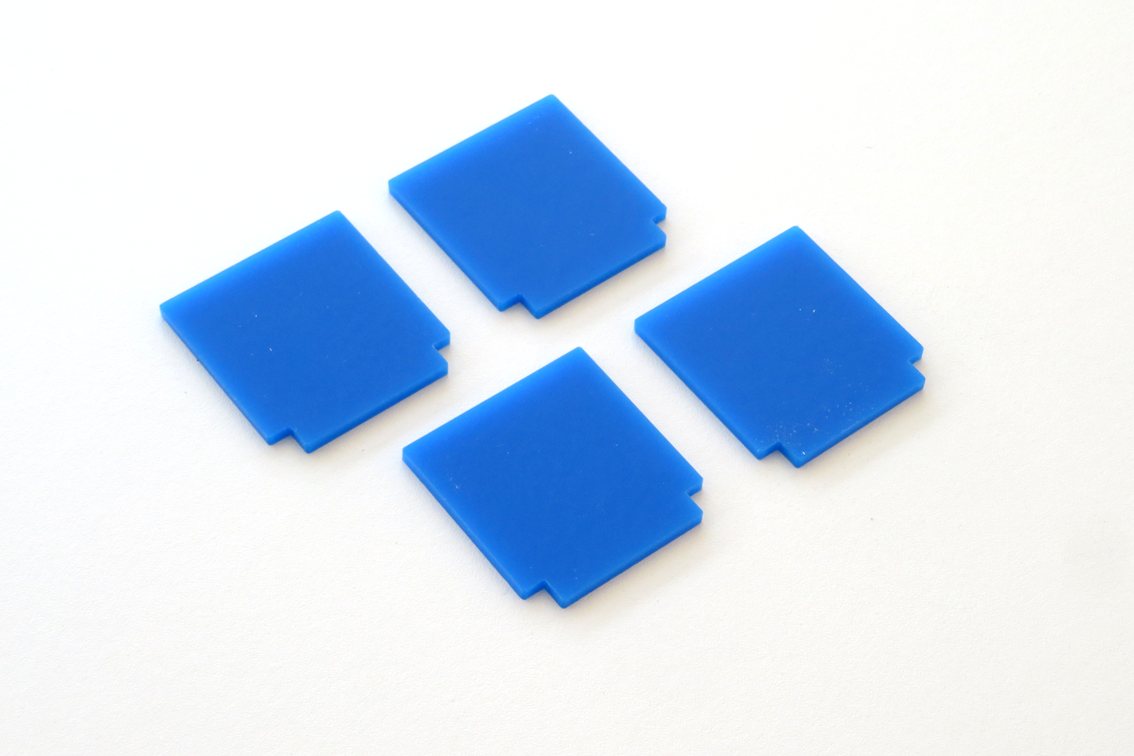

4x Wall Recommended:Plywood oracrylic glas STL, DXF, PDF, SVG Lasercutservice,your own Lasercutteror 3D-Printer

3D-Printed parts

In the history of developing Delta-Robot One all 3D-Printed parts were produced by i.materialise.com so we can recommend this shop because of the excellent quality and the easy way to get these parts. To get the 3d-Printed parts of this conveyor system go to https://i.materialise.com/de/3dprint upload the STL-Files found in the table after that introduction and choose the recommended material Polyamide including the 3D-Print-Method SLS. You can also choose the colour of your parts.

Number Part Image Material Source Provider

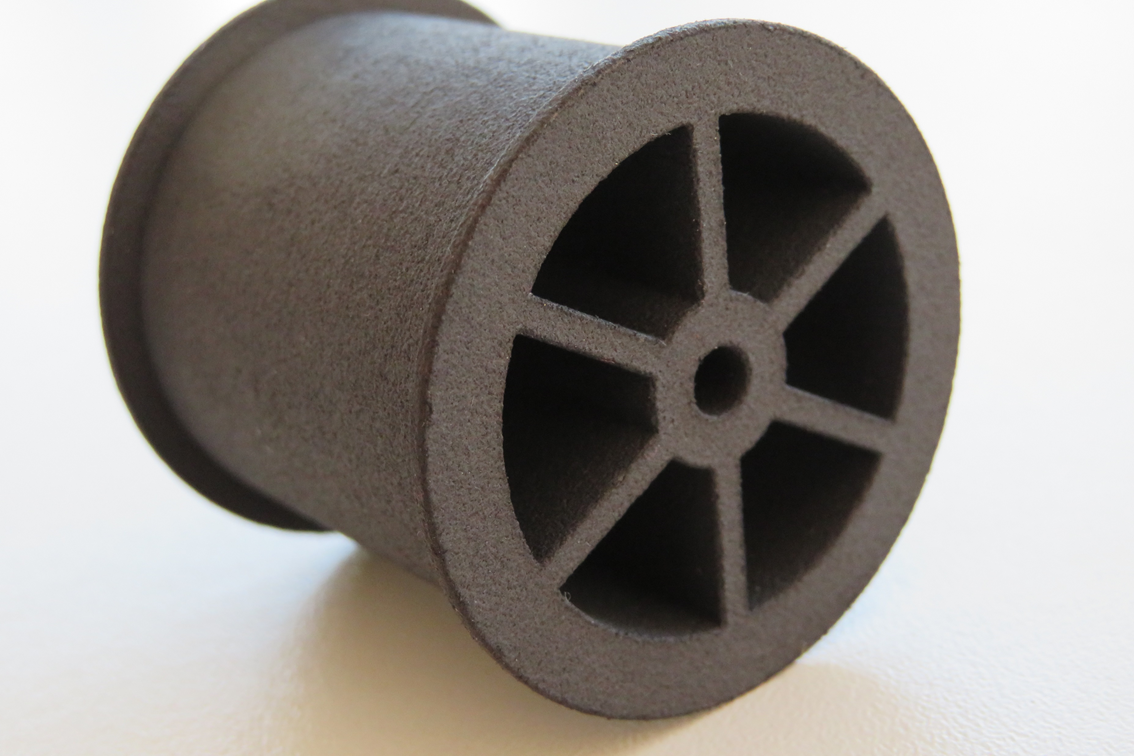

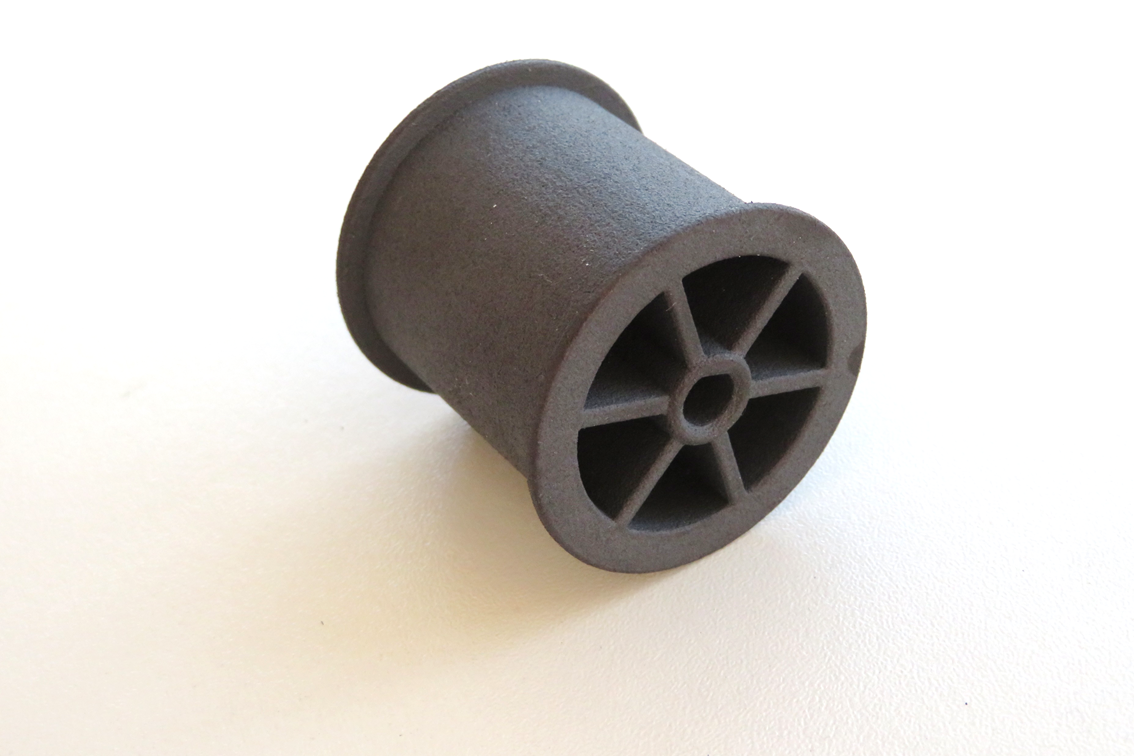

1x Drum Recommended:Polyamide (SLS) STL 3D-Printserviceor your own 3D-Printer
1x Drum Drive Recommended:Polyamide (SLS) STL 3D-Printserviceor your own 3D-Printer

Optional: Long pillars for Delta Robot-One

Number Part Image Source Provider
3x Pillar Long Recommended:Polyamide (SLS) STLPackage,STLSingle

Mechanics parts

Number Part Image Source Provider

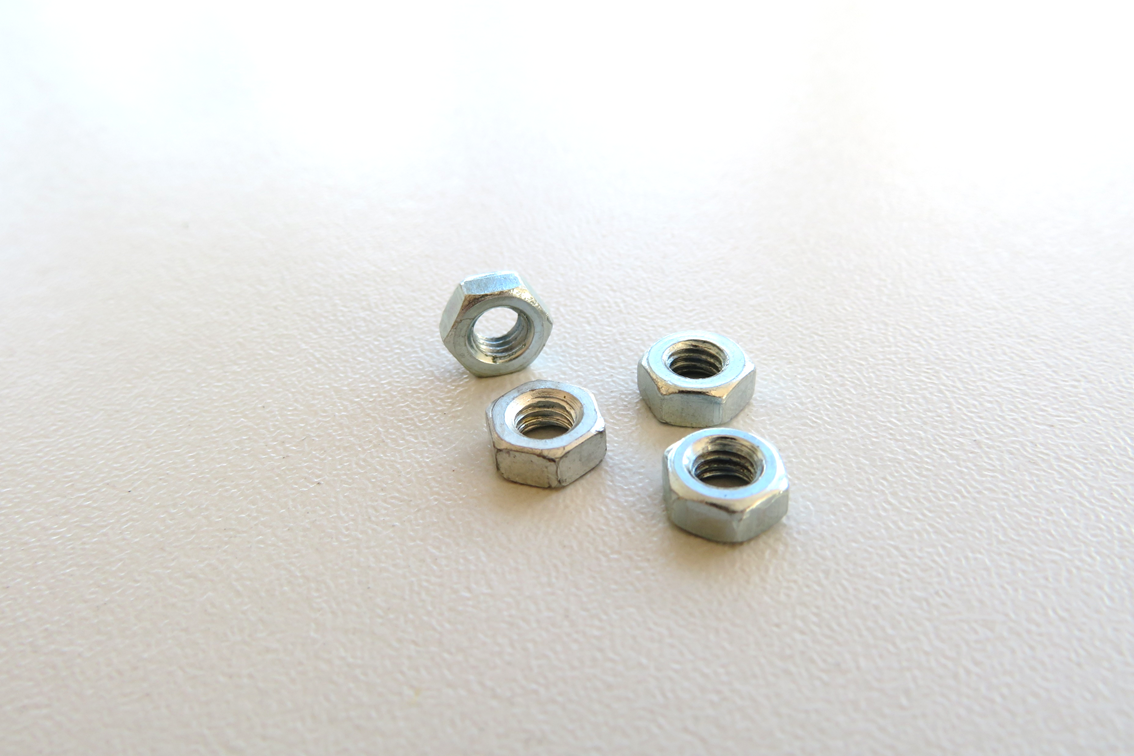

4x Hex nutM4 Link Amazon.com

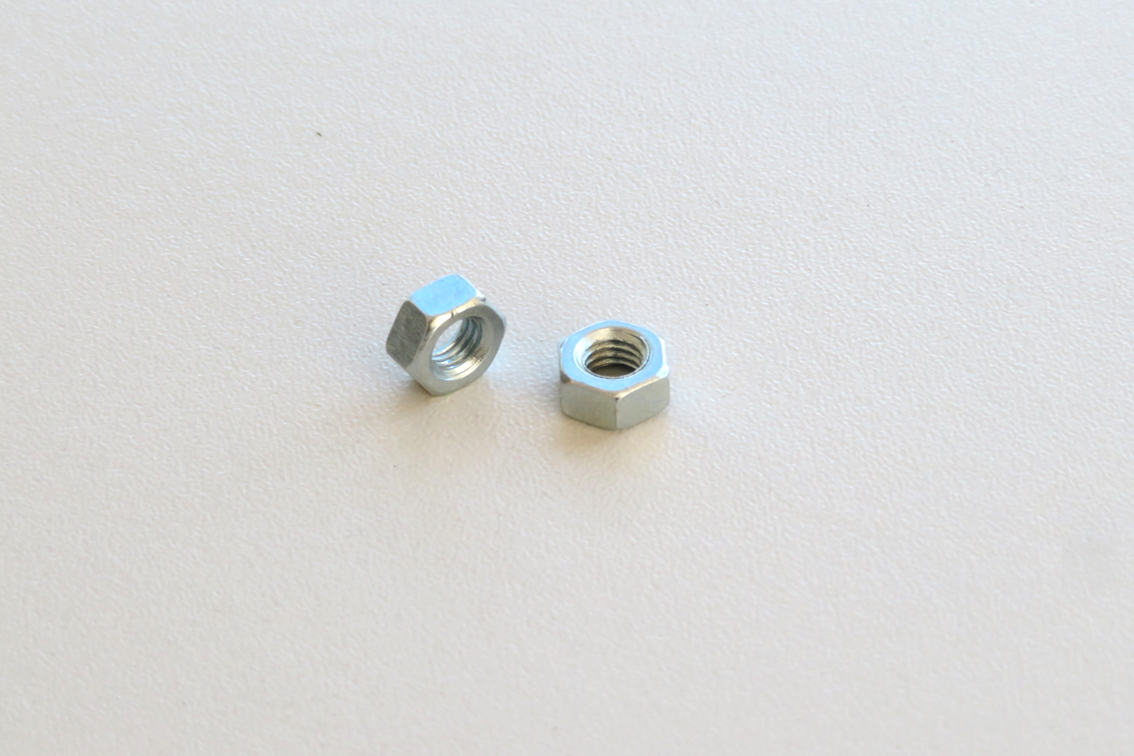

2x Hex nutM5 Link Amazon.com

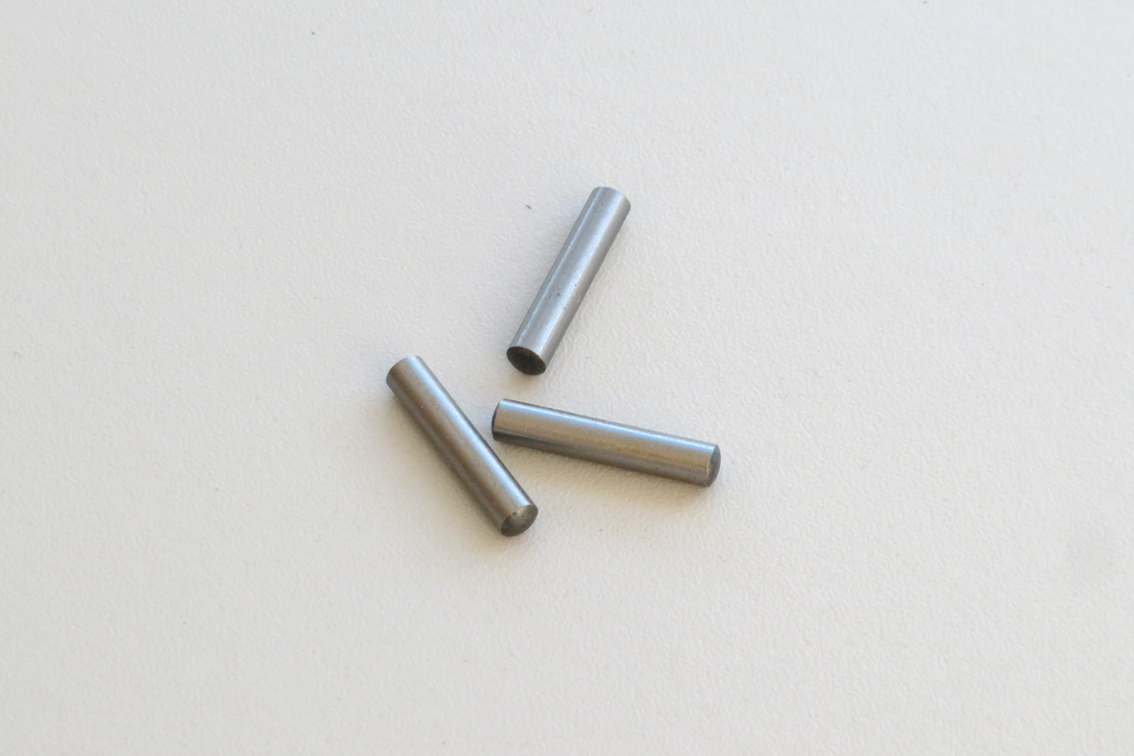

3x Cylindrical pin4mmx20mm Link Conrad.de

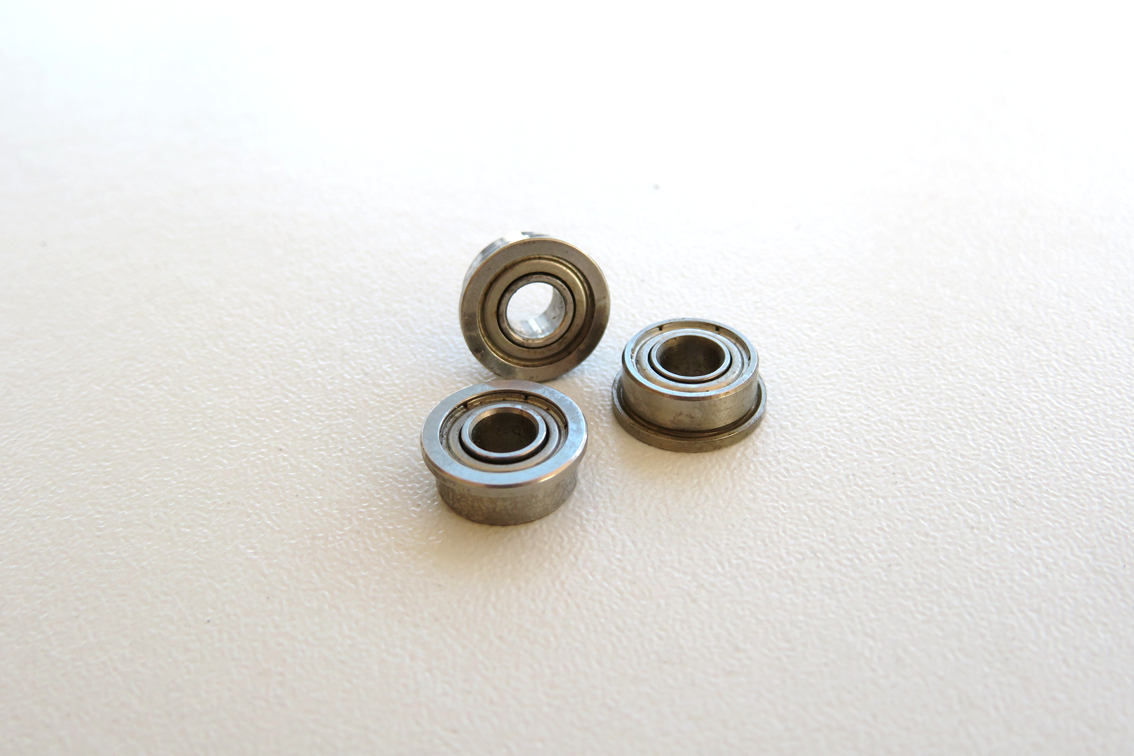

3x Ballbearing4mmx9mmx4mm Link Amazon.com
2x ScrewM3x6mm Link Amazon.com

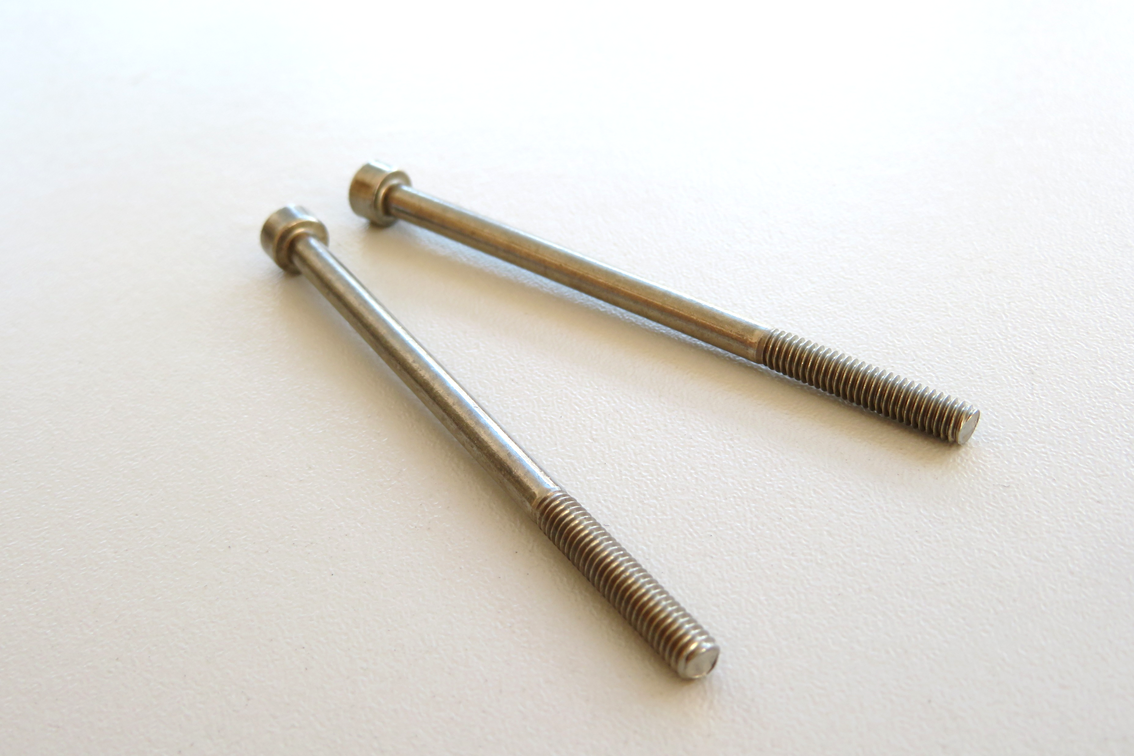

4x ScrewM4x70mm Link Amazon.com

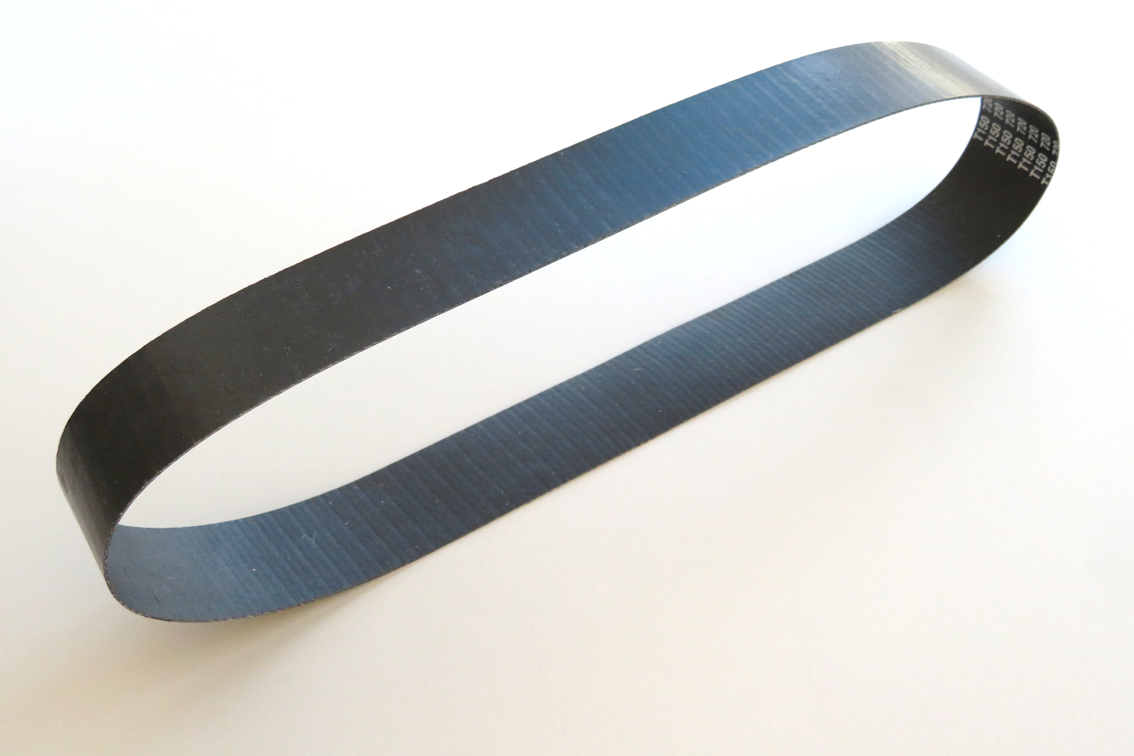

1x Flat belt T150 HF720mmx35mm Link Zahnriemen24.de

Electronics parts

Option 1: DC-Motor without encoder

Number Part Image Source Provider

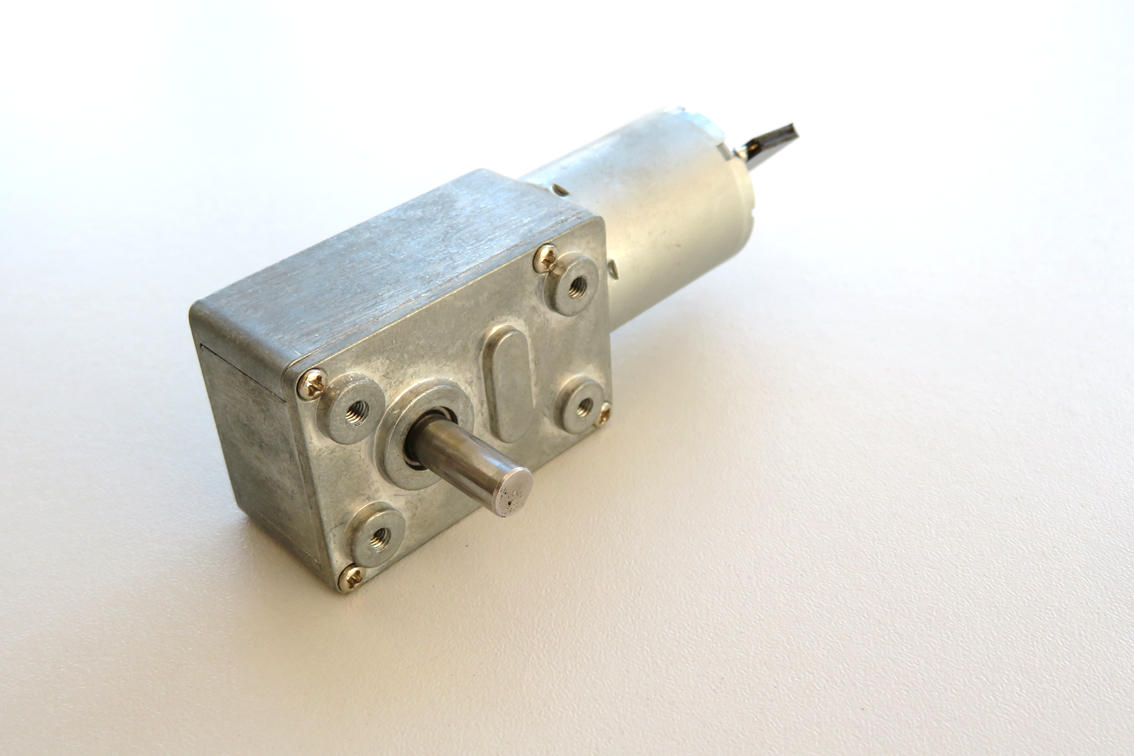

1x DC-Motor12V 62RPM Link Amazon.com

Option 2: DC-Motor with encoder

Number Part Image Source Provider

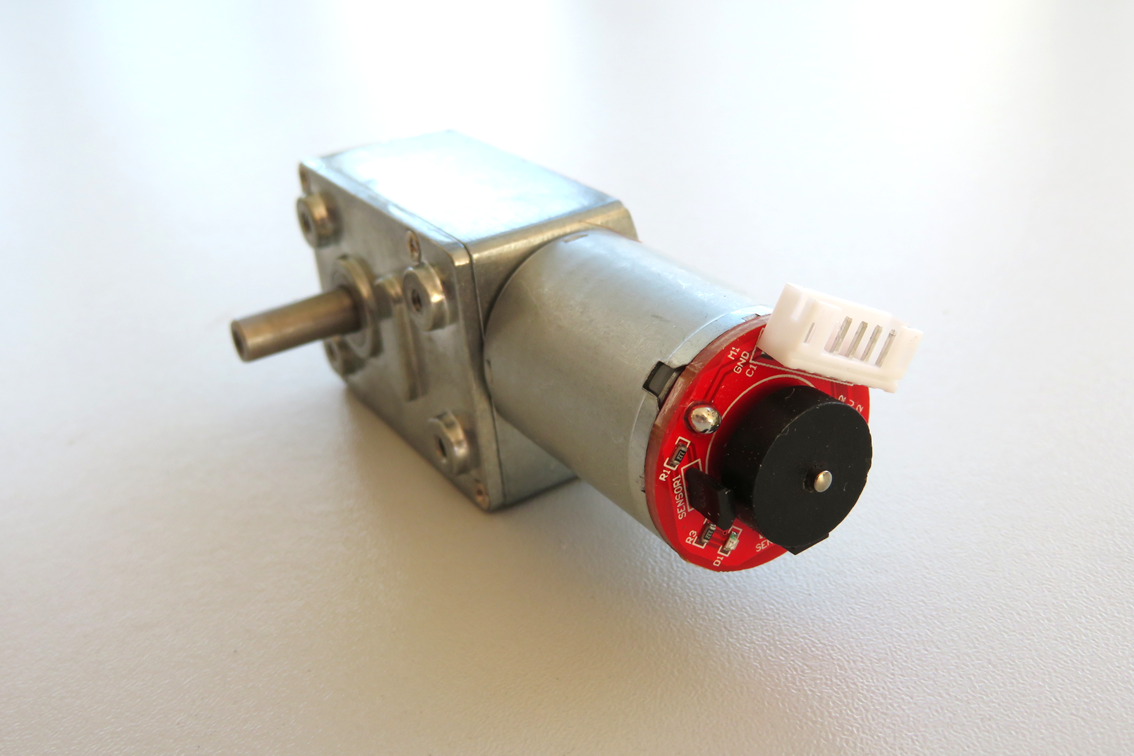

1x DC-Motor12V 100RPM Link Amazon.com
