SLIDE-1
Delegates
A delegate is a type safe function pointer.
The delegate is a reference type data type that defines the method signature.
A delegate holds the reference to a method and then calls the method for execution.
SLIDE-2
Why do we need delegates in C#?
We have seen that we can pass objects to method parameters. In the same way, programmers often needs to pass a method as a parameter of other methods. For this purpose we create and use delegates.
There are three steps involved while working with delegates:
- Declare a delegate
- Set a target method
- Invoke a delegate
One good way of understanding delegates is by thinking of a delegate as something that gives a name to a method signature.
SLIDE-3
1. Declare a delegate

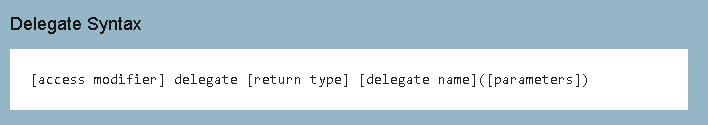

The process of declaring a delegate is simple, we just need to add the delegate keyword to the method signature that includes the return type as well.
Copy the method signature line, add the keyword delegate before the return type and put semicolon at the end of the statement.
Exclude the static keyword in delegate declaration even if the method is static.
Like given -- https://dotnetfiddle.net/iBWial
using System;
public delegate string Print(string message);
public class Program
{
public static void Main()
{
Console.WriteLine("Hello World");
}
public string Print(string message)
{
return "Hello " + message;
}
}
SLIDE-4
Example1:
https://dotnetfiddle.net/Fxaa41
using System;
public delegate string PrintDelegate(string message); //Step1: Declaring a delegate
public class Program
{
public static void Main()
{
Console.WriteLine("Hello World");
}
public string Print(string message)
{
return "Hello " + message;
}
}
SLIDE-5
Example2:
https://dotnetfiddle.net/vRmFeE
using System;
public delegate void AddDelegate(int a, int b); //Step1: Declare the Delegate
public class Program
{
public static void Main()
{
Console.WriteLine("Hello World");
}
public void Add(int a, int b)
{
Console.WriteLine(a + b);
}
}
SLIDE-6
Example3:
https://dotnetfiddle.net/1Cvj3X
using System;
public delegate void DiffDelegate(int x, int y); //Step1: Declare the Delegate
//The static keyword is not used while declaring the delegate
public class Program
{
public static void Main()
{
}
public static void Diff(int x, int y)
{
Console.WriteLine(x - y);
}
}
A delegate is a class that encapsulates a method signature.
SLIDE-7
2. Set a target method
In this stage, we create an instance of the delegate declared in step 1 and we pass the name of the target method as parameter to the constructor.
This is similar to creating an instance of a class. But here we have to pass a method as the constructor parameter. The method passed must have the same signature as the signature of the delegate.
The instance of a class is called an object, while instance of a delegate is called a delegate itself.
Example1:
https://dotnetfiddle.net/J76PTe
using System;
public delegate string PrintDelegate(string message); //Step1: Declaring a delegate
public class Program
{
public static void Main()
{
Program P = new Program();
PrintDelegate PrintDel = new PrintDelegate(P.Print); //Step 2: Creating instance of delegate and passing the target method
}
public string Print(string message)
{
return "Hello " + message;
}
}
SLIDE-8
Example2:
https://dotnetfiddle.net/qaMg2k
using System;
public delegate void AddDelegate(int a, int b); //Step1: Declare the Delegate
public class Program
{
public static void Main()
{
Program P = new Program();
AddDelegate AddDel = new AddDelegate(P.Add); //Step2: Create instance of Delegate and passing the target method
}
public void Add(int a, int b)
{
Console.WriteLine(a + b);
}
}
SLIDE-9
Example3:
https://dotnetfiddle.net/iTlajB
using System;
public delegate void DiffDelegate(int x, int y); //Step1: Declare the Delegate
//The static keyword is not used while declaring the delegate
public class Program
{
public static void Main()
{
DiffDelegate DiffDel=new DiffDelegate(Diff); //Step2: Create instance of Delegate and passing the target method
//Here we are passing the target method without object because the Diff method is static and
//exists in the same class.
}
public static void Diff(int x, int y)
{
Console.WriteLine(x - y);
}
}
SLIDE-10
3. Invoke a delegate In the third step, we call the target method. The target method can be invoked in 2 ways:
- Using the () operator or
- Using the Invoke() method
Example1:
https://dotnetfiddle.net/DIitNI
using System;
public delegate string PrintDelegate(string message); //Step1: Declaring a delegate
public class Program
{
public static void Main()
{
Program P = new Program();
PrintDelegate PrintDel = new PrintDelegate(P.Print); //Step 2: Creating instance of delegate and passing the target method
string result1 = PrintDel("John"); //Step 3: Invoking the Delegate using () operator.
Console.WriteLine(result1);
string result2 = PrintDel.Invoke("Peter"); //Step 3: Invoking the Delegate using Invoke method.
Console.WriteLine(result2);
}
public string Print(string message)
{
return "Hello " + message;
}
}
SLIDE-11
Example2:
https://dotnetfiddle.net/vyS0VR
using System;
public delegate void AddDelegate(int a, int b); //Step1: Declare the Delegate
public class Program
{
public static void Main()
{
Program P = new Program();
AddDelegate AddDel = new AddDelegate(P.Add); //Step2: Create instance of Delegate and passing the target method
AddDel(10, 25); //Step 3: Invoking the Delegate using () operator.
AddDel(100, 234); //Step 3: Invoking the Delegate using Invoke method.
}
public void Add(int a, int b)
{
Console.WriteLine(a + b);
}
}
SLIDE-12
Example3:
https://dotnetfiddle.net/PaUx2M
using System;
public delegate void DiffDelegate(int x, int y); //Step1: Declare the Delegate
//The static keyword is not used while declaring the delegate
public class Program
{
public static void Main()
{
DiffDelegate DiffDel = new DiffDelegate(Diff); //Step2: Create instance of Delegate and passing the target method
//Here we are passing the target method without object because the Diff method is static and
//exists in the same class.
DiffDel(33, 14); //Step 3: Invoking the Delegate using () operator.
DiffDel.Invoke(45, 34); //Step 3: Invoking the Delegate using Invoke method.
}
public static void Diff(int x, int y)
{
Console.WriteLine(x - y);
}
}
Most often Delegates are declared outside the classes just under the namespace/
SLIDE-13
// Delegates declared outside the class, ie under the namespace
https://dotnetfiddle.net/1dMgvs
using System;
// Delegates declared outside the class
public delegate void AddNumDelegate(int a, int b);
public delegate void SubNumDelegate(int a, int b);
public class Calculator
{
public void sum(int a, int b)
{
Console.WriteLine("{0}+{1}={2}",a,b,a+b);
}
public void diff(int a, int b)
{
Console.WriteLine("{0}-{1}={2}",a,b,a-b);
}
}
public class Program
{
public static void Main()
{
Calculator Calc=new Calculator();
AddNumDelegate myAddDelegate=new AddNumDelegate(Calc.sum);
myAddDelegate(144,48);
SubNumDelegate mySubDelegate=new SubNumDelegate(Calc.diff);
mySubDelegate(123,45);
}
}
SLIDE-14
//When delegate is declared in the class where it is called
In this case
https://dotnetfiddle.net/PwOl5s
using System;
//When delegate is declared in the class where it is called
public class Calculator
{
public void Sum(int a, int b)
{
Console.WriteLine("{0}+{1}={2}", a, b, a + b);
}
public void Diff(int a, int b)
{
Console.WriteLine("{0}-{1}={2}", a, b, a - b);
}
}
public class Program
{
public delegate void AddNumDelegate(int a, int b);
public delegate void SubNumDelegate(int a, int b);
public static void Main()
{
Calculator Calc = new Calculator();
AddNumDelegate myAddDelegate = Calc.Sum;
myAddDelegate(144, 48);
SubNumDelegate mySubDelegate = Calc.Diff;
mySubDelegate(123, 45);
}
}
SLIDE-15
Passing a Delegate to a method
https://dotnetfiddle.net/KZDcFZ
using System;
public delegate string PrintDelegate(string name); //2. Create the Delegate
public class Program
{
public static void Main()
{
PrintDelegate printDel = new PrintDelegate(Print); //5. Create instance of Delegate
Printer(printDel); //6. Call the method
}
public static string Print(string name) //1. Create the method that should be passed to delegate
{
return "Hello " + name + ". Good Morning";
}
public static void Printer(PrintDelegate printDel) //3.Create the method that takes delegate as parameter and pass the delegate as parameter
{
for (int i = 0; i < 10; i++)
{
Console.WriteLine(printDel("John")); //4. Invoke the delegate
}
}
}
SLIDE-16
Uses of Delegates:
- Type safety during method calls
- Helps with encapsulation of methods
SOME FACTS ABOUT DELEGATES
- Delegates are reference type but instead of referencing objects it reference methods.
- Delegates have no method body.
- Delegates are type-safe, object-oriented and secure.
- A Delegate is a function pointer that allows you to reference a method.
- Delegates encapsulate methods.
- A Function that is added to delegates must have same return type and same signature as delegate.
