Slide 1

HTTP

**HTTP is an extensible protocol that relies on concepts like resources and Uniform Resource Identifiers (URIs), simple message structure, and client-server communication flow. **

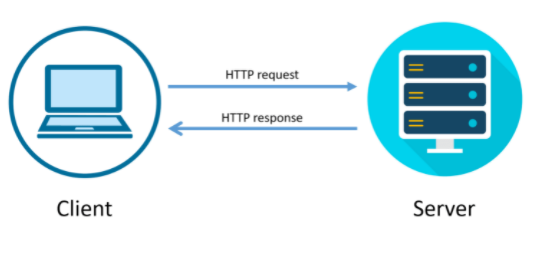

Clients and servers communicate by exchanging individual messages (as opposed to a stream of data). The messages sent by the client, usually a Web browser, are called requests and the messages sent by the server as an answer are called responses.


Slide 2

HTTP Requests

Start line

HTTP requests are messages sent by the client to initiate an action on the server. Their start-line contain three elements:

  1. An HTTP method, a verb (like GET, PUT or POST) or a noun (like HEAD or OPTIONS), that describes the action to be performed. For example, GET indicates that a resource should be fetched or POST means that data is pushed to the server (creating or modifying a resource, or generating a temporary document to send back).

  2. The request target, usually a URL, or the absolute path of the protocol, port, and domain are usually characterized by the request context. The format of this request target varies between different HTTP methods. It can be

    • An absolute path, ultimately followed by a '?' and query string. This is the most common form, known as the origin form, and is used with GET, POST, HEAD, and OPTIONS methods.

POST / HTTP/1.1

GET /background.png HTTP/1.0

HEAD /test.html?query=alibaba HTTP/1.1

OPTIONS /anypage.html HTTP/1.0

Slide 3

  • A complete URL, known as the absolute form, is mostly used with GET when connected to a proxy. GET https://developer.mozilla.org/en-US/docs/Web/HTTP/Messages HTTP/1.1
  • The authority component of a URL, consisting of the domain name and optionally the port (prefixed by a ':'), is called the authority form. It is only used with CONNECT when setting up an HTTP tunnel. CONNECT developer.mozilla.org:80 HTTP/1.1
  • The asterisk form, a simple asterisk ('*') is used with OPTIONS, representing the server as a whole. OPTIONS * HTTP/1.1
  1. The HTTP version, which defines the structure of the remaining message, acting as an indicator of the expected version to use for the response.
